PIXEL BAR
PIXEL BAR
Discontinued
SKU# PIX037

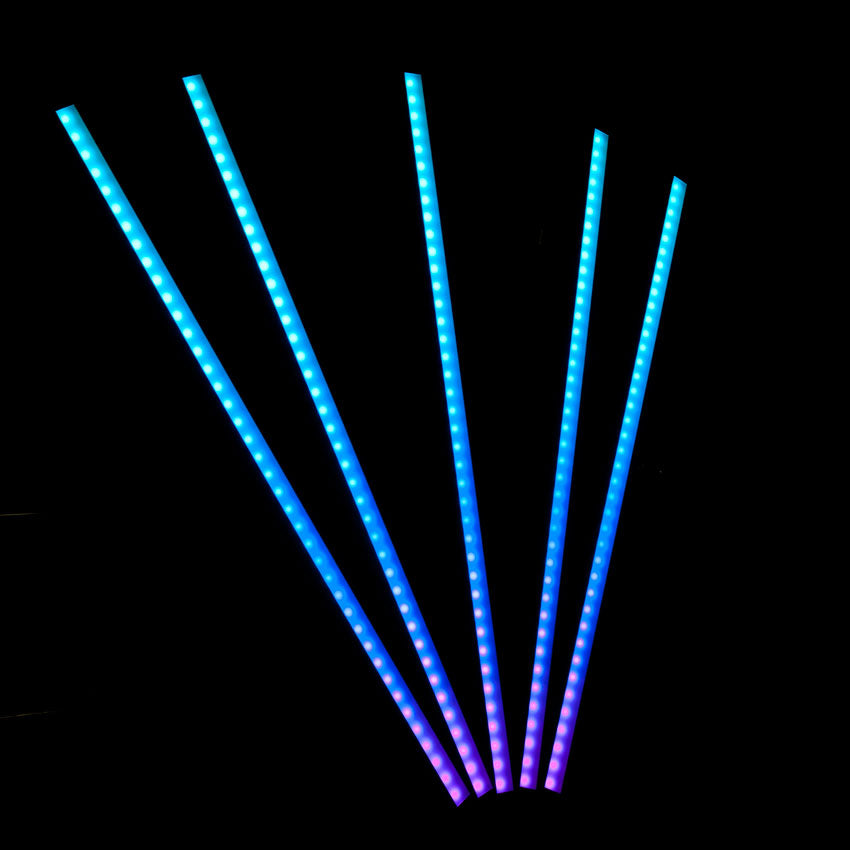

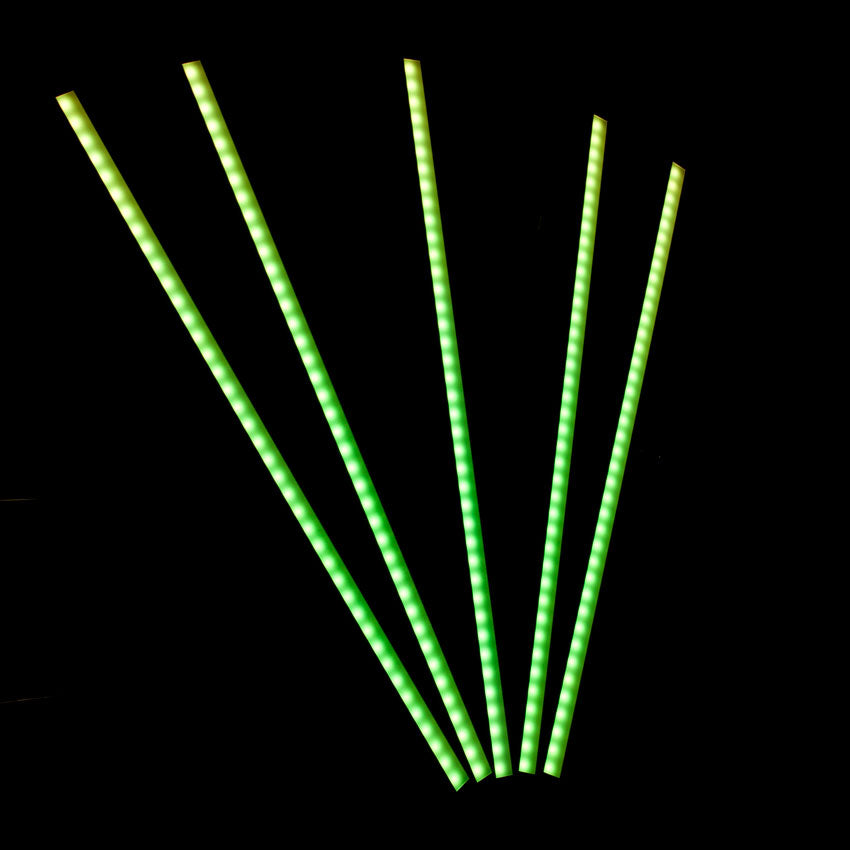

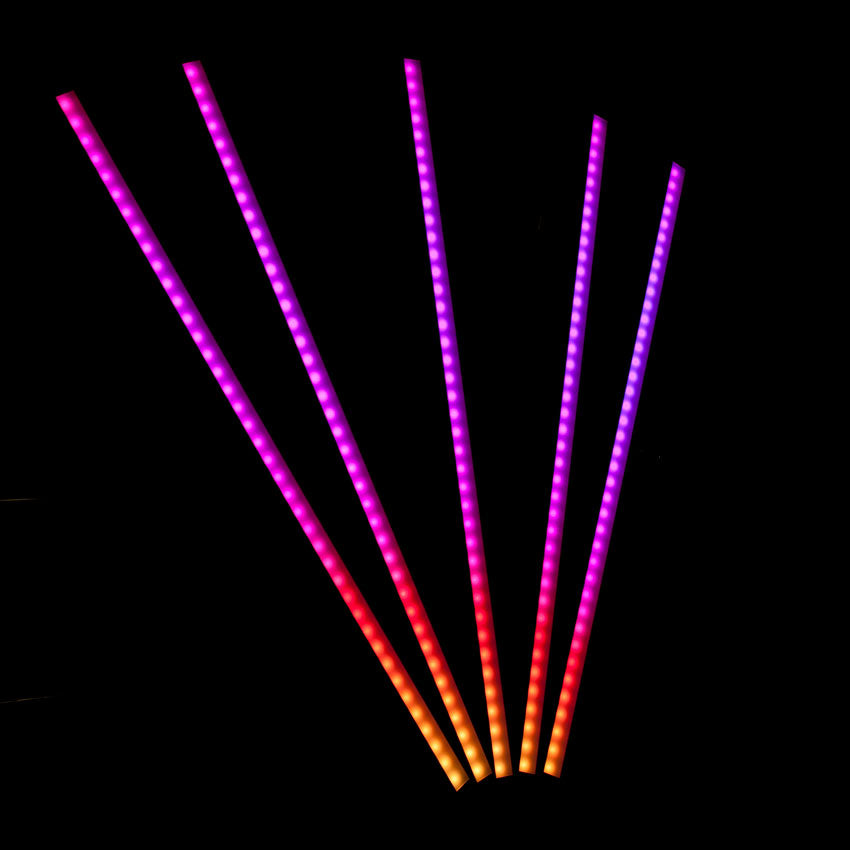

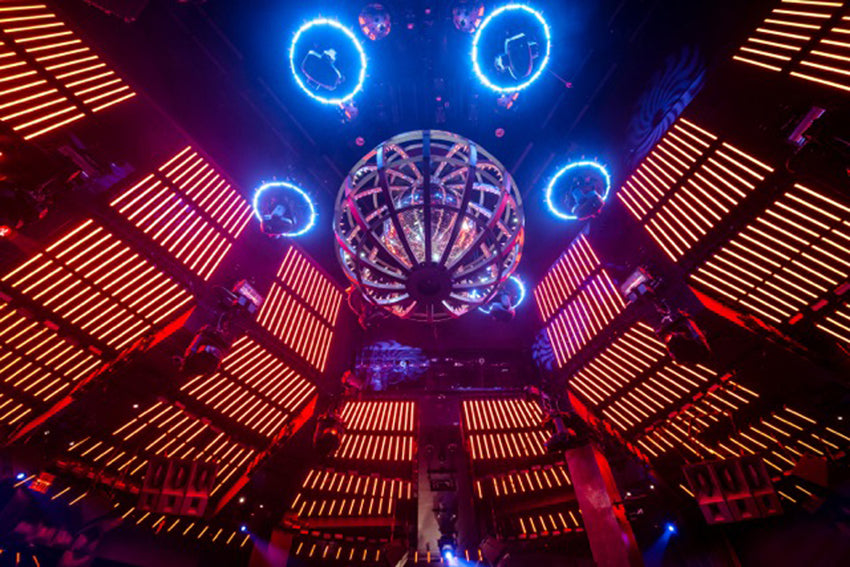

The Pixel Bar™ series is available in 12, 20, or 40 pixels lengths, all featuring 3-in-1 SMD LEDs producing a 25mm pixel pitch, 16.7 million colors with 8 bits per color, 850 NITs, 2000Hz refresh rate, DC24V, (2) RJ45 CAT5e ports (input/output) connections, flicker free operation for broadcast TV and FILM, multiple unit linkable, extruded aluminum housing, and integrated adjustable mounting brackets/clamps.
Features
25mm Pixel Pitch
850 NITs / 2000Hz Refresh Rate
Extruded Aluminum Housing
850 NITs / 2000Hz Refresh Rate
Extruded Aluminum Housing
Resources
Specifications Sheet
User Manual
Photometric Data
DMX Traits
Dimensional Drawing
- PIXEL BAR 12 Dimensional Drawings
- PIXEL BAR 20 Dimensional Drawings
- PIXEL BAR 40 Dimensional Drawings
CAD Drawing
Vectorworks Symbol
Related Categories
Specifications
SOURCE
Pixel Bar 12™ (12) 3-in-1 SMD LEDs
Pixel Bar 20™ (20) 3-in-1 SMD LEDs
Pixel Bar 40™ (40) 3-in-1 SMD LEDs
PHOTOMETRIC DATA
82 LUX 8 FC @1.6’ (0.5m) 120° Full ON
COLOR
16.7 Million Colors / 8 Bits Per Color
CONTROL / CONNECTIONS
Pixel Bar 12™ - 36 DMX Channels
Multiple Unit Linkable (52 per PIXEL NET 4™ device)
With Wired Digital Communication Network
Pixel Bar 20™ - 60 DMX Channels
Multiple Unit Linkable (32 units per PIXEL NET 4™ device)
With Wired Digital Communication Network
Pixel Bar 40™ - 120 DMX Channels
Multiple Unit Linkable (16 units per PIXEL NET 4™ device)
With Wired Digital Communication Network
(2) RJ45 CAT5e Input / Output (All Models)
SIZE / WEIGHT
Pixel Bar 12™
Length: 13.1” (333mm)
Width: 1.5” (38.2mm)
Vertical Height: 3.6” (92.6mm)
Weight: 2.5 lbs. (1.12kg)
Pixel Bar 20™
Length: 19.7” (500mm)
Width: 1.5” (38.2mm)
Vertical Height: 3.6” (92.6mm)
Weight: 3.6 lbs. (1.63kg)
Pixel Bar 40™
Length: 39.4” (1000mm)
Width: 1.5” (38.2mm)
Vertical Height: 3.6” (92.6mm)
Weight: 5.5 lbs. (2.5kg)
ELECTRICAL / THERMAL
DC-24V
Pixel Bar 12™ 4.8W Max Power Consumption
Pixel Bar 20™ 8W Max Power Consumption
Pixel Bar 40™ 16W Max Power Consumption
32°F to 104°F (0°C to 40°C)
APPROVALS / RATINGS
CE | cETLus | IP20
OPTIONAL ACCESSORIES:
PIX167 - Pixel Bar 12 Tube Lens
PIX155 - Pixel Bar 20 Tube Lens
PIX142 - Pixel Bar 40 Tube Lens
Specifications and documentation subject to change without notice.
