Discontinued

PIXEL BAR is a professional-grade lighting solution. The Pixel Bar™ series is available in 12, 20, or 40 pixels lengths, all featuring 3-in-1 SMD LEDs producing a 25mm pixel pitch, 16.7 million colors with 8 bits per color, 850 NITs, 2000Hz refresh rate, DC24V, (2) RJ45 CAT5e ports (input/output) connections, flicker free operation for broadcast TV and FILM, multiple unit linkable, extruded aluminum housing, and integrated adjustable mounting brackets/clamps.

UPC: 837874018158SKU: PIX037

PIXEL BAR

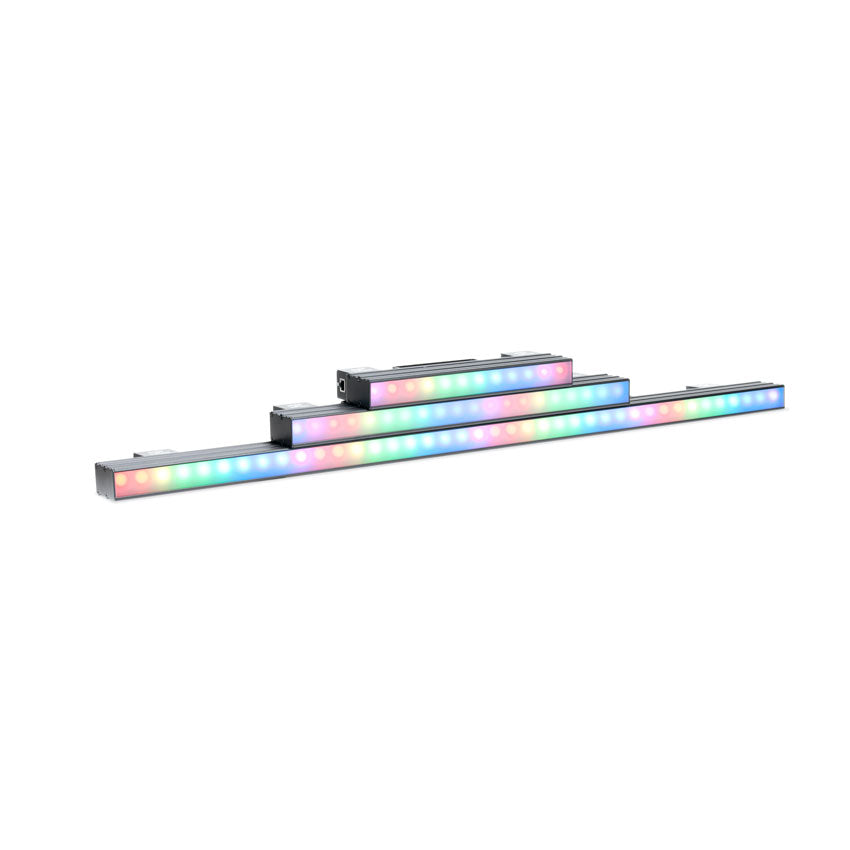

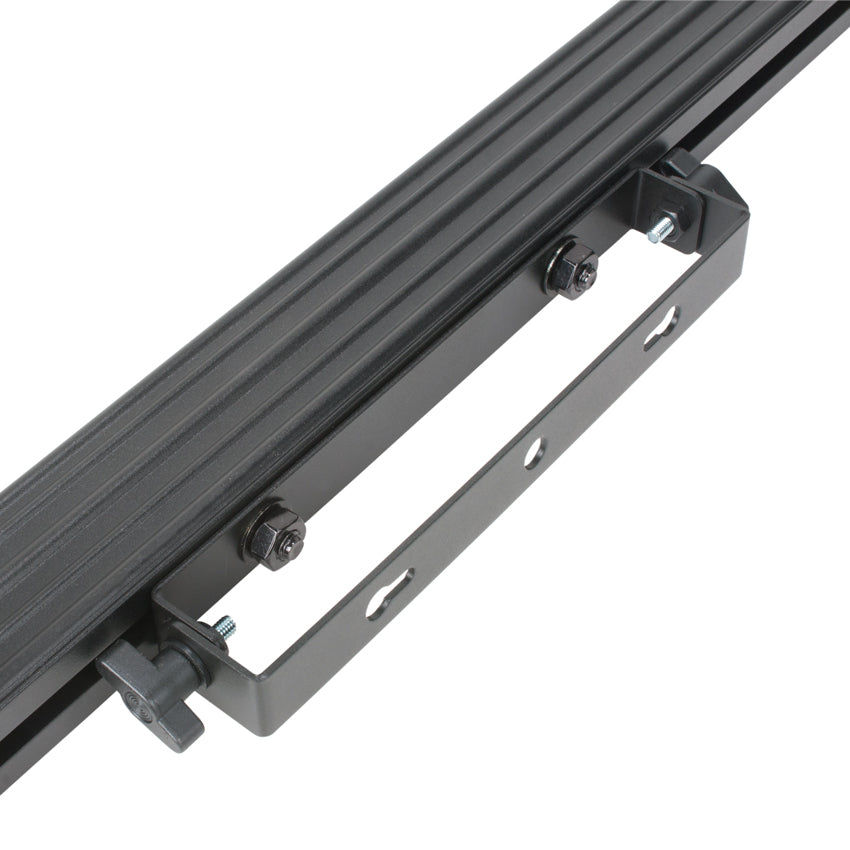

The Pixel Bar™ series is available in 12, 20, or 40 pixels lengths, all featuring 3-in-1 SMD LEDs producing a 25mm pixel pitch, 16.7 million colors with 8 bits per color, 850 NITs, 2000Hz refresh rate, DC24V, (2) RJ45 CAT5e ports (input/output) connections, flicker free operation for broadcast TV and FILM, multiple unit linkable, extruded aluminum housing, and integrated adjustable mounting brackets/clamps.
 25mm Pixel Pitch
 850 NITs / 2000Hz Refresh Rate
 Extruded Aluminum Housing


Specifications

SOURCE
Pixel Bar 12™(12) 3-in-1 SMD LEDs
Pixel Bar 20™(20) 3-in-1 SMD LEDs
Pixel Bar 40™(40) 3-in-1 SMD LEDs

PHOTOMETRIC DATA
82 LUX 8 FC @1.6’ (0.5m) 120° Full ON

COLOR
16.7 Million Colors / 8 Bits Per Color

CONTROL / CONNECTIONS
Pixel Bar 12™- 36 DMX Channels
Multiple Unit Linkable (52 per PIXEL NET 4™ device)
With Wired Digital Communication Network

Pixel Bar 20™- 60 DMX Channels
Multiple Unit Linkable (32 units per PIXEL NET 4™ device)
With Wired Digital Communication Network

Pixel Bar 40™- 120 DMX Channels
Multiple Unit Linkable (16 units per PIXEL NET 4™ device)
With Wired Digital Communication Network

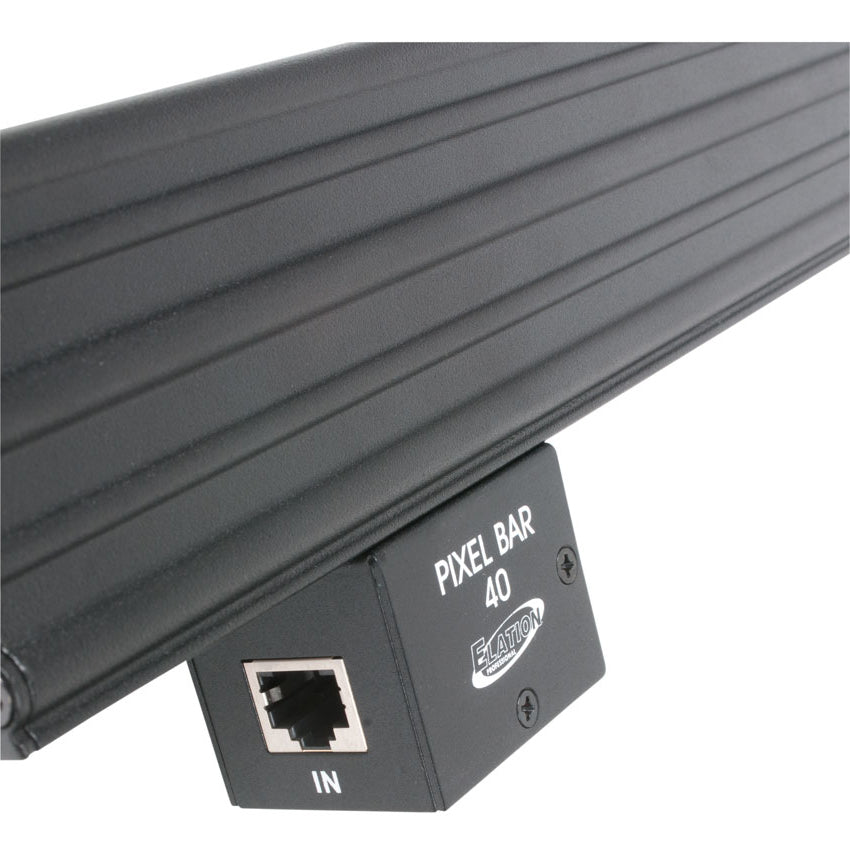

(2) RJ45 CAT5e Input / Output (All Models)

SIZE / WEIGHT
Pixel Bar 12™
Length: 13.1&" (333mm)
Width: 1.5&" (38.2mm)
Vertical Height: 3.6&" (92.6mm)
Weight: 2.5 lbs. (1.12kg)

Pixel Bar 20™
Length: 19.7&" (500mm)
Width: 1.5&" (38.2mm)
Vertical Height: 3.6&" (92.6mm)
Weight: 3.6 lbs. (1.63kg)

Pixel Bar 40™
Length: 39.4&" (1000mm)
Width: 1.5&" (38.2mm)
Vertical Height: 3.6&" (92.6mm)
Weight: 5.5 lbs. (2.5kg)

ELECTRICAL / THERMAL
DC-24V
Pixel Bar 12™4.8W Max Power Consumption
Pixel Bar 20™8W Max Power Consumption
Pixel Bar 40™16W Max Power Consumption
32°F to 104°F (0°C to 40°C)

APPROVALS / RATINGS
CE | cETLus | IP20


OPTIONAL ACCESSORIES:

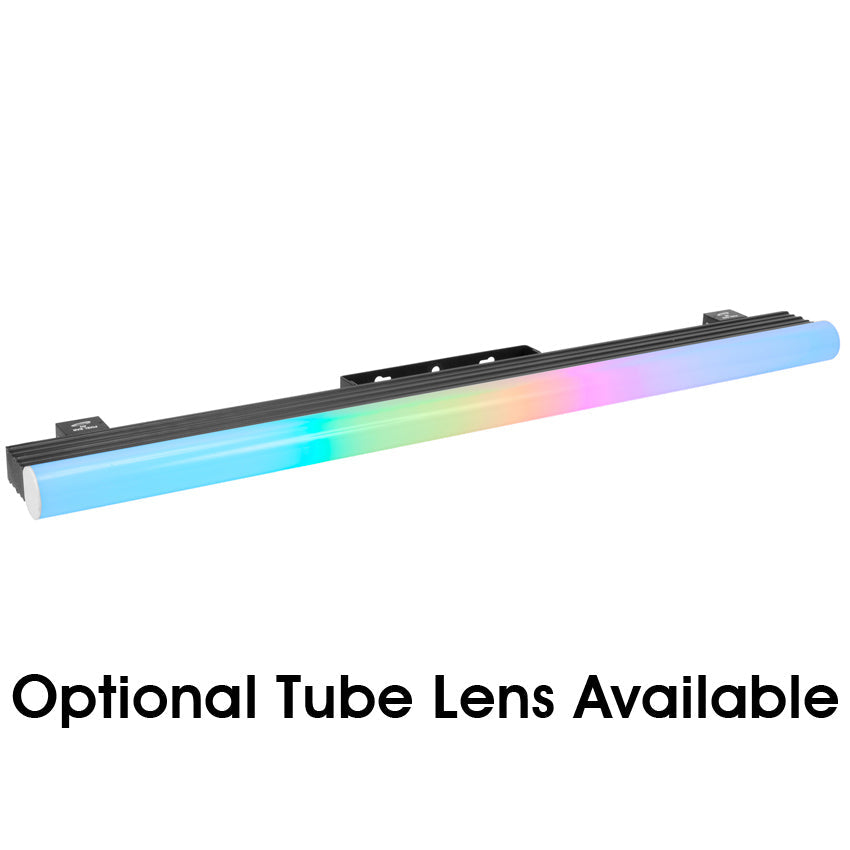

PIX167- Pixel Bar 12 Tube Lens

PIX155- Pixel Bar 20 Tube Lens

PIX142- Pixel Bar 40 Tube Lens


Specifications and documentation subject to change without notice.

Downloads

Dimensional drawings
