PIXEL BAR 30IP

Features

Outdoor IP65 Rated
(30) RGB SMD LEDs | 0.5 meter / 1.6 feet
16mm Pixel Pitch | 44,000Hz PWM
Flicker Free Operation for Broadcast TV and FILM

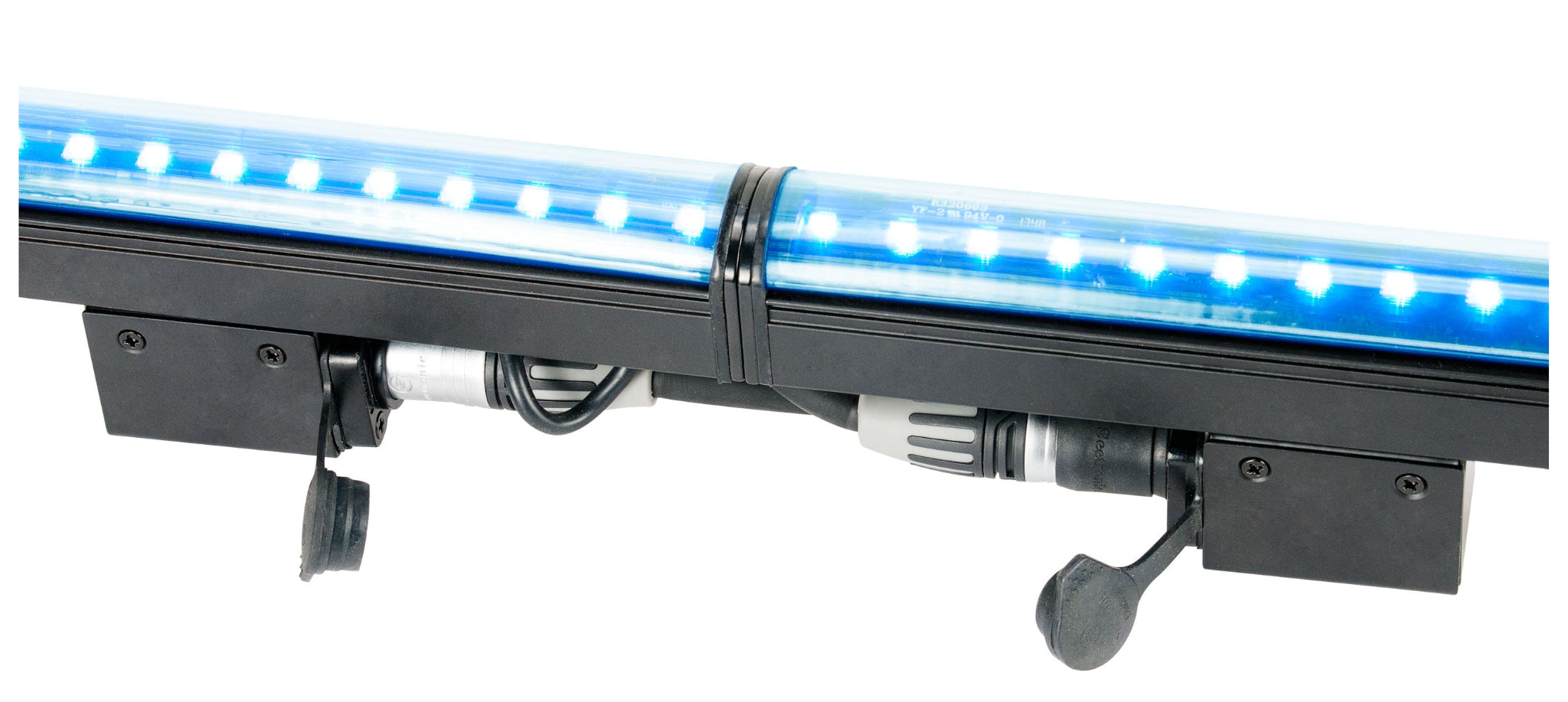

Magnetic End Caps - Seamless End-to-End Spacing

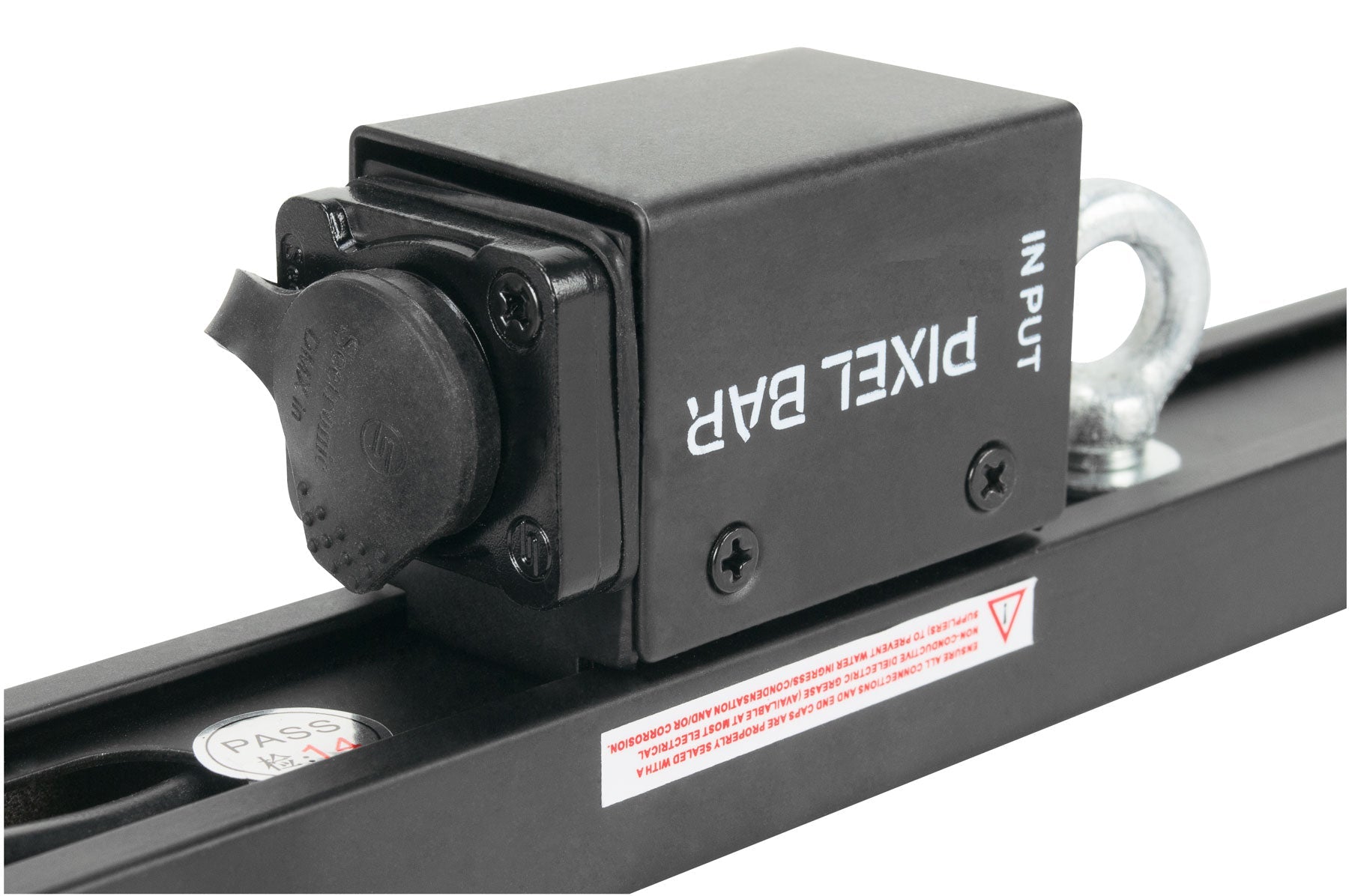

Integrated Adjustable Mounting Bracket

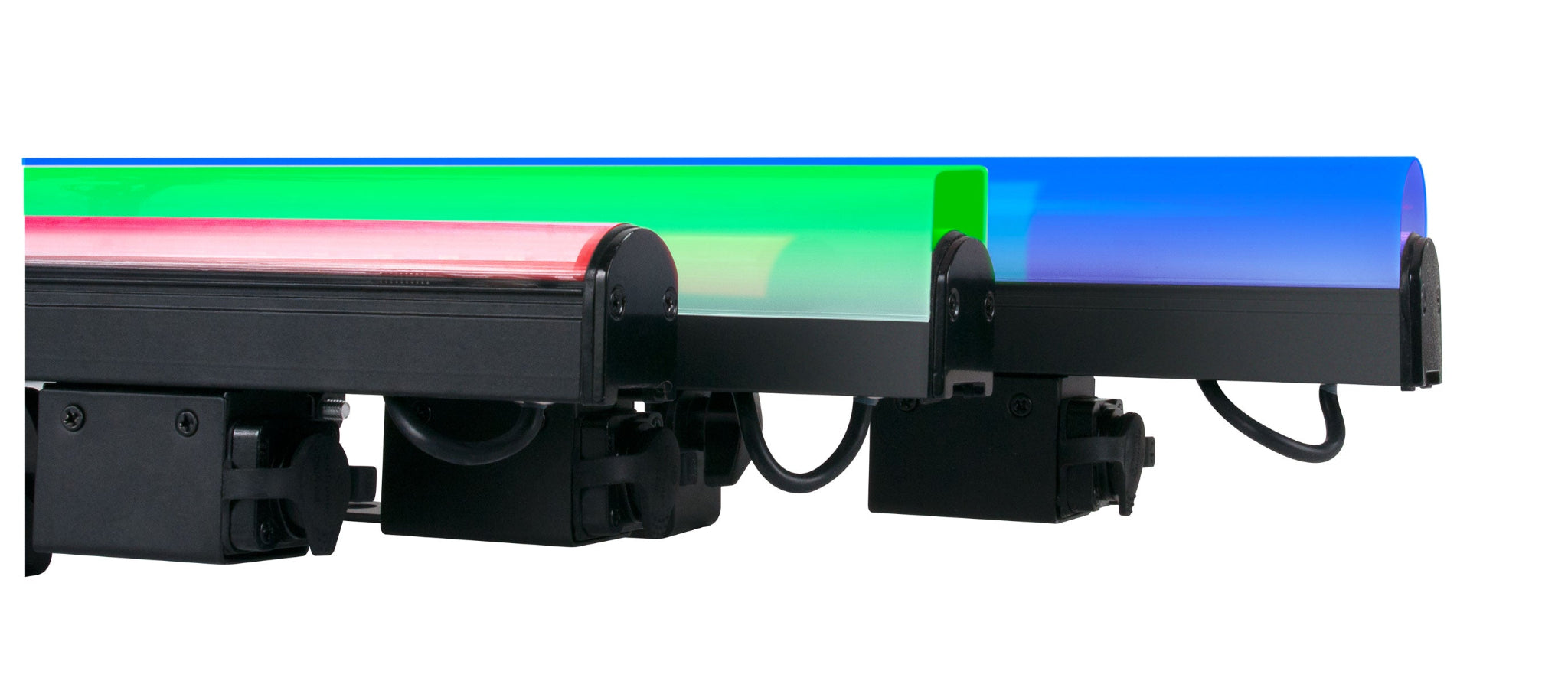

Square and Rounded Frosted Lens Included

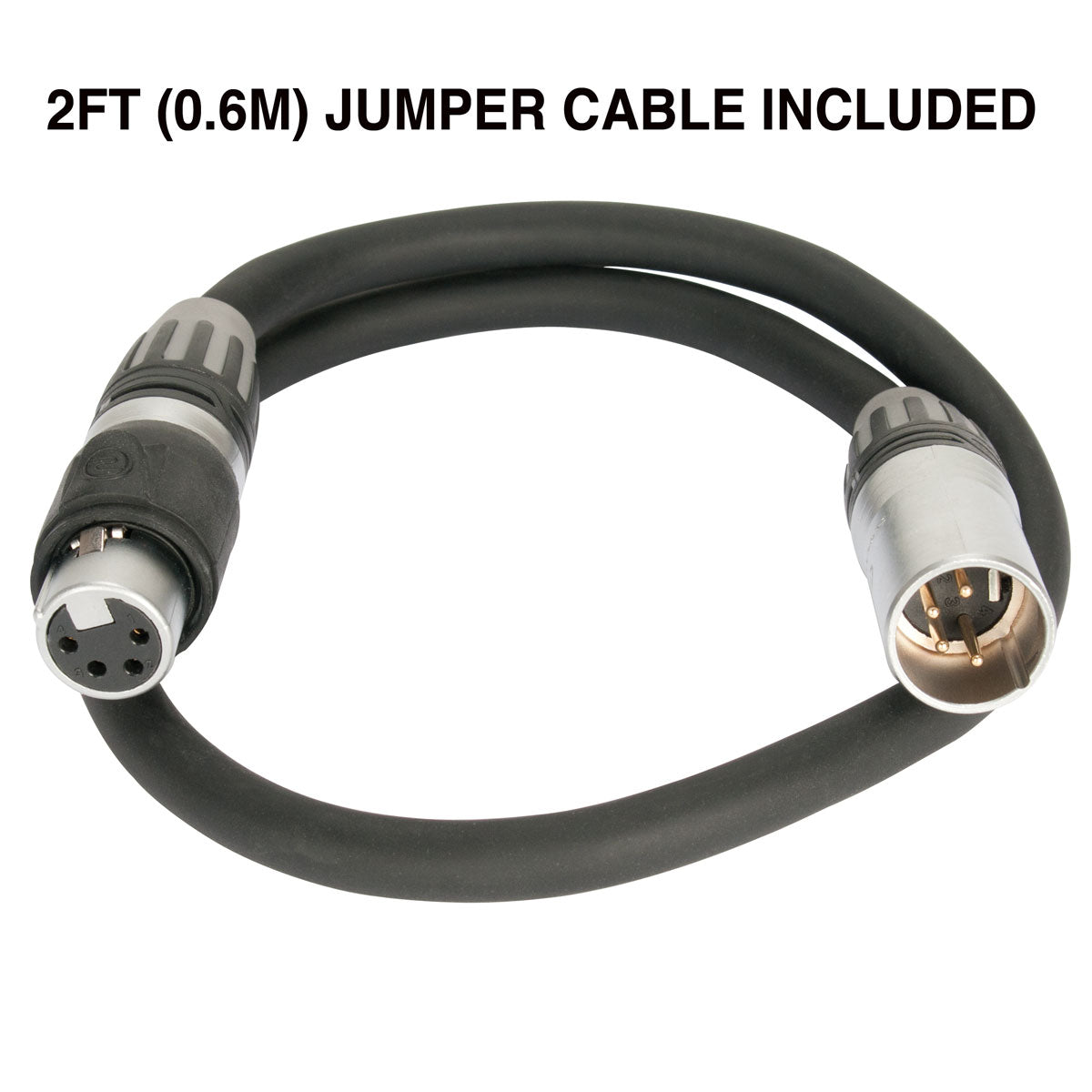

2ft (0.6m) Power/Data Jumper Cable included
Proprietary IP Rated Power/Data Combo Cables*
*Available in 2/3/5/10/12/15/20/25/30/50 Meter Lengths

Pixel Driver 4000™ Controller (sold separately)
Manual Dimming and Strobe Control
Full Pixel Mapping Control
4,080 Max Pixels via Kling-Net
680 Max Pixels via Art-Net and sACN (streaming ACN)

Resources

Specifications Sheet

User Manual

Photometric Test Report

Photometric IES File

DMX Traits

Dimensional Drawing

CAD Drawing

Vectorworks Symbol

Related Categories

Specifications

SOURCE

0.2 SMD RGB 3-in-1 LEDs

Color Resolution: 8 bits per color (24 but per pixel)

Viewing Angle: 120 x 120 degrees

Pixels Per Meter: 60 pixels

Pixel Pitch (pixel center-to-center) 16mm

PWM (Pulse Width Modulation): 44,000Hz


CONNECTIONS

4pin Power/Data In/Out


SIZE / WEIGHT

Length: 19.2” (488mm)

Width: 1.3” (34mm)

Height: 3.3” (83mm)

Weight: 1.5 lbs. (0.7kg)


ELECTRICAL

Max Power Consumption: 6W


APPROVALS

CE | cETLus | IP65






Specifications and documentation subject to change without notice.
