PSLC10
Outdoor IP65 Rated
(30) RGB SMD LEDs | 0.5 meter / 1.6 feet
16mm Pixel Pitch | 44,000Hz PWM
Flicker Free Operation for Broadcast TV and FILM

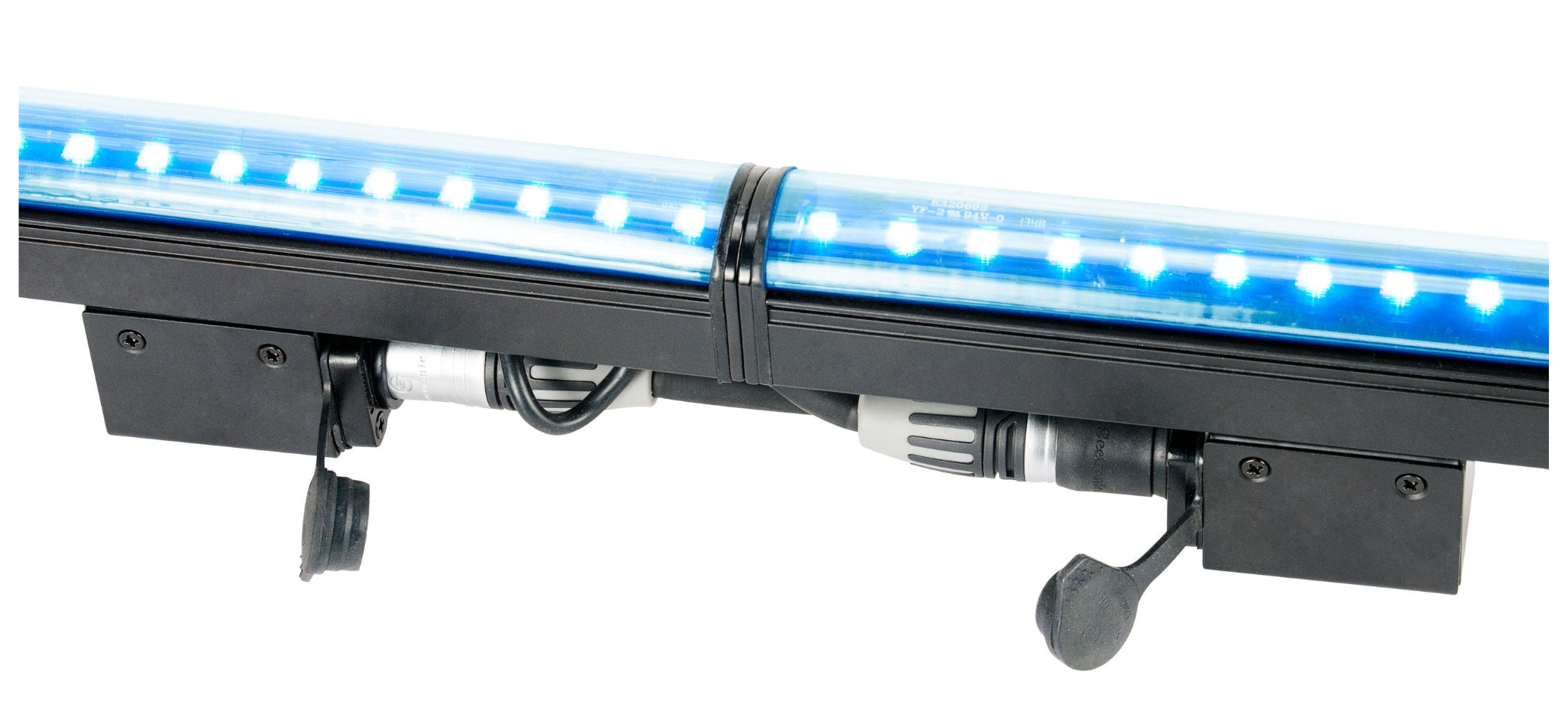

Magnetic End Caps - Seamless End-to-End Spacing
Integrated Adjustable Mounting Bracket

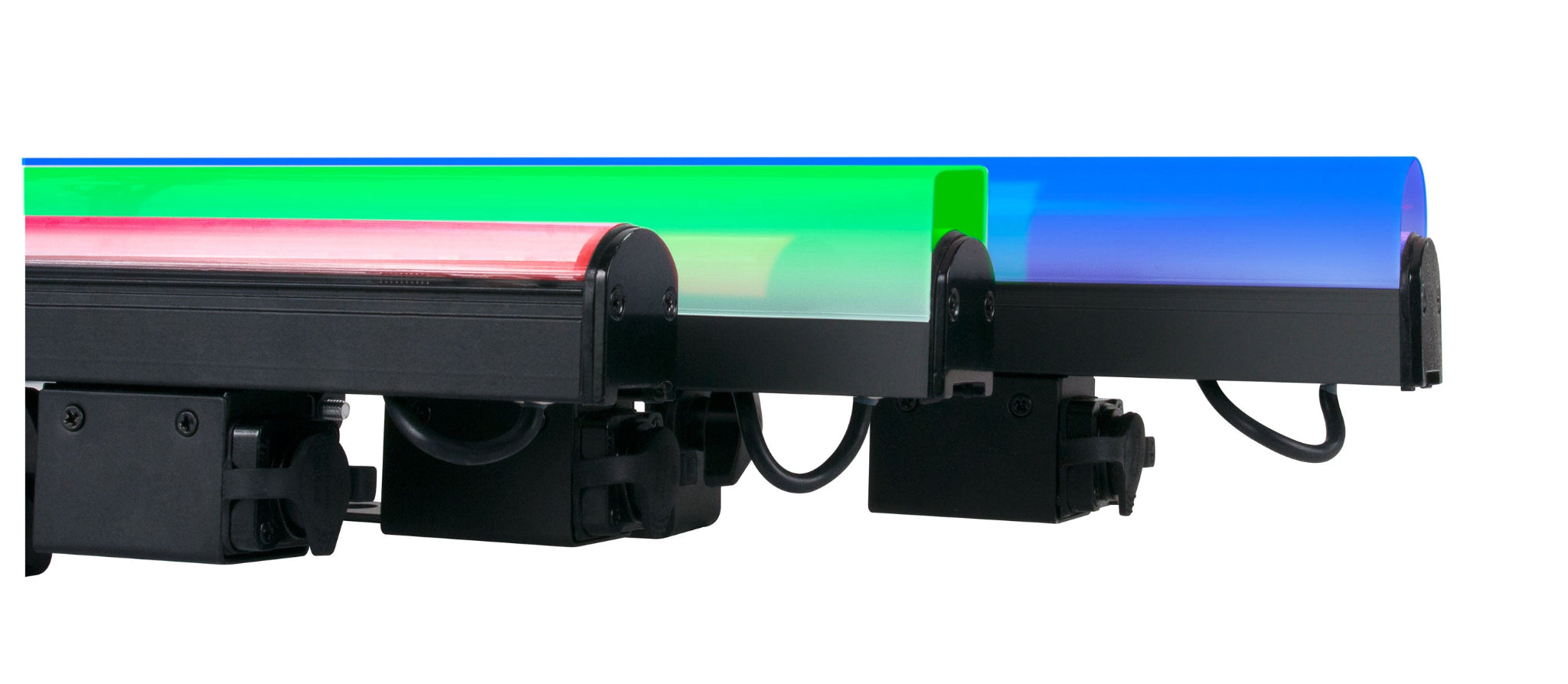

Square and Rounded Frosted Lens Included

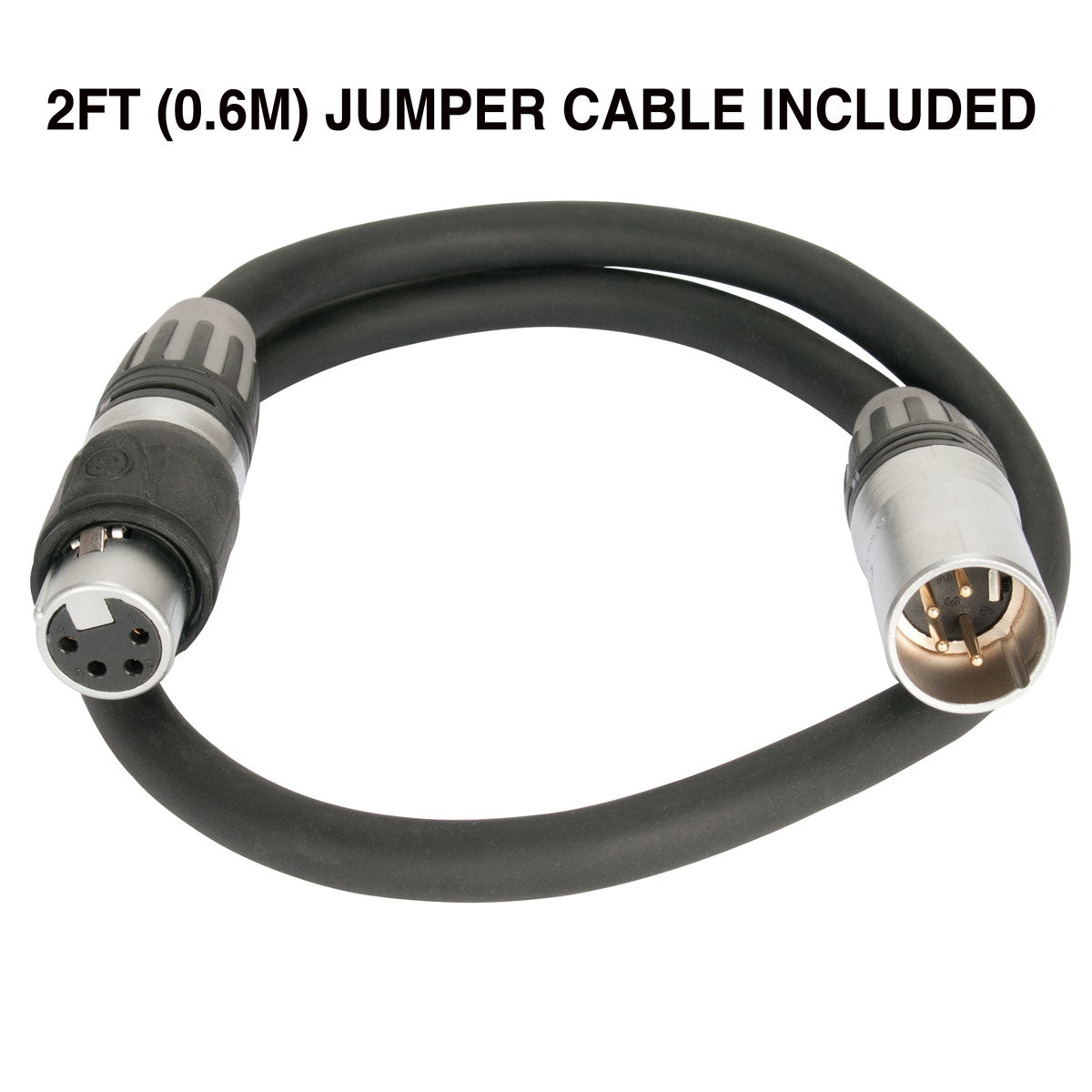

Proprietary IP Rated Power/Data Combo Cables*
*Available in 2/3/5/10/12/15/20/25/30/50 Meter Lengths
PIXEL DRIVER 4000 V2™ Controller (sold separately)
Manual Dimming and Strobe Control
Full Pixel Mapping Control
4,080 Max Pixels via Kling-Net
680 Max Pixels via Art-Net and sACN (streaming ACN)
Specifications
SOURCE
0.2 SMD RGB 3-in-1 LEDs
Color Resolution: 8 bits per color (24 bits per pixel)
Viewing Angle: 120 x 120 degrees
Pixels Per Meter: 60 pixels
Pixel Pitch (pixel center-to-center) 16mm
PWM (Pulse Width Modulation): 44,000Hz
CONNECTIONS

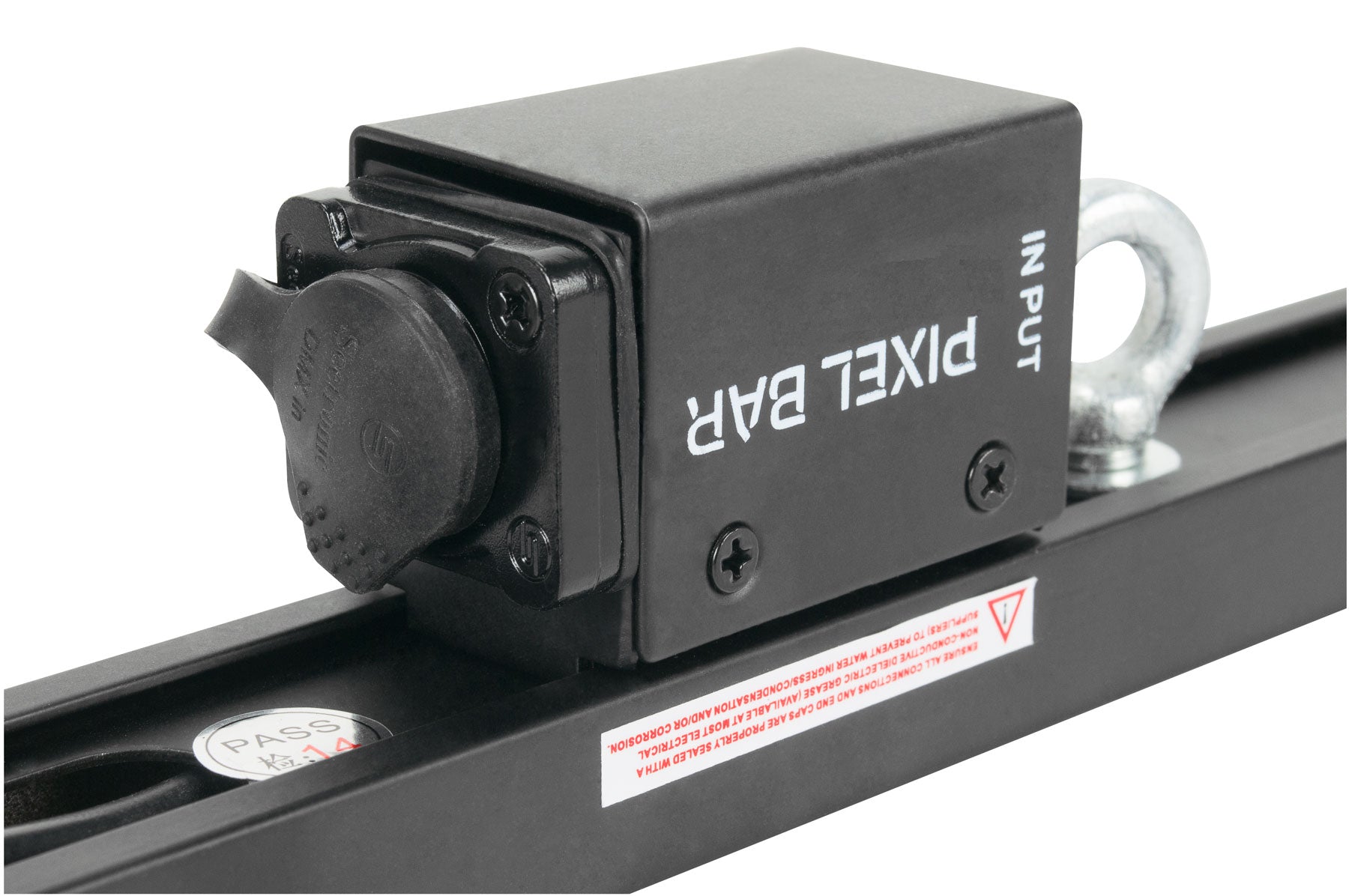

4pin Power/Data In/Out
SIZE / WEIGHT
Length: 19.2” (488mm)
Width: 1.3” (34mm)
Height: 3.3” (83mm)
Weight: 1.5 lbs. (0.7kg)
ELECTRICAL
Max Power Consumption: 6W
ACCESSORIES
(1) Frosted Square LED Lens Cover (Included)
(1) Frosted Round LED Lens Cover (Included)
(1) Stealth Gray LED Lens Cover (Included)
(1) Stealth Gray LED Lens Cover (Included)
APPROVALS
CE | cETLus | IP65
Specifications and documentation subject to change without notice.
