Platinum Seven
Discontinued

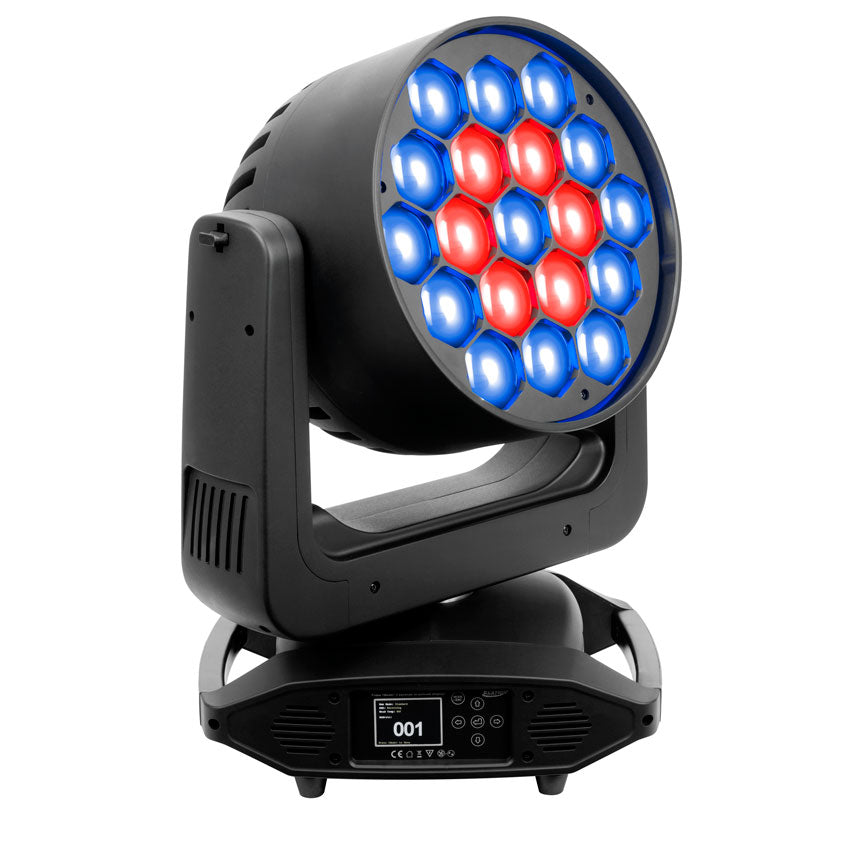

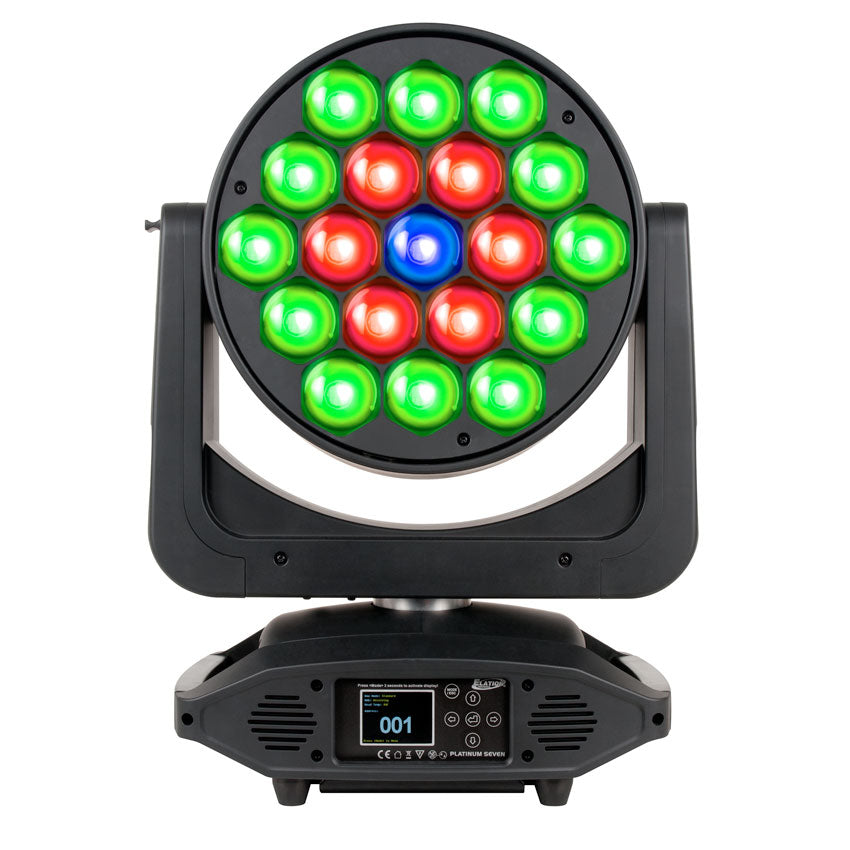

Platinum Seven is a professional-grade lighting solution. The Platinum SEVEN™ is a patent pending high power 7 color wash luminaire, featuring (19) 25W multi-chip LEDs including Red, Green, Blue, White, Amber, Cyan, and UV.
Platinum Seven
Sale price$0.00
Platinum Seven
The Platinum SEVEN™ is a patent pending high power 7 color wash luminaire, featuring (19) 25W multi-chip LEDs including Red, Green, Blue, White, Amber, Cyan, and UV. Features include a fast 5° to 50° beam angle zoom range, advanced high efficiency low noise cooling and movement control systems, silent mode which reduces fan noise by over 25% decibels, (3) pixel ring control, color-pixel zone and color preset macro effects, CRI presets (85, 90, 95), linear color temperature presets (2,700 - 8,000K), linear dimming and selectable dimming curves, flicker free operation for TV and FILM, adjustable refresh rate frequency and GAMMA brightness, DMX, RDM (Remote Device Management), KlingNET™, Art-NET, and sACN support, 5pin DMX, RJ45 Ethernet, and power cable in/out connections, (6) button control full color 180° reversible menu display, and a multi-voltage universal auto switching power supply (100-240v)
Patent Pending High Power 7 Color Wash Luminaire
(19) 25W Multi-Chip LEDs (RGBW+Amber+Cyan+UV)
5° - 50° Beam Angle Zoom Range
Advanced Cooling and Movement Control Systems
Silent Mode - Reduces Fan Noise by 25% Decibels
(3) Pixel Ring Control and Color-Pixel Ring Macro Effects
CRI Presets (85, 90, 95)
Linear Color Temperature Presets (2,700 - 8,000K)
Linear Dimming and Selectable Dimming Curves
Flicker Free Operation for TV and FILM
Adjustable Refresh Rate Frequency and GAMMA
DMX, RDM, KlingNET™, Art-NET, and sACN Support
Patent Pending High Power 7 Color Wash Luminaire
(19) 25W Multi-Chip LEDs (RGBW+Amber+Cyan+UV)
5° - 50° Beam Angle Zoom Range
Advanced Cooling and Movement Control Systems
Silent Mode - Reduces Fan Noise by 25% Decibels
(3) Pixel Ring Control and Color-Pixel Ring Macro Effects
CRI Presets (85, 90, 95)
Linear Color Temperature Presets (2,700 - 8,000K)
Linear Dimming and Selectable Dimming Curves
Flicker Free Operation for TV and FILM
Adjustable Refresh Rate Frequency and GAMMA
DMX, RDM, KlingNET™, Art-NET, and sACN Support
Specifications
SOURCE
(19) 25W Multi-Chip LEDs
50,000 Hour Average LED Life**
**May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
38,500 LUX 3,577 FC @3.3’ (1m) (5° Min Zoom) Full ON
6,670 LUX 620 FC @3.3’ (1m) (50° Max Zoom) Full ON
EFFECTS
5° - 50° Beam Angle Zoom
(3) Zone Ring Control
Color-Pixel Ring and Color Preset Macros
CRI Presets (85, 90, 95)
Linear Color Temperature Presets (2,700 - 8,000K)
Electronic Strobe (1-25 fps)
Linear Dimming 0-100% + Selectable Dimming Curves
(19) 25W Multi-Chip LEDs
50,000 Hour Average LED Life**
**May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
38,500 LUX 3,577 FC @3.3’ (1m) (5° Min Zoom) Full ON
6,670 LUX 620 FC @3.3’ (1m) (50° Max Zoom) Full ON
EFFECTS
5° - 50° Beam Angle Zoom
(3) Zone Ring Control
Color-Pixel Ring and Color Preset Macros
CRI Presets (85, 90, 95)
Linear Color Temperature Presets (2,700 - 8,000K)
Electronic Strobe (1-25 fps)
Linear Dimming 0-100% + Selectable Dimming Curves
Pan Angle 540° / 630°
Tilt Angle 250°
COLOR
RGBW + AMBER + CYAN + UV (7 Colors)
Even and Smooth Color Mixing
CONTROL / CONNECTIONS
(3) DMX Channel Modes (24 / 31 / 40)
Adjustable LED Refresh Frequency
Adjustable LED Gamma Brightness
Silent Mode
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

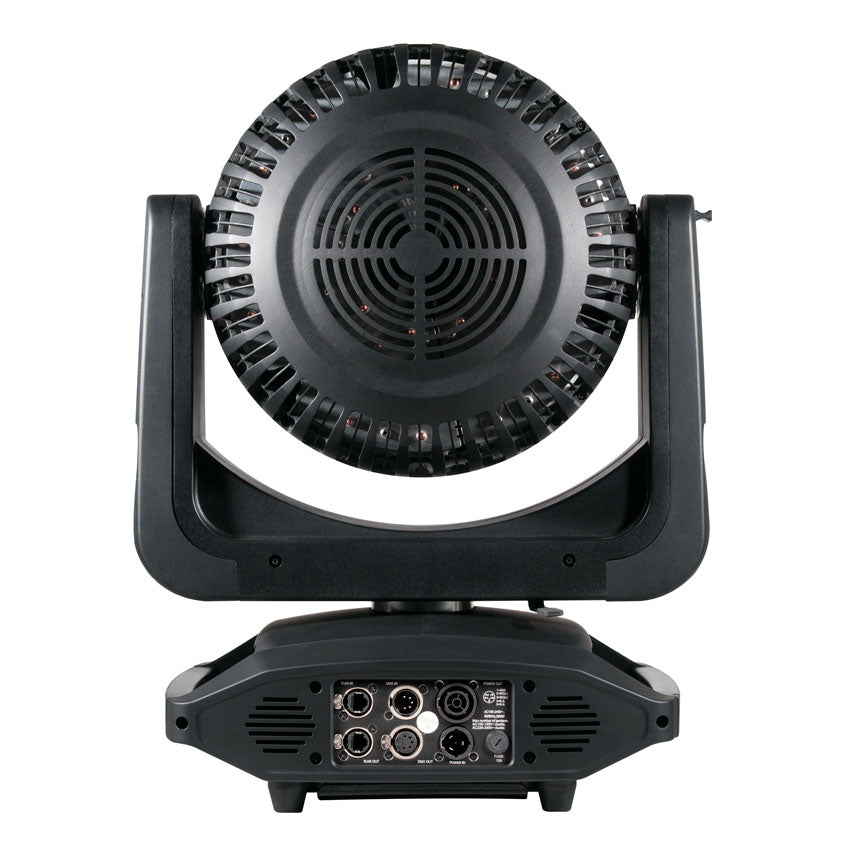

5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET, sACN)
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 16.5” (418.1mm)
Width: 11.2” (284.4mm)
Vertical Height: 22.0” (558.9mm)
Weight: 47.0 lbs. (21.3 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 600W
14°F to 113°F (-10°C to 45°C)
COLOR
RGBW + AMBER + CYAN + UV (7 Colors)
Even and Smooth Color Mixing
CONTROL / CONNECTIONS
(3) DMX Channel Modes (24 / 31 / 40)
Adjustable LED Refresh Frequency
Adjustable LED Gamma Brightness
Silent Mode
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET, sACN)
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 16.5” (418.1mm)
Width: 11.2” (284.4mm)
Vertical Height: 22.0” (558.9mm)
Weight: 47.0 lbs. (21.3 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 600W
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 2046
APPROVALS / RATINGS
CE | cETLus | IP20
APPROVALS / RATINGS
CE | cETLus | IP20
FIRMWARE UPDATES
Current Version: V1.2.1
Platinum Seven Parts & Service
Our Platinum Seven Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Platinum Seven. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
