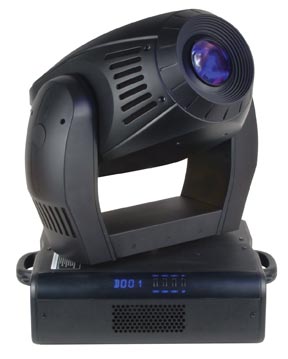

Power Spot 700 CMY-II
Power Spot 700 CMY-II
Discontinued
SKU# POWERSP700CMYII
700 CMY Color Mixing Moving Head w/Animation Wheel
Features
CONTROL FEATURES
• USITT DMX-512 (16-bit resolution)
• 24 DMX Channels
• 4 Digit L.E.D. Display
• On Board Menu Settings
• 3-pin XLR Serial Input/Output
• Sound Active Mode - Built-in Mic
• Lamp On/Off Power
OTHER FEATURES
• Modular Internal Construction 1/4 Turn Removable Lid 1/4 Turn Lamp Replacement
Resources
Guides/ Manuals
- Power Spot 700II CAD File
- Power Spot 700 CMY DMX Traits (PDF)
- Power Spot 700 CMY Dimension Drawing
- Power Spot 700 CMY II Gobo Wheels
- Power Spot 700 CMY II Animation Wheels
- Power Spot 700 CMYII Cutsheet
- Power Spot 700 CMY II User Manual
- Power Spot 700 CMY-II Photometric Data
Related Categories
Specifications
OPTICAL SYSTEM
• High Output Luminous- Dichroic Glass Reflector
• 14 - 32 Degree Linear Zoom
• All Lenses Are Anti-Reflection Coated
• 4900 lux @ 10M
COLORS
• Full Color Mixing with CMY Flag System
• Interchangeable Color Filters, 8 Dichroic Color Filters CTC, CTB + White, Split Colors
• Continuous, Variable Speed, Color Scrolling in Both Directions (Rainbow Effect)
• More Color Combinations Possible By Overlaying the Multi-Color Dichroic Gobo and the Colors on the Color Wheel
GOBOS
• Gobo-Wheel 1: 7 Exchangeable, Rotating Quick-Snap Gobos Plus "Open"
• Gobo-Wheel 2: 9 Fixed Exchangeable Standard Gobos Plus "Open"
• Gobo Outside Diameter 26.9 mm, Image Size 23 mm
• Gobo Thickness: Glass = 1.1 - 3.0 mm, steel = 0.3 mm
• Gobo Overlay (Gobo Morphing)
ANIMATION
• 1 Variable Speed Replaceable Rotating Animation Wheel
• 4 Extra Animation Wheels Included
• 8 Optional Animation Wheels Available
SHUTTER/DIMMER
• Variable Speed Strobe Effect (1-10) Flashes Per Second
• Pre-set Variable/Random Strobe and Dimming Pulse Effect
• Dual Flag Mechanical Dimming System 0%-100%
IRIS
• Beam Narrow to Wide (4% - 100%)
• Variable Speed Iris Macros
• Small to Large and Large to Small Iris Pulse Effect
FROST
• Variable Frost Control
• Hard Edge to Soft Edge
PRISM
• 3-facet Rotating/Indexing Prism
• Both Directions At Variable Speeds
• Macro-Function For Rotating Gobos/Rotating Prism Combinations
FOCUS
• Motor Driven Focus From Near to Far
ZOOM
• 14 - 32 degree Linear Zoom
LAMP
• Phillips MSR 700/2 (700W, 72V, 7500°K, 1000 HRS) 55000 lumens, base: G22 (Medium Bi-Post)
PAN/TILT
• Automatic Pan / Tilt Position Correction
• Maximum PAN-Movement 540° 16-bit Resolution Maximum TILT-Movement 280° 16-bit Resolution
DIMENSIONS & WEIGHT
• (LxWxH) 19” x 14” x 29” / 482.6 x 355.6 x 736.6 mm
• 63 lbs. / 28.5 kgs.
RIGGING
• 2 X 1/4 Turn Omega Brackets 4 X M-10 Threaded Holes for Clamps
POWER SUPPLY
• Electronic Ballast
• Voltage: AC 90-260V 50/60Hz
• Power Consumption: 900W (120V=7.5A)
OPTIONAL DUAL ROAD CASE
• DRC-700
• DRC-700PRO
