PRO FS 15R Followspot

Features

5° - 10° Manual Zoom
13,500 Total Lumens

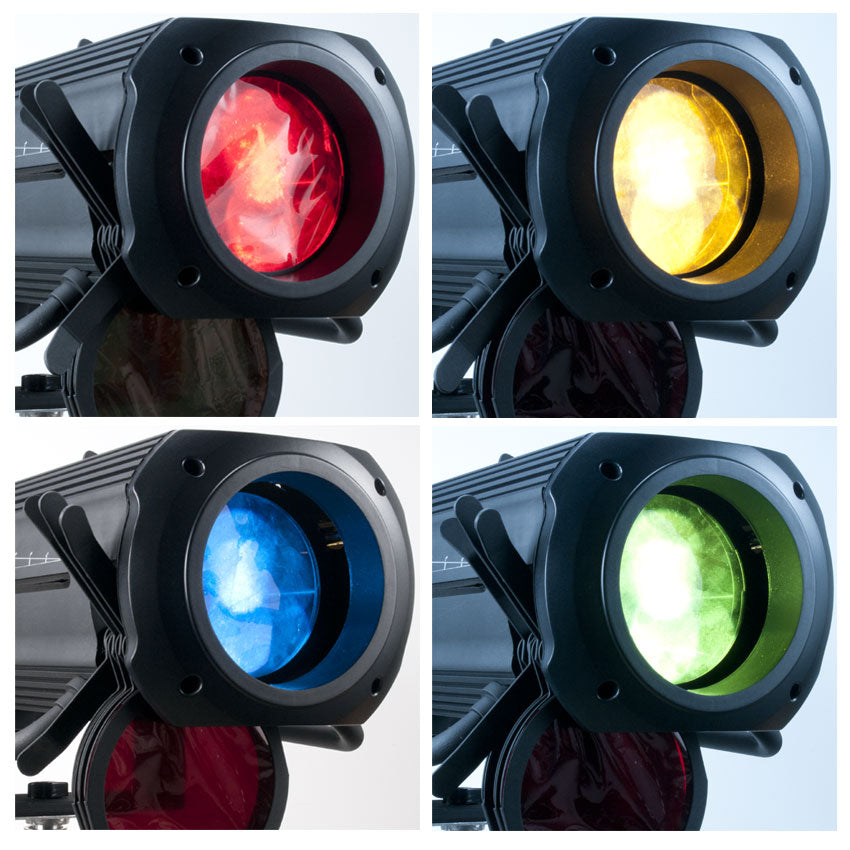

5 Dichroic Colors Including CTB plus White
4 Manual Gel Frame Holders
Variable Color Temperature Settings (3,200K - 6,800K)

Resources

Specifications Sheet

User Manual

Photometric Data

Dimensional Drawing

CAD Drawing

Vectorworks Symbol

Specifications

SOURCE

Phillips™ MSD Platinum 15R Lamp

2,000 Hour Average Lamp Life*

*May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA

10,770 LUX 1,001 FC @32.8’ (10M) (6° Full On)



EFFECTS

Iris and Framing

Frost

Smooth Dimming (0-100%)

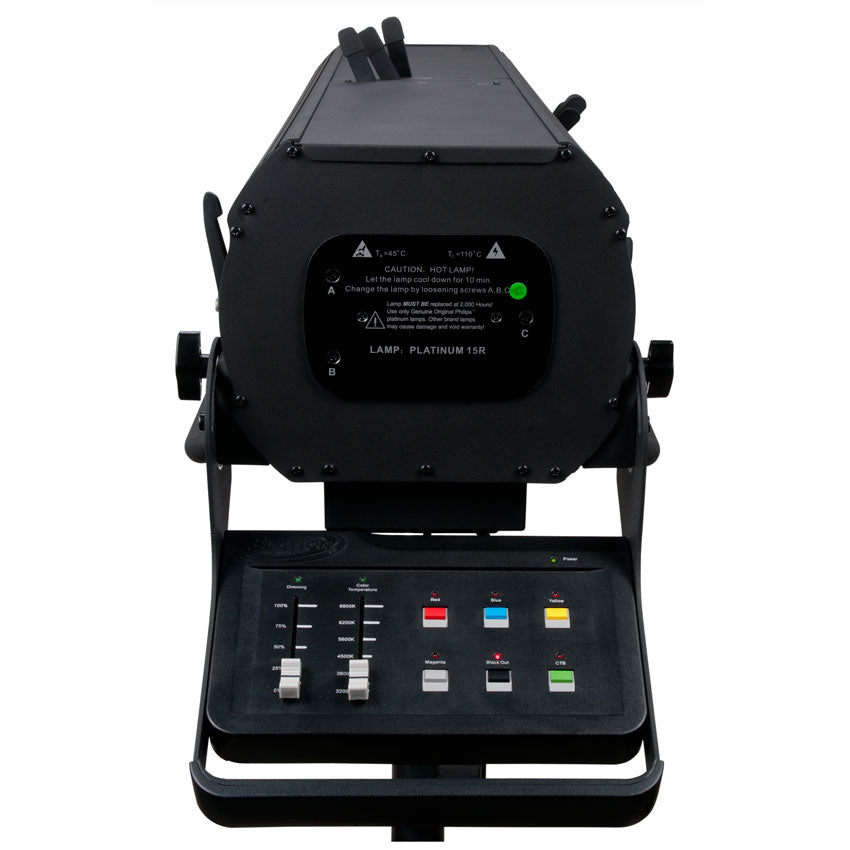

CONTROL / CONNECTIONS

(4) Push Buttons

(2) Faders (Dimming + Color Temperature)

powerCON In


SIZE / WEIGHT - Followspot

Length: 42.0” (1068mm)

Width: 14.9” (376mm)

Vertical Height: 10.0” (255mm)

Weight: 52.0 lbs. (24 kg)

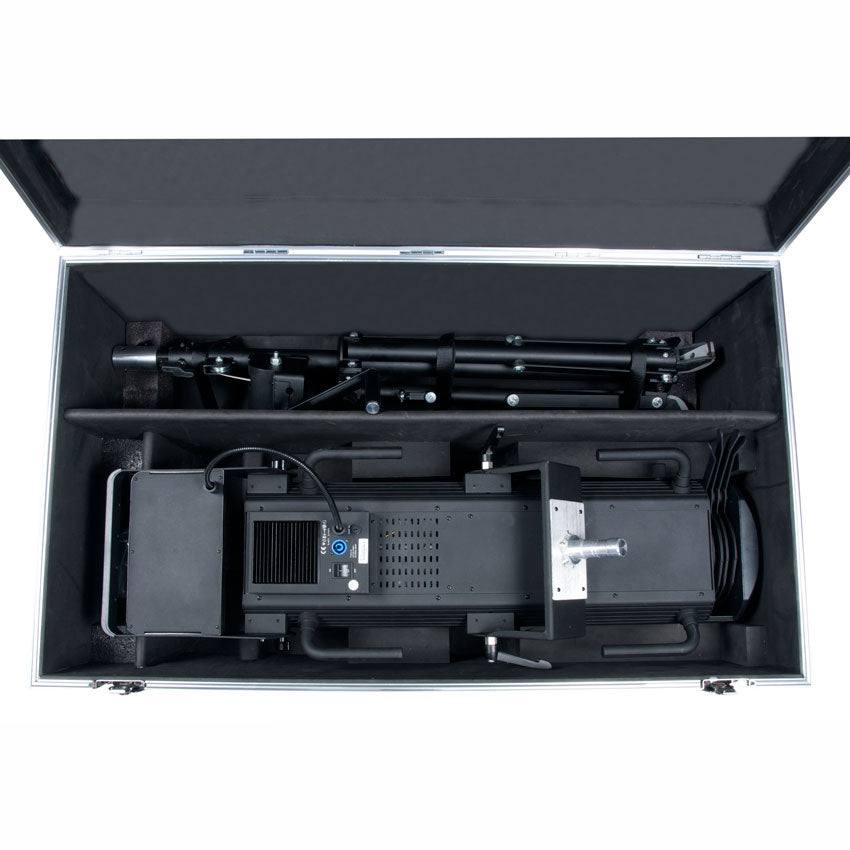

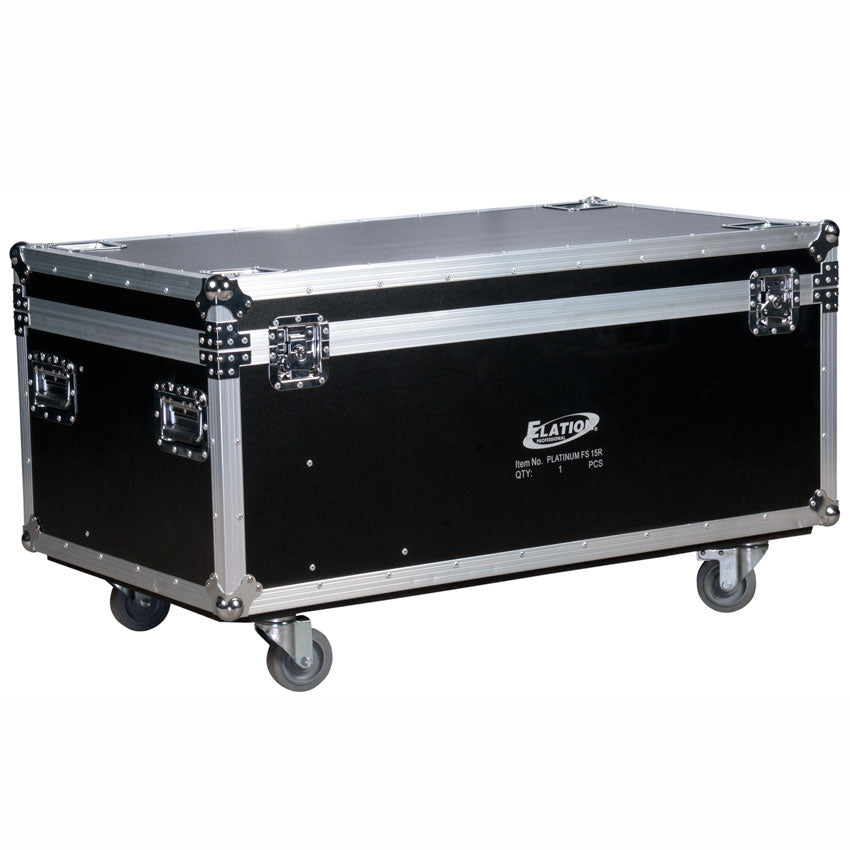

SIZE / WEIGHT - Road Case

Length: 46.0” (1170mm)

Width: 26.8” (680mm)

Vertical Height: 25.6” (650mm)

Weight: 174.0 lbs. (79 kg) (with followspot + stand)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

400W Max Power Consumption

14° to 113°F (-10° to 45°C)


APPROVALS / RATINGS

CE | IP20


INCLUDED ITEMS

(1) powerCON Cable

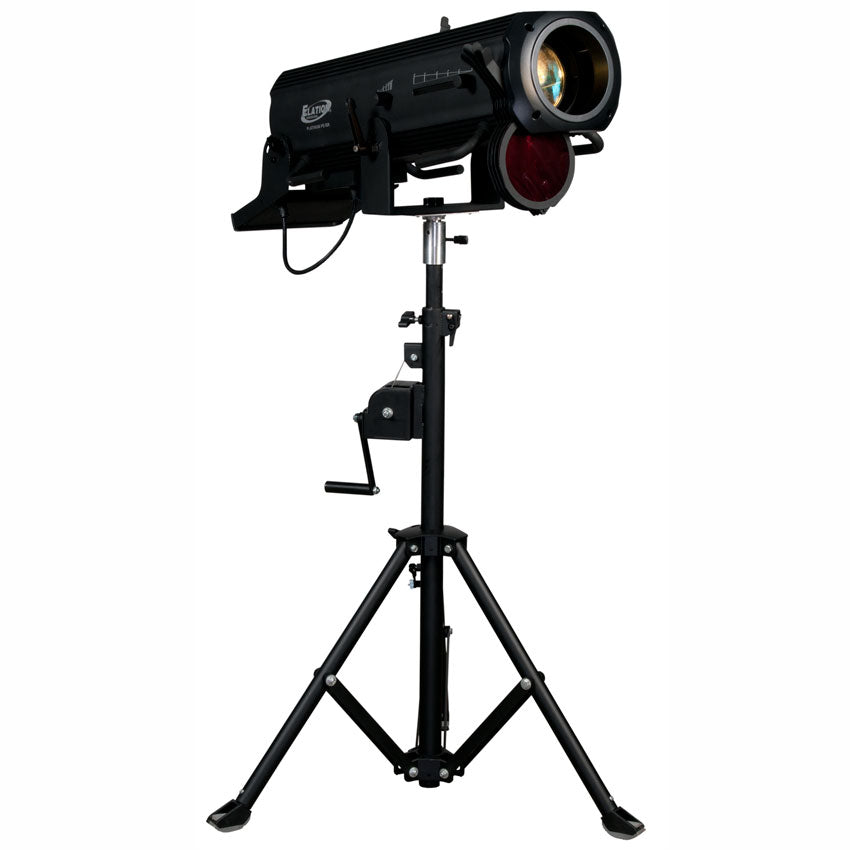

(1) Tripod Stand

(1) Road Case



Specifications and documentation subject to change without notice.
