AF-4 ANTARI SPECIAL EFFECT FAN
AF-4 Antari Special Effect Fan is a professional-grade lighting solution. The AF-4 is suitable for a wide variety of applications including stage, theatre, cinema, and concert tours. Features include a (4) button LCD control menu display for easy manual control setting adjustments, timer control, on-board 5pin DMX in/out connections, and an adjustable floor stand that can also be used to hang the fan.
AF-4 ANTARI SPECIAL EFFECT FAN
Antari's AF-4 special effect fan centrally focuses its airflow to produce a smooth wind effect of up to 20 meters. The AF-4 is suitable for a wide variety of applications including stage, theatre, cinema, and concert tours. Features include a (4) button LCD control menu display for easy manual control setting adjustments, timer control, on-board 5pin DMX in/out connections, and an adjustable floor stand that can also be used to hang the fan. Wireless and wired remote controls options available.
- Smooth Adjustable Volume 20-100%
- Delivers Focused Smooth Airflow to a maximum distance of 65 feet (20m)
- Low Power Consumption
- Low Noise Level
- Manual and On-Board Timer Control
- 5pin DMX Control
- Wireless and Wired Remote Control Options
Specifications
Air Flow:1,035 CFM
Fan Speed: 1,242 - 1,480 RPM
CONTROL / CONNECTIONS
(1) DMX Channel Control

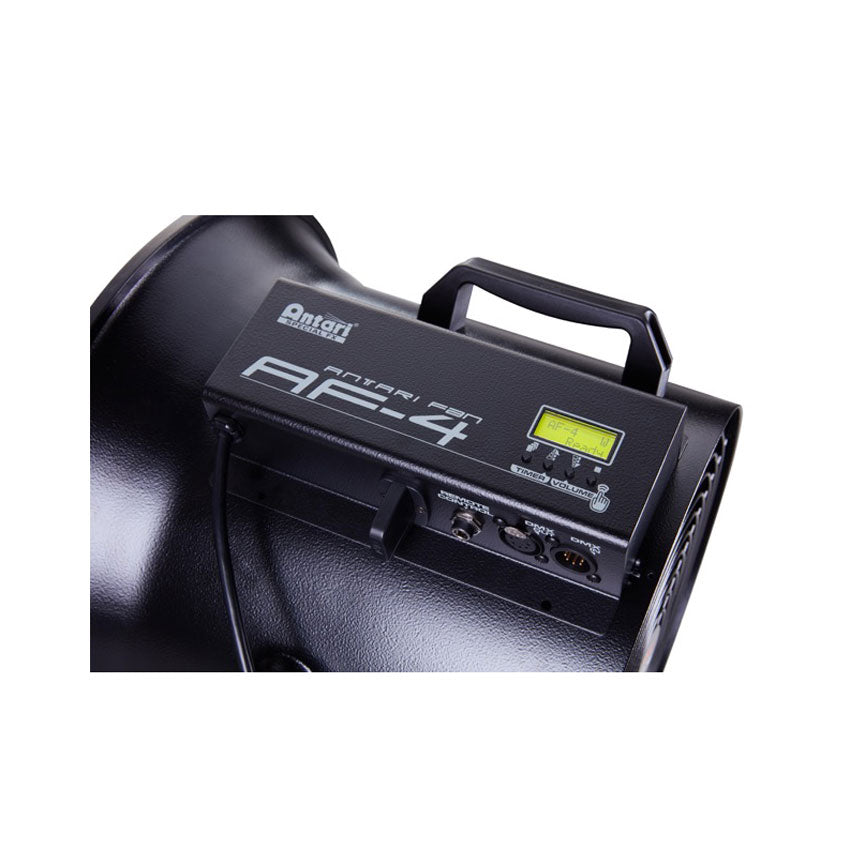

On-Board 4 Button LCD Control Display
5pin DMX In/Out
Wireless and Wired Remote Control Options Available
SIZE / WEIGHT
Length: 13.9” (353mm)
Width: 14.8” (377mm)
Vertical Height: 20.3” (516.6mm)
Weight: 19.8 lbs. (9.0kg)
ELECTRICAL / THERMAL
AC 120V / 60Hz
90W Max Power Consumption
Specifications and documentation subject to change without notice.
