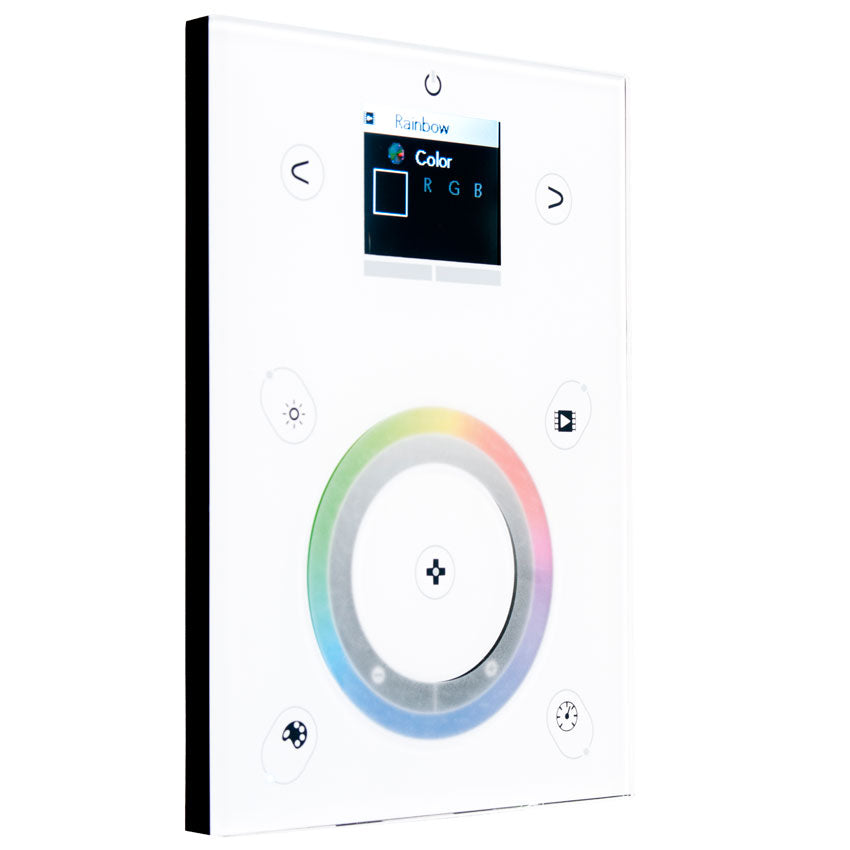

ART 500
The Art 500 is a touch panel DMX Controller with 1,024 DMX channels and 500 programmable scenes, designed to be the most
effective control solution for architectural control. Included is the ART 500 software package, which offers an easy to navigate interface, combined with powerful control features.
ART 500
Sale price$0.00
ART 500
The Art 500 is a touch panel DMX Controller with 1,024 DMX channels and 500 programmable scenes, designed to be the most
effective control solution for architectural control. Included is the ART 500 software package, which offers an easy to navigate interface, combined with powerful control features.
Stay in control
1024 DMX control channels and up to 500 presets
Dive into the details
PC and Mac compatible software applications open up a world of advanced programming options
Get in touch
Wall-mounted touch panel makes it easy to interact with your lighting
Specifications
SPECIFICATIONS
Power Input: 6VDC (Transformer Included)
DMX Output: 1024 DMX Channels, 2 Universes
Software OS Compatibility:
Windows XP, Vista, 7, 8 (ESA Pro), Mac OS X (ESA2)
Trigger Protocols: 8 x Dry Contact Trigger, Calendar Trigger, RS-232, IR
Mounting: Single Gang Electrical Box (Not Included)
Housing: Glass Panel, Polycarbonate Body
Operating Temp: 14º - 113º F (-10º - 45º C)

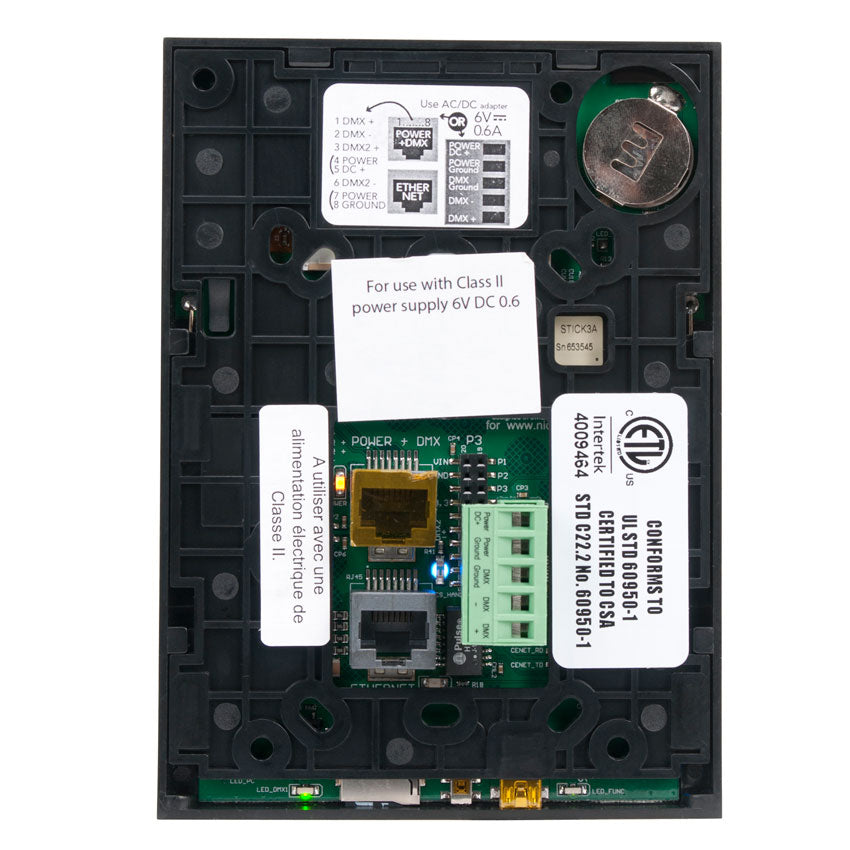

Connectors: Screw Terminal Blocks and RJ45, USB Cable (Included)
Storage: Micro SD Card (Included)

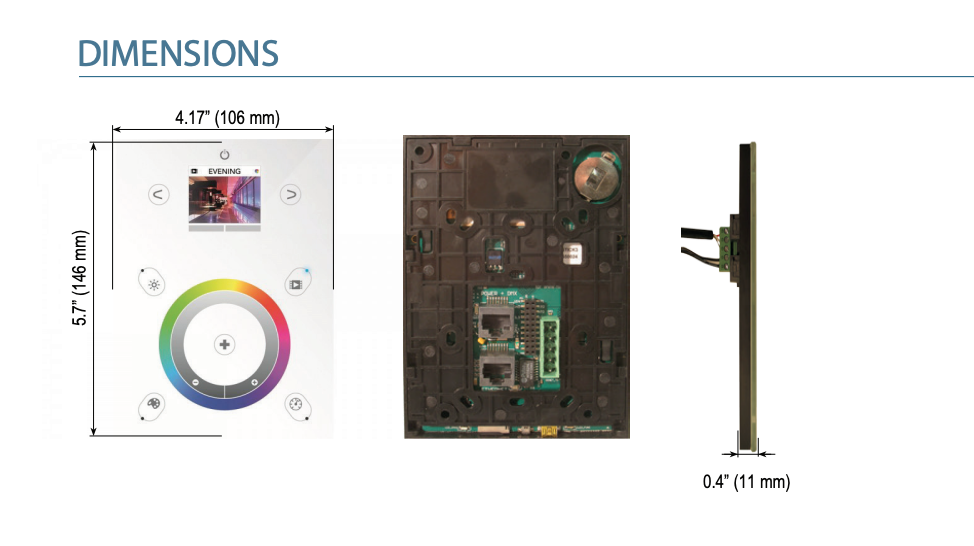

SIZE / WEIGHT
Length: 4.17” (106mm)
Width: 0.4” (11mm)
Vertical Height: 5.7” (146mm)
Weight: 0.5 lbs. (0.2kg)
APPROVALS / RATINGS
CE | cETLus | RoHs | IP20
Specifications and documentation subject to change without notice.
