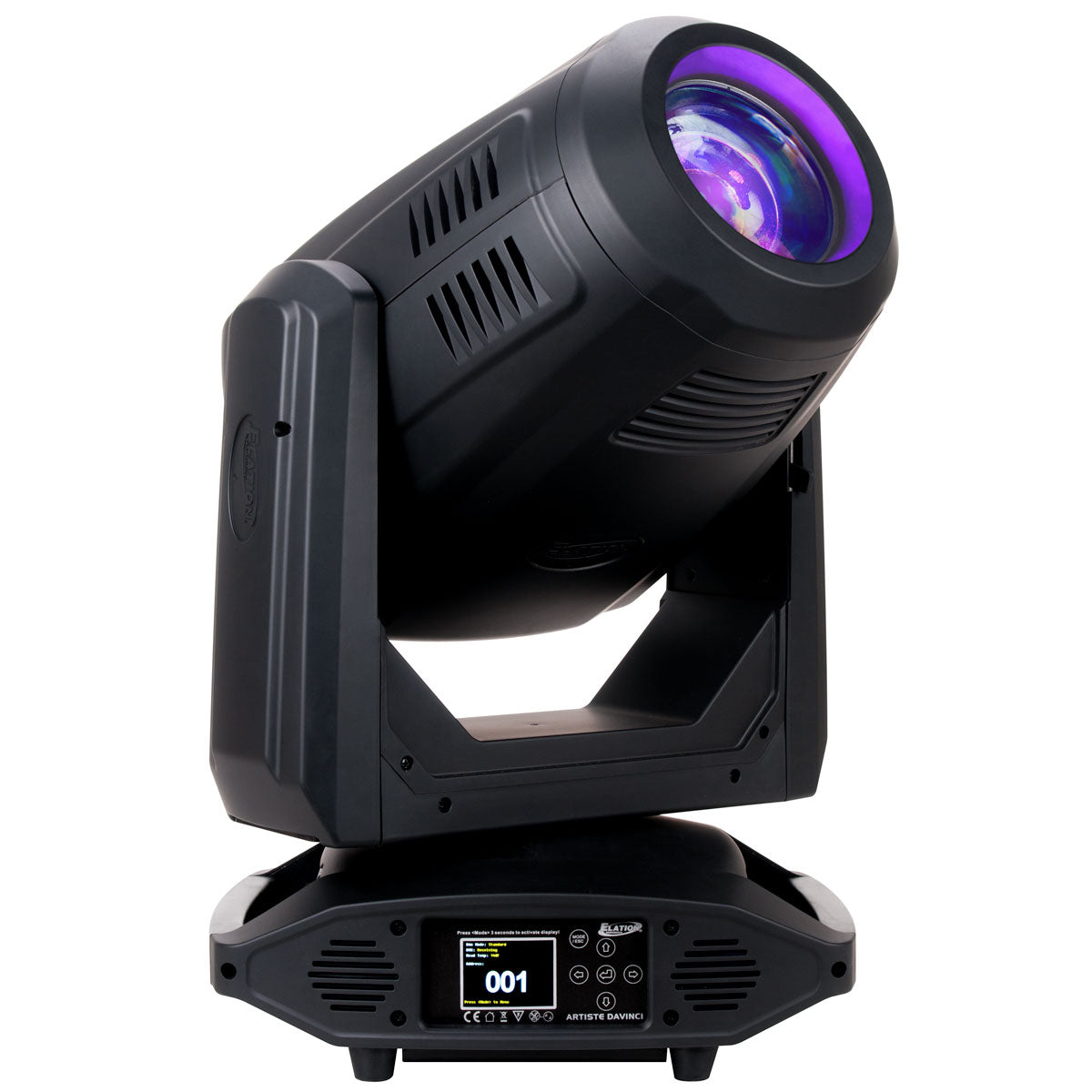

Artiste DaVinci

SOURCE

270W Cool White LED Engine

50,000 Hour Average LED Life*

20,000 L70 Hour Rating*

^{*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.}

PHOTOMETRIC DATA

12,000 Total Lumen Output

CRI 72+

Zoom Range 6° - 48°

Beam Angle 7.3° - 41.5°

Field Angle 8.4° - 46.1°

EFFECTS

Motorized Zoom

3-Facet and Linear Rotating Prisms and Prism Macros

Full 360° Bi-Directional Rotating Animation Wheel

Frost Filter Hybrid Wash Effect

Motorized Zoom, Iris, Focus and Auto-Focus

High Speed Electronic Shutter and Strobe

Variable 16-Bit Dimming Curve Modes

Adjustable LED Refresh Rate Frequency and Gamma Brightness

Pan Angle: 540°, 630°

Tilt Angle: 255°

COLOR

7 Dichroic Colors + CTB

Full CMY Color Mixing

Linear CTO Color Correction

GOBOS

2 Gobo Wheels

6 Interchangeable Rotating / Indexing Gobos

9 Interchangeable Static-Stamped Metal Gobos

CONTROL / CONNECTIONS

(3) DMX Channel Modes (40 total channels)

6 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

8 / 16 Bit Resolution Adjustable Movement

DMX, RDM, Art-Net, sACN Protocol Support

Elation's E-FLY™ Internal Wireless DMX Transceiver

Locking 5pin XLR DMX, RJ45 Ethernet, and Power

With Wired Digital Communication Network

SIZE / WEIGHT

Length: 16.4" (416mm)

Width: 11.2" (284mm)

Vertical Height: 25.4" (645mm)

Weight: 56.0 lbs. (25.4kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

470W Max Power Consumption

14°F to 113°F (-10°C to 45°C)

BTU/hr (+/- 10%) 1602.7

APPROVALS / RATINGS

CE | cETLus | IP20

FIRMWARE UPDATES

Current Version: V1.4.0

Click HERE for software updates.

Specifications and documentation subject to change without notice.
