CUE SOFTWARE UPLOADER
CUE Software Uploader is a professional-grade lighting solution. CUE Software Uploader™ features an LCD display, 6 button control panel, a MICRO SD card slot, a 3pin XLR DMX output, an On/Off switch, and includes battery, USB cable, USB to MICRO SD card adapter, and blank MICRO SD card.
CUE SOFTWARE UPLOADER
The CUE Software Uploader™ is a battery powered hand held software uploader device used to update Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the uploader to the fixture using a 3pin DMX cable (not included). Elation software updates (not included) are stored on a MICRO SD card (included) and inserted into the uploader.
CUE Software Uploader™ features an LCD display, 6 button control panel, a MICRO SD card slot, a 3pin XLR DMX output, an On/Off switch, and includes battery, USB cable, USB to MICRO SD card adapter, and blank MICRO SD card.
Contact Elation Service for available fixture software updates.
- Click Here To Email Elation Service
Specifications

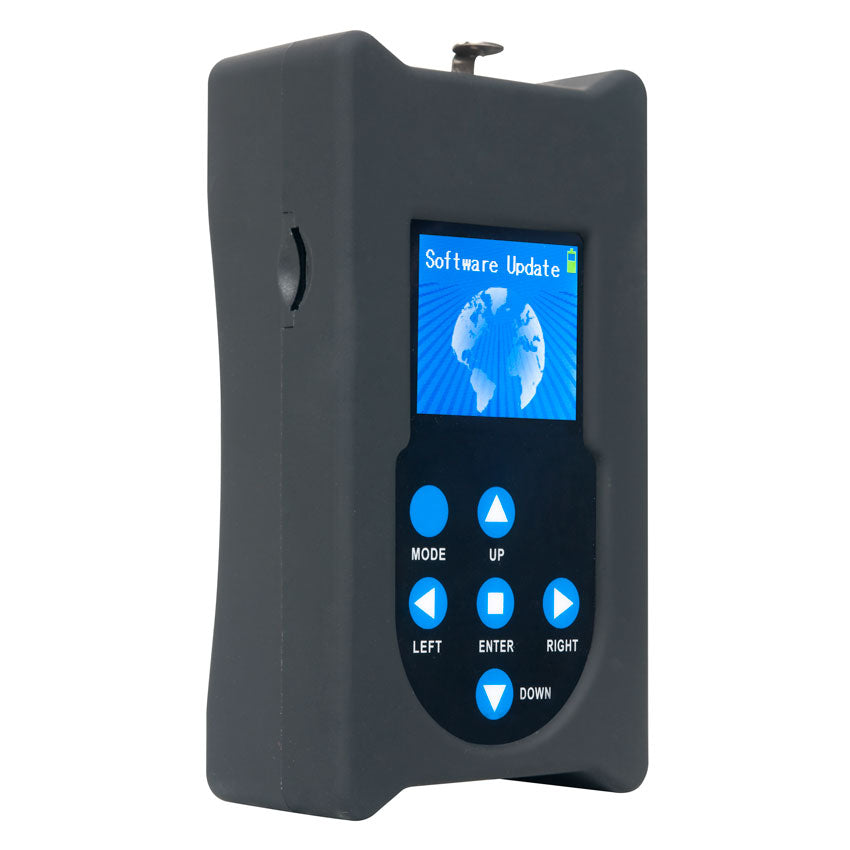

6 Button Touch Control Panel
LCD Menu Display

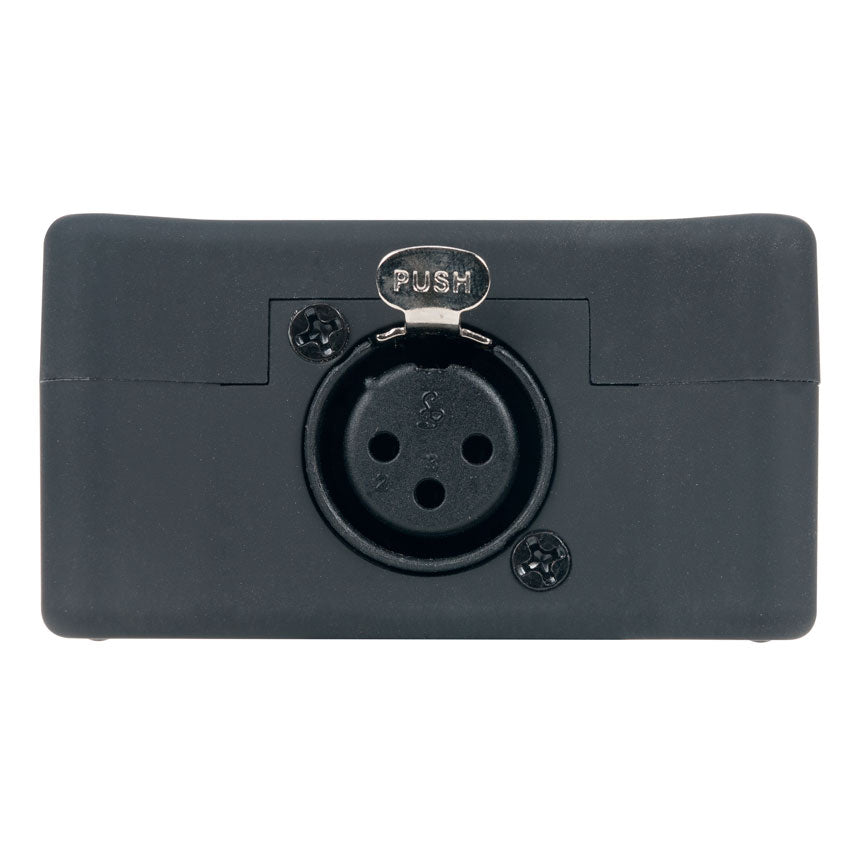

3pin DMX Out
MICRO SD Card Slot

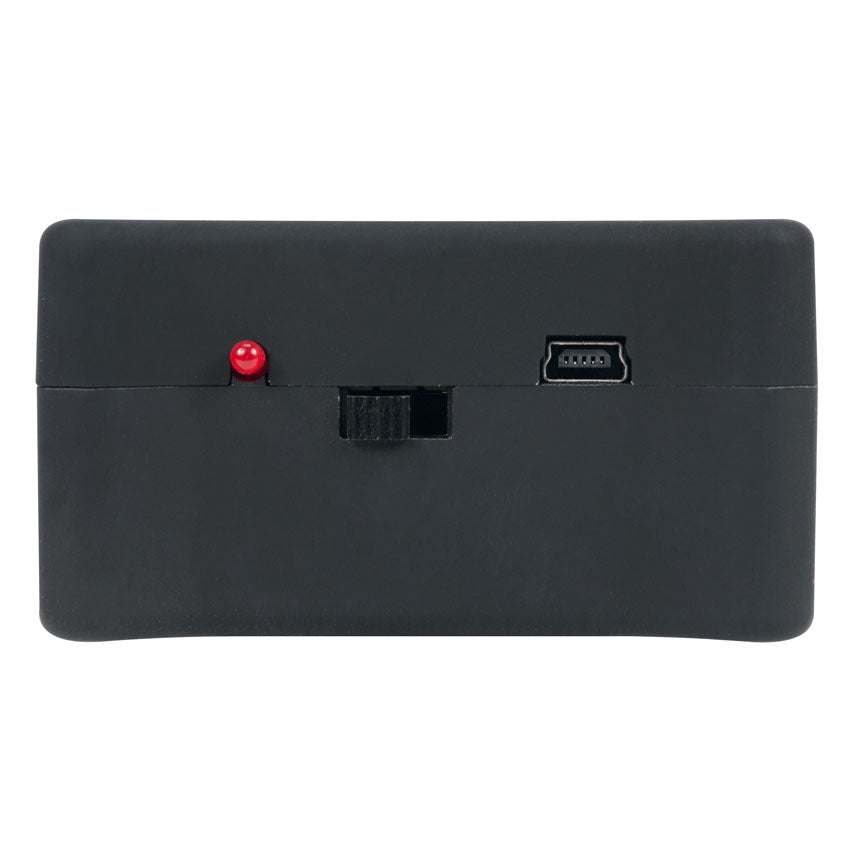

Mini USB Input
SIZE / WEIGHT
Length: 4.89” (124.15mm)
Width: 2.73” (69.46mm)
Vertical Height: 1.48” (37.5mm)
Weight: 0.4 lbs. (0.2 kg)
ELECTRICAL
USB Powered (Internal Battery)

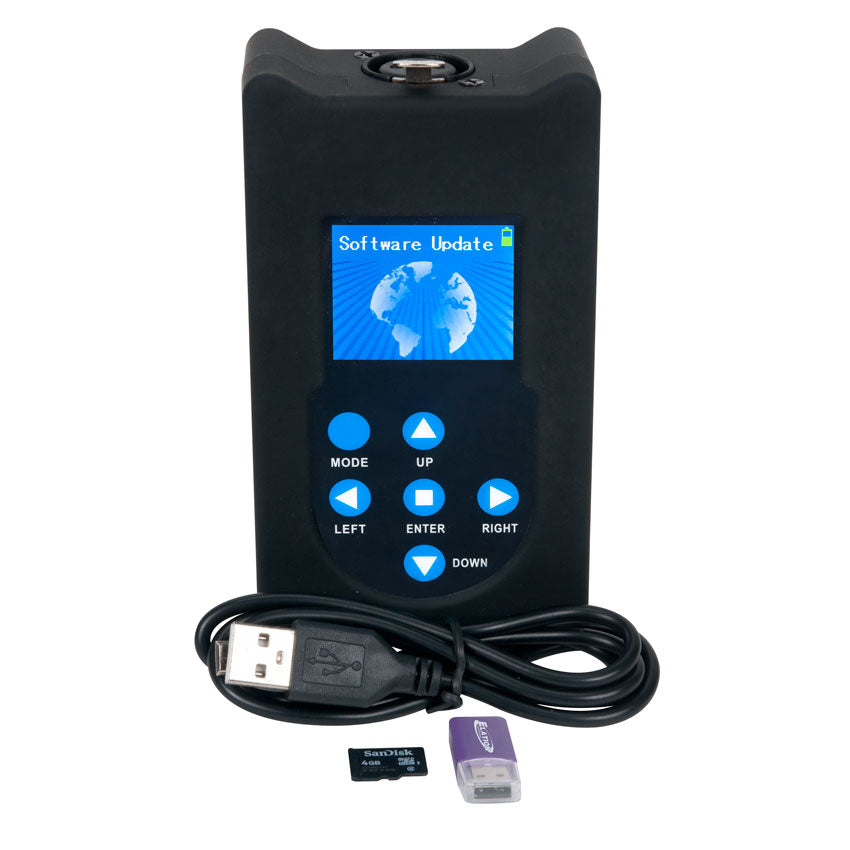

INCLUDED ITEMS
USB Cable
MICRO SD Card
USB to MICRO SD Card Adapter
COMPATIBLE ELATION MODELS:
ACL BAR
ACL 360 MATRIX
ACL 360 ROLLER
ACL 360i
ACL 360 BAR
ACL CURTAIN
ACL PAR 200
ACL PAR 200 IP
COLOUR CHORUS 12 / 24 / 48 / 72
CUEPIX BATTERN
CUEPIX BLINDER WW2 / WW4
CUEPIX PANEL
CUEPIX PAR 300
CUEPIX STRIP TRI / WW
DW CHORUS 12 / 24 / 48 / 72
DTW BAR 1000
DTW BLINDER 350 IP / 700 IP
DTW PAR 300
DW PAR Z19 IP
FUZE PAR Z60 IP / Z120 IP
FUZE WASH Z120 / Z350
SIXBAR 500 / 1000 / 1000 IP
SIXPAR 100 / 200 / 300
SIXPAR 100IP / 200IP / 300IP
SIXPAR Z19 IP
ZCL 360 BAR
ZCL 360i
ZCL BAR Z300 IP
Specifications and documentation subject to change without notice.
