CUEPIX BLINDER WW2
2x 100W WW LED Blinder
CUEPIX Blinder WW2 is a professional-grade lighting solution.
Replaced By
Related Products
CUEPIX BLINDER WW2

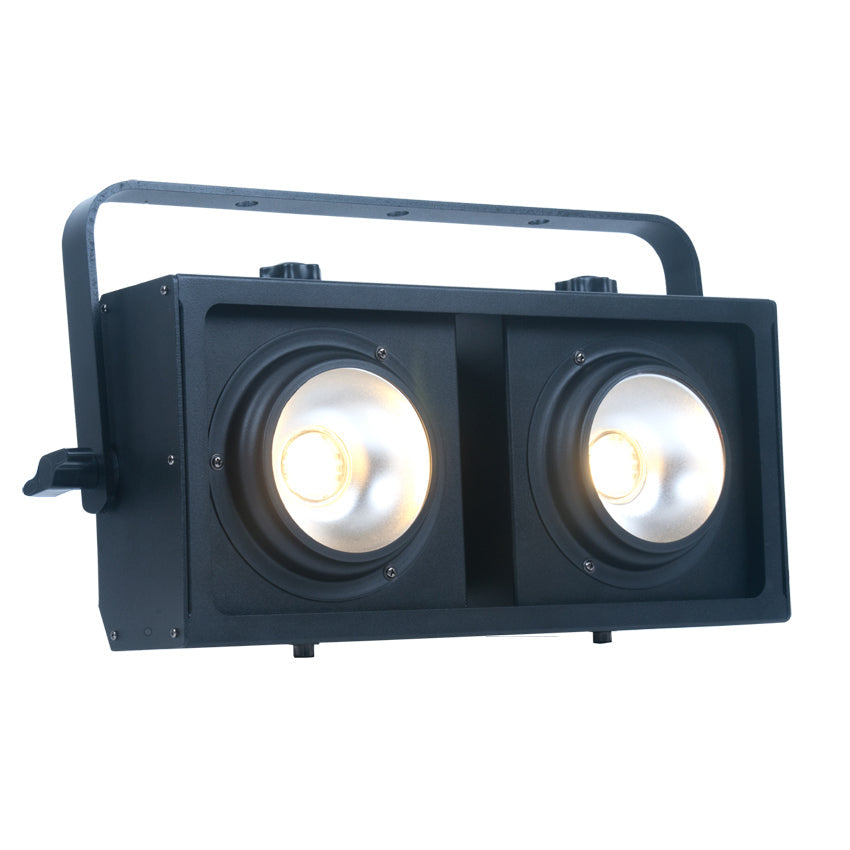

The CUEPIX Blinder WW2™ features (2) long life 100W Warm White 3,200K COB LEDs, a 60° beam angle, RDM (Remote Device Management), individual control of each COB module including manual pan focus, variable and selectable dimming curves, strobe effects, flicker free operation for TV and Film, 3pin and 5pin DMX and Locking Power Cable in/out connections, LCD menu display with 4 button control panel, integrated rigging bracket, and a multi-voltage universal auto switching power supply (100-250v).
- High Power Long Life Warm White COB LEDs
- 60° Beam Angle / 80° Field Angle
- Individual Control of Each COB Module
- Dimming: 0% - 100% of Each COB Module
- RDM (Remote Device Management)
- Flicker FREE Operation for TV and FILM
- Stand Alone Operation with Primary/Secondary Function
- Integrated Rigging Bracket
Specifications
(2) 100W Warm White 3,200K COB LEDs
100,000 Hour Average Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
5900 Max LUX (548 fc) @1M (Full On)
EFFECTS
Strobe
Variable / Selectable Dimming Curves
CONTROL / CONNECTIONS
4 DMX Channel Modes (1 / 2 / 3 / 4)

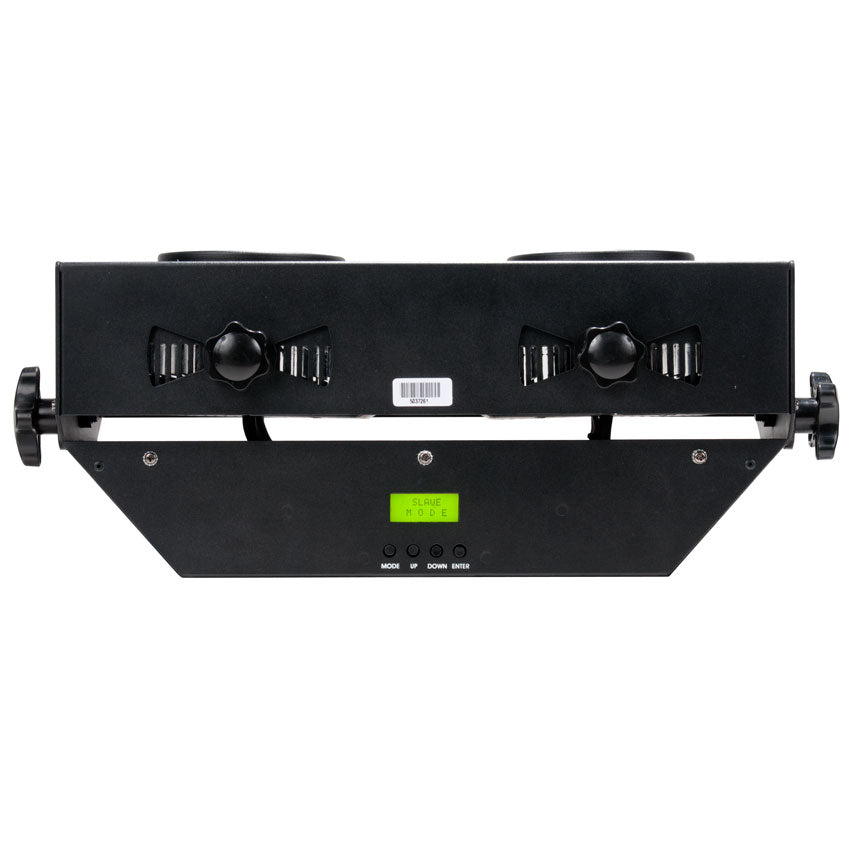

4 Button Control Panel and LCD Menu Display

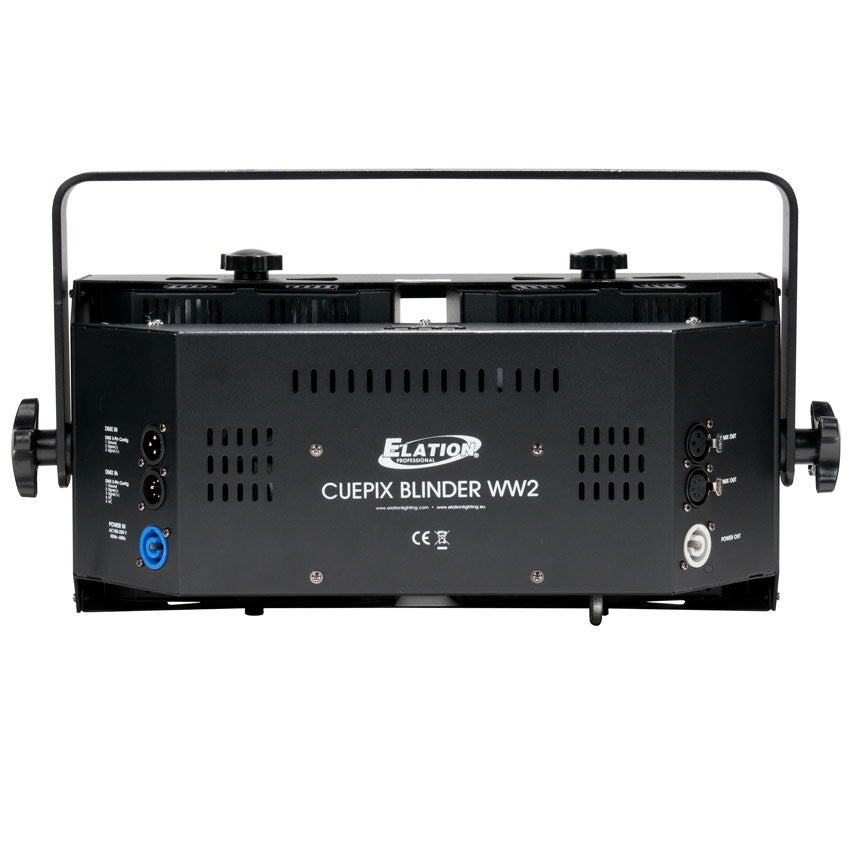

3pin and 5pin DMX In/Out
RDM* (Remote Device Management) *Software Version 1.13 or Higher
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 18.6” (472 mm)
Width: 7.1” (181.2 mm)
Height: 10.2” (259.5 mm)
Weight: 11.2 lbs. (5.1 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
229W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Ies files
Photometrics
Specification sheet
User manual
Vectorworks symbol
