CUEPIX PAR 300
CUEPIX PAR 300 is a professional-grade lighting solution.
CUEPIX PAR 300
The CUEPIX Par 300™ features (7) long life 30W 3-in-1 RGB COB LEDs, 100,000 average hour LED life, 15° beam angle, individual control of each COB module, variable dimming curve modes, strobe and chase effects, ArtNet™, KlingNet™ and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated rigging bracket, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).
- 15° Beam / 25° Field Angles
- ArtNet™ and Klingnet™ Support
- RDM - Remote Device Management
- Individual COB Module Control
- Variable Dimming Curve Modes
- Multiple Unit Power Linking
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM
Specifications
(7) 30W 3-in-1 COB LEDs
100,000 Hour Average LED Life
PHOTOMETRIC DATA
24,200 LUX 2,2248 FC @3.3’ (1m) (15° Full ON)
7,110 LUX 661 FC @6.6’ (2m) 15° Full ON)
3,230 LUX 300 FC @9.8’ (3m) (15° Full ON)
1,925 LUX 179 FC @13.1’ (4m) (15° Full ON)
1,250 LUX 116 FC @16.4’ (5m) (15° Full ON)
EFFECTS
Strobe and Chase Effects
Individual COB Module Control
Variable Dimming Curve Modes

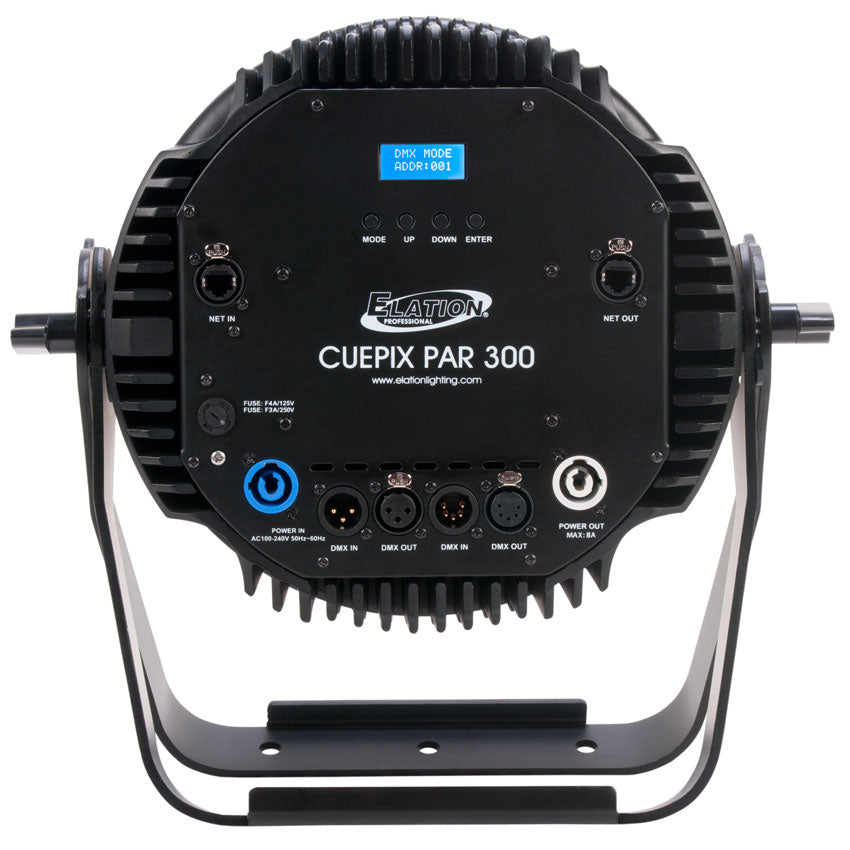

CONTROL / CONNECTIONS
6 DMX Channel Modes (3 / 4 / 5 / 9 / 21 / 24)
4 Button Control Panel and LCD Menu Display
ArtNet™ + KlingNet™ Protocol Support
RDM (Remote Device Management)
(2) RJ45 Ports
3pin and 5pin DMX In/Out
powerCON Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.4" (365mm)
Width: 5.8" (147mm)
Vertical Height: 14.4" (365mm)
Weight: 17.0 lbs. (7.7 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
Max Power Consumption: 300W
68°F to 113°F (20°C to 45°C)
APPROVALS / RATINGS
CE | IP20
OPTIONAL ACCESSORIES:

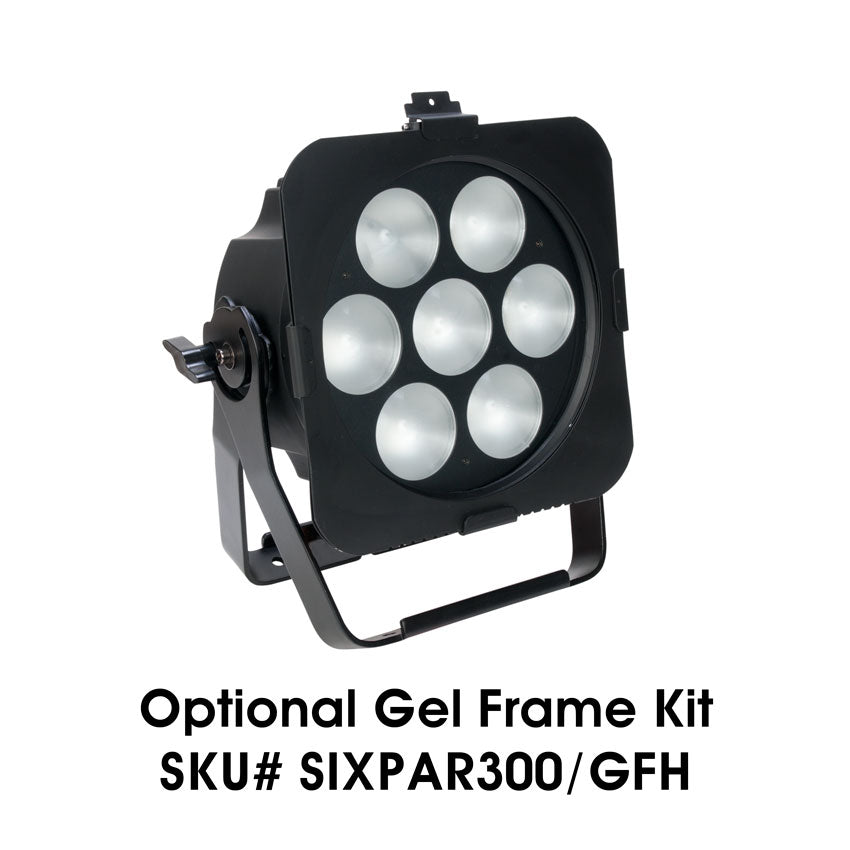

SIXPAR300/GFH - Gel Frame and Holder Kit
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Ies files
Photometrics
Specification sheet
User manual
Vectorworks symbol
CUEPIX PAR 300 Parts & Service
Our CUEPIX PAR 300 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your CUEPIX PAR 300. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
