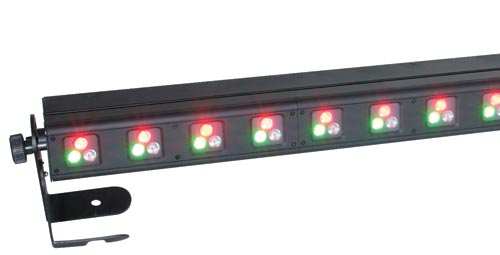

DESIGN LED 60 STRIP II
Design LED 60 Strip II is a professional-grade lighting solution. (rated at 100,000 Hours) #160; • Low power consumption#160; #160; • Low heat emissions #160; • Compact design#58; fits into 12-inch truss #160; • Built-in Power Supply and DMX 512 Control#160; #160; • Flicker free operation for television and film#160; #160; • Electronic Switching Power Supply (90-260V, 50/60Hz).
DESIGN LED 60 STRIP II
High Output LED Strip
- FEATURES:
- 60 x 1W Luxeon LED's - (20 Ea. R, G, B)
- Seamless RGB color mixing
- Infinite Color possibilities
- 80° Beam Angle
- 570 lumens @ 1m
- Long Life L.E.D. (rated at 100,000 Hours)
- Low power consumption
- Low heat emissions
- Compact design: fits into 12-inch truss
- Built-in Power Supply and DMX 512 Control
- Flicker free operation for television and film
- Electronic Switching Power Supply (90-260V, 50/60Hz)
Specifications
CONTROL SPECIFICATIONS:
• USITT-DMX 512
• 6, 15, 60 OR 63CH operation modes
• LED 4 character Menu isplay
• 3 amp; 5 pin XLR in/out
• Linkable power supply up to 8 units (In/Out power connectors)
CONTROL FEATURES:
• Primary/Secondary auto program and music trigger
• 8 built-in programs with Speed control
• Strobe effect (1-18 flashed per second)
• Control each L.E.D. independently
• Sound controlled via built-in microphone
• 0-100% Dimming
POWER SUPPLY:
• 90-260V AC, 50/60Hz (Multi-voltage)
• On/Off Power switch
• Power Consumption: 140 watts
RIGGING:
• Mounting bracket and safety I-hook installed
DIMENSIONS amp; WEIGHT:
• (LxWxH) – no bracket): 68” x 8.5” x 3.25” / 1728x215x83 mm
• 24 lbs. / 10.5 kgs.
• cETLus approved
