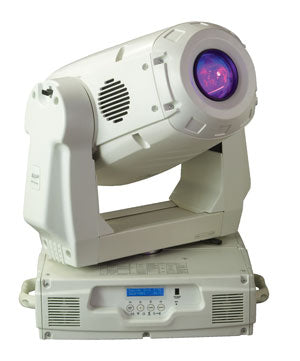

DESIGN SPOT 575E WH
Discontinued
Design Spot 575E WH is a professional-grade lighting solution. 575W White Moving Head Spot Wash In One CONTROL FEATURES #160; #160; • RDMX - Remote DMX Addressing #160; • USITT DMX-512 (16-bit resoultion) #160; • 24 DMX Channels #160; • 32-Character LCD display #160; • On board menu settings #160; • 3-pin XLR serial input/output #160; • Sound active mode#160;.
DESIGN SPOT 575E WH
Sale price$0.00
DESIGN SPOT 575E WH
575W White Moving Head Spot & Wash In One
- CONTROL FEATURES
- RDMX - Remote DMX Addressing
- USITT DMX-512 (16-bit resoultion)
- 24 DMX Channels
- 32-Character LCD display
- On board menu settings
- 3-pin XLR serial input/output
- Sound active mode
Specifications
OPTICAL SYSTEM
• High output luminous-parabolic dichroic reflector
• 15º to 30º linear Zoom
• All lenses are anti-reflection coated
• 29,700 lux @ 2.5M
COLORS
• Full Color mixing with CMY flag system
• 8 Dichroic filters, 7 color, UV + White
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
GOBOS
• 2 gobo wheels, 12 total gobos, 6 metal, 6 glass
• 6 interchangeable, indexable, rotating gobos plus open
• 6 interchangeable, indexable, rotating gobos plus open
• Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
• Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter
• Gobo Overlay (Gobo Morphing)
ANIMATION
• 1 rotating animation wheel
SHUTTER/DIMMER
• Variable speed strobe effect (1-13) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system
IRIS
• Beam narrow to wide (5% - 100%)
• Variable speed iris macros
• Small to large and large to small
FROST
• Variable Frost Control
• Hard edge to soft edge
PRISM
• 3-facet rotating/Indexing Prism
• Both directions at variable speeds
• Macro-function for rotating gobos/rotating prism combinations
FOCUS
• Motor driven focus from near to far
ZOOM
• 15 - 30 degree linear Zoom
LAMP
• Phillips MSR575/SA2DE 7500K, 1000hr
PAN/TILT
• Automatic Pan / Tilit position correction
• Maximum PAN-movement 630° in 2.0 secs (default) or 540° (user selectable) / 16 bit
• Maximum TILT-movement 265° in 1.5 secs / 16 bit
• Vector Mode with blackout
RIGGING
• 2 X 1/4 Turn omega brackets
POWER SUPPLY
• Electronic Ballast
• Voltage 90- 240vAC 50/60Hz
• Power Consumption: 600W (120V = 7A)
OPTIONAL DUAL ROAD CASE
• DRC-700
• High output luminous-parabolic dichroic reflector
• 15º to 30º linear Zoom
• All lenses are anti-reflection coated
• 29,700 lux @ 2.5M
COLORS
• Full Color mixing with CMY flag system
• 8 Dichroic filters, 7 color, UV + White
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
GOBOS
• 2 gobo wheels, 12 total gobos, 6 metal, 6 glass
• 6 interchangeable, indexable, rotating gobos plus open
• 6 interchangeable, indexable, rotating gobos plus open
• Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
• Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter
• Gobo Overlay (Gobo Morphing)
ANIMATION
• 1 rotating animation wheel
SHUTTER/DIMMER
• Variable speed strobe effect (1-13) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system
IRIS
• Beam narrow to wide (5% - 100%)
• Variable speed iris macros
• Small to large and large to small
FROST
• Variable Frost Control
• Hard edge to soft edge
PRISM
• 3-facet rotating/Indexing Prism
• Both directions at variable speeds
• Macro-function for rotating gobos/rotating prism combinations
FOCUS
• Motor driven focus from near to far
ZOOM
• 15 - 30 degree linear Zoom
LAMP
• Phillips MSR575/SA2DE 7500K, 1000hr
PAN/TILT
• Automatic Pan / Tilit position correction
• Maximum PAN-movement 630° in 2.0 secs (default) or 540° (user selectable) / 16 bit
• Maximum TILT-movement 265° in 1.5 secs / 16 bit
• Vector Mode with blackout
RIGGING
• 2 X 1/4 Turn omega brackets
POWER SUPPLY
• Electronic Ballast
• Voltage 90- 240vAC 50/60Hz
• Power Consumption: 600W (120V = 7A)
OPTIONAL DUAL ROAD CASE
• DRC-700
