DESIGN WASH LED ZOOM
Design Wash LED Zoom is a professional-grade lighting solution.
DESIGN WASH LED ZOOM

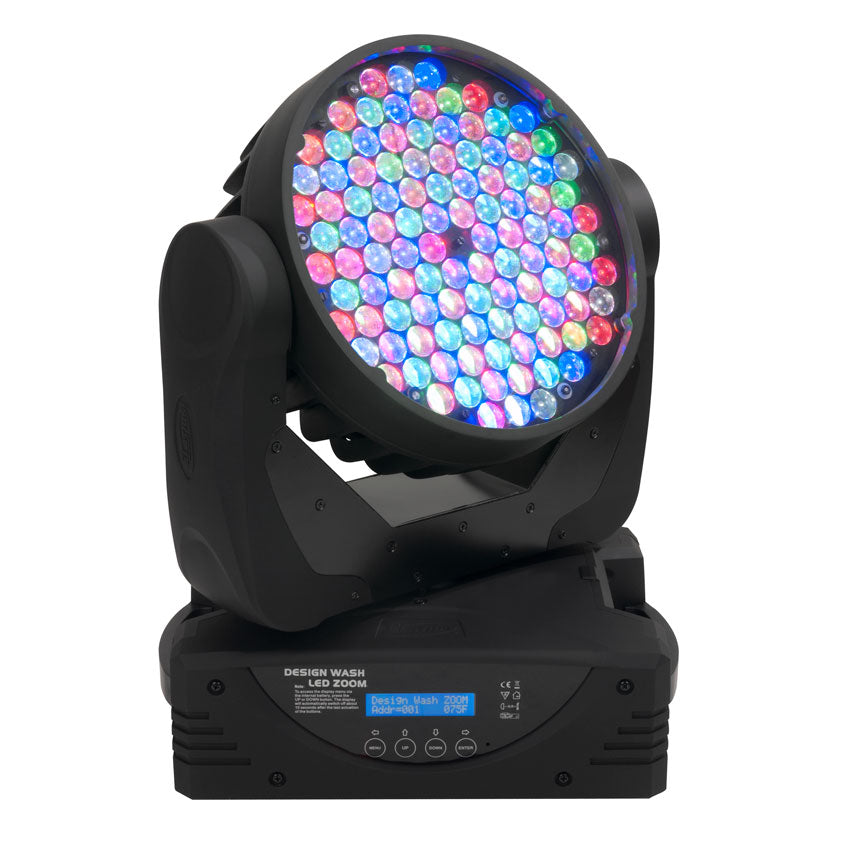

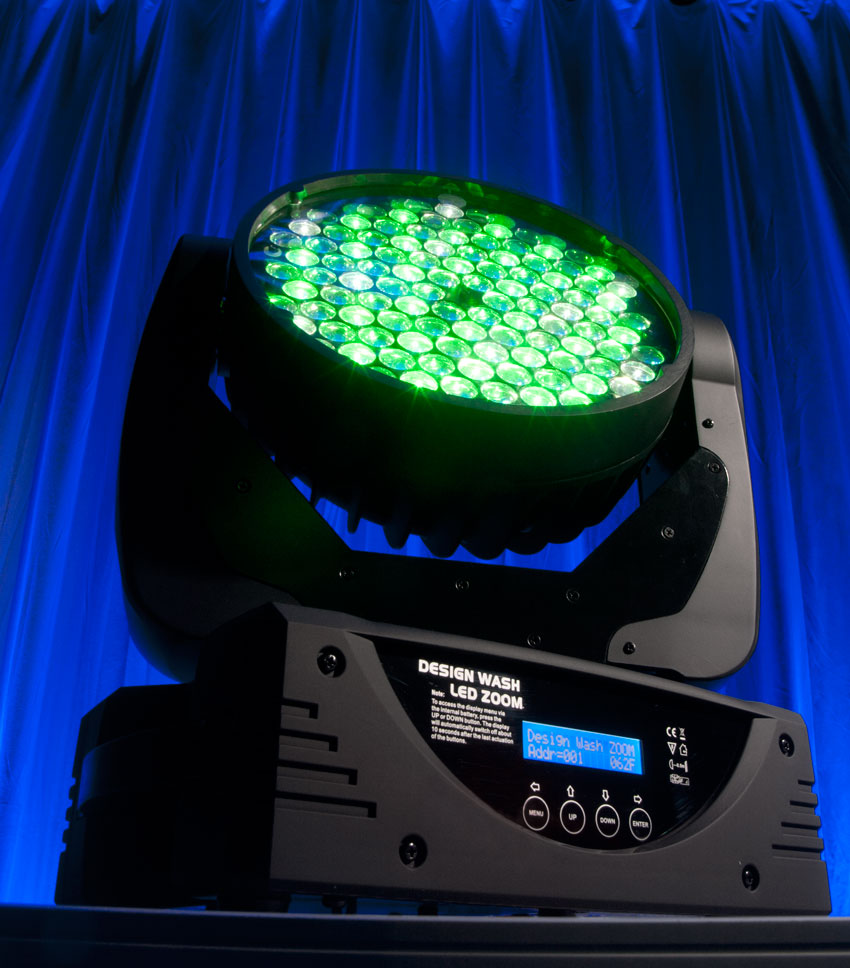

The Design Wash LED Zoom™ is a high output pro grade zoom wash LED luminaire featuring (108) 3W Osram™ LEDs consisting of (40) Red, (28) Green, (30) Blue, and (10) White, producing 5,500 total lumens with 6° to 23° motorized zoom, 0-100% dimming, 1-18 fps strobe and pulse effect, RGBW color mixing and color macros, 16bit pan and tilt movement, 3pin and 5pin DMX in/out connections, flicker free operation for broadcast TV and FILM, (4) button control LCD menu display, 350W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
The Design Wash LED Zoom™ is a high output pro grade zoom wash LED luminaire featuring (108) 3W Osram™ LEDs consisting of (40) Red, (28) Green, (30) Blue, and (10) White, producing 5,500 total lumens with 6° to 23° motorized zoom, 0-100% dimming, 1-18 fps strobe and pulse effect, RGBW color mixing and color macros, 16bit pan and tilt movement, 3pin and 5pin DMX in/out connections, flicker free operation for broadcast TV and FILM, (4) button control LCD menu display, 350W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
- SEE ALSO
- DESIGN WASH LED ZOOM WH™
- White Painted Exterior (click for more info)
- DESIGN WASH LED ZOOM CW™
- Cool White Version (click for more info)
- FEATURES
- High Output Pro Grade Zoom Wash LED Luminaire
- 5,500 Total Lumens
- 6° - 23° Motorized Zoom
- RGBW Color Mixing and Color Macros
- Flicker Free Operation for Broadcast TV and FILM
Specifications
(108) 3W Osram™ LEDs
(40) Red, (28) Green, (30) Blue, and (10) White
50,000 Hour Average LED Life
PHOTOMETRIC DATA
Distance @8.2 ft (2.5m)
32,700 LUX 3,038 FC (6° Min Zoom Full ON)
3,500 LUX 325 FC (23° Max Zoom Full ON)
EFFECTS
RGBW Color Mixing and Color Macros
Dimming: 0% - 100%
Strobe: 1-18fps
CONTROL / CONNECTIONS
(14) DMX Channels

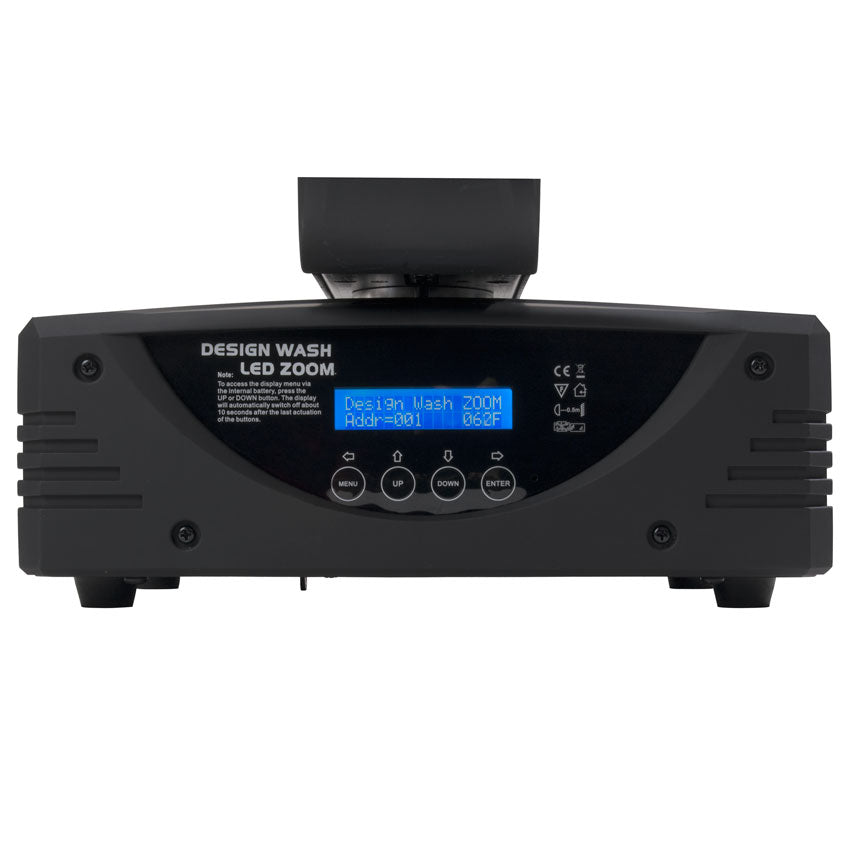

(4) Button Control Panel
LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

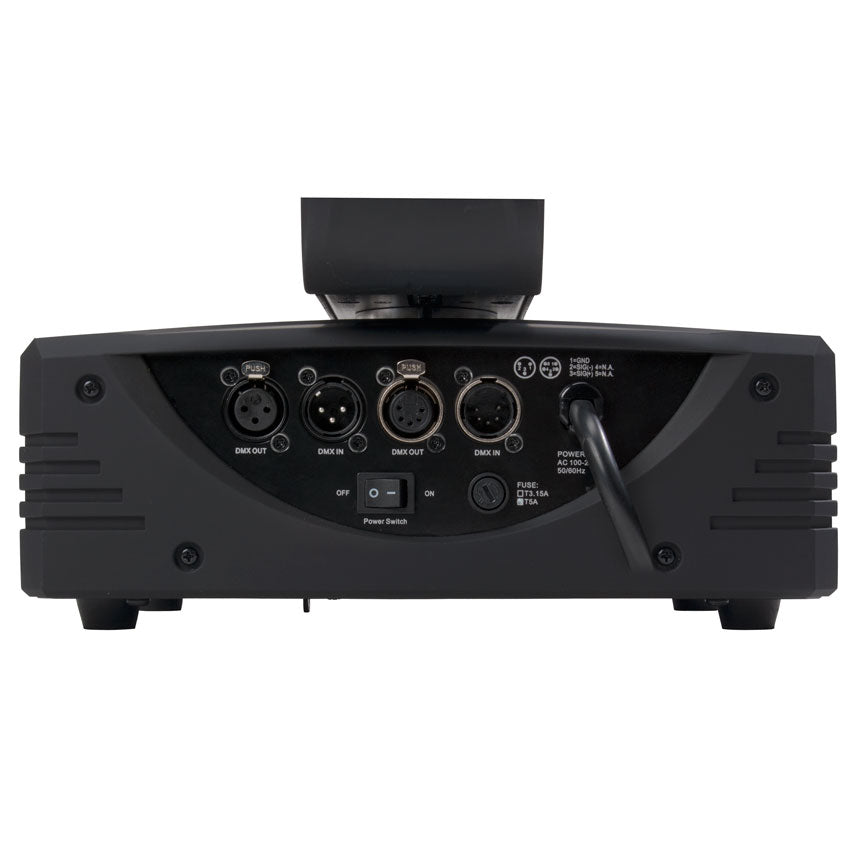

3pin and 5pin DMX In/Out
SIZE / WEIGHT
Length: 13.4” (341mm)
Width: 8.7” (220mm)
Vertical Height: 17.5” (445)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
320W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
(1) Omega Bracket
(1) 3pin DMX Cable
(1) Safety Cable
OPTIONAL ACCESSORIES:
CLAMPS(click for more info)
PRO CABLES(click for more info)
DMX SOLUTIONS(click for more info)
Specifications and documentation subject to change without notice.
