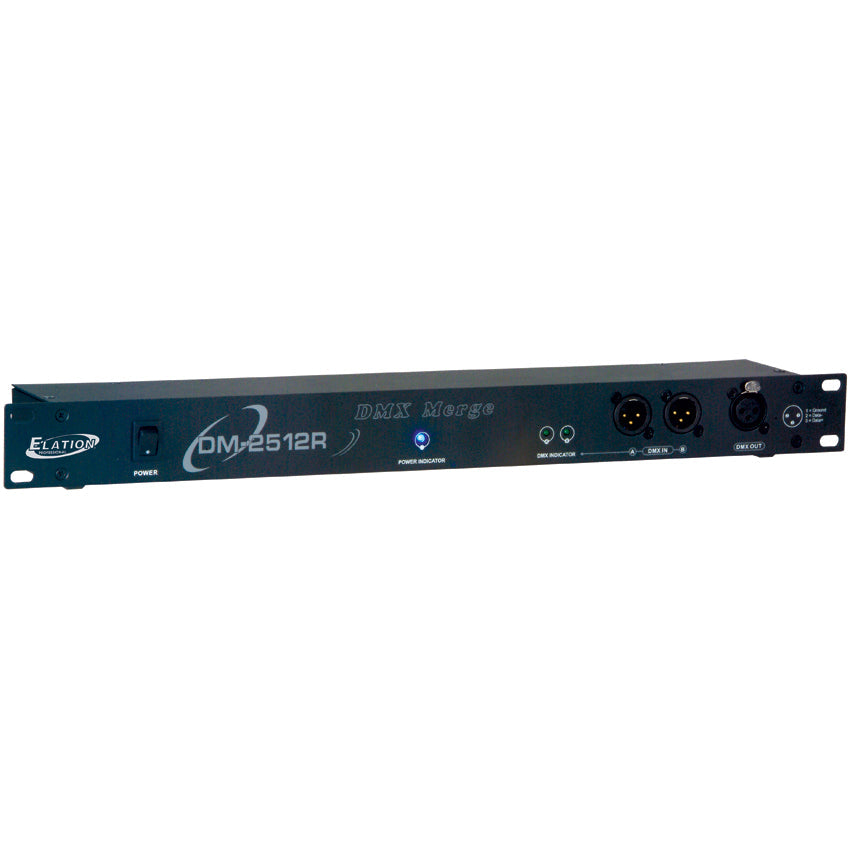

DM-2512R DMX MERGER
DM-2512R DMX Merger is a professional-grade lighting solution. FEATURES 19-Inch Single Space Rack Mount DMX Signal Merger Dual Universe 3 Selectable Function Modes: Merge, HTP and Back Up Addressable Via 10 Position Dip Switches On Rear Two (AB), 3-pin XLR Outputs On Front Rear Panel Single, 3-pin XLR Outputs On Front Rear Panel DMX Signal, LED Indicators For DMX Inputs Power Switch Indicator LED.
DM-2512R DMX MERGER
FEATURES 19-Inch Single Space Rack Mount DMX Signal Merger Dual Universe 3 Selectable Function Modes: Merge, HTP and Back Up Addressable Via 10 Position Dip Switches On Rear Two (A&B), 3-pin XLR Outputs On Front & Rear Panel Single, 3-pin XLR Outputs On Front & Rear Panel DMX Signal, LED Indicators For DMX Inputs Power Switch & Indicator LED
Specifications
19" (482mm) x 2.87" (72.9mm) x 1.73" (44mm)
2.53 lbs. (1.15kg)
ELECTRICAL
9VDC - 1000mA Minimum External Power Supply (Included)
APPROVALS
CE
OPTIONAL ACCESSORIES:
PRO CABLES(click for more info)
Specifications and documentation subject to change without notice.
