DNG-250

Discontinued

DNG-250 is a professional-grade lighting solution. Built-in volume, timer and DMX function setting are fully accessible through its LCD display control interface.

UPC: 810008260388SKU: DNG250

DNG-250

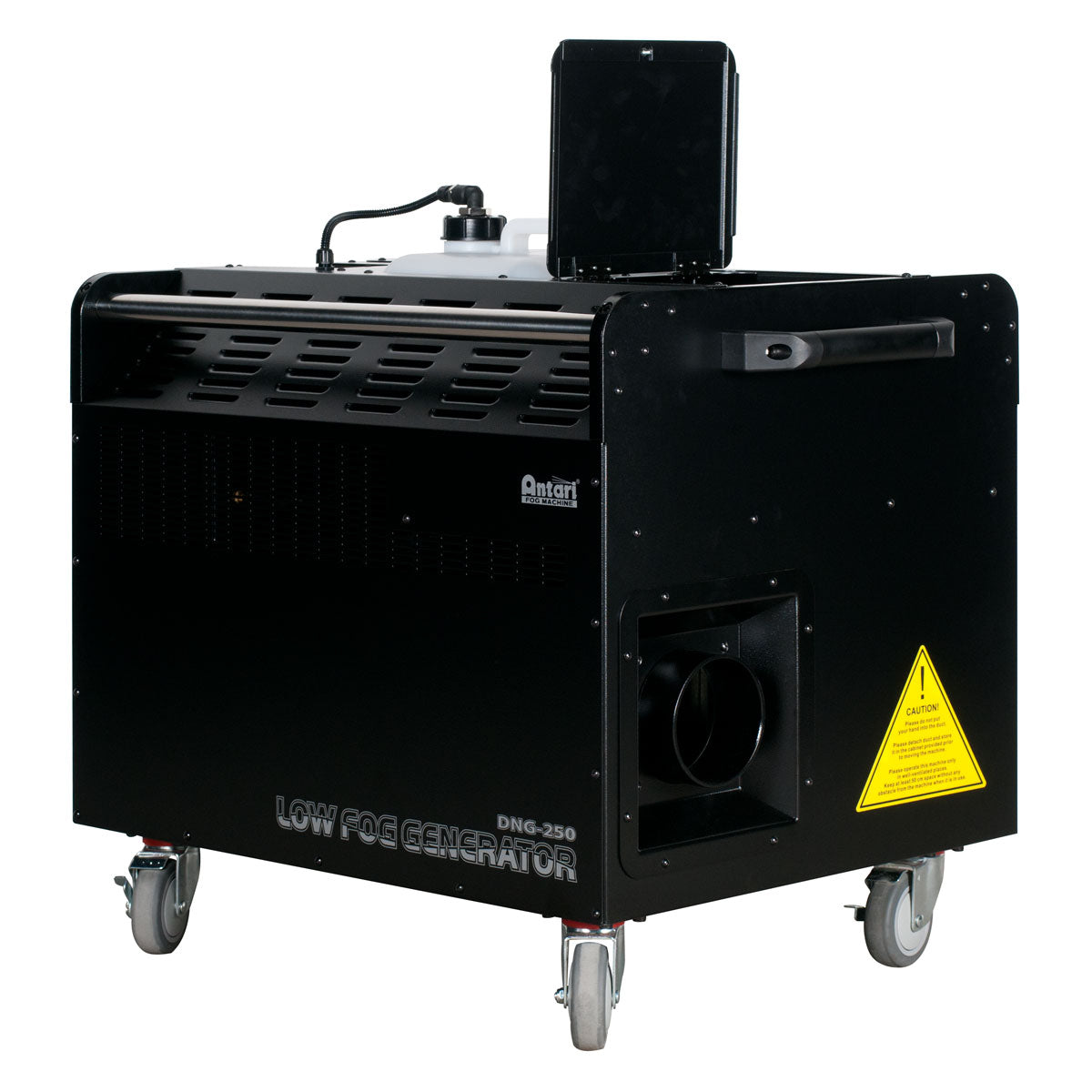

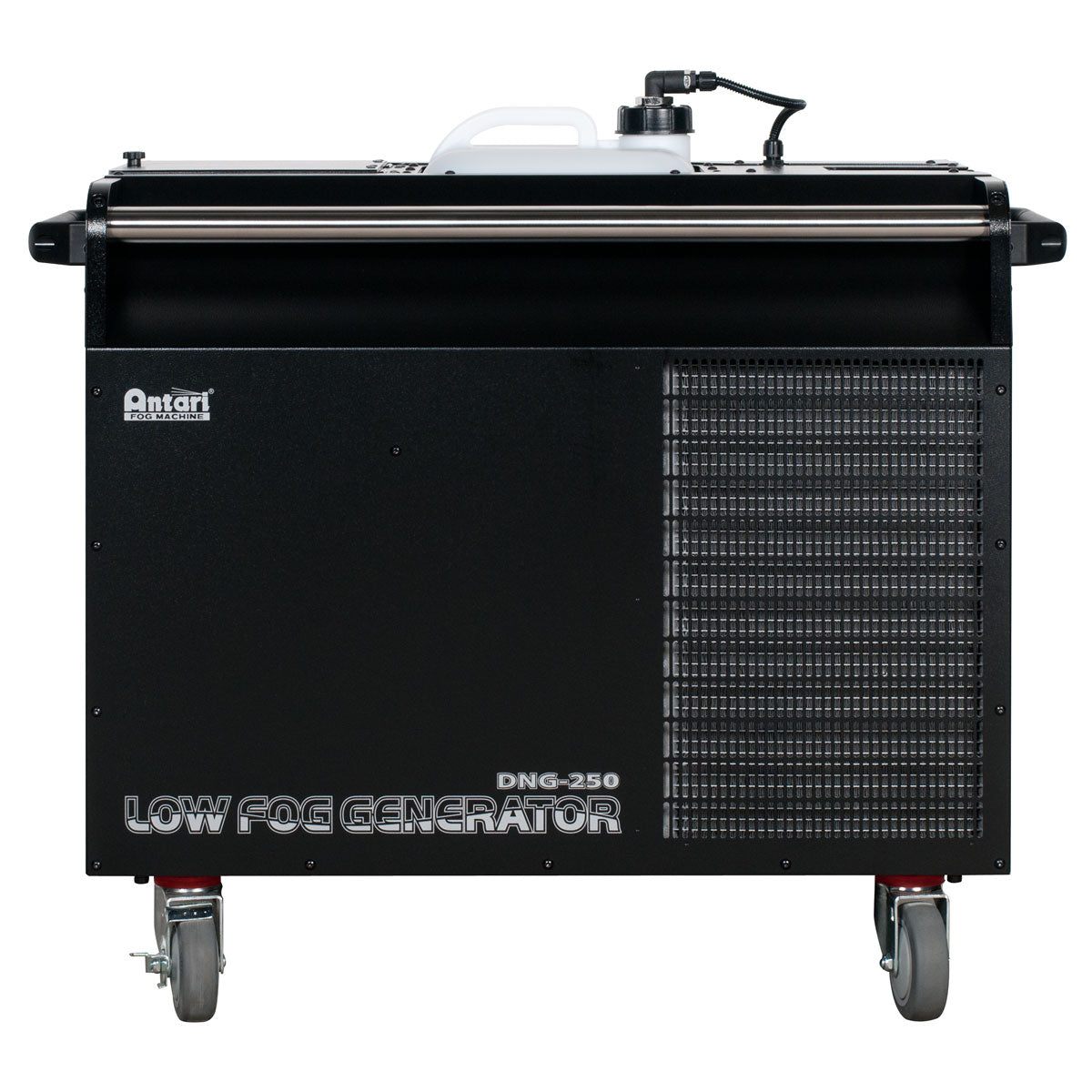

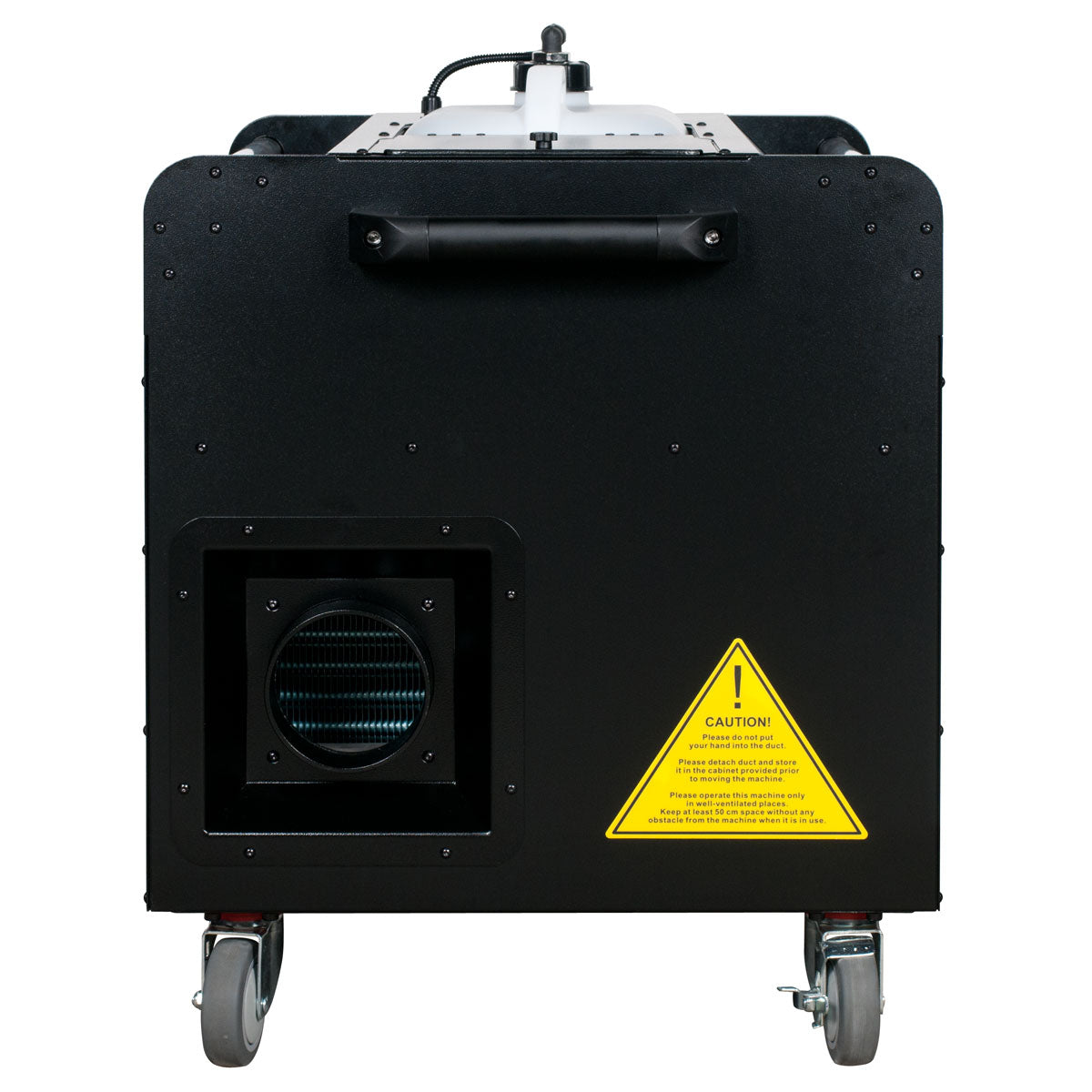

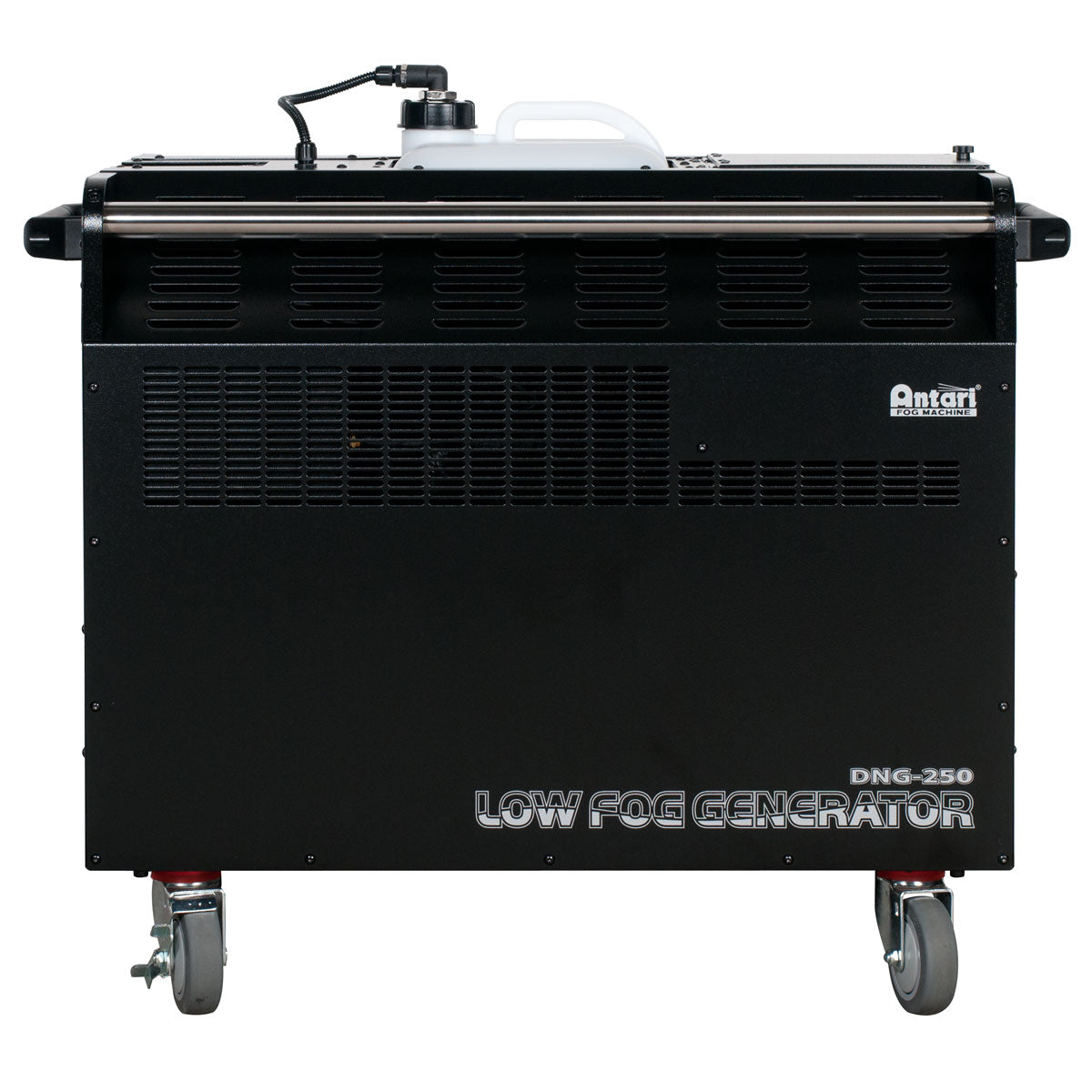

The DNG250 Low Fog Generator is the complete ground fog effect solution. It's a fully self-contained unit that has a built-in fog machine and cooling system to create a low lying fog effect, makes it far more efficient and convenient compared to CO2 and dry ice.

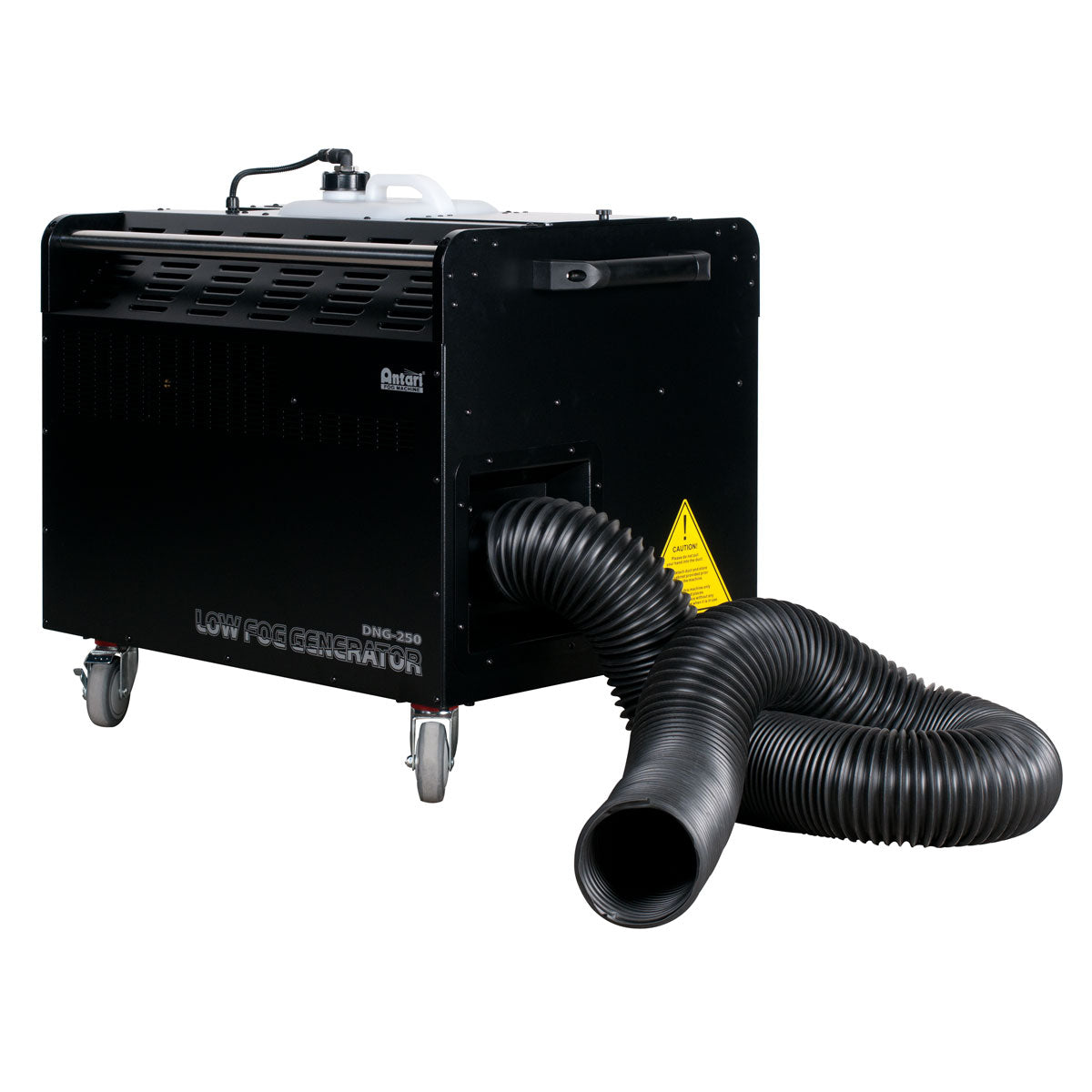

Built-in volume, timer and DMX function setting are fully accessible through its LCD display control interface. The unit comes with 3 meters conducting hose enable the user to guide the fog to the desired location. Its robust built structure comes with large side handles and wheels for the ease of transportation. DNG250 is designed to meet the requirement for medium to large scale venues.

  • Self-Contained Unit, No CO2 or Dry Ice Required
  • Continuous Low Lying Fog Output
  • High-Efficiency Heat Exchange System Generates Massive Output

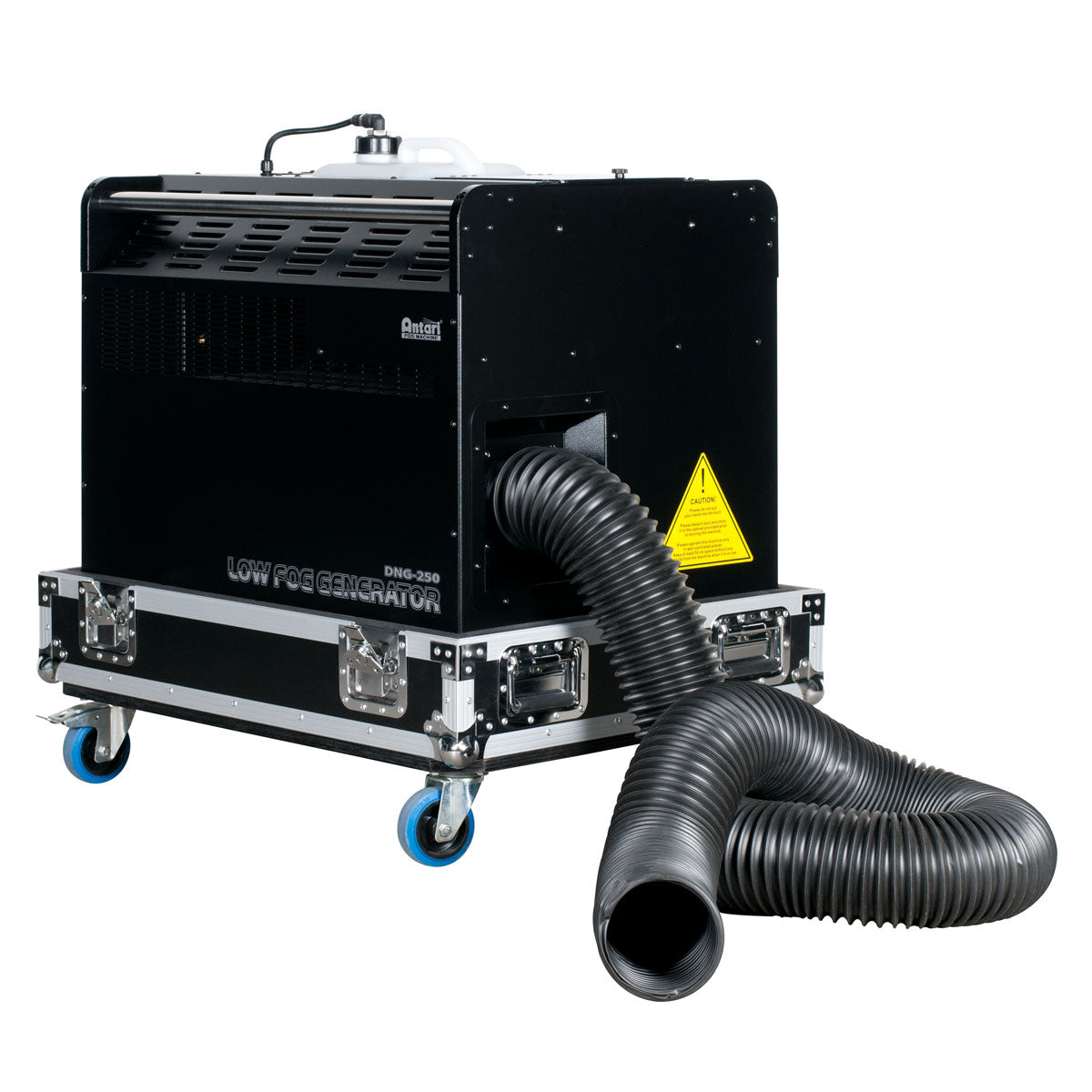

  • Optional Flight Case for Extra Protection and Ease of Transportation

Specifications

PERFORMANCE:
Warm-up time: 240V / 8 minutes (approx.)
Fluid tank capacity: 10L (2.64gal)
Fluid consumption: 100 ml / min (100% output)
Refrigerant: R- 404A, 1.76 Ib (0.8kg)

COMPATIBLE FLUID:
Antari FLL-10 Low Fog Effects Fluid

CONTROL:
DMX512 Protocol
DMX Modes: 1
DMX channels: 1 Channel
Manual and Timer Mode

CONNECTIONS:

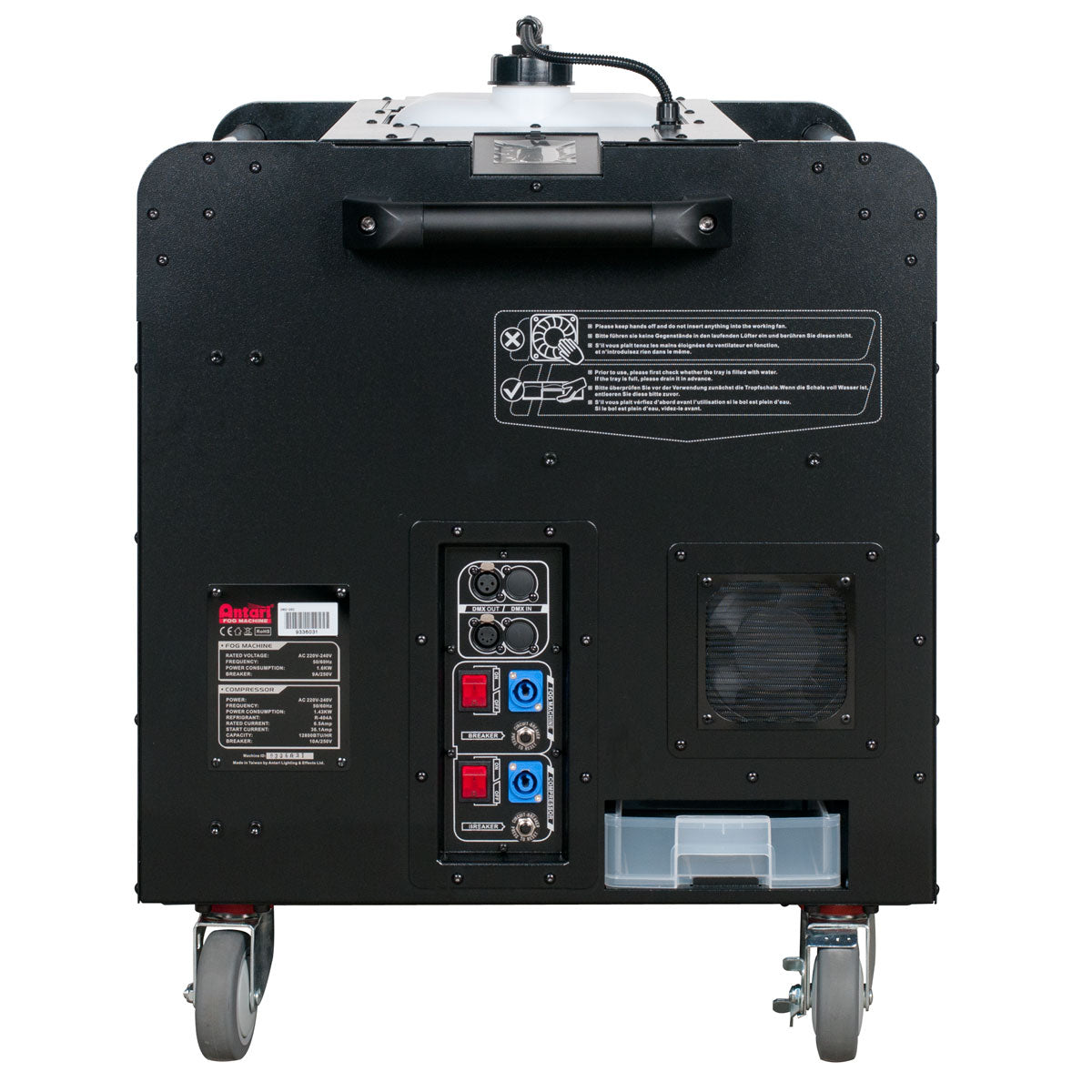

Power: Twist Locking Power Connector
Data Connectors: 3-pin XLR In/Out, 5-pin XLR In/Out

SIZE / WEIGHT:
Length: 30.70 in. (780 mm)
Width: 23.93 in. (608 mm)
Vertical Height: 28.14 in. (715 mm)
Weight: 286.60 lbs. (130 Kg)

ELECTRICAL:
Input voltage: AC 220-240V, 50/60Hz 3.8~6.5A
Rated power: 240V / 1600W
Start current: 240V / 36.1A

THERMAL:
Maximum Temperature Range (Ambient): 41°F - 104 °F (5°C - 40°C)

OPTIONAL ACCESSORIES:
FDNG-250 Flight case
