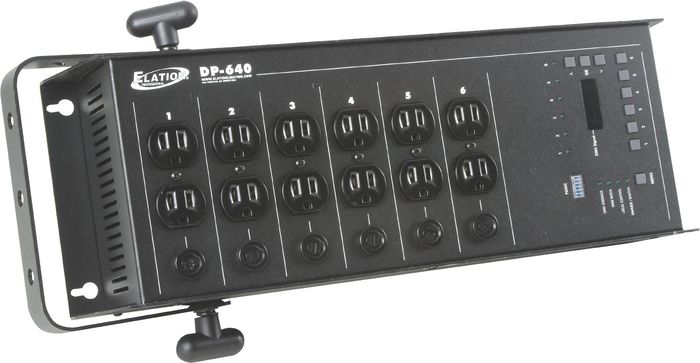

DP-640

• 6 channel hybrid DMX pack- serves as dimmer or power pack

• Digital display- used to set starting DMX address channel and set all other menu options

• Individual DMX addressing for each channel

• 6 position dip switches for Panic function

• Adjustable master dim level

• Adjustable channel dim level- with HTP

• Two three prong Edison sockets per channel

• 3 pin XLR DMX Input amp; Output

• Six LEDrsquo;s display channel activity

• Individual fuse protection for each channel

• Six external channel fuses for quick and easy replacement

• Sleek aluminum case

• Zero crossing circuitry for protection of transformer loads when switching

• Use in conjunction with DMX Operator Pro, Stage Setter-8, Scene Setter, Scene Setter-48 and Stage Desk-16

• Power Input: Dual 12AWG cables with 15A plugs- 120V ~ 60Hz each

• Maximum Load: 10A per channel / 20A per phase - 40A total with 20A plugs

• Dimensions: 19.9"L x 6.8"W x 3.7"H

• Weight: 11 lbs

Specifications and documentation subject to change without notice.
