DR-PRO RACK
DR-PRO RACK is a professional-grade lighting solution.
DR-PRO RACK

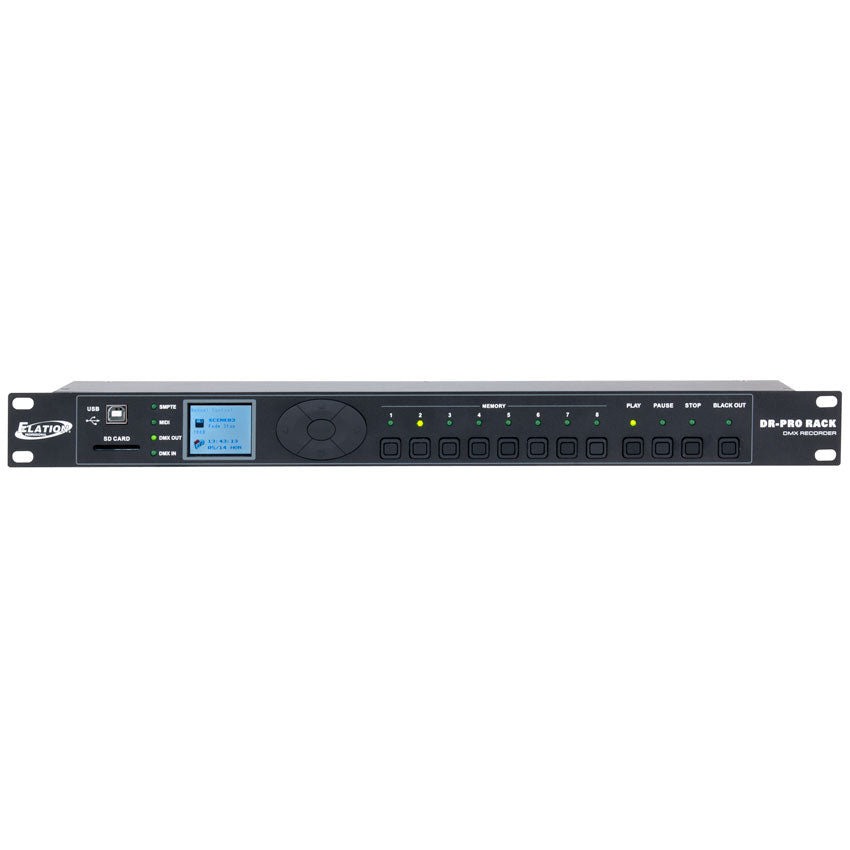

The DR-PRO RACK™ is a standard DMX-512 recorder/playback device with up to 8 memories, 5 operation modes including SMPTE/MIDI time code triggering, 4 recording modes, password lock function, and over 5 hours of recording time. The recorder has a 128 x 160 character color LCD display, SD Card and USB ports for data memory and software upgrades, 3pin SMPTE, 5pin MIDI inputs, and 3pin DMX input/output ports.
- (8) Memory Banks of Static Scenes, Chases, or Shows
- (5) Operation Modes
- (4) Recording Modes
- Password Lock Function
- Over (5) Hours of Recording Time
- 128x160 Character Color LCD Display
- SD Card Slot / USB Port for Data Memory/Software Upgrades
Specifications

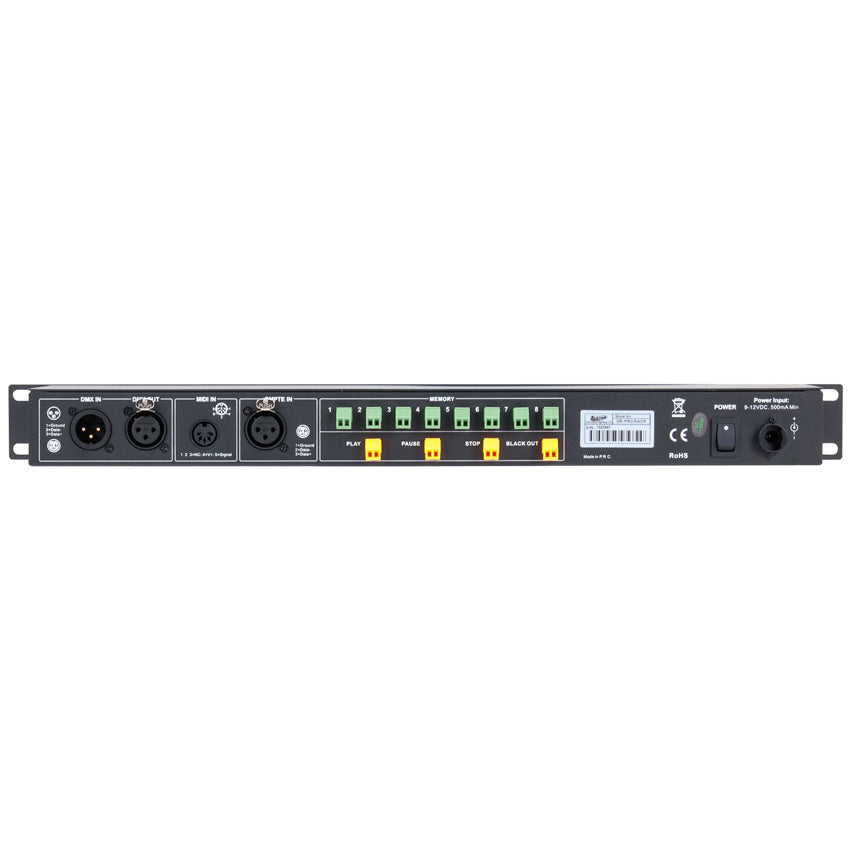

3pin XLR DMX In/Out
3pin XLR SMPTE Input
5pin MIDI Input
USB Type B and SD Card Slot (accepts up to 2GB card)
(12) Phoenix Connectors for dry contact closure triggering
9-12VDC 500mA Power Supply (included)
SIZE / WEIGHT
19” (482mm) x 3.1” (78mm) x 1.7” (44mm)
2.7 lbs. (1.2kg)
Specifications and documentation subject to change without notice.
