DTW BAR 1000
12x 10W CW/WW/Amber LED Batten Fixture
DTW BAR 1000 is a professional-grade lighting solution.
Replaced by
Related Products
DTW BAR 1000

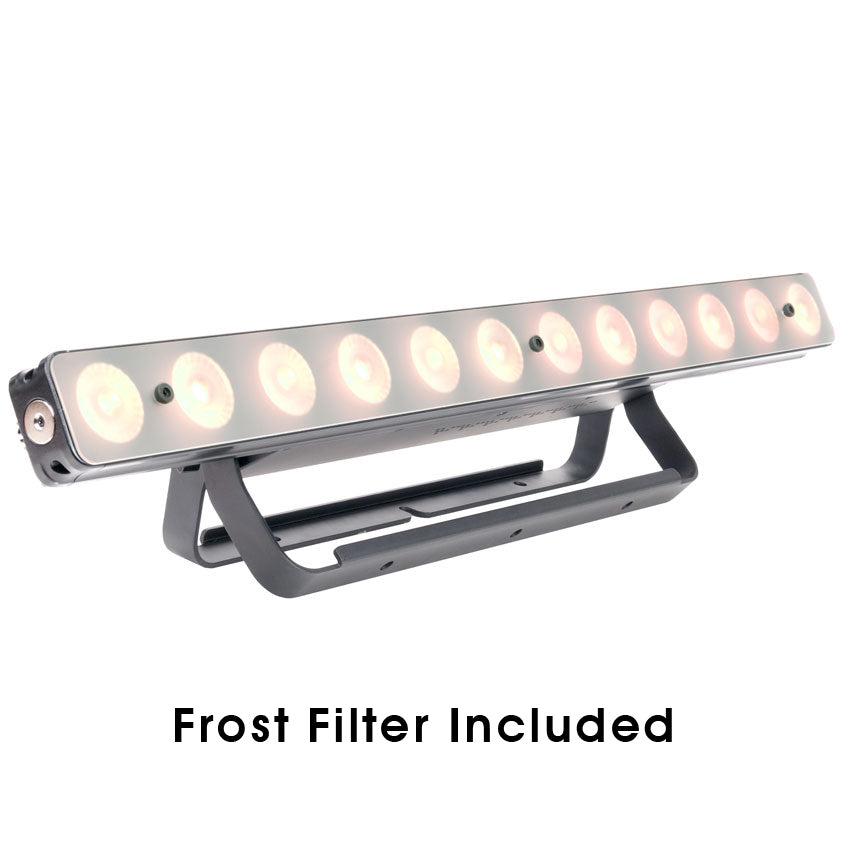

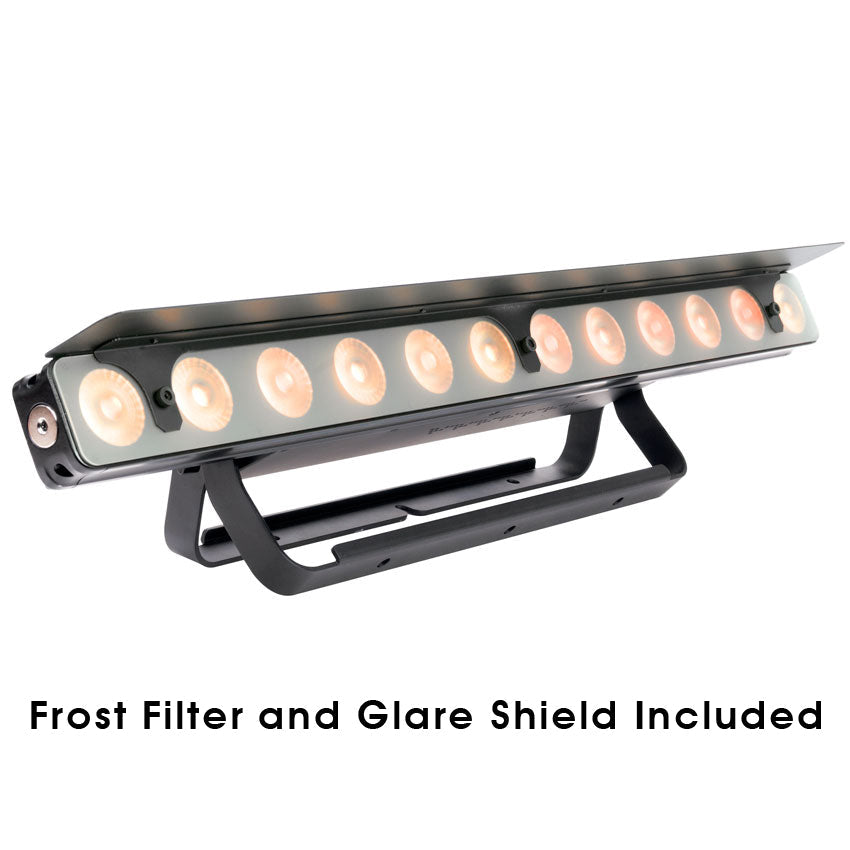

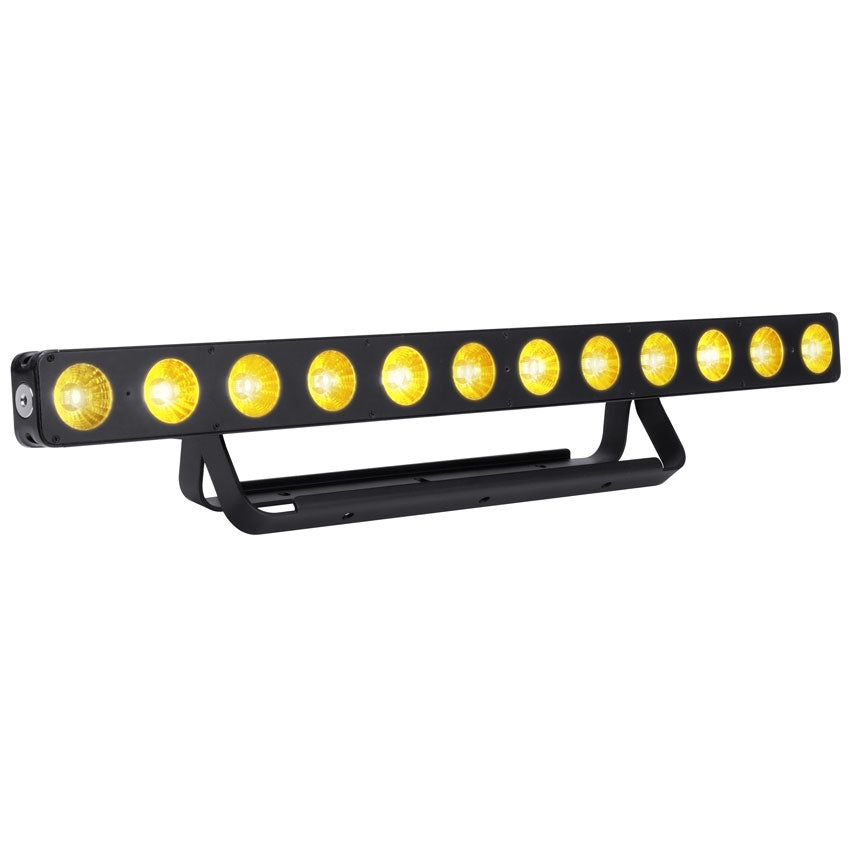

The DTW BAR 1000™ features (12) 10W multi-chip Cool White / Warm White / Amber LEDs, 20° beam 40° field angles, selectable dim-to-warm control, cool white, warm white, and amber color mixing, full pixel and 1,600K - 6,500K color temperature control, variable 16-bit dimming curve modes, selectable color and program macros, strobe and chase effects, DMX, RDM, KlingNet, and Art-Net protocol support, DMX, RJ45, and Locking Power in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, included frost filter and glare shield, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).
- 12 x 10W Multi-Chip Cool White/Warm White/Amber LEDs
- 20° Beam 40° Field Angles
- Selectable Dim-to-Warm Control
- Cool White, Warm White, Amber Color Mixing
- Full Pixel + Color Temperature Control (1,600K - 6,500K)
- Variable 16-bit Dimming Curve Modes
- Selectable Color and Program Macros
- DMX, RDM, KlingNet, and Art-Net Support
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM
Specifications
SOURCE
(12) 10W Multi-Chip CW / WW / Amber LEDs
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
2,900+ Total Output Lumens
17,878 LUX 1,661 FC @3.3’ (1m) (Full ON)
9,467 LUX 879 FC @3.3’ (1m) (Warm White)
9,177 LUX 853 FC @3.3’ (1m) (Cool White)
EFFECTS
Selectable Dim-to-Warm Control
Cool White, Warm White, Amber Color Mixing
Full Pixel + Color Temperature Control (1,600K - 6,500K)
Variable 16-bit Dimming Curve Modes
Selectable Color and Program Macros

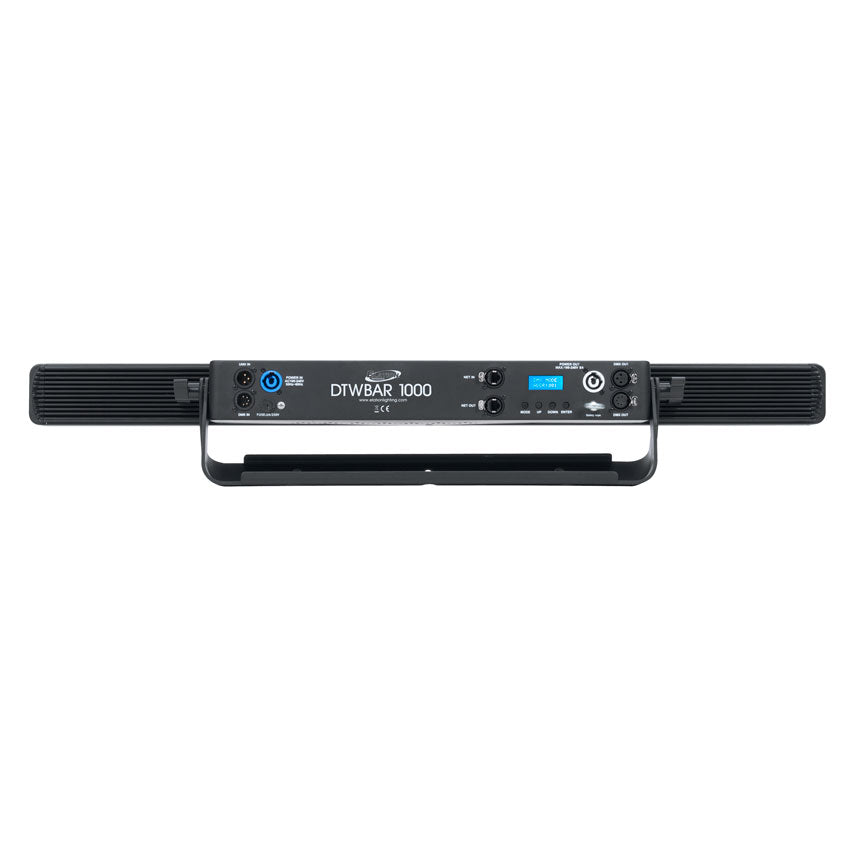

CONTROL / CONNECTIONS
(14) DMX Channel Modes (72 total channels)
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
ArtNet + KlingNET Protocol Support
(2) ethernet RJ45 In/Out
3pin and 5pin DMX In/Out
Locking Power Cable In/Out
SIZE / WEIGHT
Length: 35.4” (900mm)
Width: 8.1” (206.4mm) *with included glare shield
Vertical Height: 6.1” (155mm)
Weight: 14.0 lbs. (6.4 kg)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
120W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
FIRMWARE UPDATES
Current Version: V1.13
Click HERE for software updates
Specifications and documentation subject to chance without notice.
