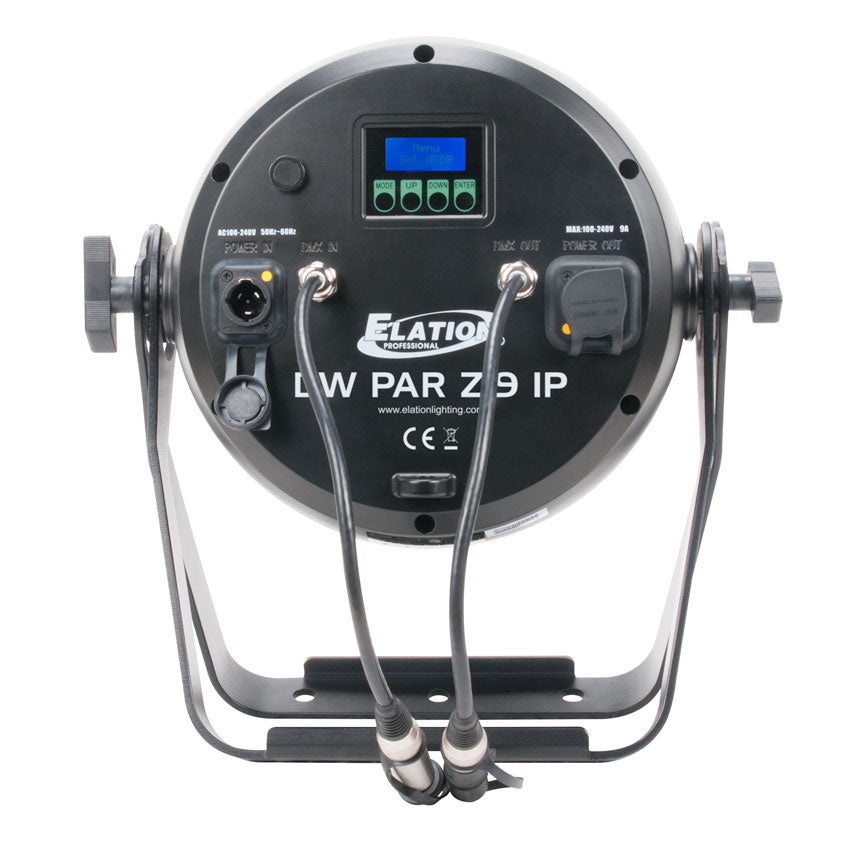

DW PAR Z19 IP
DW PAR Z19 IP is a professional-grade lighting solution.
DW PAR Z19 IP
The IP65 rated DW PAR Z19 IP™ features (19) 15W 2-in-1 Cool White / Warm White LEDs, 5° to 36° motorized zoom, dynamic white color temperature range control from 2,700K - 6,000K, electronic strobe and variable dimming curve modes, DMX and RDM (remote device management) protocol support, IP rated 5pin DMX and power in/out connections, LCD menu display with 4 touch button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).
- IP65 Rated
- 5° to 36° Motorized Zoom
- Dynamic White Color Temperature Control (2,700K - 6,000K)
- Rugged Die-Cast Aluminum Exterior
- Multiple Unit Power Linking
- IP Rated DMX and Twist Locking power Connections
- Flicker Free Operation for TV and FILM
Specifications
(19) 15W 2-in-1 Cool White / Warm White LEDs
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
44,070 LUX 4,094 FC @9.8’ (3m) (5° Full ON - 4,700K)
1,754 LUX 163 FC @9.8’ (3m) (36° Full ON - 4,700K)
COLOR
Cool White / Warm White
EFFECTS
5° - 36° Motorized Zoom
Electronic Strobe and Variable Dim Curves
Dynamic White Color Temp Control (2,700K - 6,000K)
CONTROL / CONNECTIONS
6 DMX Channel Modes (7 Total Channels)
4 Touch Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX and Twist Locking Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 15.9" (363mm)
Width: 12.0" (305mm)
Vertical Height: 15.6" (396mm)
Weight: 26.0 lbs. (11.8 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
240W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Ies files
Photometrics
User manual
Vectorworks symbol
