E Spot LED II
Discontinued
E Spot LED II is a professional-grade lighting solution.
E Spot LED II
Sale price$0.00
E Spot LED II

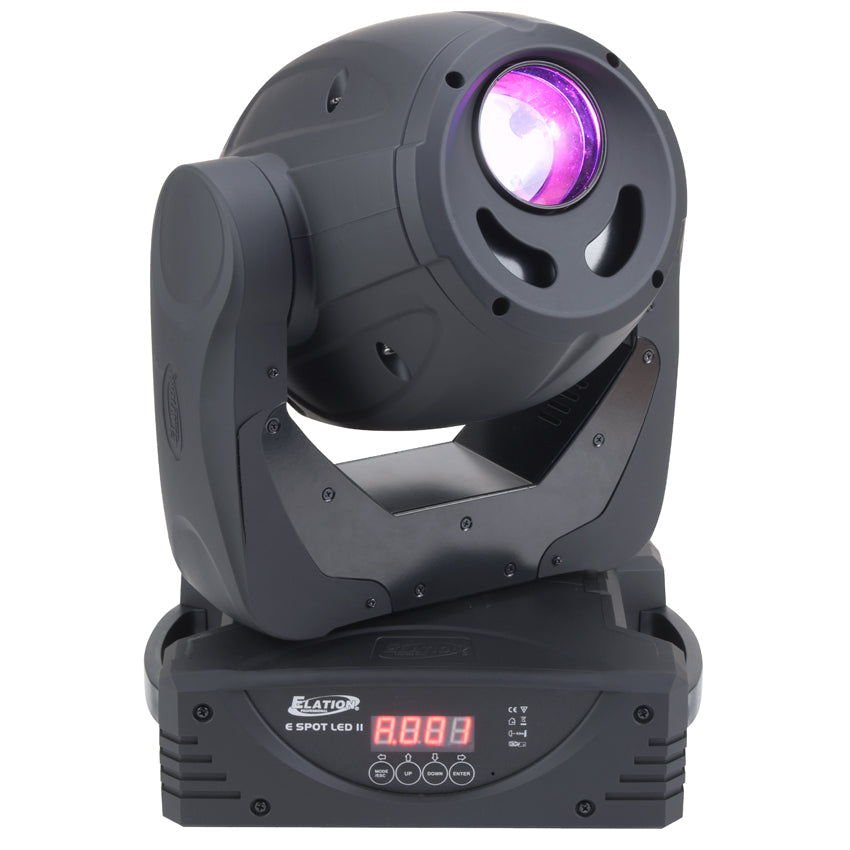

The E SPOT LED II™ features a 60W 6,500K, Cool White Solid State LED engine, with greater output and 1/2 the power of a 150W discharge fixture, 16-bit pan and tilt motors, motorized focus, electronic strobe, 0-100% dimming, rotating 3 facet, 5 facet, and infinity prisms, color wheel with (8) dichroic colors plus white, gobo wheel with (7) rotating, interchangeable gobos, flicker free operation for TV and FILM, 3 and 5pin DMX in/out connections, (4) button touch control panel, 180W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).
Greater Output and 1/2 the Power of 150W Discharge
16 bit Pan and Tilt Motors
Motorized Focus
Flicker Free Operation for TV and FILM
Greater Output and 1/2 the Power of 150W Discharge
16 bit Pan and Tilt Motors
Motorized Focus
Flicker Free Operation for TV and FILM
Specifications
SOURCE
60W 6,500K Cool White Solid State LED Engine
60,000 Hour Average Life
PHOTOMETRIC DATA
2,636 LUX 245 FC @5M 15°
EFFECTS
3 Facet, 5 Facet, and Infinity Prisms and Macros
Variable Strobe Settings
Electronic Dimming: 0% - 100%
COLOR
8 Dichroic Colors + White
GOBOS
7 Interchangeable / Rotating / Indexing Glass Gobos
Size: OD 27mm / ID 22mm
CONTROL / CONNECTIONS
(2) DMX Channel Modes (12/14)

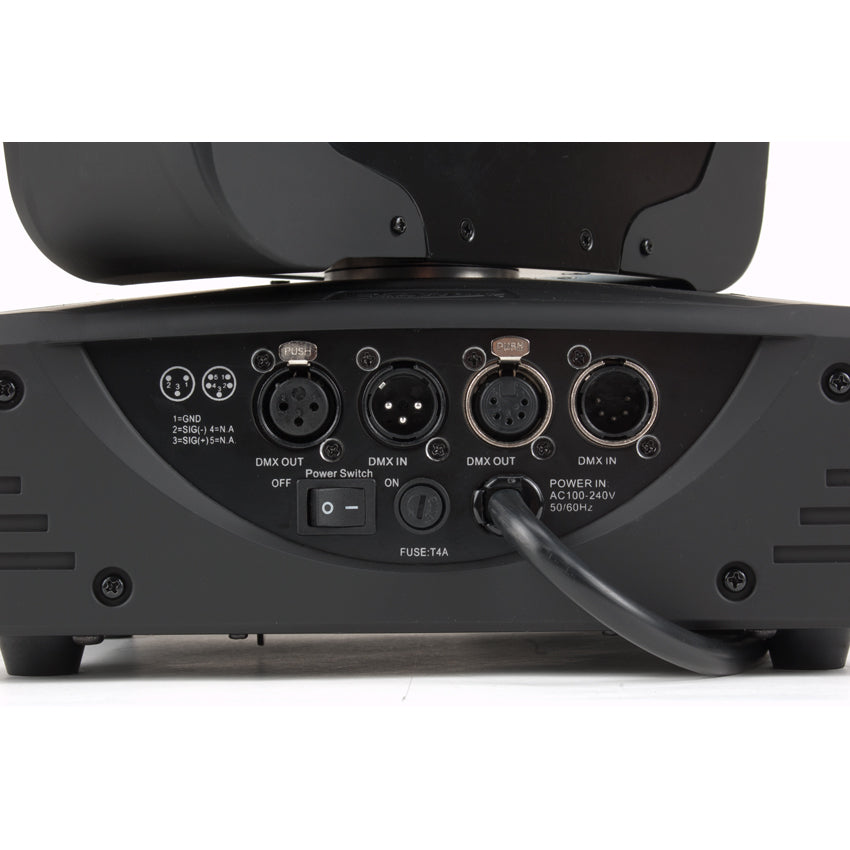

3pin & 5pin DMX In/Out

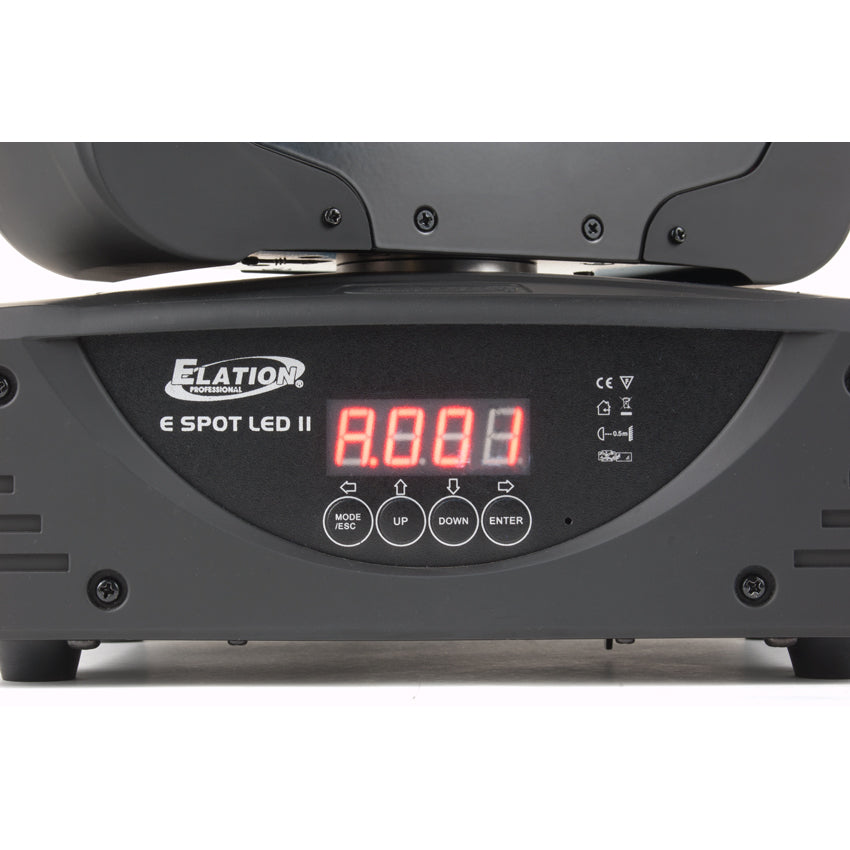

4 Button Control Panel
LCD Menu Display
Edison Power Cable
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 11.9&" (301mm)
Width: 8.0&" (204mm)
Vertical Height: 16.0&" (407mm)
Weight: 25.0 lbs. (11.3kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
180W Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
60W 6,500K Cool White Solid State LED Engine
60,000 Hour Average Life
PHOTOMETRIC DATA
2,636 LUX 245 FC @5M 15°
EFFECTS
3 Facet, 5 Facet, and Infinity Prisms and Macros
Variable Strobe Settings
Electronic Dimming: 0% - 100%
COLOR
8 Dichroic Colors + White
GOBOS
7 Interchangeable / Rotating / Indexing Glass Gobos
Size: OD 27mm / ID 22mm
CONTROL / CONNECTIONS
(2) DMX Channel Modes (12/14)
3pin & 5pin DMX In/Out
4 Button Control Panel
LCD Menu Display
Edison Power Cable
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 11.9&" (301mm)
Width: 8.0&" (204mm)
Vertical Height: 16.0&" (407mm)
Weight: 25.0 lbs. (11.3kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
180W Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Photometrics
Specification sheet
User manual
E Spot LED II Parts & Service
Our E Spot LED II Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your E Spot LED II. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
E Spot LED II Parts & Service
