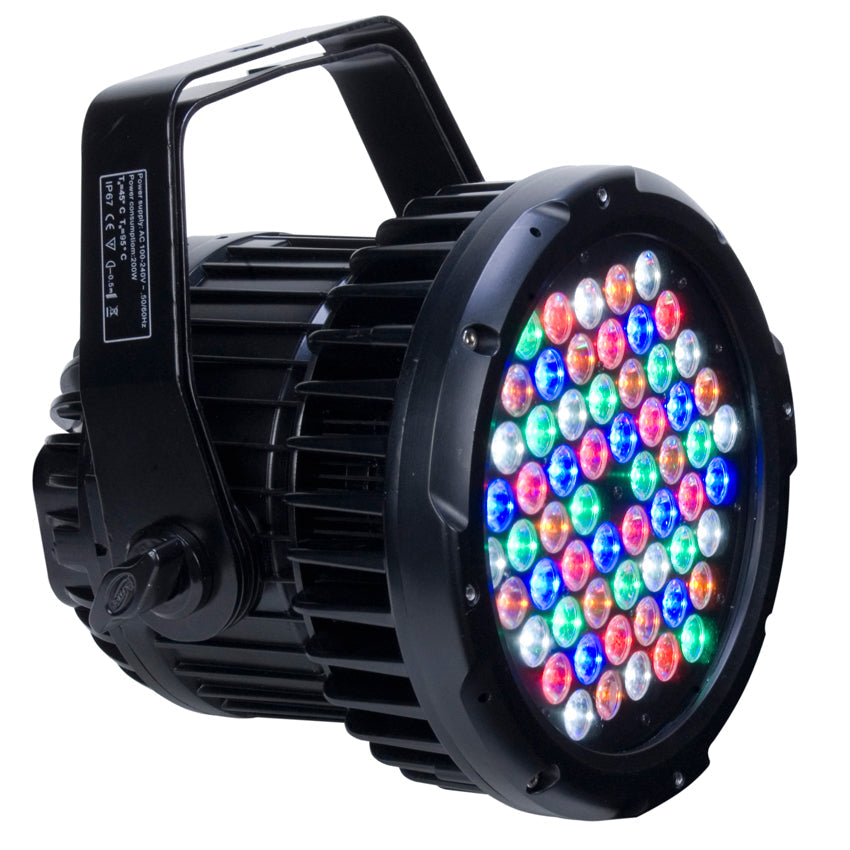

ELAR 180 PAR RGBWA

Discontinued

ELAR 180 PAR RGBWA is a professional-grade lighting solution. ELAR 180 PAR RGBWA is a high power outdoor IP65 rated RGBWA LED Par, with (60) 3W RGBAW LEDs (12 per color), producing over 1,600 total lumens, a 9° beam angle, 22° field angle with standard 10° lens kits available, smooth color mixing, internal color macros, auto auto and manual control, flicker free operation for TV and FILM, IP rated 3pin DMX and power in/out pigtails, 185W max power consumption, and a universal auto switching power supply (100v-240V).

UPC: 837874012699SKU: EAR494

ELAR 180 PAR RGBWA

ELAR 180 PAR RGBWA is a high power outdoor IP65 rated RGBWA LED Par, with (60) 3W RGBAW LEDs (12 per color), producing over 1,600 total lumens, a 9° beam angle, 22° field angle with standard 10° lens kits available, smooth color mixing, internal color macros, auto auto and manual control, flicker free operation for TV and FILM, IP rated 3pin DMX and power in/out pigtails, 185W max power consumption, and a universal auto switching power supply (100v-240V).

  • High Power Outdoor IP65 Rated RGBWA LED Par
  • (60) 3W RGBAW LEDs (12 per color)
  • 9° Beam 22°Field Angles with Standard 10° Lens Kits Available
  • Smooth Color Mixing
  • Internal Color Macros
  • Auto and Manual Control
  • Flicker Free Operation for TV and FILM

Specifications

SOURCE
(60) 3W RGBAW LEDs (12 per color)
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



EFFECTS
9° Beam - 22° Field Angles
Internal Color Macros

COLOR
RGBAW

CONTROL / CONNECTIONS
4 DMX Channel Modes (10 Total Channels)
4 Button Control Panel and LCD Menu Display
IP Rated 3pin DMX and power In/Out

SIZE / WEIGHT
Length: 8.9” (226mm)
Width: 10.5” (267mm)
Vertical Height: 9.1” (232mm)
Weight: 16.5 lbs. (7.5kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
185W Max Power Consumption
Multiple Unit Power Linking


APPROVALS / RATINGS
CE | cETLus | IP65



SKU# EAR602
ELAR 180 PAR RGBAW WH - same as above WHITE housing



Specifications and documentation subject to change without notice.
