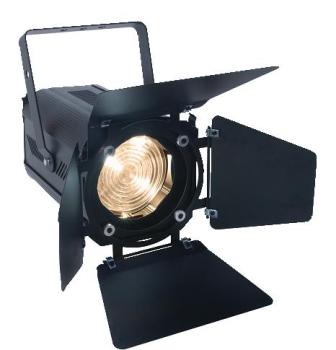

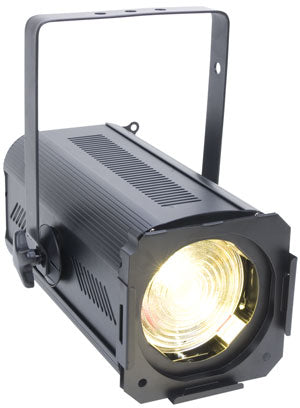

ELED FRESNEL 100WW

Discontinued

ELED FRESNEL 100WW is a professional-grade lighting solution. The ELED Fresnel Series brings all the advantages of Light Emitting Diodes into Stage Lighting. Featuring a 100W LED light source (500W halogen equivalent) and amazing zoom range it offers reliable, easy and cost saving lighting in Clubs, Theaters, Schools and Churches as well as at exhibitions, trade fairs and at commercial applications.

UPC: 837874011012SKU: EEL506

ELED FRESNEL 100WW

The ELED Fresnel Series brings all the advantages of Light Emitting Diodes into Stage Lighting. Featuring a 100W LED light source (500W halogen equivalent) and amazing zoom range it offers reliable, easy and cost saving lighting in Clubs, Theaters, Schools and Churches as well as at exhibitions, trade fairs and at commercial applications. Imagine a "œunbreakable"light source and ultra low heat development (compared to conventional halogen lights), full DMX control, and improved zoom capabilities. There is no need for running thick power multicores, installing expensive dimmer racks and high-power current supply anymore while at the same time expiring the whole advantage of LED based lighting.

The ELED Fresnel Series brings all the advantages of Light Emitting Diodes into Stage Lighting. Featuring a 100W LED light source (500W halogen equivalent) and amazing zoom range it offers reliable, easy and cost saving lighting in Clubs, Theaters, Schools and Churches as well as at exhibitions, trade fairs and at commercial applications. Imagine a "œunbreakable"light source and ultra low heat development (compared to conventional halogen lights), full DMX control, and improved zoom capabilities. There is no need for running thick power multicores, installing expensive dimmer racks and high-power current supply anymore while at the same time expiring the whole advantage of LED based lighting.

  • Features
  • . 100W LED Cool White Theatre Fresnel
  • . Amazing 10° to 50° Zoom Range
  • . Internal DMX Control for Dimmer/Strobe
  • . Case Color: Black
  • . Replaces 500W Conventional Lights

Specifications

Colors
. 100W LED Warm White Light Source
. Barn doors included
. Filter frame included

Sutter/Dimmer
. Strobe: Strobe effect (1-18 flashes per second)
. Dimmer: 0- 100% Smooth Dimming via DMX

Light Source
. Lux: 979 Lux / 91 FC at 10rsquo; / 3M at full
. Lamp: 1 x 100 Watt LED
. Lamp Life: 100W, 3,800K, 50,000 hrs. life

Optical System
. 10deg; to 50deg; manual zoom

Control
. DMX Channels: 1 or 2 channels, 2 DMX control modes
. LED Menu Display
. USITT DMX-512
. Internal DMX control for dimmer/strobe
. Silent Fan Cooling
. On Board Control
. Stand Alone
. Flicker Free

Operation Parameters
. IP Rating: IP 20
. Rigging: Single Yoke Bracket / safety and data cable optional

Power Supply
. Power Supply: Electronic, multi-voltage 120v-240V 50/60hz
. Power Consumption: 120W

Connectors
. 3 pin and 5 pin XLR data input amp; output
. Cable / Plug Type: IEC 120v US

Dimensions and Weight
. Dimensions: (LxWxH) 14.5" x 9.84" x 14.5" / 368.3 x 250 x 368.3mm
. Weight: 11.6 lbs / 5.3 kg

Approvals
. CE Approved - ETL Pending
