eMAG4
Discontinued
eMAG4 is a professional-grade lighting solution. Elation Professional introduces it’s new rental friendly magnetic module design 4.8mm pixel pitch LED display… the eMAG4™ LED Screen.
eMAG4
Sale price$0.00
eMAG4

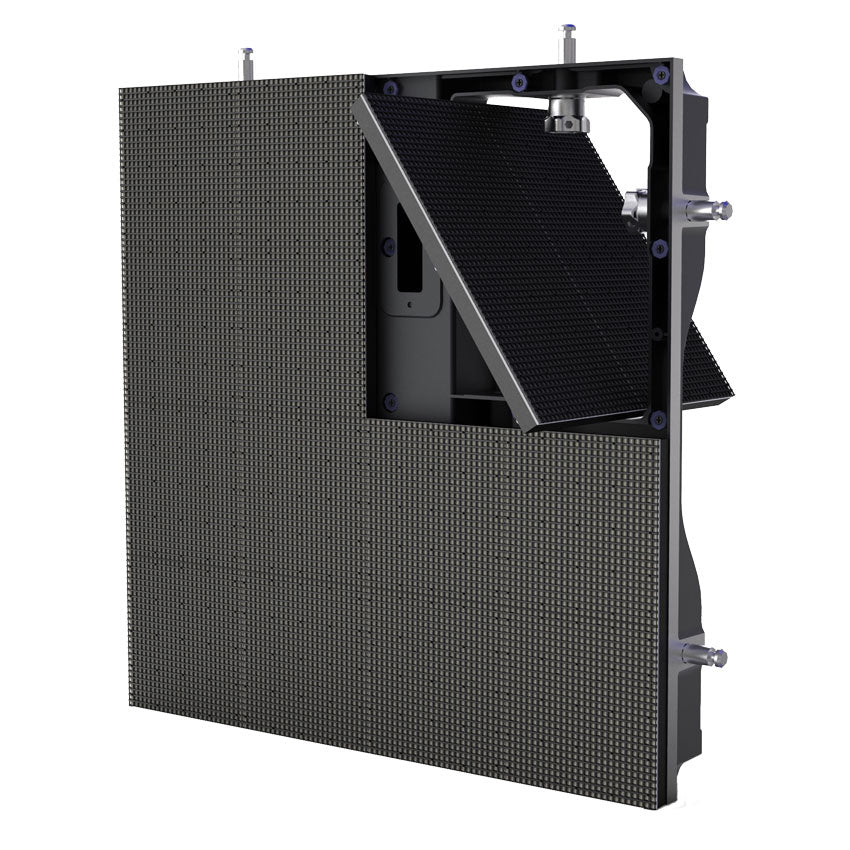

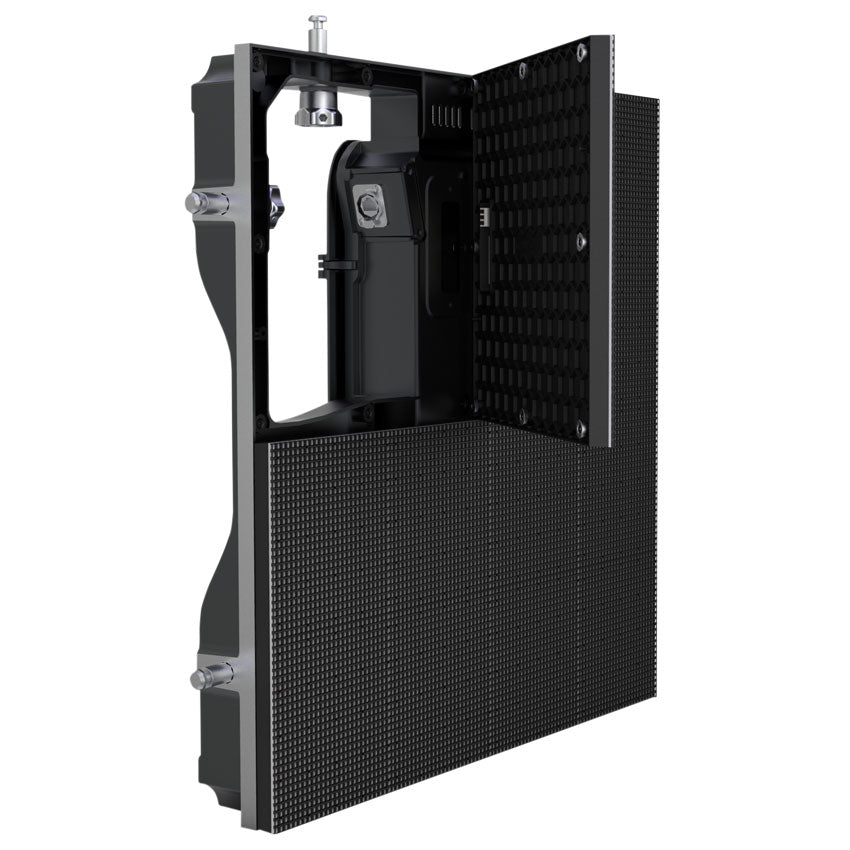

Elation Professional introduces it’s new rental friendly magnetic module design 4.8mm pixel pitch LED display… the eMAG4™ LED Screen. It’s light weight die cast aluminum magnetic modular, tool-less and fan-less design makes it easy to install and replace LED modules as needed without removing the panel from your rig. The eMAG4™ features 104(H) x 104(V) pixel resolution, 140°/140° viewing angle, 1,200 Nits, 16bit grey level, and a self test function providing easy tech support for rental shops.
Specifications
TECHNICAL SPECIFICATIONS
Panel
Resolution / Pixel Pitch: 104(H) × 104(V) / 4.8mm (0.19&")
Pixel Density: 43,264 pixels/msup2;
Size: 19.7&" x 19.7&" x 3.5&" (500 × 500 × 90mm)
Module Quantity: 4
Weight: 16.5lbs. (7.5Kg)
Optical Ratings
Brightness: 1,200 Nits
View Angle / Distance: 140°/140°
Gray Scale / Display Color: 16bit
Brightness Adjustment: Manual/Auto/Programmable
Refresh Rate: 1920Hz
Drive Mode: 1/13 Scan
Power Supply
Operation Power: 100-240V 50-60Hz
Avg. Power Consumption: 150 w/m2
Max Power Consumption: 450 w/m2
Avg. Watts Per Panel: 100w
Max Watts Per Panel: 165w
Environmental
Operating Temp / Humidity: -20°~+40° C / 10~90% RH
Protection Level: IP40
OPTIONAL ACCESSORIES
SKUITEM
Panel
Resolution / Pixel Pitch: 104(H) × 104(V) / 4.8mm (0.19&")
Pixel Density: 43,264 pixels/msup2;
Size: 19.7&" x 19.7&" x 3.5&" (500 × 500 × 90mm)
Module Quantity: 4
Weight: 16.5lbs. (7.5Kg)
Optical Ratings
Brightness: 1,200 Nits
View Angle / Distance: 140°/140°
Gray Scale / Display Color: 16bit
Brightness Adjustment: Manual/Auto/Programmable
Refresh Rate: 1920Hz
Drive Mode: 1/13 Scan
Power Supply
Operation Power: 100-240V 50-60Hz
Avg. Power Consumption: 150 w/m2
Max Power Consumption: 450 w/m2
Avg. Watts Per Panel: 100w
Max Watts Per Panel: 165w
Environmental
Operating Temp / Humidity: -20°~+40° C / 10~90% RH
Protection Level: IP40
OPTIONAL ACCESSORIES
SKUITEM
CAT101Vertical Data Jumper
CAT113Horizontal Data Jumper
EPV722Panel to Panel Power Jumper
EPT435EPT VSC 1U Rack Space Video Processor
MED002ZEUS Media Server
MED592ArKaos Media Master Express
DMX600DMX-USB Pro
eMAG4RB1eMAG4 Single Panel Rigging Bar
Specifications and documentation subject to change without notice.
