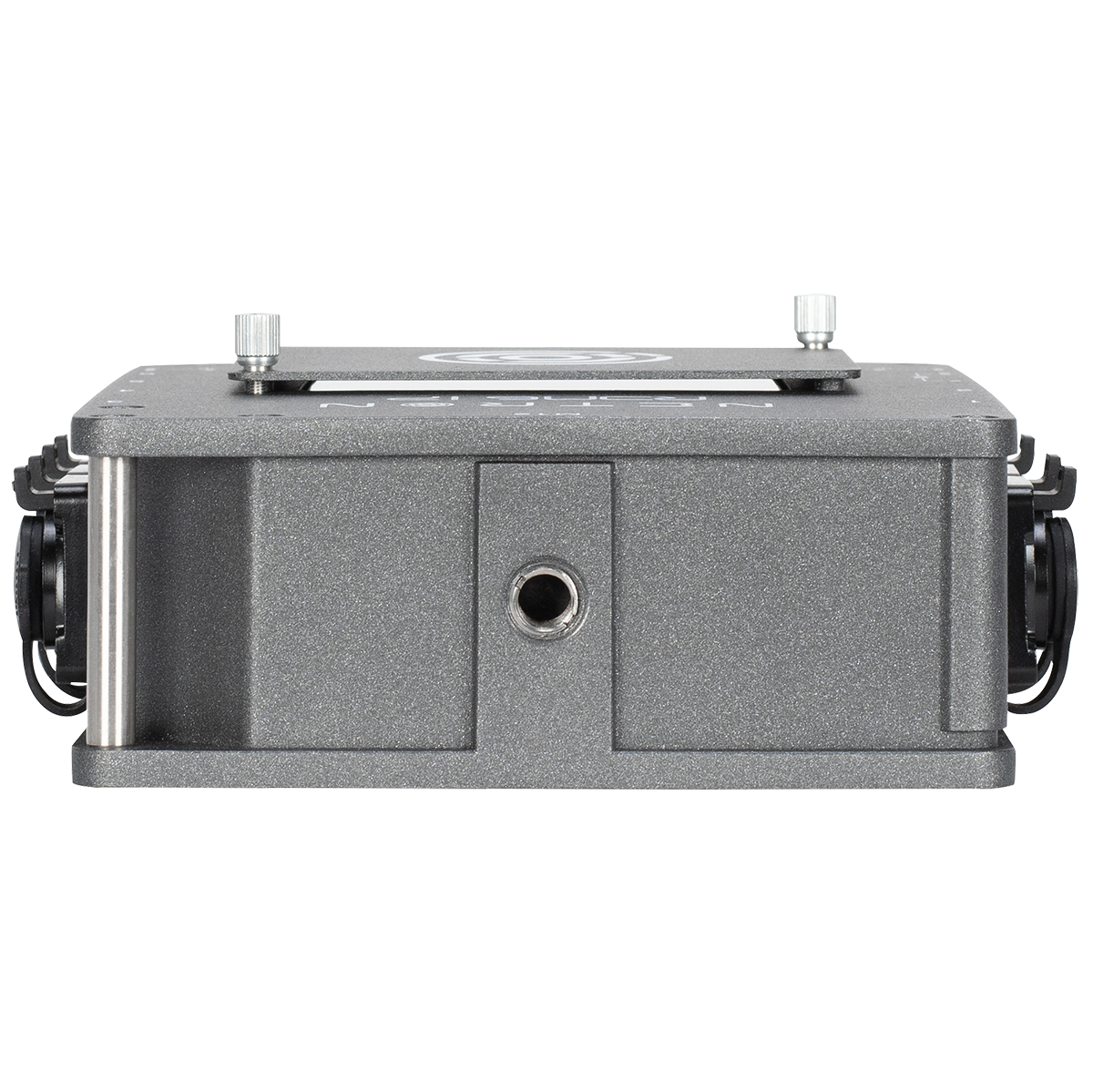

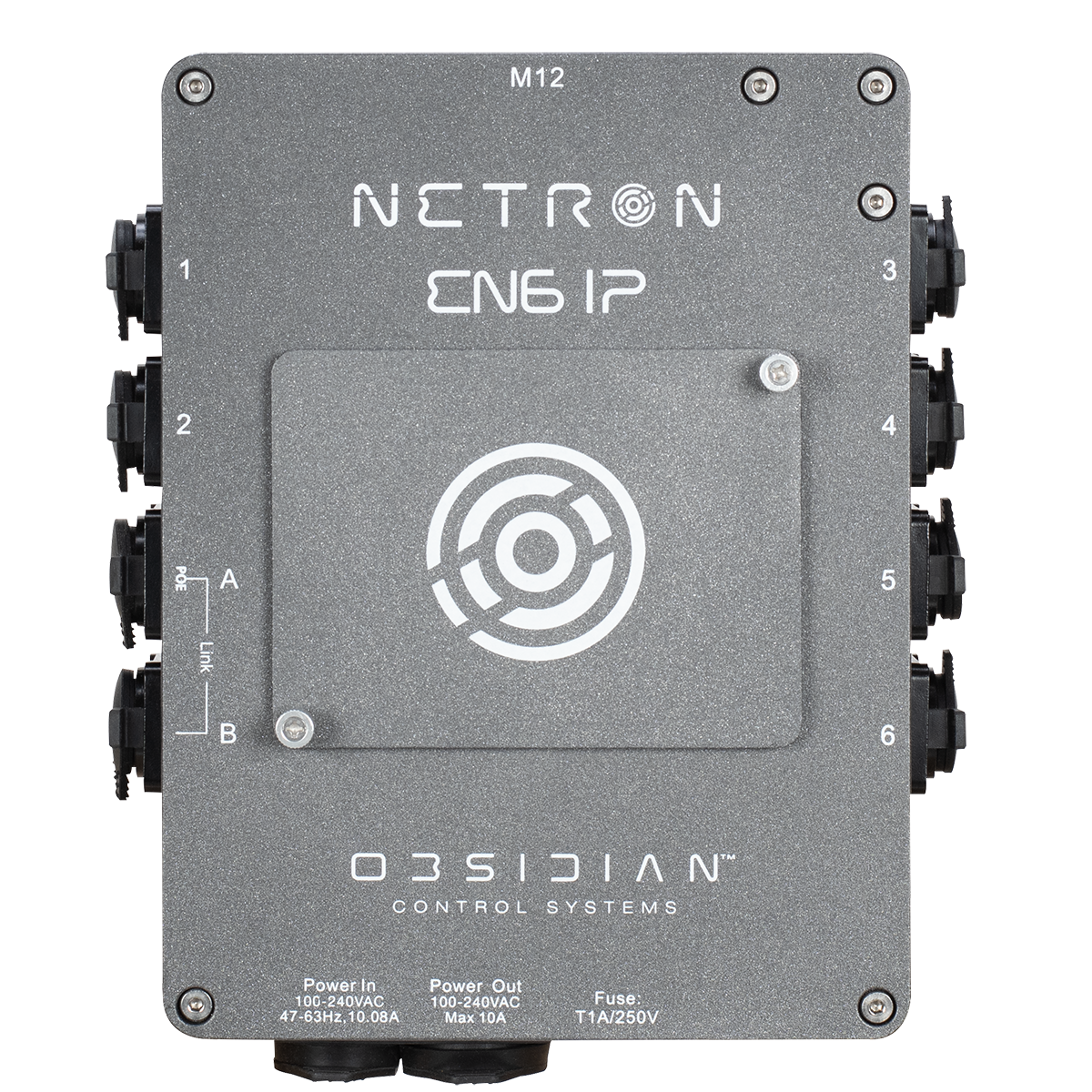

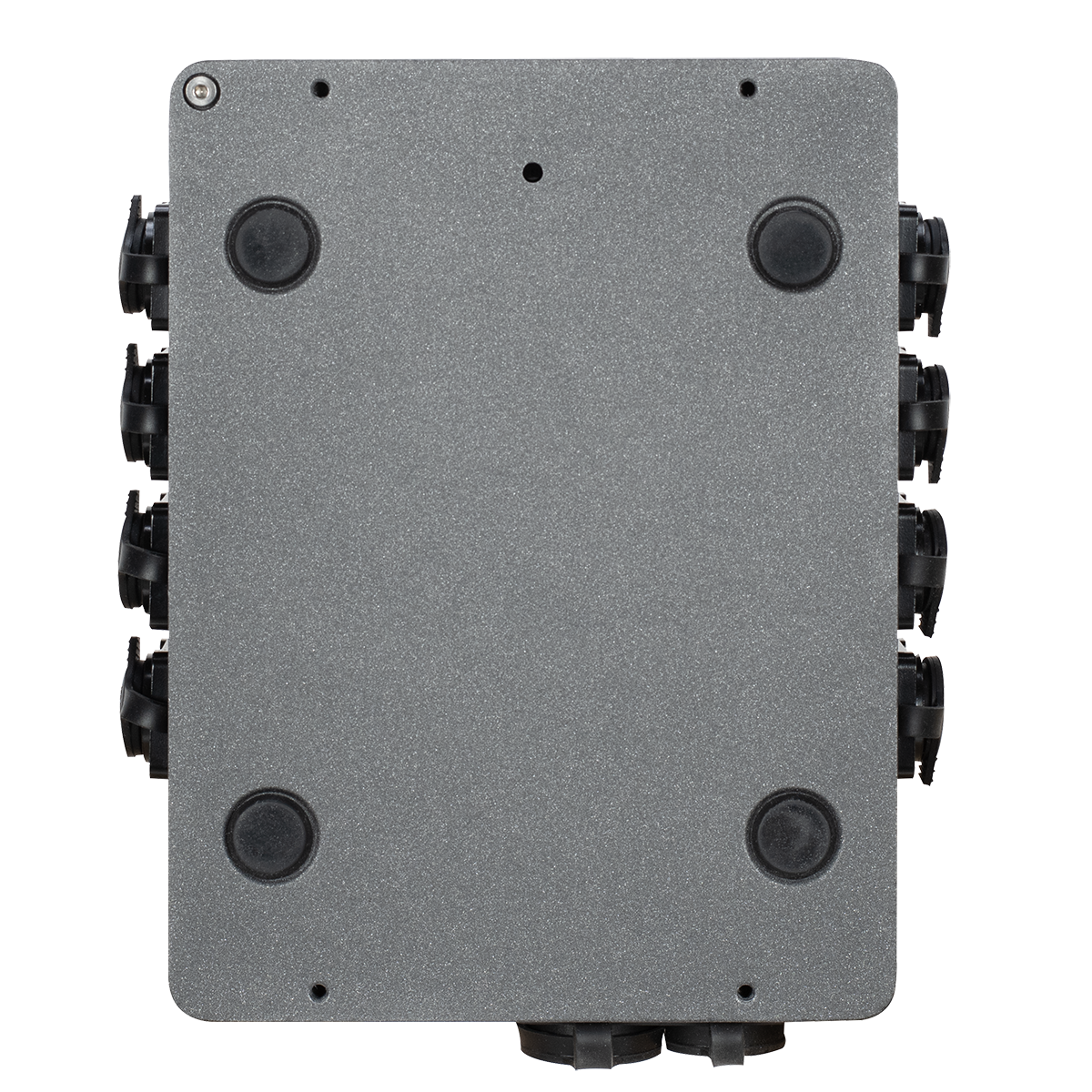

EN6 IP


6-Port IP66 Ethernet DMX Gateway

EN6 IP is a professional-grade lighting solution. The Netron EN6 IP is a powerful Art-Net and sACN to DMX gateway with six RDM compatible ports in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris. The Netron EN6 IP is a powerful Ethernet to DMX gateway with six RDM compatible ports in a rugged IP66 rated chassis.

UPC: 810008264249SKU: NIP013

EN6 IP

The Netron EN6 IP is a powerful Art-Net and sACN to DMX gateway with six RDM compatible ports in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.

The EN6 IP unlocks the four Universe ONYX NOVA Edition.

  • IP66 Ethernet to DMX Gateway
  • RDM, Artnet and sACN support
  • Factory and user presets for plug and play setups
  • Line Voltage or POE powered
  • 1.8" OLED Display and waterproof touch buttons
  • 99 Internal cues with fade and delay time
  • Remote configuration via internal webpage
  • Powder-coated aluminum chassis
  • Unlocks ONYX NOVA 4-Universe License
  • For technical details and documentation of NETRON devices please visit
  • https://obsidiancontrol.com/netron

Specifications

Mounting
Standalone
Truss-mount (M10 or M12)
Wall-mount

Connections
Sides

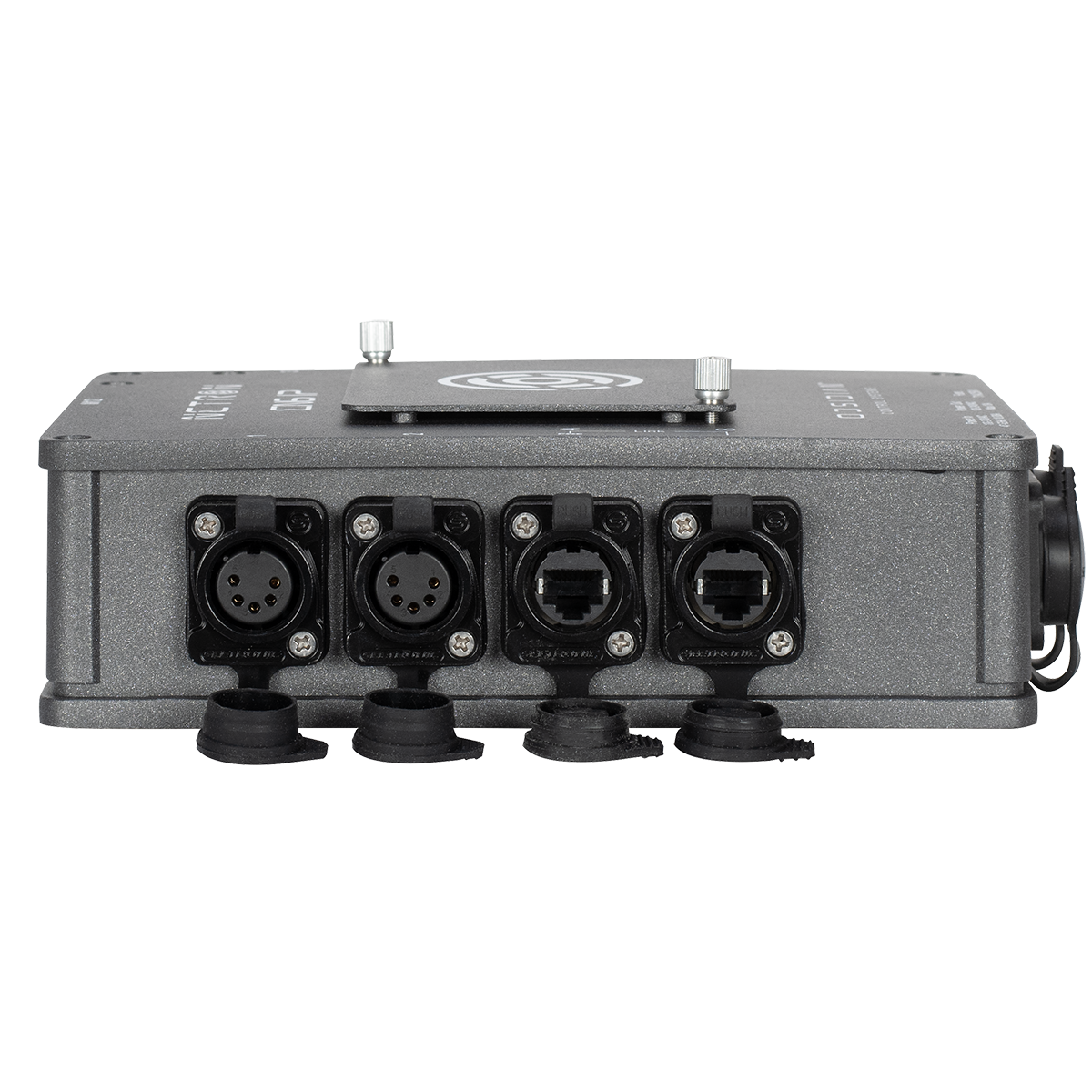

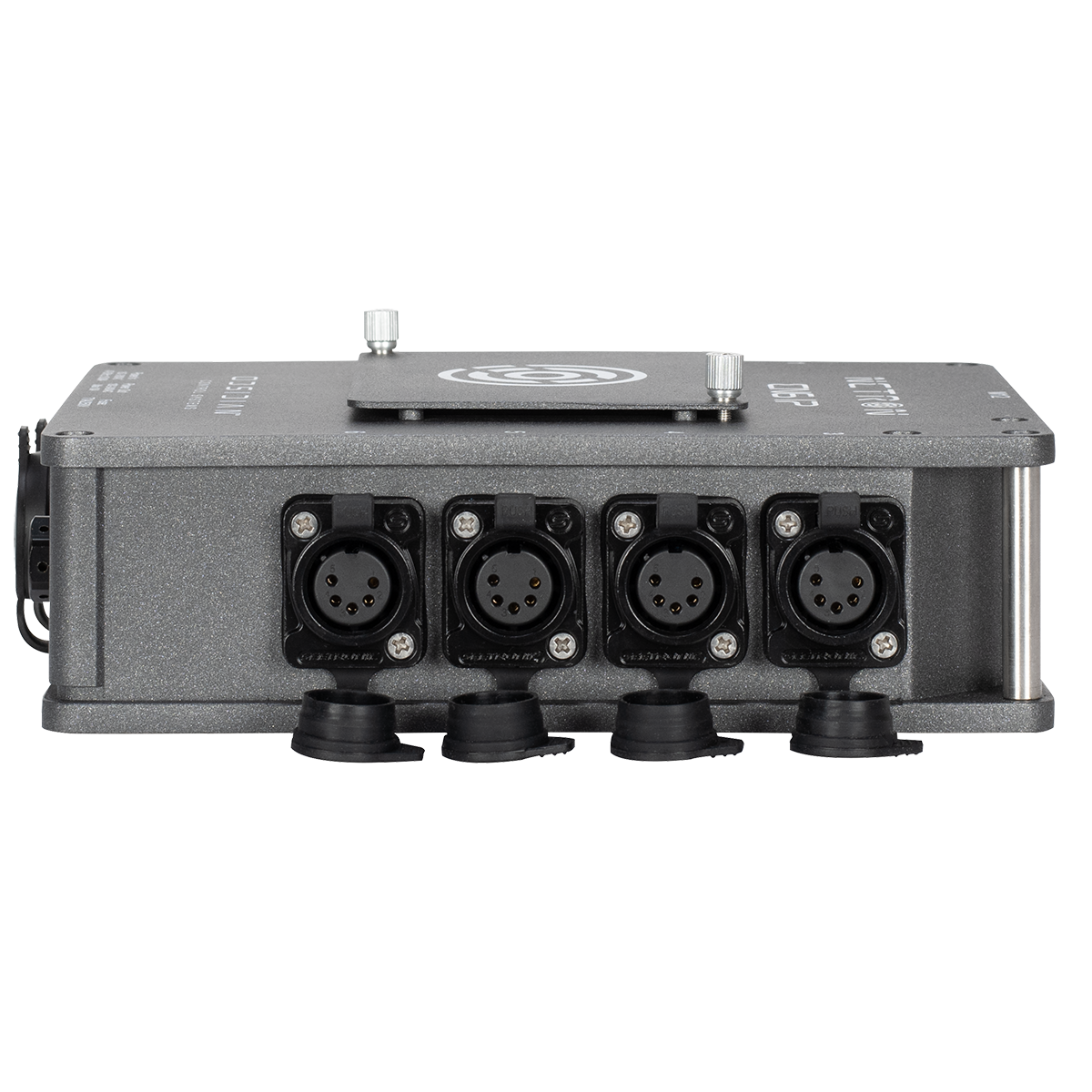

(6) 5pin IP66 DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
(2) Locking IP66 RJ45 Ethernet network connections (1x POE)
Bottom

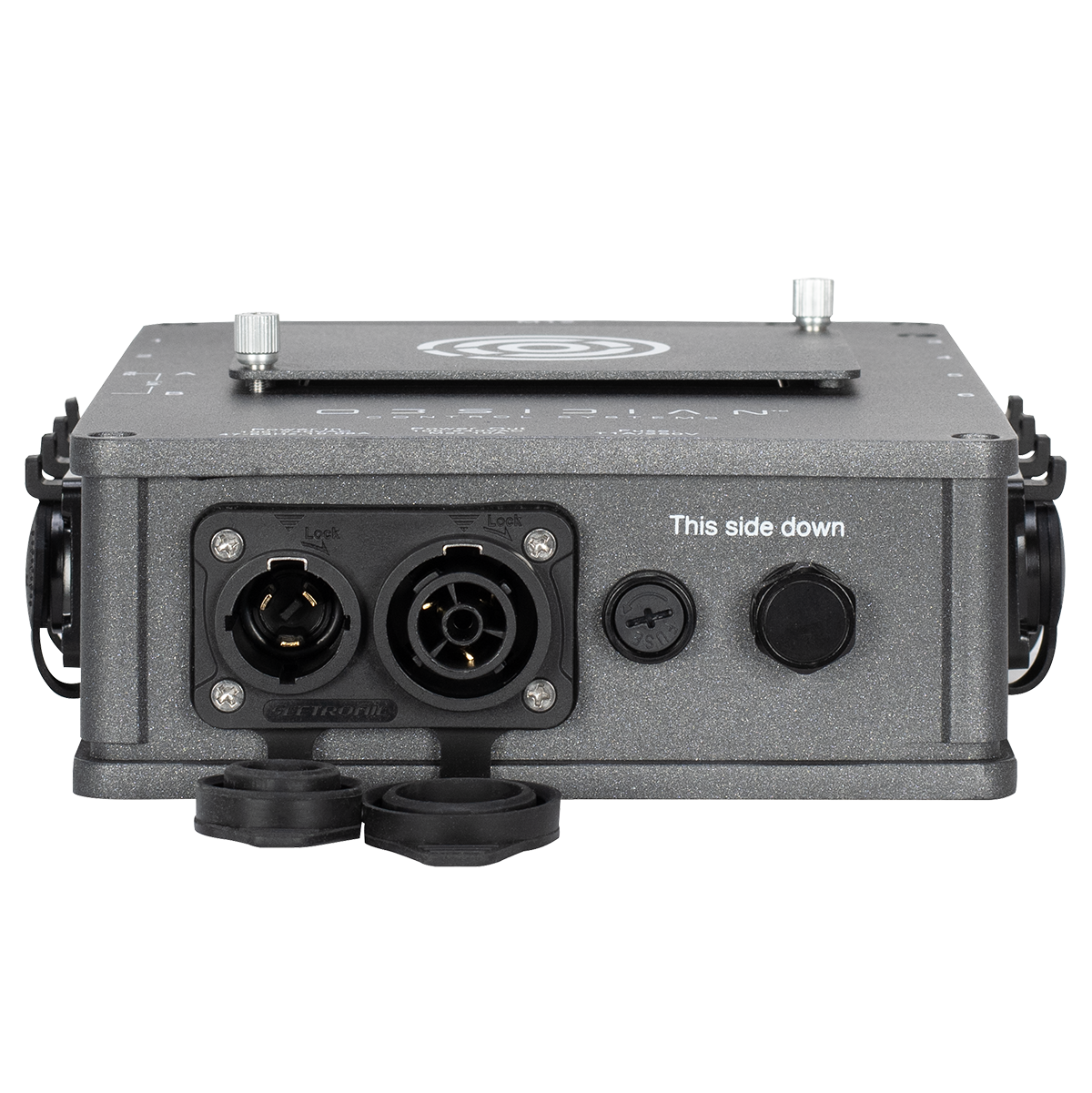

Locking IP66 Power In/Thru

Physical
Length: 204mm (8 in.)
Width: 179mm (7.1 in.)
Height: 61mm (2.4 in.)
Weight: 2 kg (4.41 lbs)

Electrical
100-240V nominal, 50/60 Hz
POE 802.3af
Power Consumption: 6W

Approvals / Ratings
cETLus / CE / UKCA / IP66

Included Items
1.5m IP66 locking power cable (EU or US version)
(2) Wall Mount brackets
M10 to M12 adapter
Metal display protection cover

Specifications and documentation subject to change without notice.
