ENODE2 POE
eNode2 POE is a professional-grade lighting solution. The eNode 2 POE™ is a compact 2-universe Ethernet-DMX node powered over Ethernet (POE), no external power supply or cord is needed. Supports Art-Net, sACN and RDM compatible DMX control systems utilizing a single RJ45 auto-switching 10/100Mbps ethernet.
Related Products
ENODE2 POE

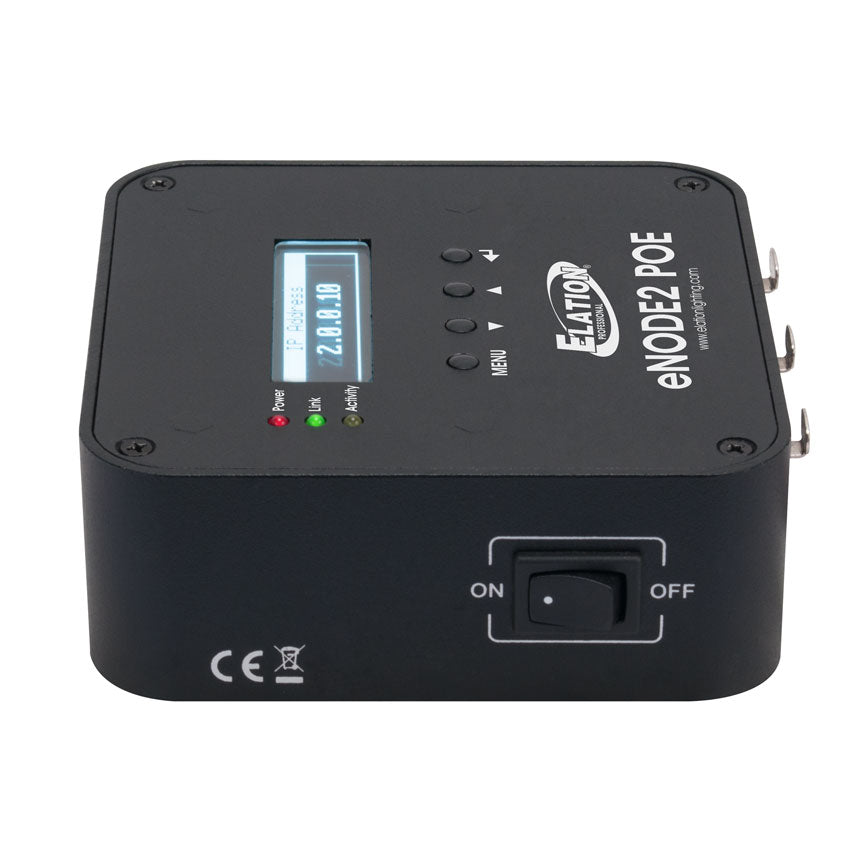

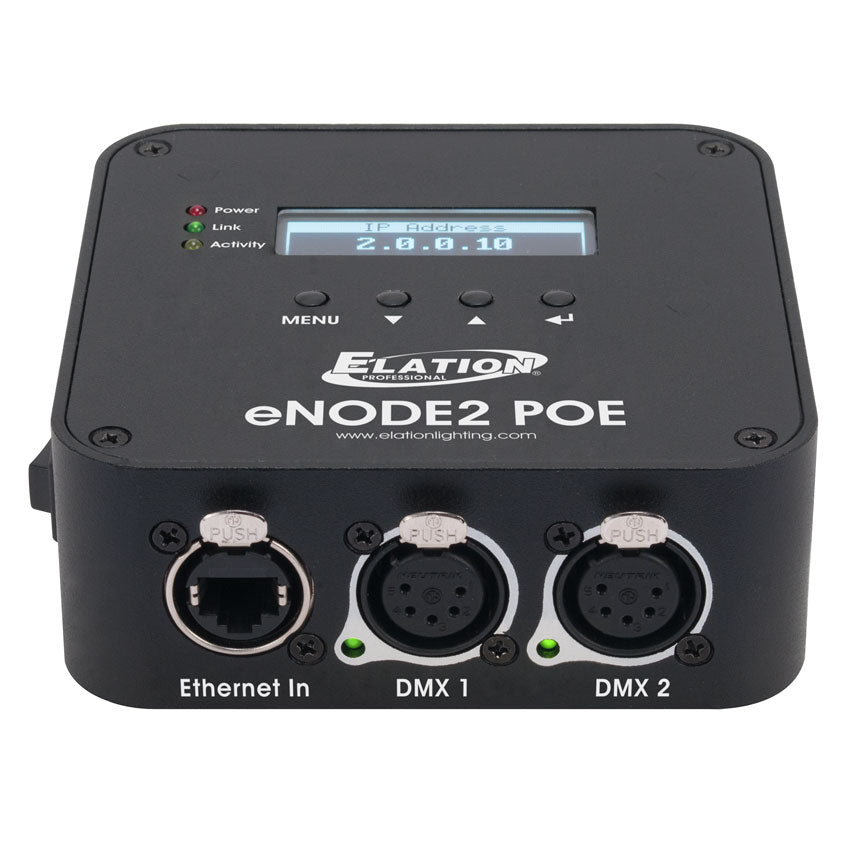

The eNode 2 POE™ is a compact 2-universe Ethernet-DMX node powered over Ethernet (POE), no external power supply or cord is needed. Supports Art-Net, sACN and RDM compatible DMX control systems utilizing a single RJ45 auto-switching 10/100Mbps ethernet. input and two multi-configuration 5pin DMX data outputs. Features include DMX bilateral conversion support, sACN auto-detection, variable MAC address assignable, a 4-button control panel, an OLED system menu display, 3 LED status indicators, compact and lightweight die-cast aluminum housing, and a mini omega bracket for easy clamp/truss mounting.
- Compact 2-Universe Ethernet-DMX Node
- POE (Power over Ethernet)
- DMX, RDM, Art-Net, and sACN Protocol Support
- DMX Bilateral Conversion Support Compact
- sACN Auto-Detection
- Variable MAC Address Assignable
- Compact Lightweight Die-Cast Aluminum Housing

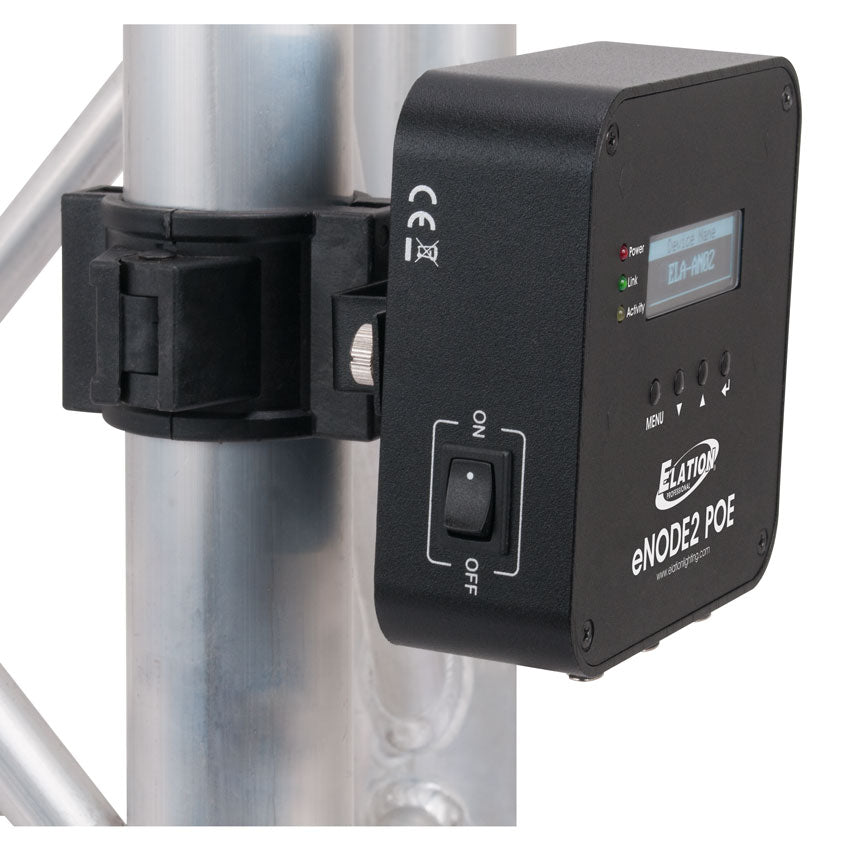

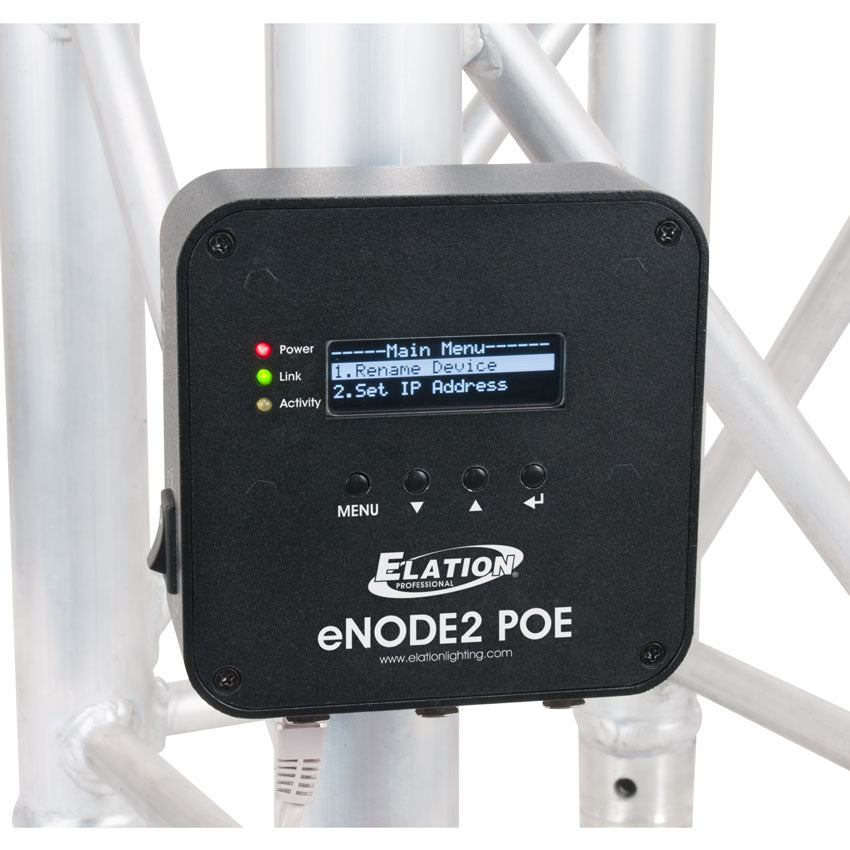

- Easy Clamp/Truss Mounting
Specifications
CONTROL / CONNECTIONS
2-Universe Support
DMX, RDM, Art-Net, and sACN Protocol Support
DMX Bilateral Conversion
sACN Auto-Detection

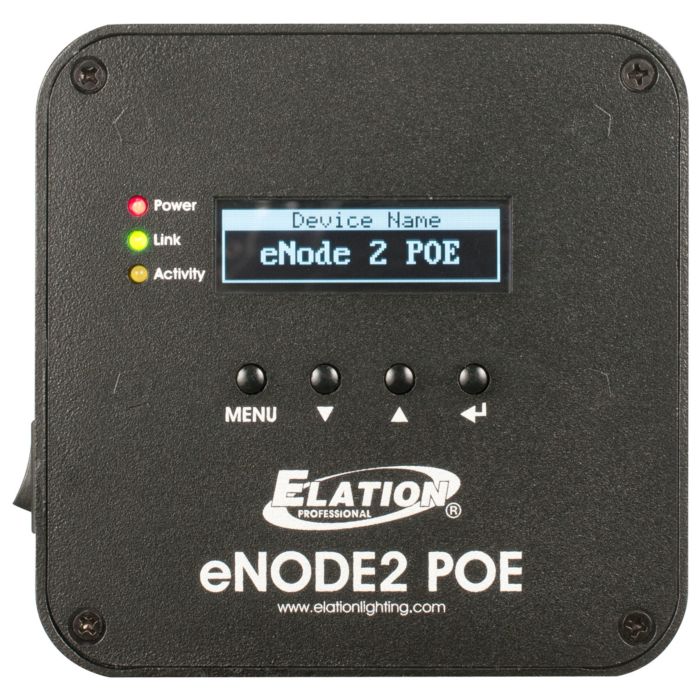

4-Button Control Panel
OLED System Menu Display
(3) LED Status Indicators
(1) Auto-Switching 10/100Mbps RJ45 EtherCON Input
(2) Multi-Configuration 5pin DMX Data Outputs
SIZE / WEIGHT
Length: 10" (255mm)
Width: 6.8" (173mm)
Vertical Height: 1.7" (43mm)
Weight: 3.5 lbs. (1.6kg)
ELECTRICAL
POE (Power over Ethernet)
2.6W Max Power Consumption
APPROVAL / RATINGS
ETL Approved
Specifications and documentation subject to change without notice.
