ENODE4
eNode4 is a professional-grade lighting solution. The eNode4™ is 4-universe Ethernet-DMX node which supports Art-Net, sACN, and RDM compatible DMX control systems utilizing 2 RJ45 ethernet auto-switching 10/100Mbps inputs and 4 5pin DMX ports which can be configured as inputs or outputs.

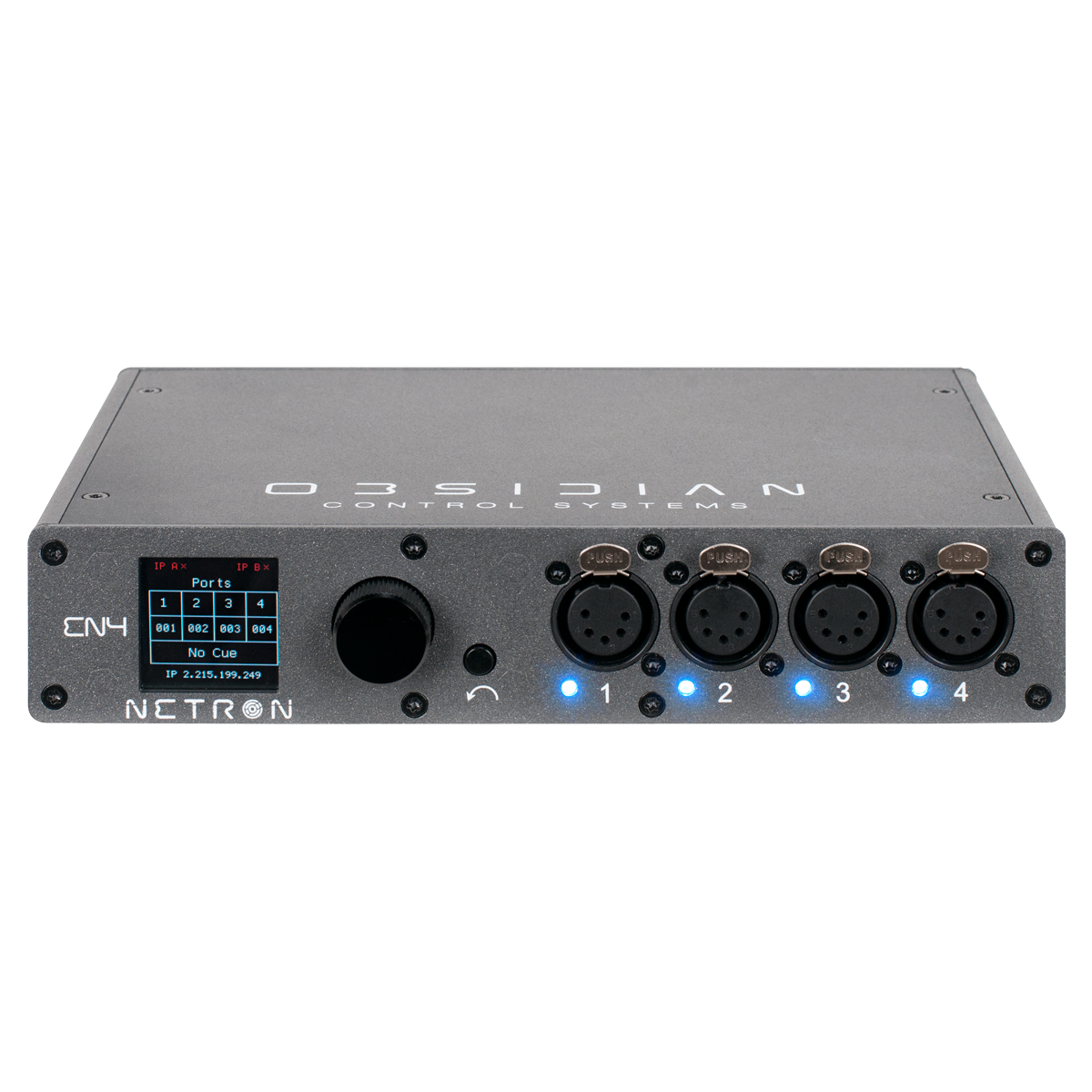

Replaced by
Related Products
ENODE4
The eNode4™ is 4-universe Ethernet-DMX node which supports Art-Net, sACN, and RDM compatible DMX control systems utilizing 2 RJ45 ethernet auto-switching 10/100Mbps inputs and 4 5pin DMX ports which can be configured as inputs or outputs. Features include DMX bilateral conversion support, sACN auto-detection, variable MAC address assignable, auto MDI/MDIX, DMX splitter function (1 input / 3 outputs), broadcast and backup modes, built-in Ethernet repeater switch, an LCD control menu display and LED indicators, push button configuration encoder wheel, a lightweight die-cast aluminum housing, and includes a mini omega bracket for clamp mounting. (clamp not included)
- 4-Universe Ethernet-DMX Node
- Art-Net,sACN, and RDM Compatible DMX Control Systems Support
- DMX Bilateral Conversion Support Compact
- sACN Auto-Detection
- Variable MAC Address Assignable
- Auto MDI/MDIX
- DMX Splitter Function (1 Input / 3 Outputs)
- Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
- Backup Mode

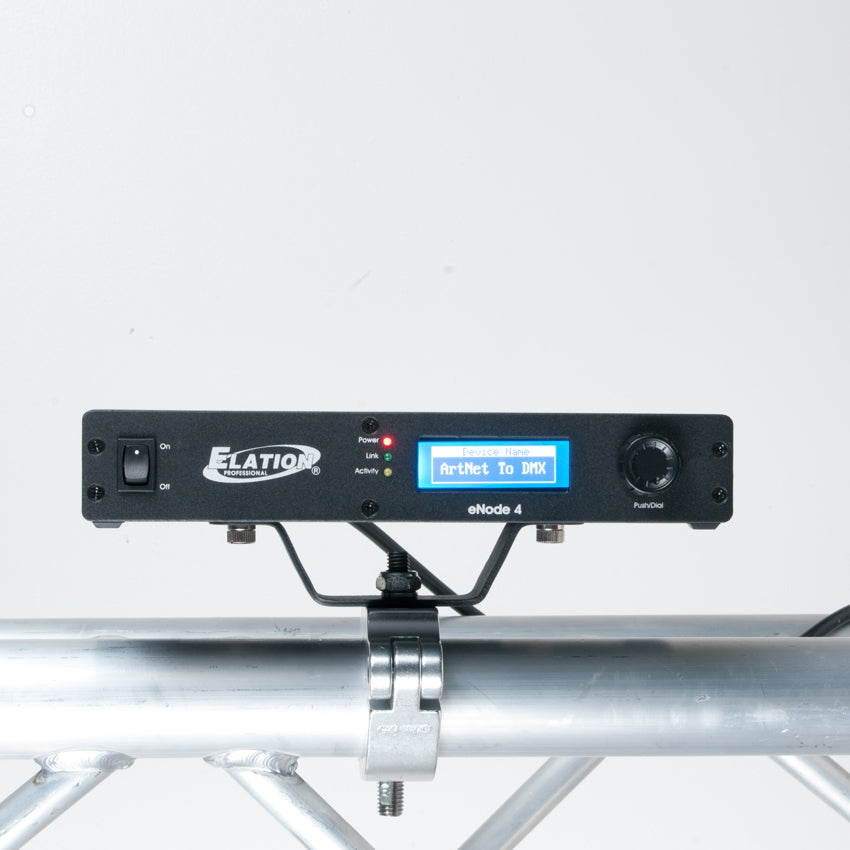

- Omega Bracket Included for Clamp Mounting
Specifications
4-Universes
Art-Net, sACN, and RDM Compatible DMX Control Systems
DMX Bilateral Conversion
sACN Auto-Detection
Auto MDI/MDIX
DMX Splitter Function (1 Input / 3 Outputs)
Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
Backup Mode
Push Button Configuration Encoder Wheel
LCD Control Menu Display amp; LED Indicators

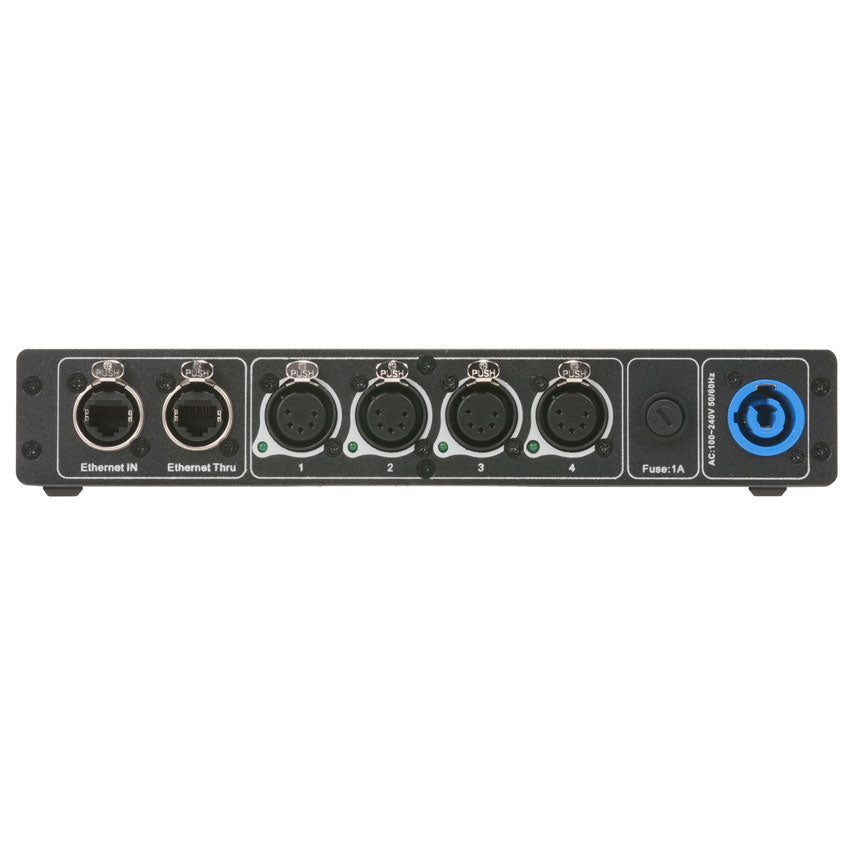

(2) RJ45 ethernet TCP/IP 10/100M Inputs
(4) Universal 5pin DMX Ports (can be set as Input or Output)
Locking IP65 Power Cable
SIZE / WEIGHT
Length: 10.0” (255mm)
Width: 6.8” (173mm)
Vertical Height: 1.7” (43mm)
Weight: 3.5 lbs. (1.6kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
5W Max Power Consumption
35.6°F (2°C) to 113°F (45°C)
APPROVALS
CE | cETLus | IP65
