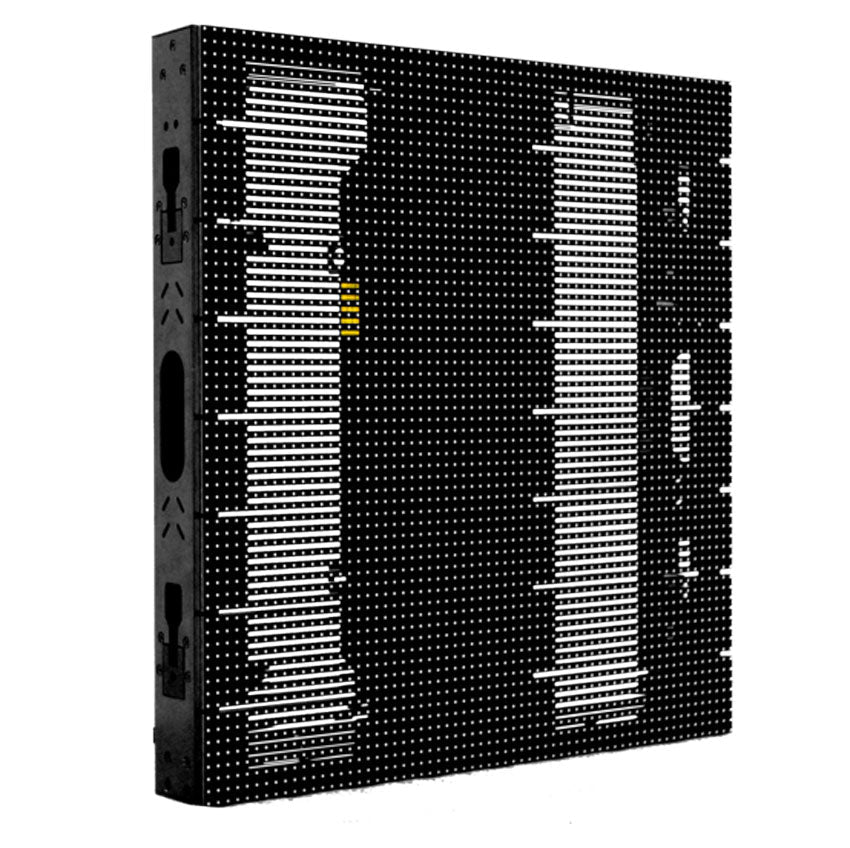

EPT9IP
EPT9IP is a professional-grade lighting solution. Elation Professional introduces it’s new 9mm pixel pitch modular outdoor rated Pro Touring LED display… the EPT9IP™ LED Screen. It’s light weight durable die-cast aluminum frame, patented rapid NTR-LoK™ (No Tool Required Lock) compression pins, and (5) fixed curve rigging options (-15°,-7.5°,0°,7.5°,15°), allows for easy installation of captivating and seamless curved shaped designs including full circle, convex, and concave displays.
EPT9IP
Elation Professional introduces it's new 9mm pixel pitch modular outdoor rated Pro Touring LED display"¦ the EPT9IP™ LED Screen. It's light weight durable die-cast aluminum frame, patented rapid NTR-LoK™ (No Tool Required Lock) compression pins, and (5) fixed curve rigging options (-15°,-7.5°,0°,7.5°,15°), allows for easy installation of captivating and seamless curved shaped designs including full circle, convex, and concave displays. The EPT9IP™ uses the latest dot correction technology which provides full color uniformity and brightness. The EPT9IP™ is ideal for outdoor Pro Touring portable installations.
- 9mm Pixel Pitch / 64(H) x 64(V) Resolution
- Modular Outdoor Rated (full IP65 front and back)

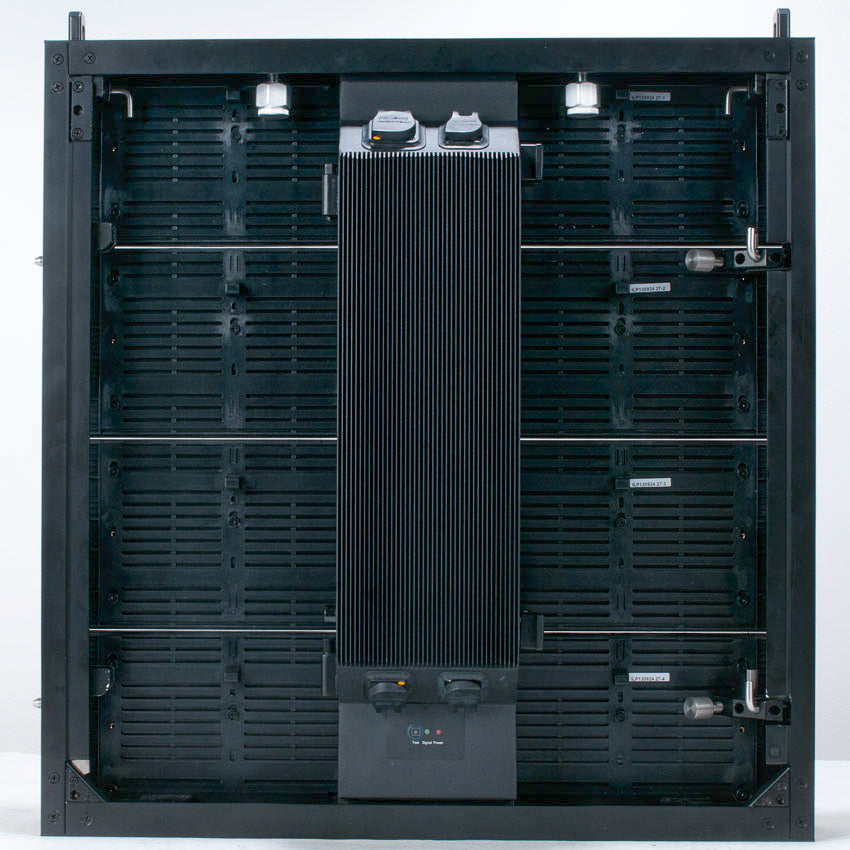

- Light Weight Die-Cast Aluminum Frame (23 lbs. / 10.5kg)
- Patented Rapid NTR-LoK™ Compression Pins

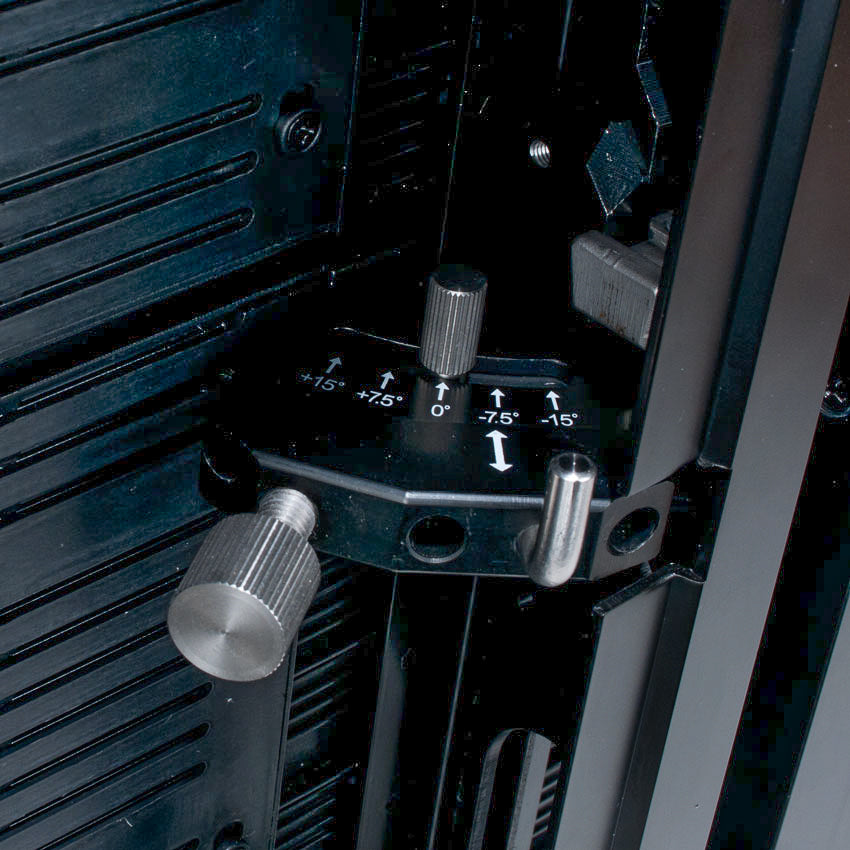

- Fixed Curve Rigging Options (-15°, -7.5°, 0°, 7.5°, 15°)
- Full Circle, Convex, and Concave Display Designs
- Dot Correction Technology

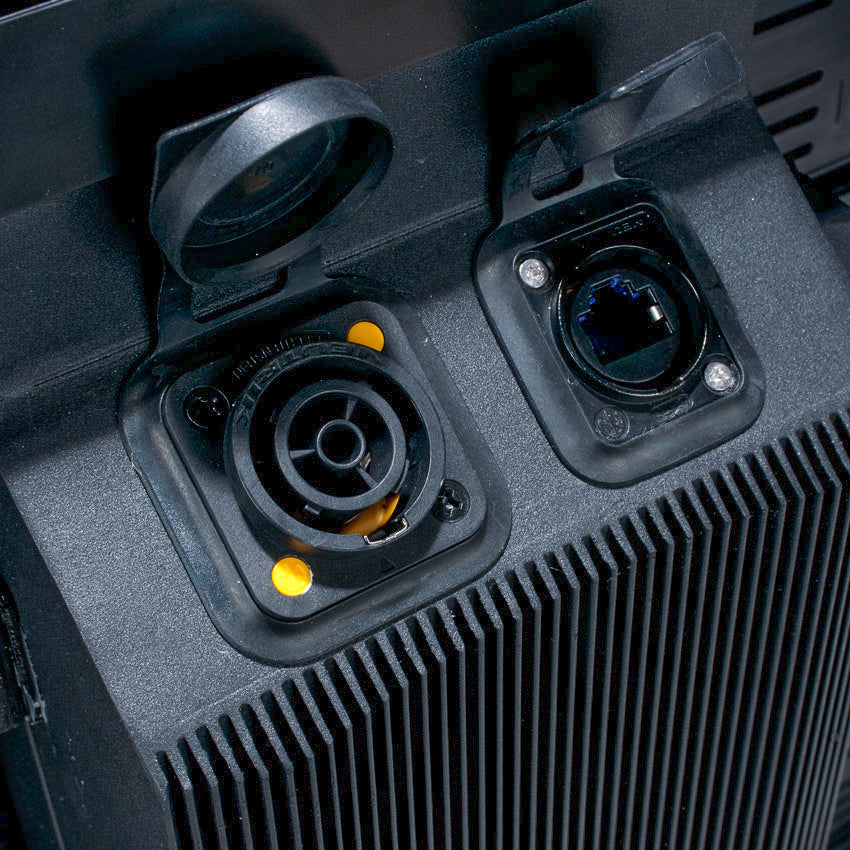

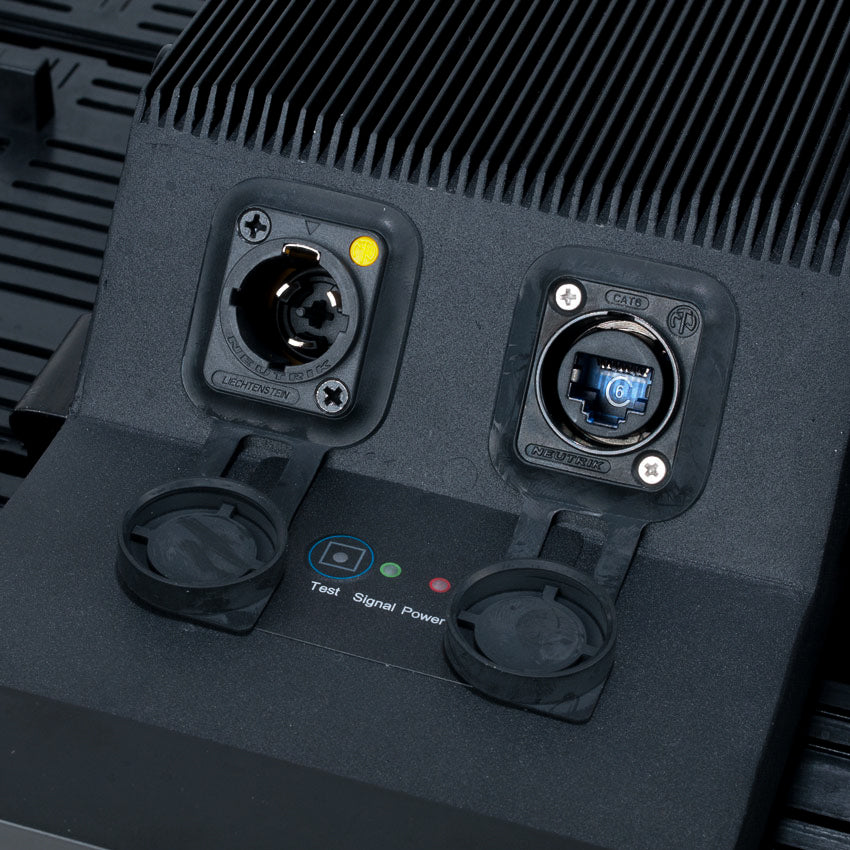

- Easy To Remove/Replace Power Supply Module
Specifications
Resolution / Pixel Pitch: 64(H) times; 64(V) / 9mm (0.35")
LED Configuration: 3-IN-1 SMD 3535 LED
Pixel Density: 12,346 pixels/msup2;
Size: 22.7" x 22.7" x 4.6" (576 times; 576 times; 118mm)
Module Quantity: 4
Weight: 23lbs. (10.5Kg)
Mechanical Ratings
Surface Flatness: Gap=0.5mm
Optical Ratings
Brightness: =5000 cd/msup2;
View Angle / Distance: 140deg;/140deg; / =30ft (9m)
Gray Scale / Display Color: 8bit input, Correction with 16bits / 16.7M
Transparent Ratio: 15% Dual Mode Shifter Built-In
Brightness Adjustment: 0~100% 100 Levels
Power Supply
Operation Power: 100~240V 50-60Hz
Power Consumption: Max = 600 w/msup2; - Average = 200 w/msup2;
Panel Power Consumption: Max = 200 w/per panel - Average = 70 w/per panel
Control System
Control Mode: Synchronous Display with Control PC by DVI
Frame Update Frequency: 50-75Hz
Scan Mode / Refresh Rate: 1/4 Duty / 2000Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable =120m or Fiber Optic~120m
Support VGA Mode: 1024times;768, 1280times;1024, 1600times;1200, 1920times;1280
Brightness Correction: Pixel, Module, Cabinet
Environmental
Operating Temp / Humidity: -10deg;~+50deg; / 10~90% RH No Condensation
Operating Life / MTBF: 100,000 Hours / 5000 Hours
Protection Level: IP65 (Front and Back)
Out of Control Rate: =0.02%
OPTIONAL ACCESSORIES
SKUITEM
EZ6172EZ6 VSC2 1U (19") Rack Space Media Processor
MED002ZEUS Media Server
MED592ArKaos Media Master Express
DMX600DMX-USB Pro
EPT488Single Panel Rigging Bar
EPT476Dual Panel Rigging Bar
xxxxxxStraight LEFT Wedge (For Straight Wall Install Only)
xxxxxxStraight RIGHT Wedge (For Straight Wall Install Only)
EPT464Complete Power Supply Module / Door
NEU02415 ft. (4.57m) Main Power Cable (mains to panel)
NEU01225 ft. (7.62m) Main Power Cable (mains to panel)
NEU00050 ft. (15.24m) Main Power Cable (mains to panel)
NEU14425 ft. (7.62m) Main Data Cable (controller to panel)
NEU13250 ft. (15.24m) Main Data Cable (controller to panel)
NEU120100 ft. (30.48m) Main Data Cable (controller to panel)
NEU2401.14 ft. (0.35m) Data Link Cable (panel to panel)
NEU2282.95 ft. (0.9m) Data Link Cable (panel to panel)
NEU2166 ft. (1.82m) Data Link Cable (panel to panel)
NEU1080.98 ft. (0.3m) Power Link Cable (panel to panel)
NEU0965.2 ft. (1.6m) Power Link Cable (panel to panel)
NEU08410 ft. (3.05m) Power Link Cable (panel to panel)
Specifications are subject to change without any prior written notice.
