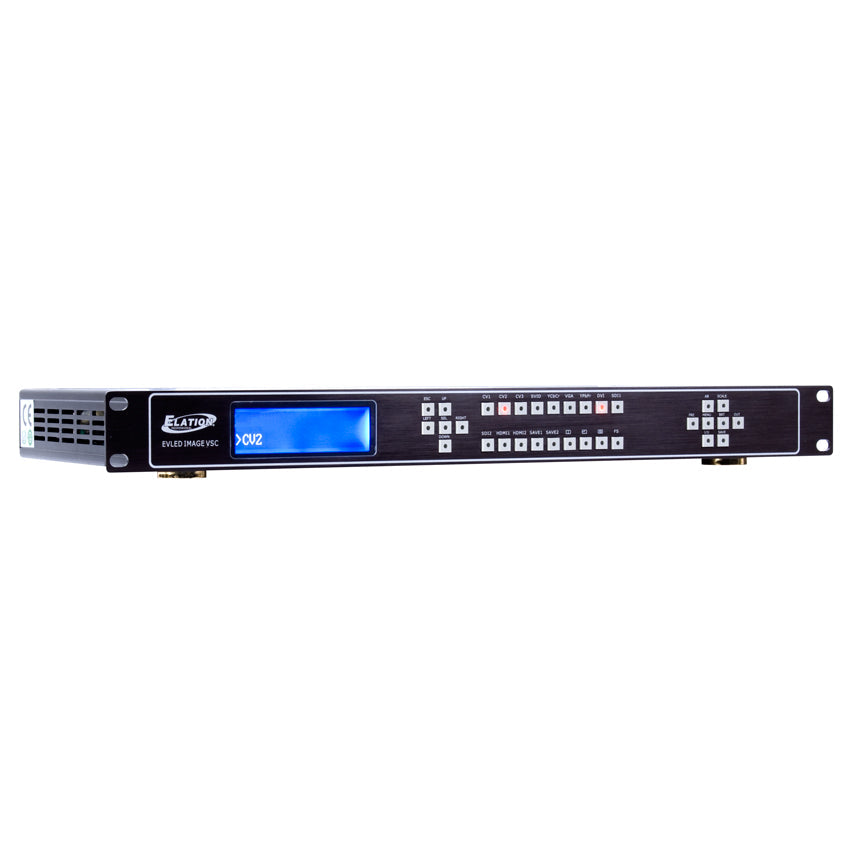

EVLED-Image VSC is a professional-grade lighting solution. EVLED IMAGE VSC was designed for use with our EVLED Video panels but is also compatible with most video products on the market today. The EVLED IMAGE VSC is a combined video image processor and scaler with the latest high performance image processing technology. EVLED IMAGE VSC was designed for use with our EVLED Video panels but is also compatible with most video products on the market today.
EVLED-IMAGE VSC
EVLED IMAGE VSC was designed for use with our EVLED Video panels but is also compatible with most video products on the market today. The EVLED IMAGE VSC is a combined video image processor and scaler with the latest high performance image processing technology. The EVLED IMAGE VSC allows for a DVD player, camera, etc... to be connected directly into it so no computer is needed to play video content. EVLED IMAGE VSC can handle following video without limit, include CVBS, Composite, S-Video (YC),YCbCr,YPbPr,RGBHV,VGA,DVI-D,HDMI,SDI,SD-SDI,HD-SDI.
EVLED IMAGE VSC was designed for use with our EVLED Video panels but is also compatible with most video products on the market today. The EVLED IMAGE VSC is a combined video image processor and scaler with the latest high performance image processing technology. The EVLED IMAGE VSC allows for a DVD player, camera, etc... to be connected directly into it so no computer is needed to play video content. EVLED IMAGE VSC can handle following video without limit, include CVBS, Composite, S-Video (YC),YCbCr,YPbPr,RGBHV,VGA,DVI-D,HDMI,SDI,SD-SDI,HD-SDI.
- FEATURES
- . Input: (3) Composite, (1) SVideo, (1) VGA, (1) DVI,
- (2) HDMI, (2) SDI (HD & SD compatible
- . Output: DVI and VGA
- . Suports PIP, POP, PBP as well as user-defined
- pixel-based scale and dual-channel operation
- . Supports out resolution up to 2048 x 1152 x 60Hz
- . Supports keyboard operation
- . Supports serial and TCP/IP remote control
Specifications
. Source Switch tow signal groups with alpha key operation
. PIP for SD with HD and HD with HD
. POP for SD with HD, HD with HD, video with PC
. Test pattern generator, schedule, hardware timing, text overlay
and logo insert.
. Alpha Key support
Composite BNC Input
. Number of Inputs 3
. Supported Standards PAL/NTSC
. Signal Level 1Vppplusmn;3db (0.7V Video+0.3v Sync ) 75ohm
.Multiplex YCbCr
S-video DIN4 Input
. Number of Inputs 1
. Supported Standards PAL/NTSC
. Signal Level Y:1Vppplusmn;3dB (0.7V Video+0.3v Sync ) 75ohm
. U/V:0.7Vppplusmn;3dB 75ohm
YPbPr BNC Input
. Number of Inpus BNC*3
. Supported Standards analog HD input
. Signal Level Y:1Vppplusmn;3dB (0.7V Video+0.3v Sync ) 75ohm
. Pb/Pr:0.7Vppplusmn;3dB 75ohm
VGA DB15 Input
. Number of Inputs 1
. Connector Standard DB15 socket
. Supported Standards VGA-UXGA
. Signal Level RGB Hsync Vsync:0 to1Vppplusmn;3dB (0.7V Video+0.3v Sync ) 75 ohm
. Black level:300mV Sync-tip:0V
DVI Input
. Number of Inputs 1
. Connector Standard DVI-I socket
. Supported Standards SMPTE:625/25 PAL, 525/29.97 NTSC, 625/50p PAL,
525/59.94p NTSC, 1080i50, 1080i59.94/60, 720p50 720p59.94/60
VESA:800times;600times;60Hz,1024times;768times;60Hz,1280times;768times;60Hz,1280times;1024
times;60Hz,1600times;1200times;60Hz,1920times;1080times;60Hz,1920times;1080times;50Hz
. Signal Level TMDS pwl,single pixel input,165MHz bandwidth
. Standard DVI 1.1
SDI Input
. Number of Inputs 2
. Connector BNC
. Data Rate Range 19.4Mbps~1.5Gbps
. Supported Standards ITU-R BT.656,ITU-R BT.601,SMPTE 259M, SMPTE 292,
SMPTE 297
. Equalization Belden 1694A 100M HD1.485G,350m SD 270Mbps
SDI Loop-out
. Number of Loop-Throughs 1
. Signal Level 800mVplusmn;10%
. DC Offset 0Vplusmn;0.5V
. Rise/Fall Time HD1.485Gbpslt;270 ps;SD 270 Mbps 0.4 ns~1.5ns
. Overshoot lt;10%
. Timing Jitter SDlt;0.2UI;HDlt;1.0UI
. Alignment Jitter lt;0.2UI
HDMI Input
. Number of Inputs 2
. Connector HDMI (standard type A interface)
. Supported Standards SMPTE:625/25 PAL, 525/29.97 NTSC, 625/50p PAL,
525/59.94p NTSC, 1080i50, 1080i59.94/60, 720p50 720p59.94/60
VESA:800times;600times;60Hz,1024times;768times;60Hz,1280times;768times;60Hz,1280times;1024
times;60Hz,1600times;1200times;60Hz,1920times;1080times;60Hz,1920times;1080times;50Hz
. Signal Level TMDS pwl,single pixel input,165MHz bandwidth
. Standard HDMI 1.3
DVI Output
. Number of Inputs 1
. Connector Standard DVI-I interface
. Supported Resolution 800times;600times;60Hz,1024times;768times;60Hz,1024times;768times;75Hz
,1280times;768times;60Hz,1280times;1024times;60Hz,1440times;900times;60Hz,1400times;1200times;60Hz,
1600times;1200times;60Hz,1920times;1080times;60Hz,1920times;1200times;60Hz,2048times;1152times;60Hz
. Signal Level TMDS pwl,165MHz bandwidth
VGA Output
. Number of Inputs 1
. Connector Standard DB15 socket
. Supported Resolution 800times;600times;60Hz,1024times;768times;60Hz,1024times;768times;75
Hz ,1280times;768times;60Hz,1280times;1024times;60Hz,1440times;900times;60Hz,1400times;1200
times;60Hz,1600times;1200times;60Hz,1920times;1080times;60Hz,1920times;1200times;60Hz,2048
times;1152times;60Hz,2048times;1536times;60Hz
. Signal Level RGB Hsync amp; Vsync:0 to1Vppplusmn;3dB (0.7V Video+0.3v Sync ) 75ohm
. Black level:300mV Sync-tip:0V
HDMI Output
. Number of Outputs 1
. Connector HDMI (standard type A interface)
. Supported Standards 800times;600times;60Hz,1024times;768times;60Hz,1024times;768times;75Hz
,1280times;768times;60Hz,1280times;1024times;60Hz,1440times;900times;60Hz,1400times;1200times;60Hz,
1600times;1200times;60Hz,1920times;1080times;60Hz,1920times;1200times;60Hz,2048times;1152times;60Hz
. Signal Level TMDS pwl,165MHz bandwidth
Extras
. Communication RS232 TCP/IP
. Power Supply 85-264V 2A IEC-3
. Working Environment 0deg;C~45deg;C
. Stored Environment 10% to 90%
. Product Warranty 1year
