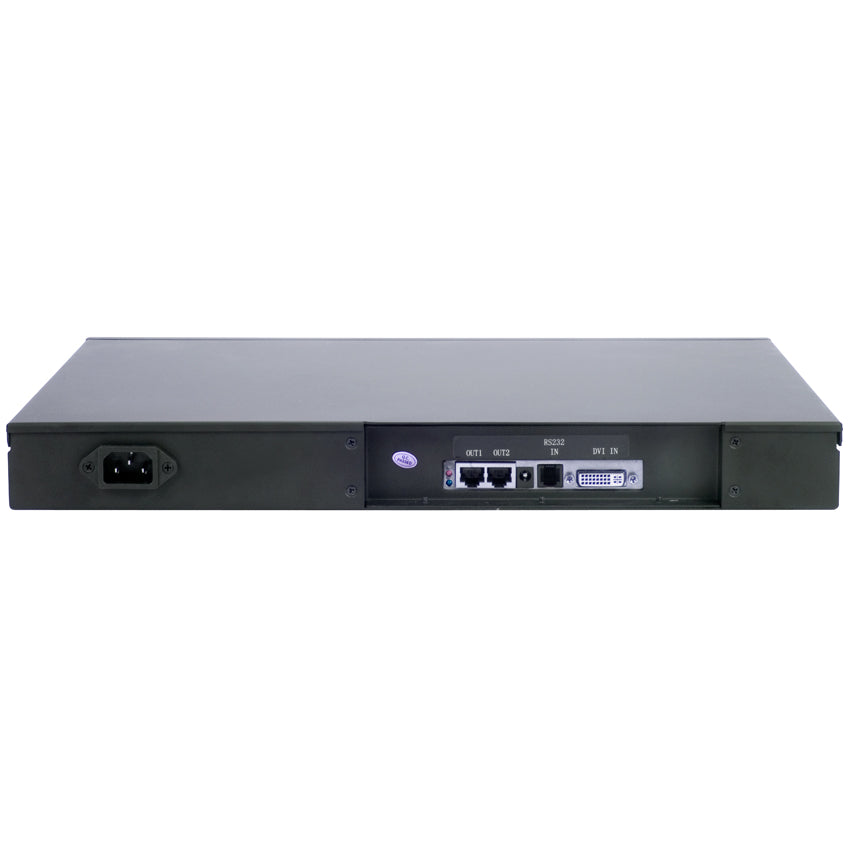

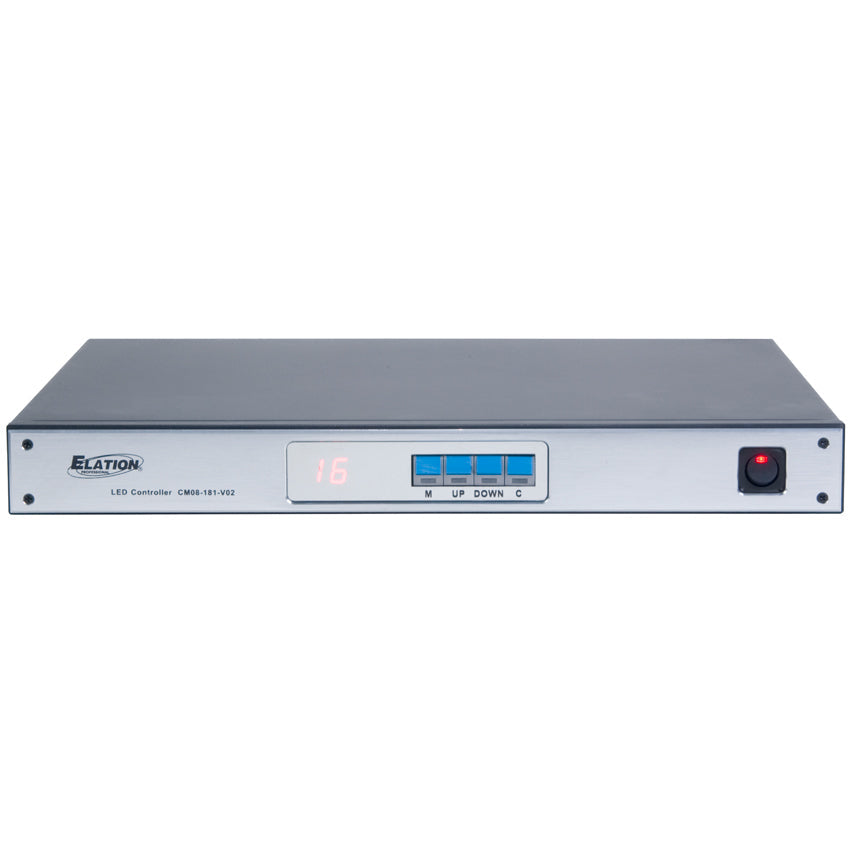

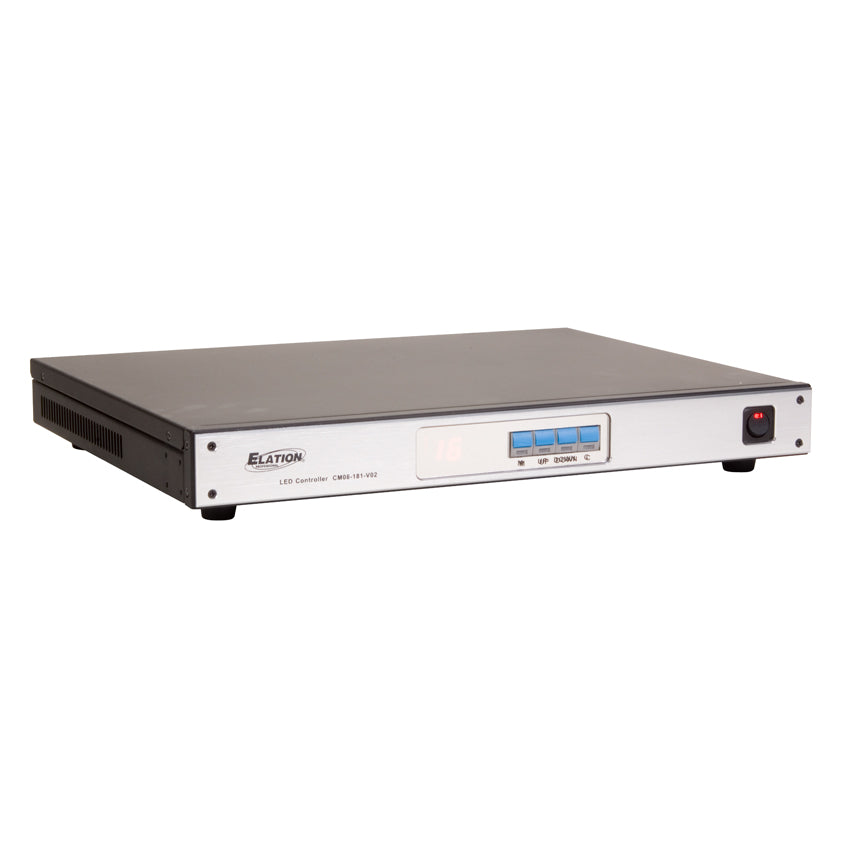

EVLED-VSC

EVLED Video System Controller - for use with EVLED Strip Panels

• Signal Output to Scrrens - LAN, CAT5

• Signal Input - DVI Output

• Controller Command Communication from PC - USB / RS232

• Maximum Resolution - 1280 x 1024 pixels

• Dual LAN outputs for set up of 2 seperate screens

• Includes VSC software for pixel mapping set up

• High Frequency Refresh Rate - Selectable between 100Hz - 3,000Hz

• Grey Scale level - 0 - 66536 levels

• Power switch and Up/Down buttons to control 16 preset intensity levels

• AC Input 100-240v 50/60

• Mounting - Free standing on rubber feet or rack mounted with rack ears

• Pixel Correction - Single, 2x2, 4x4 and 8x8, Max. 6144 pixels, 256 adjustable RGB levels

• Size - 423 X 330 X 46 mm / 16.6" x 12.9" x 1.8" (LxWxH)

• Weight - 5.3 kg / 11.7lbs.
