FLEX PIXEL WP-14


FLEX PIXEL WP-14 is a professional-grade lighting solution. The FLEX PIXEL WP-14™ is an outdoor rated 6.6 foot (2m) flexible LED pixel tape featuring (144) RGB SMD tri-color LED pixels (432 total DMX channels) spaced on 0.55” (14mm) centers, producing over 1 billion color possibilities with a 120° viewing angle, enclosed in an IP65 rated waterproof flexible cover which can be cut and extended every 2” (51mm), and mountable to most surfaces using Elation’s FLEX CHANNEL™ line of aluminum mounting tracks.

UPC: 837874018455SKU: FLX775

FLEX PIXEL WP-14

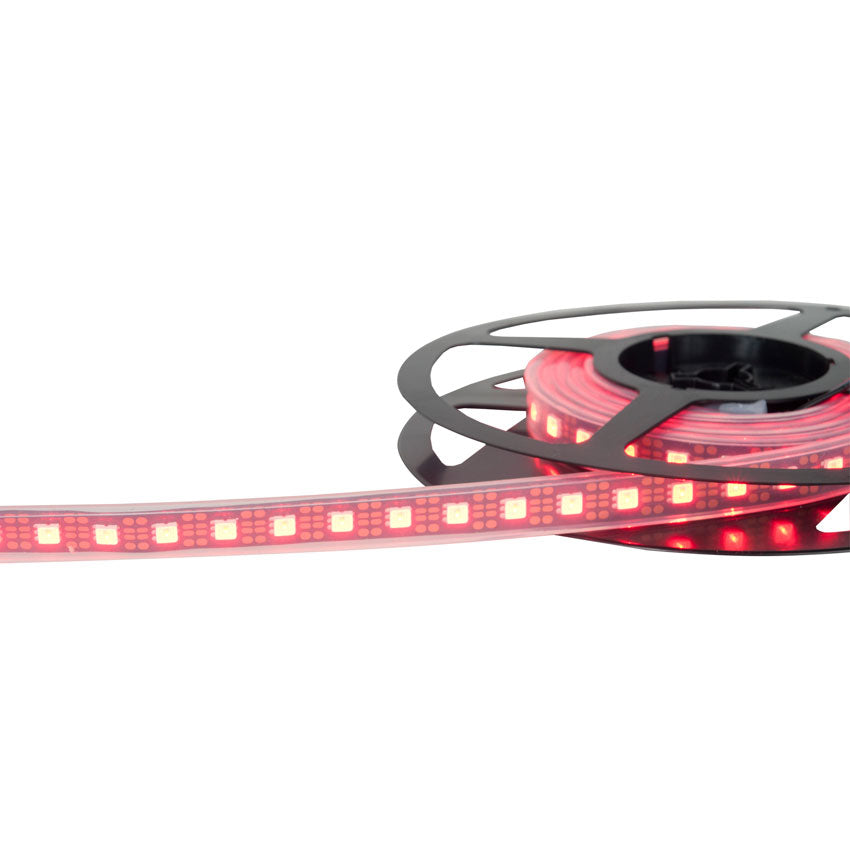

The FLEX PIXEL WP-14™ is an outdoor rated 6.6 foot (2m) flexible LED pixel tape featuring (144) RGB SMD tri-color LED pixels (432 total DMX channels) spaced on 0.55"(14mm) centers, producing over 1 billion color possibilities with a 120° viewing angle, enclosed in an IP65 rated waterproof flexible cover which can be cut and extended every 2"(51mm), and mountable to most surfaces using Elation's FLEX CHANNEL™ line of aluminum mounting tracks.

Each FLEX PIXEL WP-14 tape is powered by an optional FLEX PIXEL 5VPSU™ 5V universal auto switching power supply (110-240v), and can be controlled using one of Elation's optional LED tape drivers including FLEX PIXEL DRIVER™, FLEX PIXEL IRC™, or EZ KLING™, and is also compatible with Kling Force LED, DiGidot C4, and MediaMaster.

  • IP65 Outdoor Rated Flexible LED Pixel Tape
  • 6.6 foot (2m) Roll
  • (144) RGB Tri-Color SMD LED Pixels
  • (432) Total DMX Channels
  • Pixels Spaced on 0.55"(14mm) Centers
  • Cut and Extend Every 2"(51mm)
  • 120° Viewing Angle
  • Over 1 Billion Color Possibilities

Specifications

SOURCE
(144) RGB SMD LED Pixels

PHOTOMETRIC DATA
1,008 LUX 94 FC (per each 1m)

COLOR
Over 1 Billion Color Possibilities

CONTROL
(432) DMX Channels
ICS APA102 Protocol

SIZE / WEIGHT
Length: 6.6rsquo; (2m) Roll
Width: 0.57" (14.5mm)
Vertical Height: 0.18" (4.5mm)
Weight: 0.66 lbs (0.3 kg)

ELECTRICAL / THERMAL
DC 5V
29W Max Power Consumption

APPROVALS / RATINGS
CE | cETLus | IP65


Specifications and documentation subject to change without notice.

Downloads

Specification sheet
