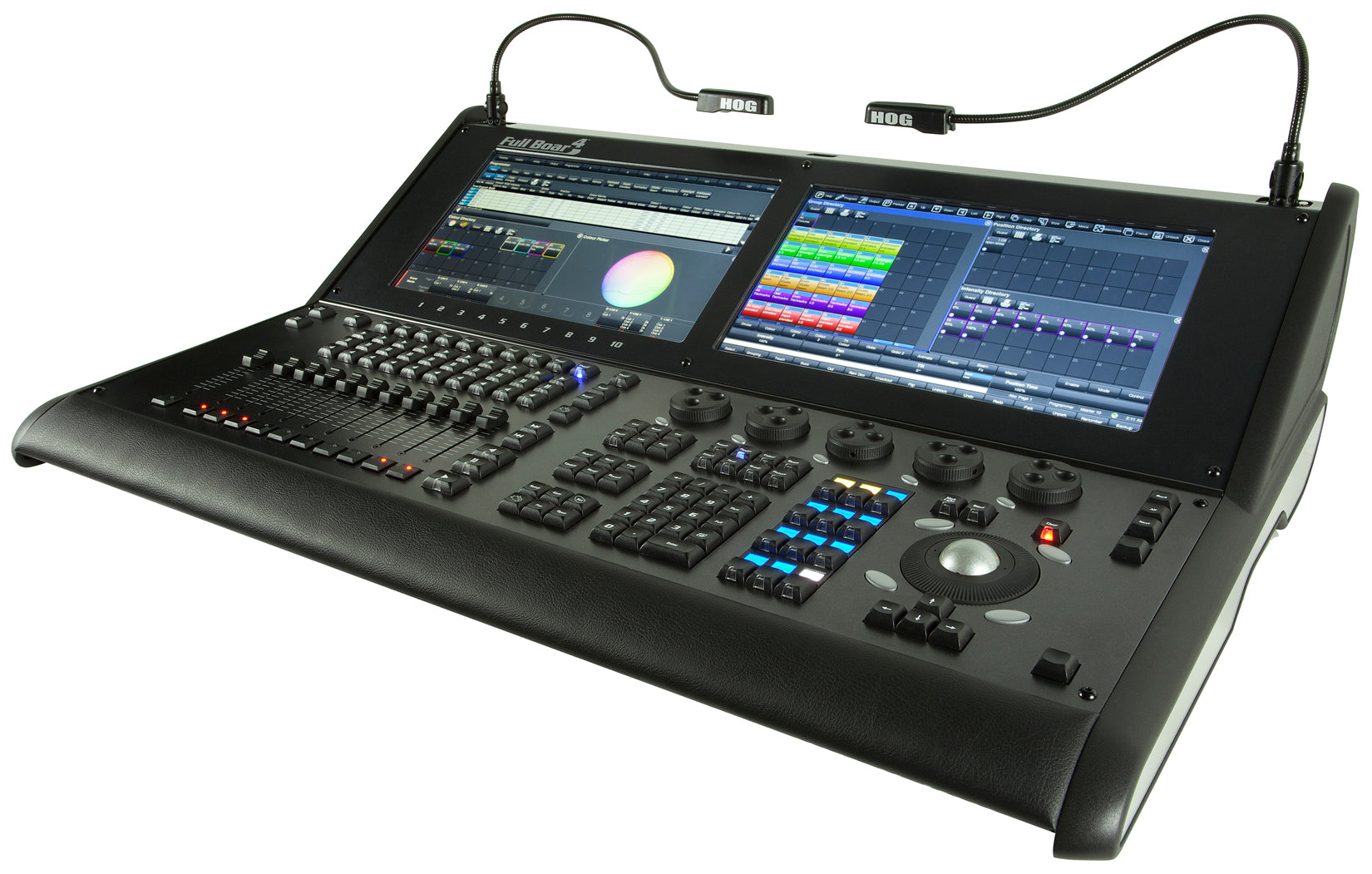

FULL BOAR 4 IN ROAD CASE

Discontinued

Full Boar 4 in Road Case is a professional-grade lighting solution. All the power of the Hog 4 in a more compact package, with sleek lines, raked screens and familiar layout.

UPC: 837874002317SKU: HOG627

FULL BOAR 4 IN ROAD CASE

A console capable of delivering everything from a local theatre show to a stadium gig! All the power of the Hog 4 in a more compact package, with sleek lines, raked screens and familiar layout. Like it's predecessor it allows for total expansion enabling you to create, manage, edit and playback all types of shows. The Full Boar 4 comes packed with the latest hardware features - 10 point multi touch, motorized faders, solid state HDD to name a few.

* Note: The Full Boar 4's DVI-D monitor connections do not support analog output to VGA displays such as those featured on the older Full Boar 3 playback and programming wings. A DVI-D to VGA adaptor will be needed in these cases.

  • Robust Hog 4 Operating Software
  • Unlimited Number of Simultaneous Crossfades
  • (2) Internal 15.6"Wide Touchscreens with 10 Point Multi Touch
  • (2) External Monitors or Touchscreens Supported*
  • (5) Encoders for an Expanded Wheelset
  • (12) LCD User Keys
  • Tri Axis Backlit Trackball, w/Rotary Encoder for the Third Axis and (4) Configurable Buttons for Cursor and Position Control
  • (10) Motorized Playback Faders
  • (1) Motorized Grand Master
  • (4) Fixed Universes of DMX 512 and
  • Up to (12) Universes of DMX 512 over ArtNet or sACN
  • Hog-Net Ethernet Connector
  • Fixture-Net Ethernet Connector
  • Internal Solid State Hard Disk Drive
  • (5) USB Ports for Wholehog Wings and External Touchscreens
  • Desklights, Feedback LEDs, and Integrated Worklight (dimmable)
  • Auto-Ranging Mains Input (90-250VAC)
  • Light Converse Visualizer Dongle Included
  • Dust Cover Included
  • Custom Road Case Included

Specifications

CONNECTIVITY
Unlimited DMX Channels,Art-Net and E1.3.1 (sACN) Universes via Ethernet DPs

Onboard MIDI Input/Output, MIDI Show Control and MIDI Time Code and LTC Input

Multiple LTC inputs via optional multiple SMPTE/ LTC USB Widget

Connectivity with Many Visualizers via Ethernet

Wired and Wireless Networking with Multiple Wholehog Console Systems

Remote Focus Capabilities w/Networked Tablet PC Running Hog 4PC Software

Supports USB Playback and Expansion Wings

SIZE / WEIGHT
Length: 35.49" (901.19mm)
Width: 22.65" (575.36mm)
Vertical Height: 9.62" (244.34mm)

Weight: 45.0 lbs (20.41 kg)


Specifications and documentation subject to change without notice.
