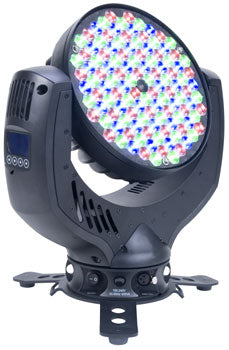

IMPRESSION 120RZ "ZOOM"

120 Luxeon Rebel High Power LEDs RGB Additive Color mixing lighting system Linear Zoom 10° to 26° Same baseless Design / Size as Standard Impression Power consumption 350 VA (Watt) 50.000h life

The new impression Zoom fixture has been born from the pedigree of the award winning impression series of LED based moving head fixtures designed and engineered in Germany.

function to designers fingertips, combined with a new LED source. The key, lighting designers told us, was not to lose any of the cool features from the original, including the design with no base unit, the smooth dimming, the even color mixing, and the speed of operation. We've worked hard to achieve this goal and we think that you will like the results too. LED fixtures as a true professional light source have now been well and truly proved and the Impression Zoom takes the use and application of LED to a new level.

optimized for a maximum presentable color space.

3 pole XLR; [+] = Pin 3 [-] = Pin 2 [Ground] = Pin 1.

• 120 Luxeon Rebel High Power LEDs
• RGB Additive Color mixing lighting system
• Linear Zoom 10° to 26°
• Same baseless Design / Size as Standard Impression
• Power consumption 350 VA (Watt)
• 50.000h life
• Building on the proven performance reputation that the Impression brand has attained around the world, the Impression Zoom brings an automated zoom
• RGB Model
• 42 green LEDs, 36 blue LEDs, 42 red LEDs, wavelength
• Optical System
• Zoomable optical system with 10° to 26° light distribution ang le
• Shutter / Dimmer
• Strobe "“ Effect with variable speed between 1 "“ 15 flashes per
• second, Random "“ Strobe, Pulse Effects
• Continuous Dimmer 0 "“ 100%
• Operational Parameters
• Max. Ambient temperature: 45°C (integrated overheating switch)
• Mounting Position:
• Upright - Tripods with brackets for lashing strap
• Hanging (vertical) - M10 nut with lockable installation position for
• a halfcoupler
• Hanging (horizontal) - Adjustable bar for sideward truss installation (optional)
• Two attachment points for safety wires
• DMX Control
• Standard USITT DMX-512,
• Weights and Measures
• Dimensions (LxWxH) : 13.4 x 5.7 x 14.5 / 340 x 145 x 370mm
• Power Input ~100 "“ 240V AC, 50-60 Hz
• Fuse protection Micro fuse 5x20mm, T 4A
• Weight: 8 kg
