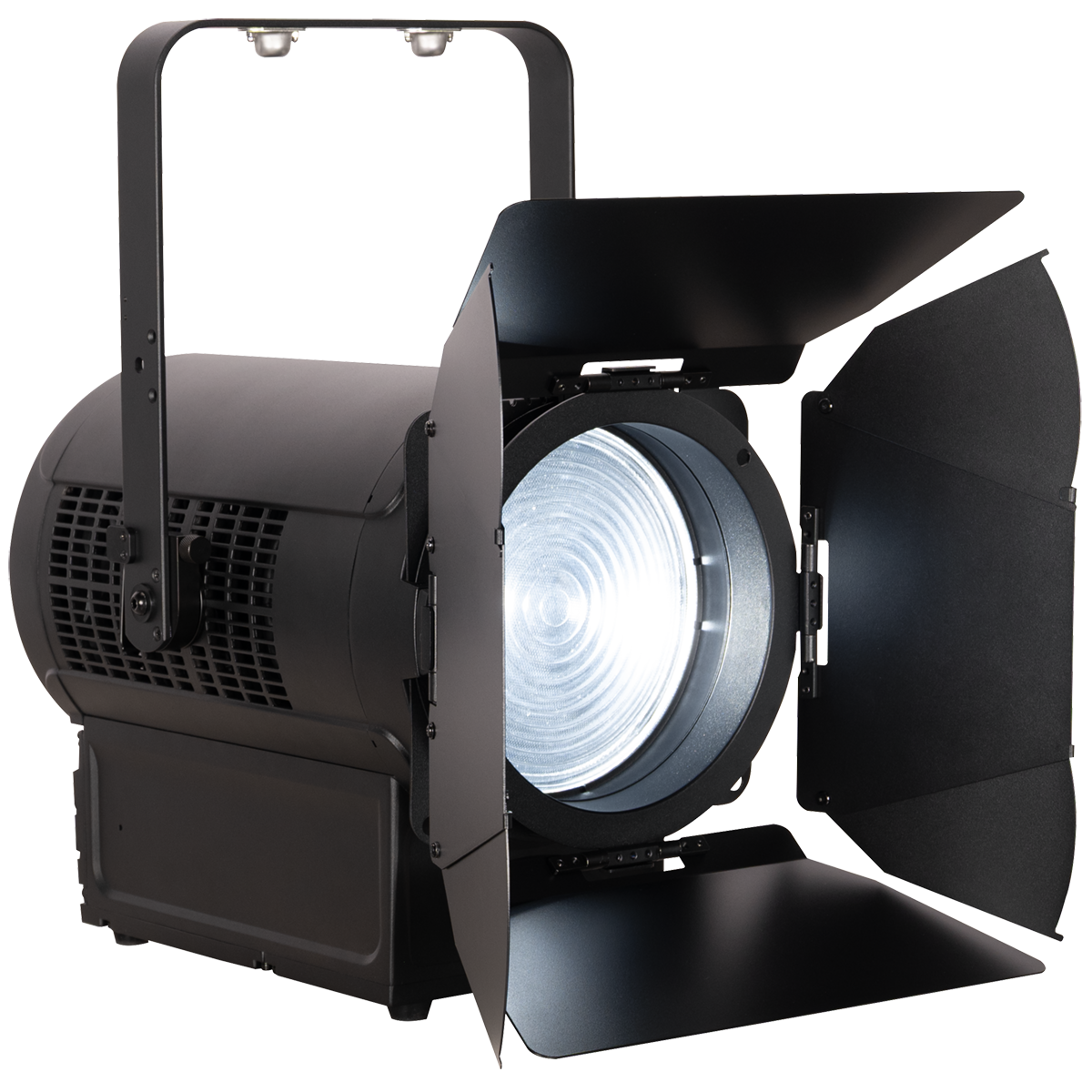

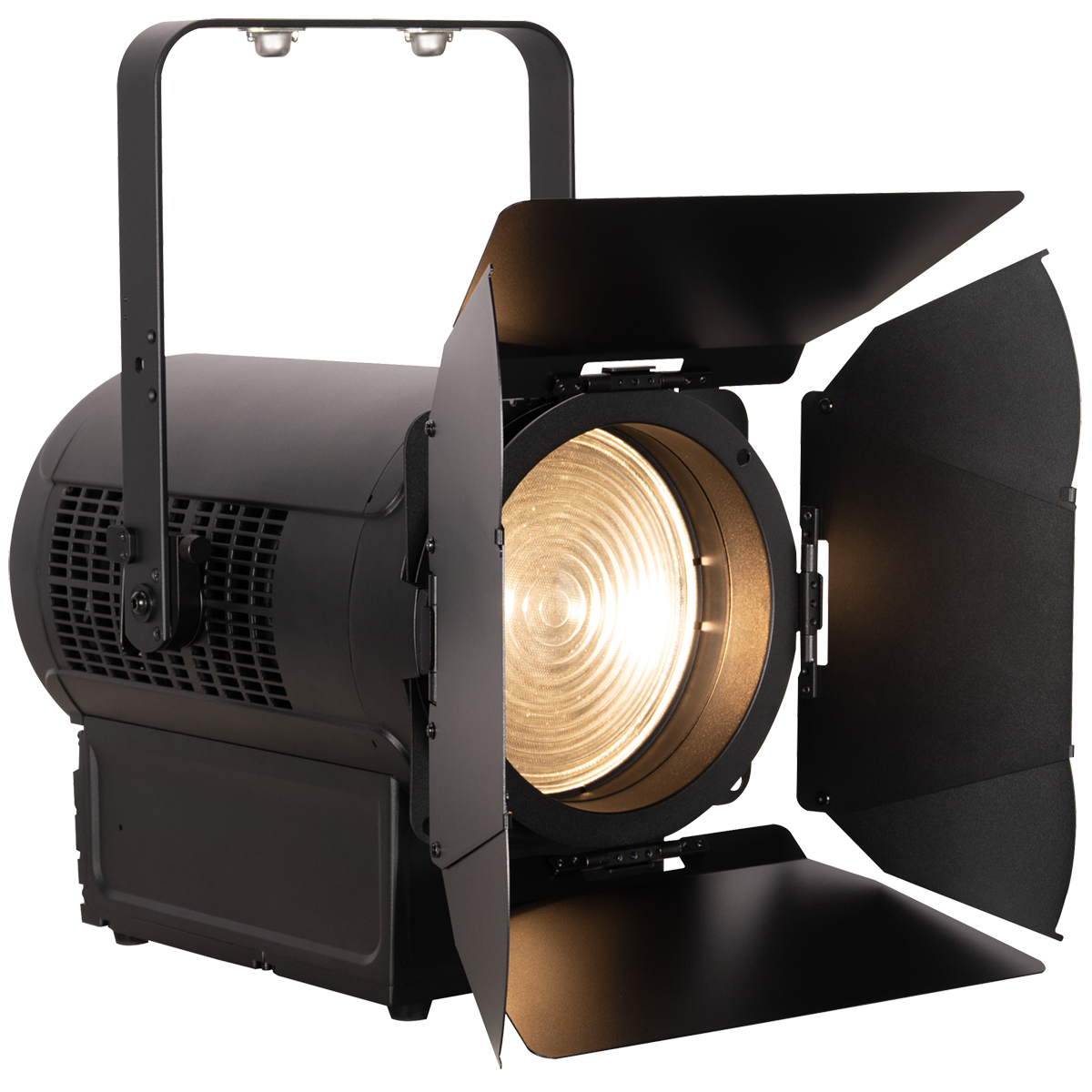

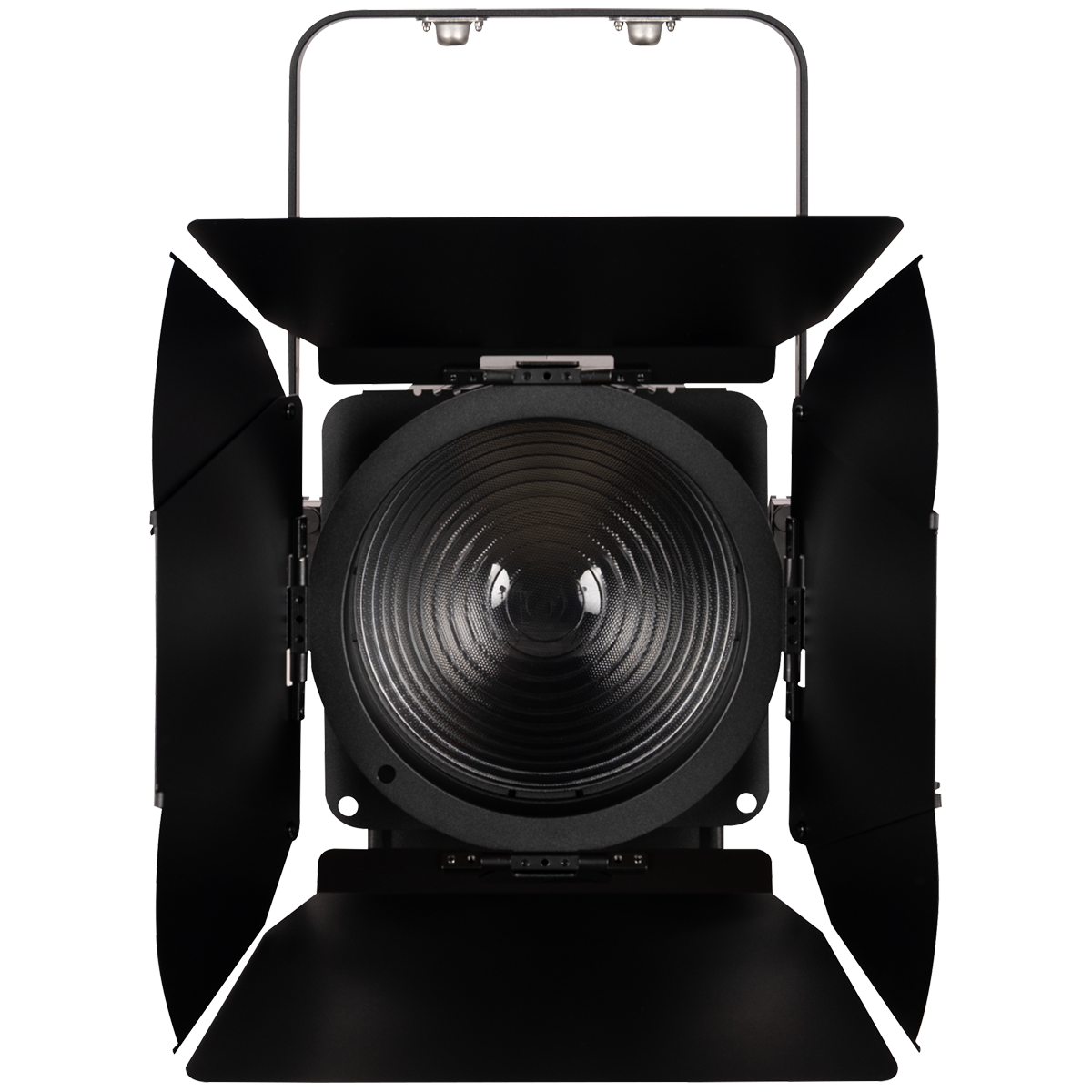

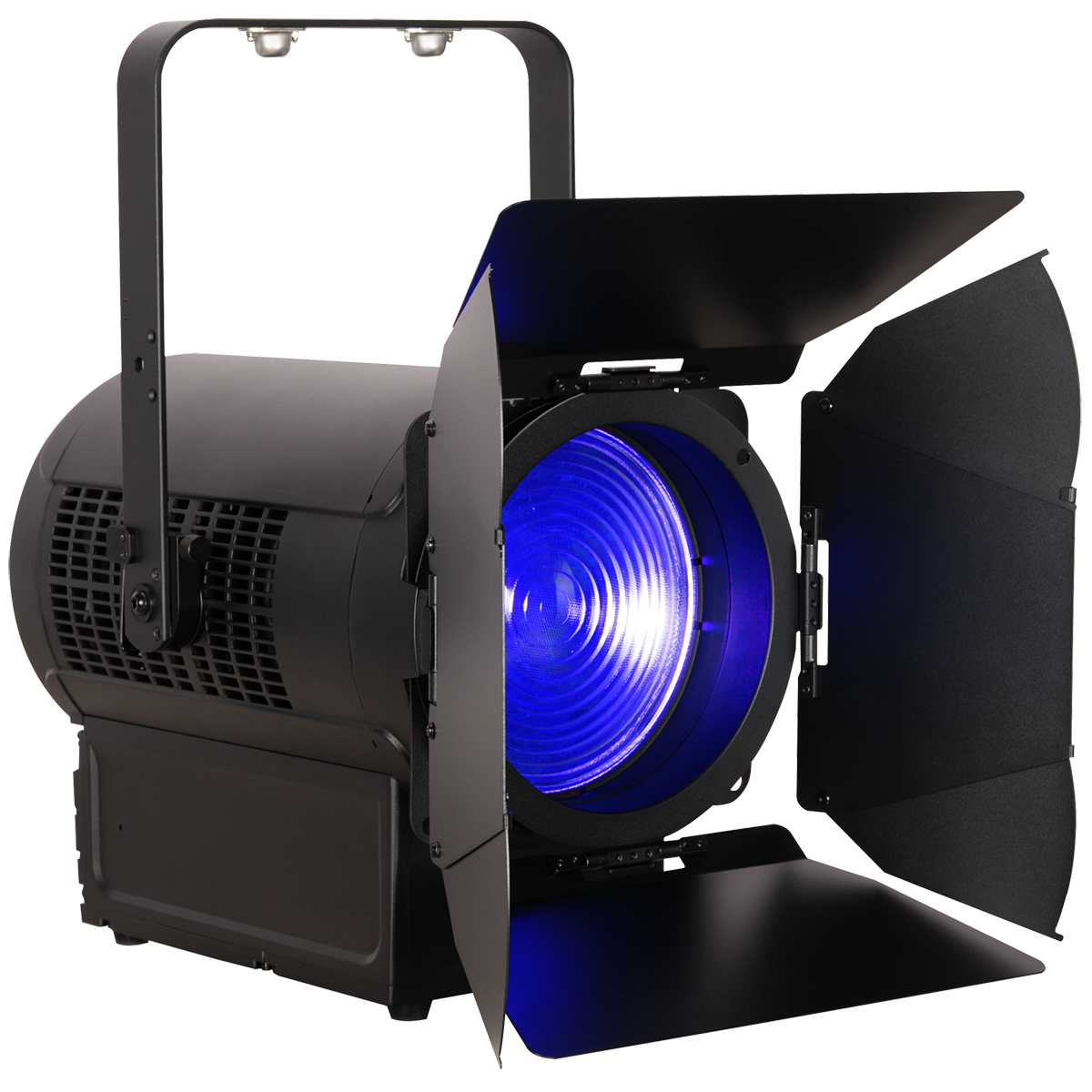

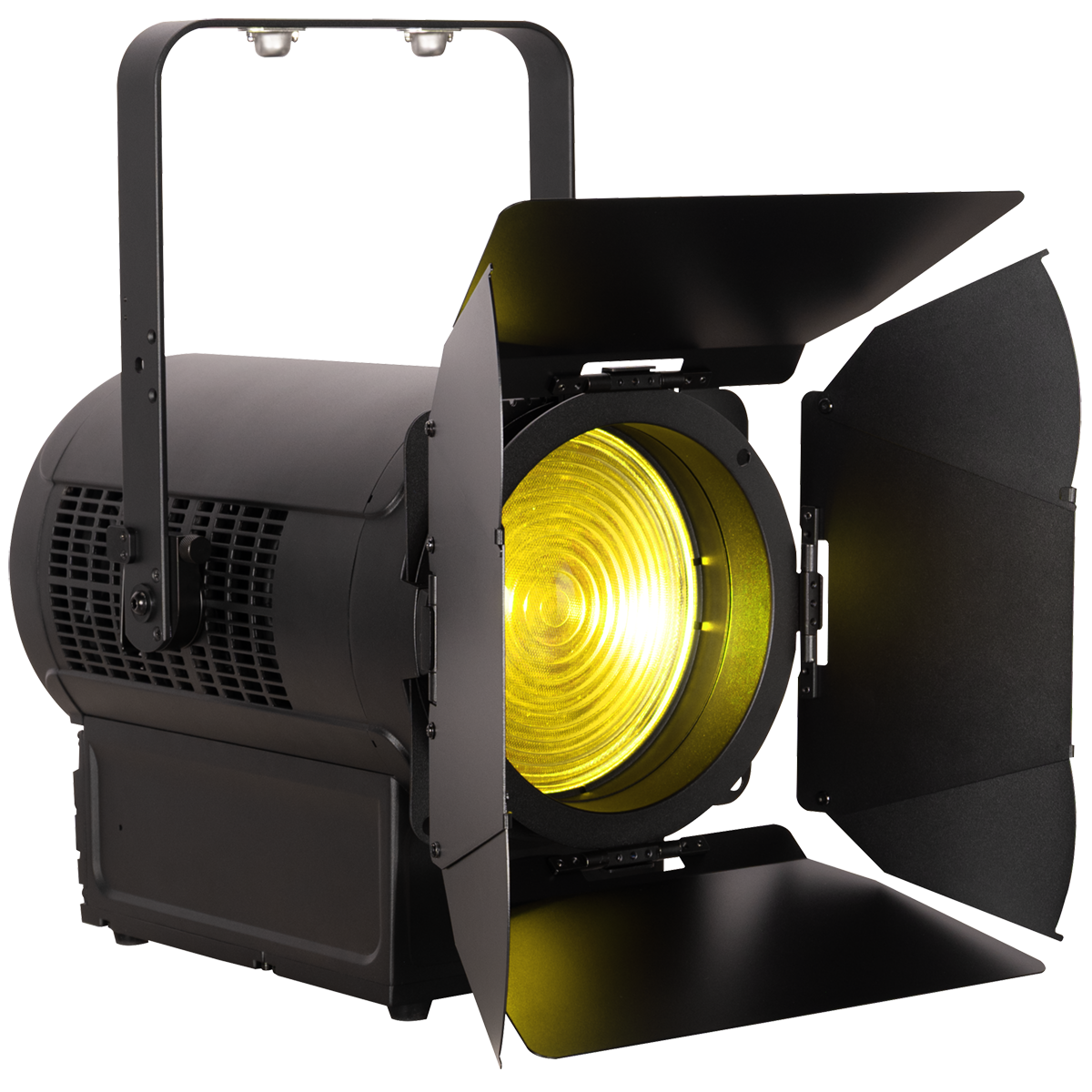

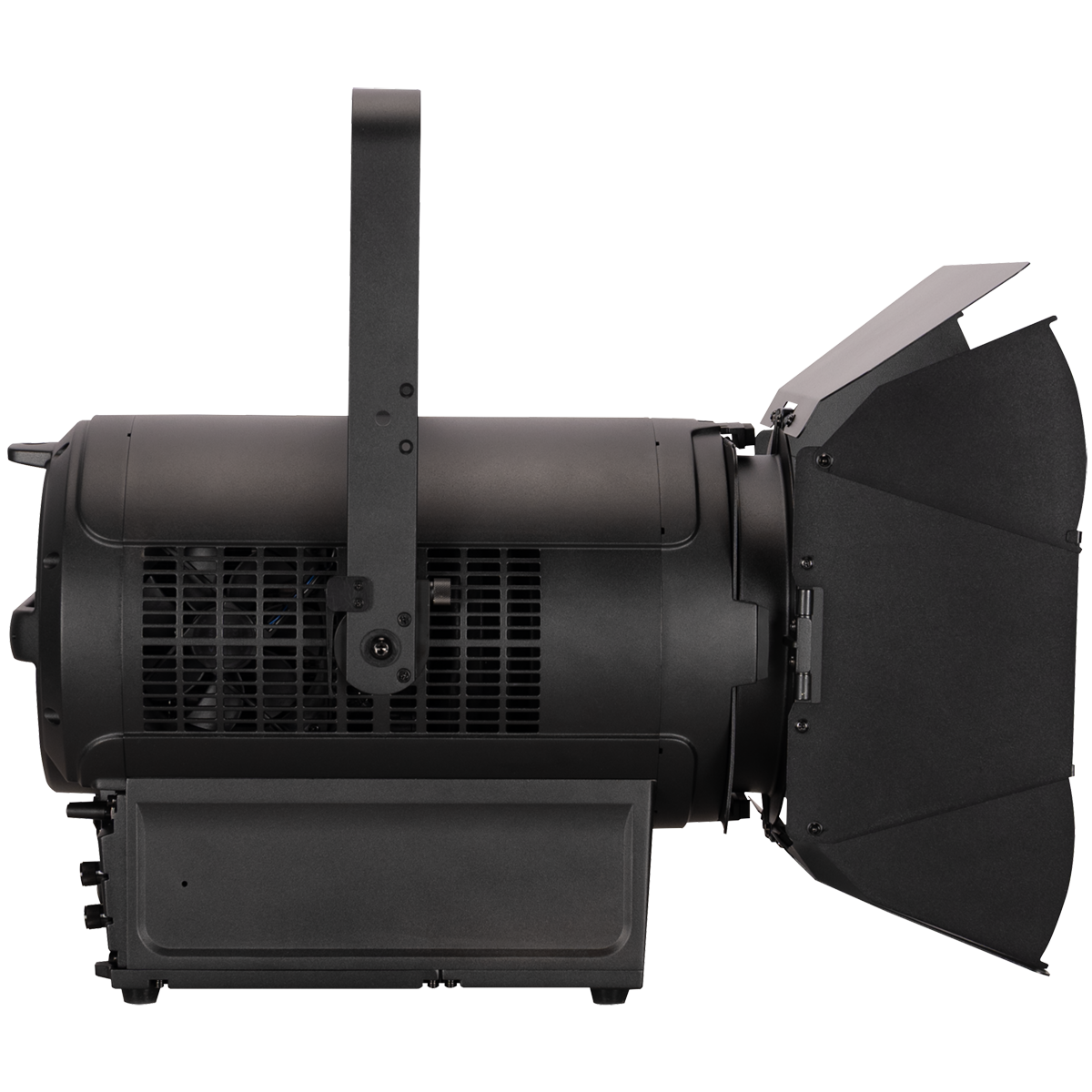

KL Fresnel 8 IP
The KL Fresnel 8 IP delivers superior light quality in a compact, weather-ready 8-inch design—bringing natural Fresnel character, full-spectrum color, and modern workflow efficiency to any environment.
KL Fresnel 8 IP
The KL Fresnel 8 IP delivers superior light quality in a compact, weather-ready 8-inch design—bringing natural Fresnel character, full-spectrum color, and modern workflow efficiency to any environment.
Its 500W RGBMA engine produces over 15,500 lumens of balanced, full-spectrum output to ensure natural skin tones and accurate color. Variable CCT and magenta/green shift control make it ideal for film and television.
An internal motorized 8°–60° zoom uses a source-moving mechanism to preserve classic Fresnel behavior with a smooth falloff designers expect in a compact, easy-to-rig form.

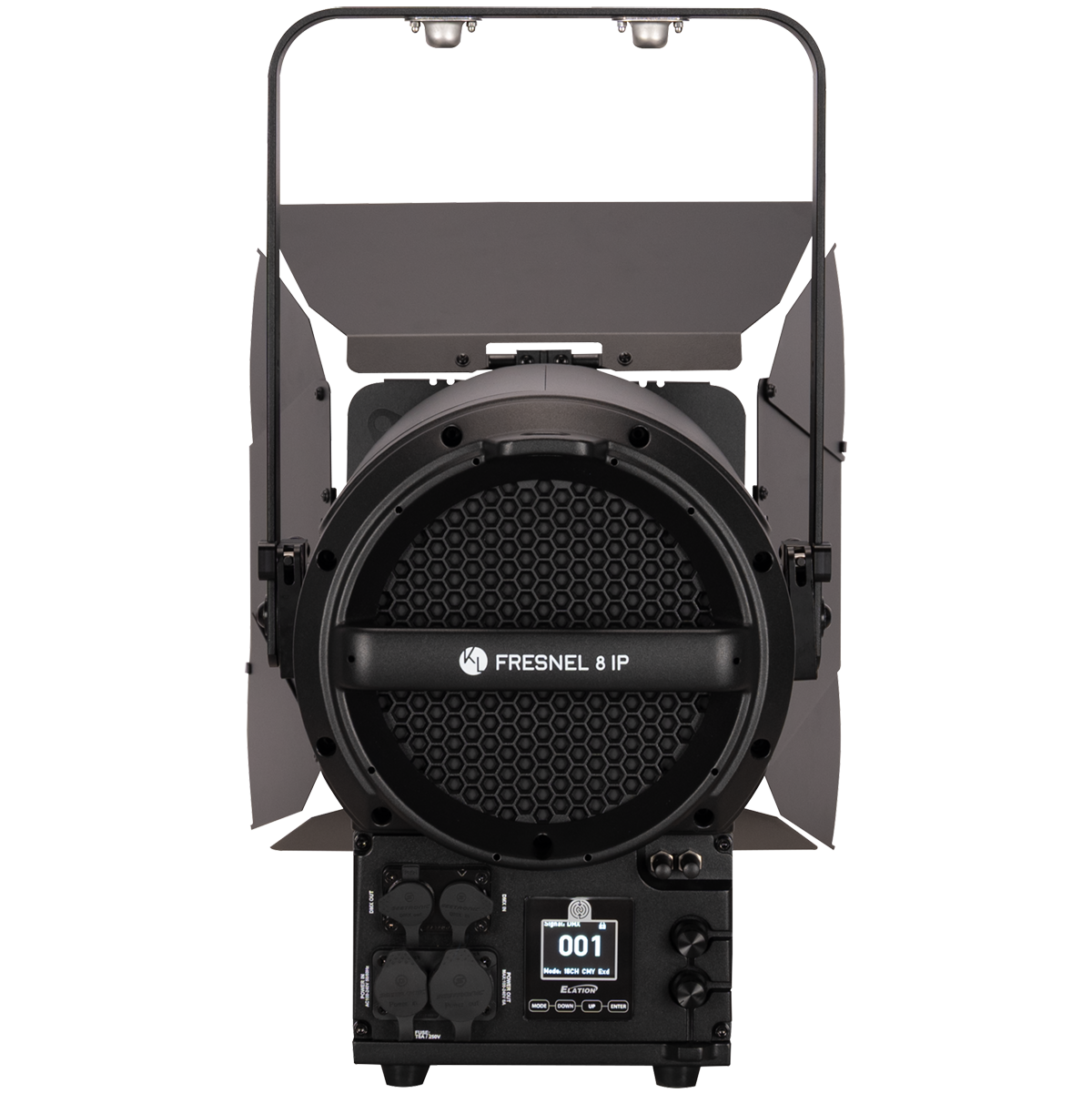

Smart setup tools, including NFC configuration, a rear-facing LCD interface with dual encoders, and Aria X2 wireless DMX, streamline operation from prep to programming.
With its lightweight IP65 housing and five selectable fan modes, the KL Fresnel 8 IP supports everything from outdoor stages to camera-critical studio work while reducing maintenance and downtime—all while maintaining the timeless look and feel of a true Fresnel.
500W RGBMA LED Engine
15,500 Total Fixture Lumen Output (Sphere)
Wide 8° to 60° Motorized Zoom Range
Stand-Alone control with 2 Encoders and LED Display
NFC & Aria x2 Wireless Device Management
IP65 Rated
Gel Frame & 8-leaf Barndoor Included
Specifications
500W 6000K RGBMA LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
16,028 (Integrating Sphere)
TBA (Goniometer)
CRI 94
TLCI 95
Zoom Range 8° - 60°
Beam Angle 7.5° - 43°
Field Angle 12° - 60°
EFFECTS
Motorized Zoom
Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves
DMX Controllable LED Refresh Rate (900Hz- 25kHz)
COLOR
RGBMA Color Array
CMY Emulation
x/y Control
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
8 DMX Channel Modes (1 ,5, 7, 11, 12, 20, 10, 16, 14)
Manual and DMX Controlled Dimmer. Color & Zoom
4 DMX Controllable Fan Modes for Silent Operation
Dual Rotary Encoders
Full Color 180° Reversible LCD Menu Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 17.6” (448mm)
Length (Yoke 0°): 21.3" (540mm)
Width: 13.7" (347mm)
Height (Fixture Body): 13.6" (345mm)
Height (Yoke 90°): 21.3" (542mm)
Weight: 30.2 lbs (13.7 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
551W Max Power Consumption
Power Thru Capacity: 8A (1 unit @115V, 3 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 1878.9
INCLUDED ITEMS
Gel Frame
Safety Cable
Barndoor
IP65 Locking Power Cable
OPTIONAL ITEMS
Omega Bracket
APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA
FIRMWARE UPDATE
Current Version:
Specifications and documentation subject to change without notice.
