LUMINA MATRIX
Discontinued
Lumina Matrix is a professional-grade lighting solution.
LUMINA MATRIX
Sale price$0.00
Related Products
LUMINA MATRIX

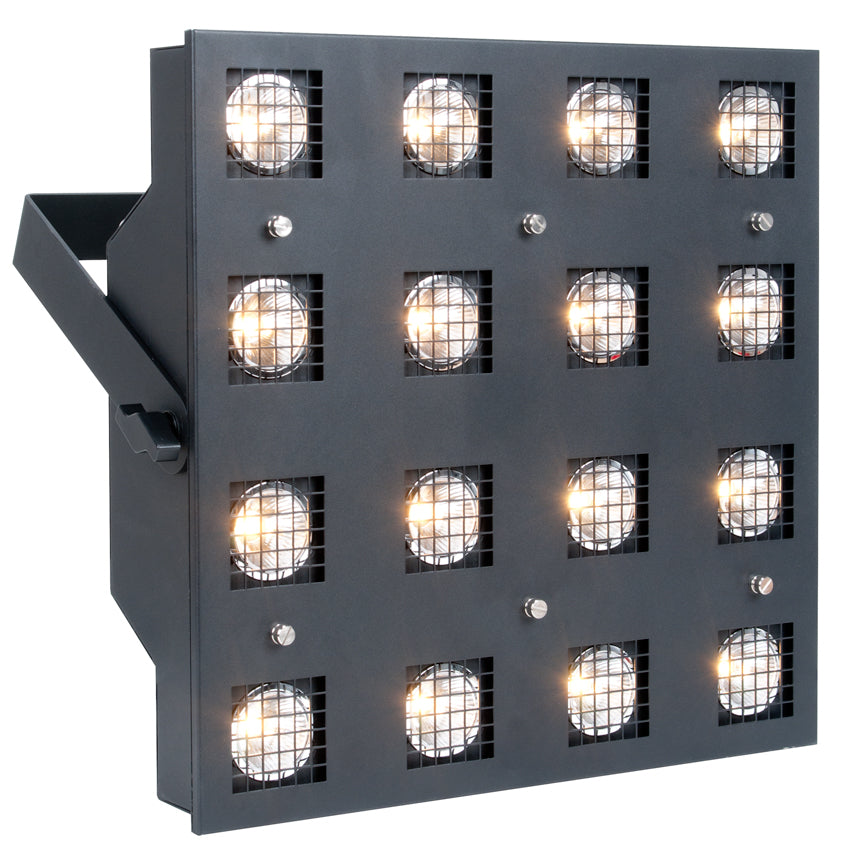

The Lumina Matrix™ features (16) 7W Warm White (2,700K) <80 CRI LEDs packaged in perfectly aligned halogen looking reflectors, 15° beam producing a smooth wash or blinder effect, electronic 16bit dimming (0-100%), variable dimming curves, individual pixel control (1-16), chase macros with variable speed and fade control, flicker free operation for TV and FILM, side by side vertical and horizontal array rigging, multiple unit power linking, 150W max power consumption, remote device management protocol support, and a multi-voltage universal auto switching power supply (120-240v).
- 15° Beam Producing a Smooth Wash or Blinder Effect
- Electronic 16bit Dimming (0-100%)
- Variable Dimming Curves
- Individual Pixel Control (1-16)
- Flicker Free Operation for TV and FILM
- Side By Side Vertical and Horizontal Array Rigging
- Multiple Unit Power Linking
- RDM (Remote Device Management)
Specifications
SOURCE
(16) 7W Warm White (2,700K) lt;80CRI LEDs
PHOTOMETRIC DATA
38,602 LUX (3,586 FC) @ 3.3rsquo; (1m) (FULL ON)
9,651 LUX (897 FC) @ 6.6rsquo; (2m) (FULL ON)
4,289 LUX (398 FC) @ 9.8rsquo; (3m) (FULL ON)
2,413 LUX (224 FC) @ 13.1rsquo; (4m) (FULL ON)
1,544 LUX (143 FC) @ 16.4rsquo; (5m) (FULL ON)
EFFECTS
Electronic 16bit Dimming: 0% - 100%
Variable Dimming Curves (Stage, TV, Architectural, Theatre)
Chase Macros with Variable Speed and Fade Control
CONTROL / CONNECTIONS
(11) DMX Channel Modes
(8-Bit: 7 / 8 / 10 / 14 / 16 / 22) (16-Bit: 8 / 10 / 14 / 22 / 38)
RDM (Remote Device Management)

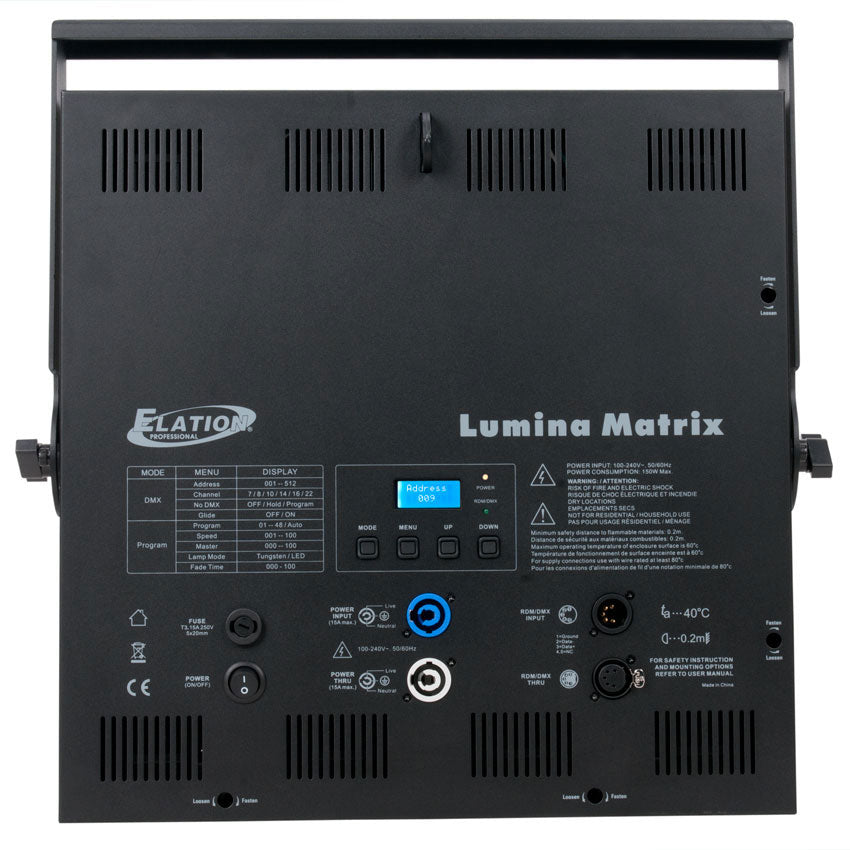

(4) Button Control Panel
LCD Menu Display
5pin DMX In/Out
powerCON In/Out
SIZE / WEIGHT
Length: 15.7" (400mm)
Width: 3.1" (78.5mm)
Vertical Height: 15.7" (400mm)
Weight: 21.1 lbs. (9.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
150W Max Power Consumption
Multiple Unit Power Linking:
MAX 12pcs (AC100-120V) or MAX 21pcs (220-240V)
APPROVALS / RATINGS
CE | IP20
INSTALLATION

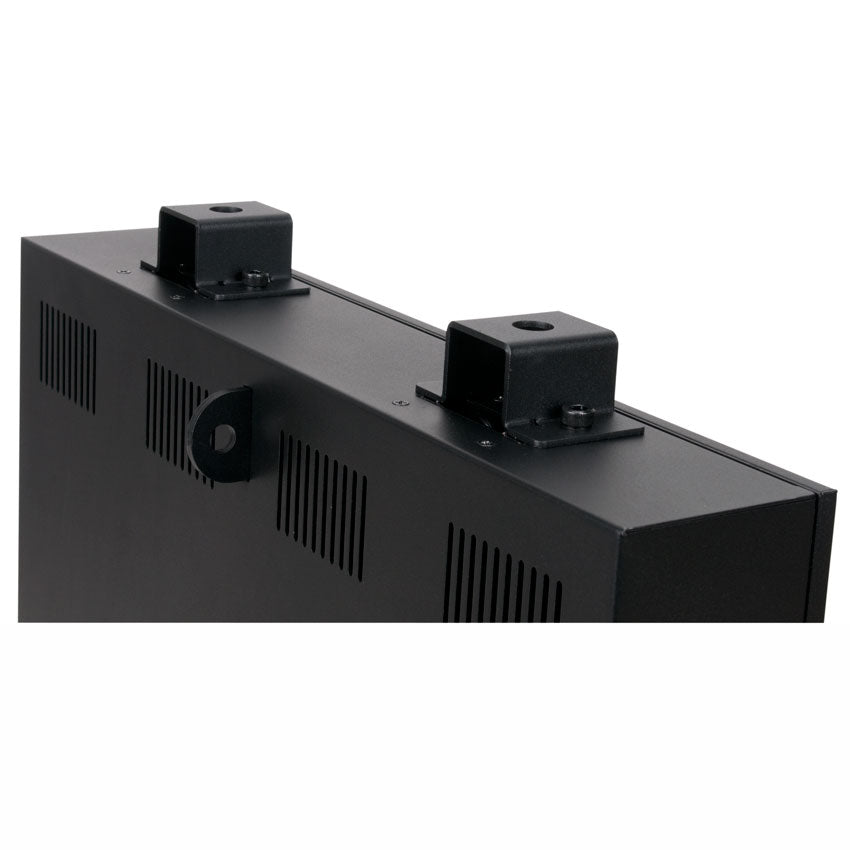

Rigging: Side By Side Vertical and Horizontal Arrays
Working Position: Any (360deg;)
INCLUDED ITEMS
(1) powerCON Cable
(1) Mounting Yoke Assembly
Specifications and documentation subject to change without notice.
