M-11

Discontinued

M-11 is a professional-grade lighting solution. The M-11 features a dual output nozzle and dual pump system that can be controlled either independently or simultaneously, allowing for a wider range of volume adjustment and output flexibility. The versatile control options include a built-in electronic timer, DMX with RDM, stand-alone operation, and optional wireless remote.

UPC: 810008261118SKU: ANF111

M-11

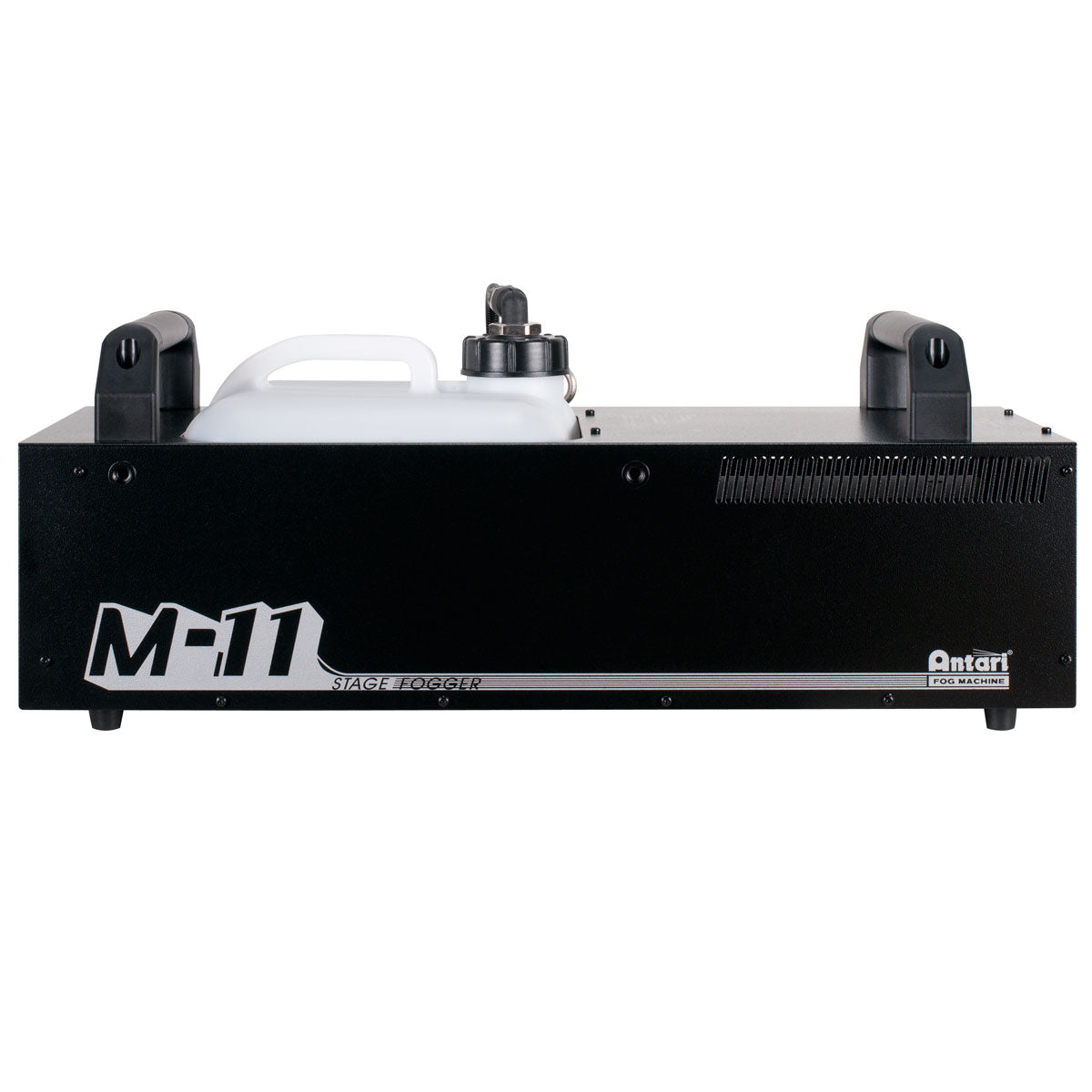

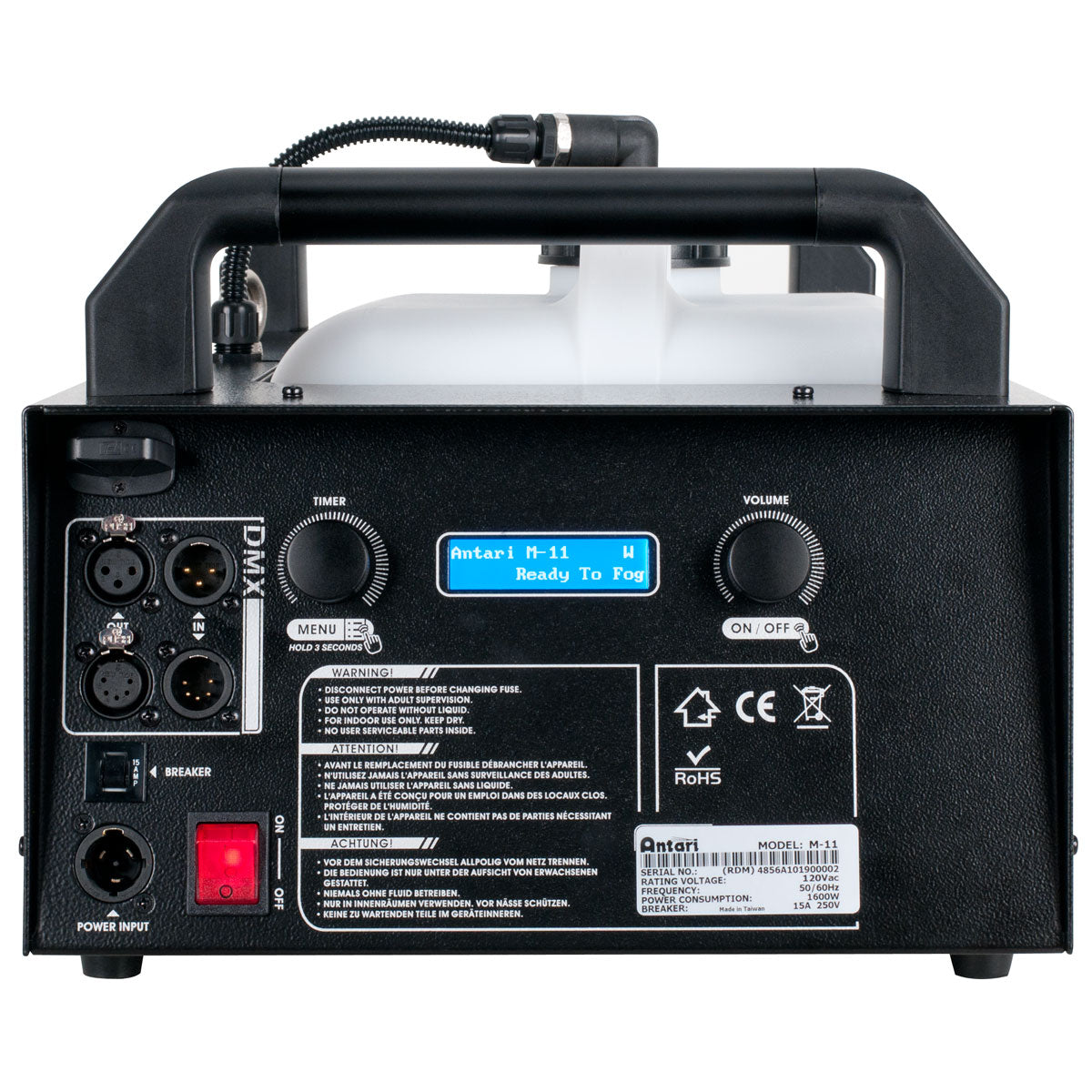

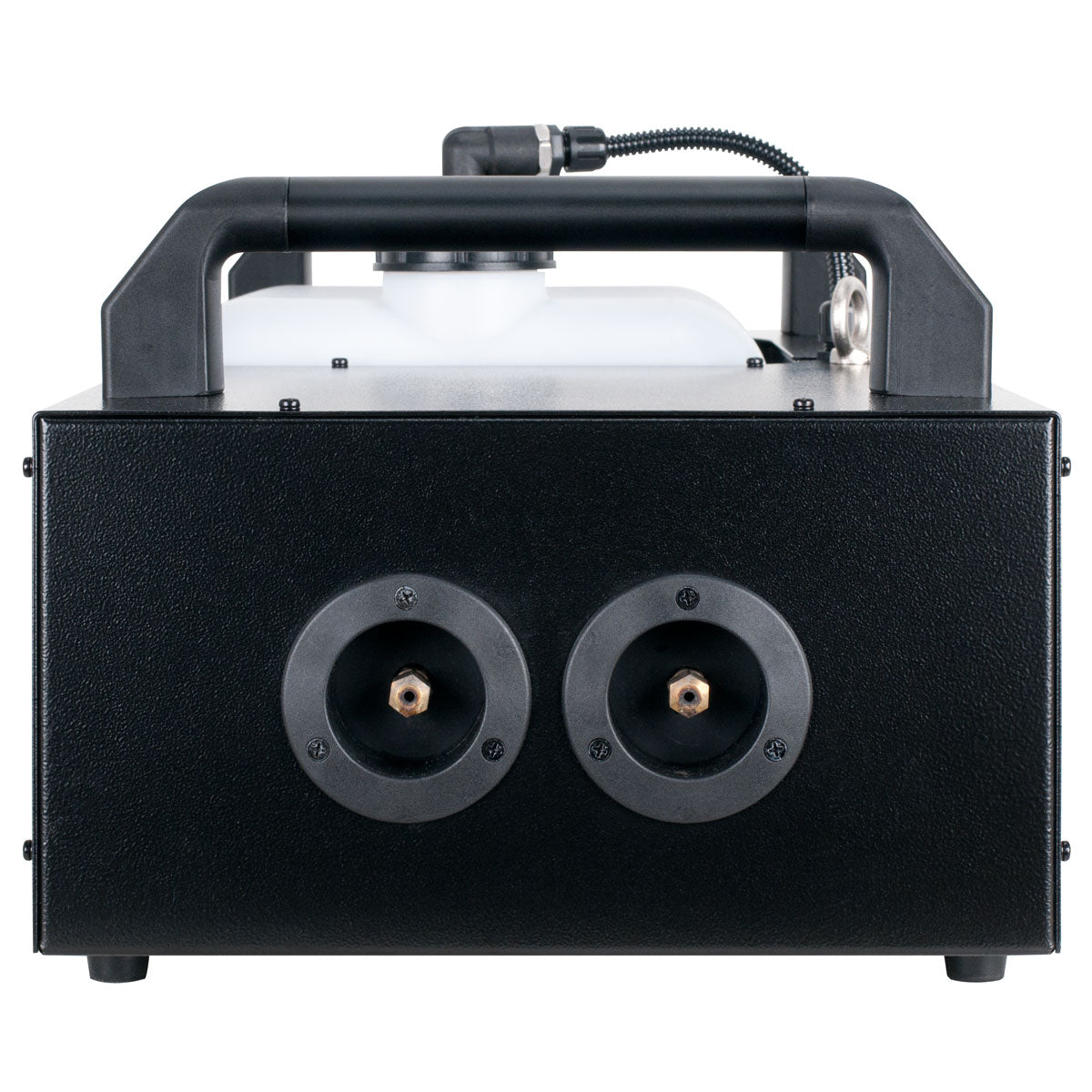

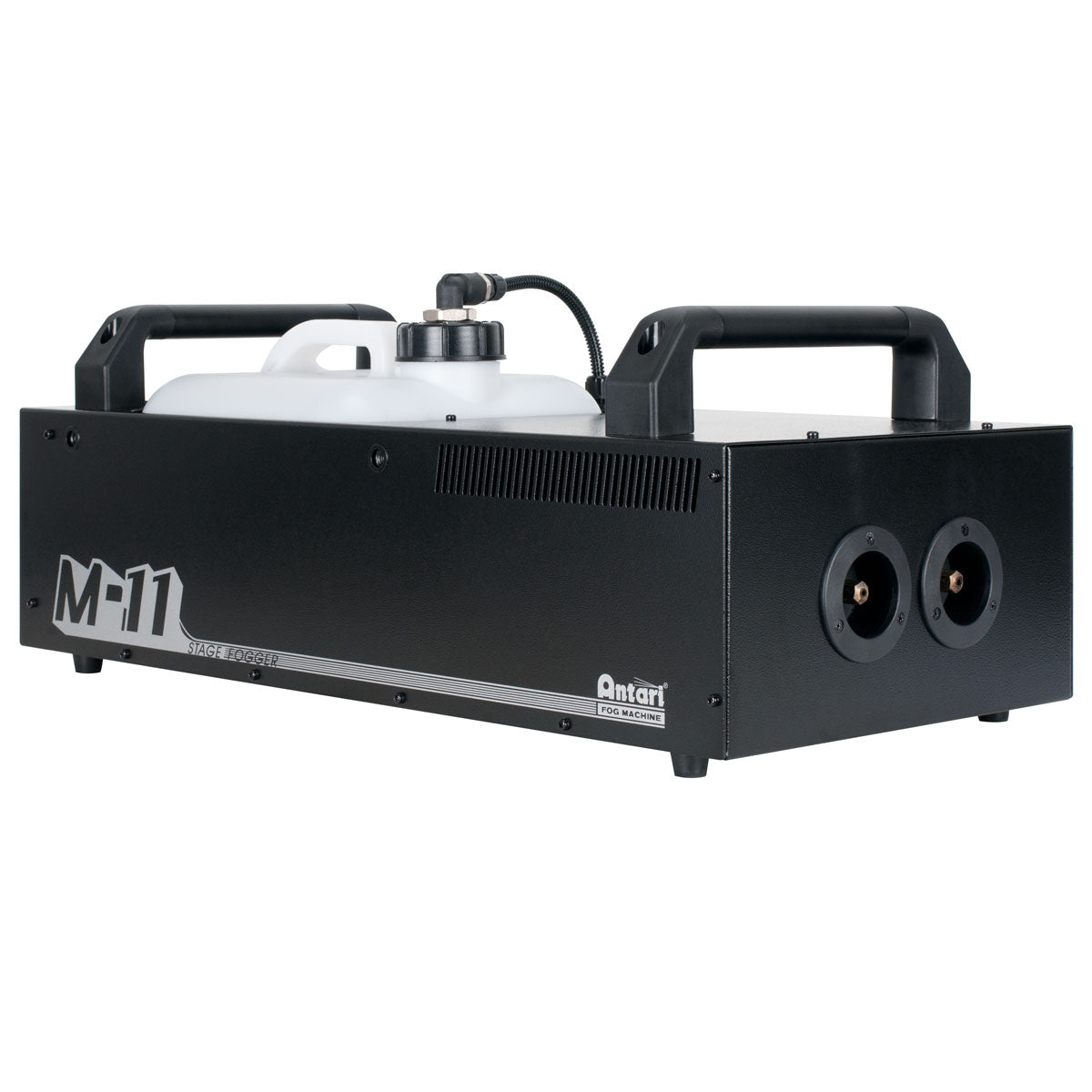

Antari continues to innovate with our first dual output designed M-11 fog machine. The M-11 features a dual output nozzle and dual pump system that can be controlled either independently or simultaneously, allowing for a wider range of volume adjustment and output flexibility. Automatic sequential pump operation can produce endless volumes of fog in continuous mode making the M-11 the highest output fog machine ever created from Antari. The versatile control options include a built-in electronic timer, DMX with RDM, stand-alone operation, and optional wireless remote. The M-11 is flexible enough to be used in small theaters and powerful enough to be used in the largest arenas.

Specifications

PERFORMANCE:
Warm-up time: 15 minutes (approx)
Fluid consumption: 50 Hz 500 ml / min (100% output), 60 Hz 350 ml / min (100% output)
Fluid tank capacity: 10 liters
Ambient temp / range - 0° - 40°C

COMPATIBLE FLUID:
Antari FLG Heavy Fog Fluid
Antari FLR 10 Light Fog Fluid

CONTROL:
DMX 512 Protocol
DMX channels: 2 Channels
DMX Modes: 1, 3
Wireless DMX (Optional)
On-Board Control: Manual, Timer, Volume
Wireless Primary/Secondary

CONNECTIONS:
Twist Locking Power Connector
Data Connectors: 3-pin XLR In/Out, 5-pin XLR In/Out

SIZE / WEIGHT:
Length: 26.55 in. (674.5 mm)
Width: 12.59 in. (319.8 mm)
Vertical Height: 11.15 in. (283.3 mm)
Weight: 25kg (55.1lbs)

ELECTRICAL:
Input voltage (US model): AC 100-120 50 / 60Hz 13.3A
Input voltage (EU model: AC 220-240 50 / 60Hz 6.67A (EU Model)
Rated power: 1600W

THERMAL:
Maximum Temperature Range (Ambient): 32°F - 104°F (0°C - 40°C)

OPTIONAL ACCESSORIES:
WTR-90 wired remote

Specifications and documentation subject to change without notice.

Downloads

Specification sheet

User manual
