The Magmatic Magma Prime Neo is a professional compact fazer delivering smooth, consistent atmospheric output with precise control. Designed for touring, rental, and permanent installations, it offers fast warm-up, efficient fluid consumption, and reliable performance in a durable, road-ready enclosure.
SKU: MSP104

Magma Prime Neo

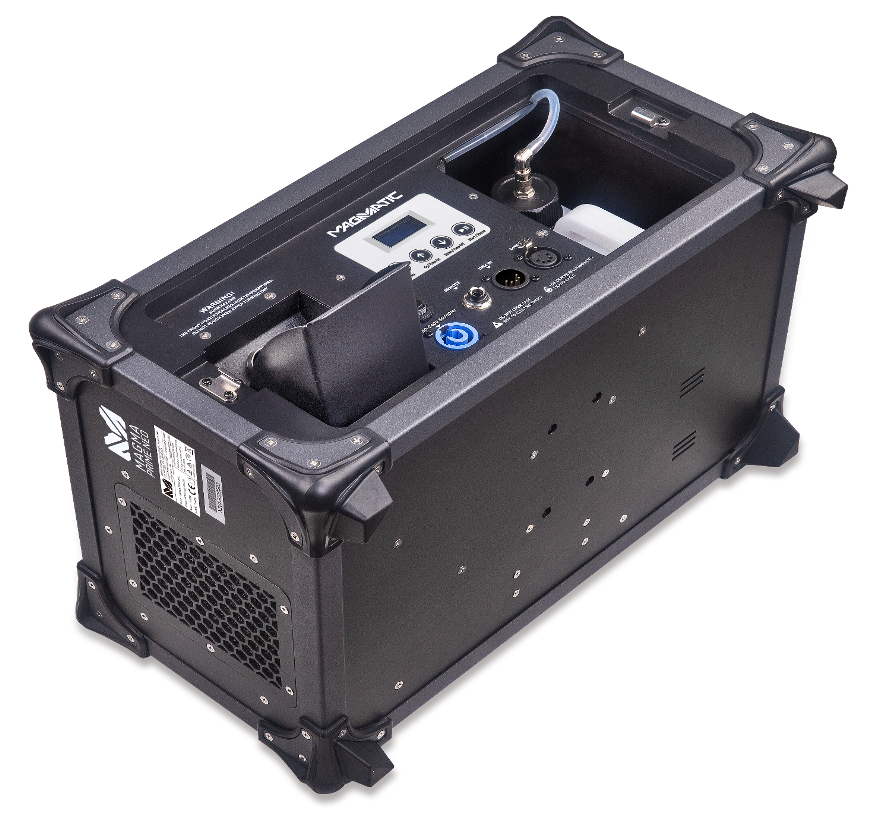

The Magma Prime Neo is a high-performance compact fazer engineered for professional lighting and atmospheric applications. With an output of 10,000 cubic feet per minute, it delivers an even, fine haze ideal for enhancing light beams and stage effects without overwhelming the environment. A fast 60-second warm-up time ensures the unit is ready when needed, while adjustable output from 5–100% allows precise control for a wide range of venues and applications.

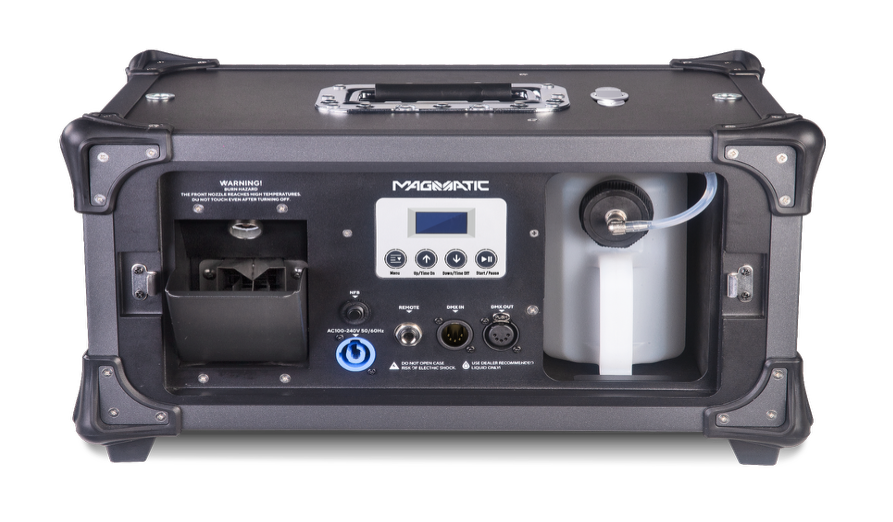

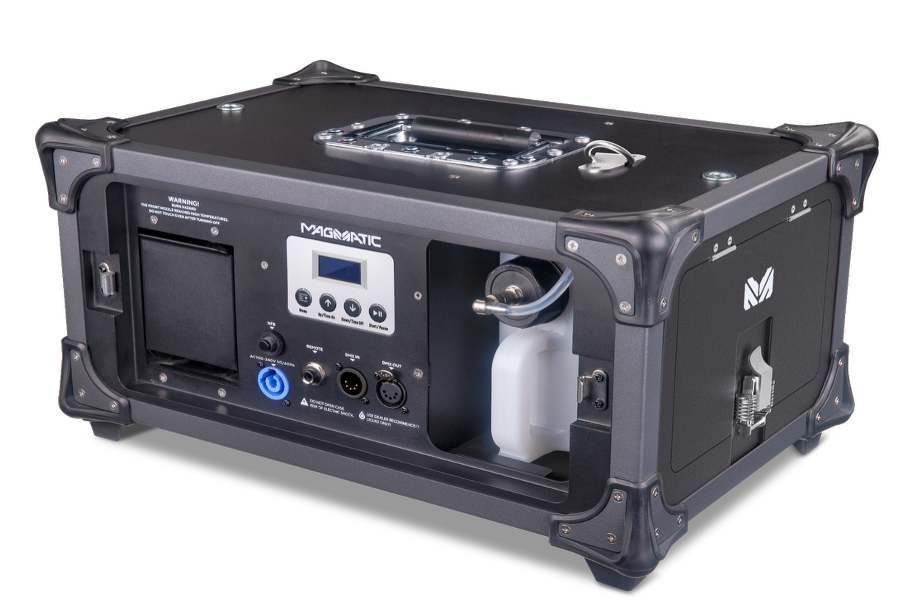

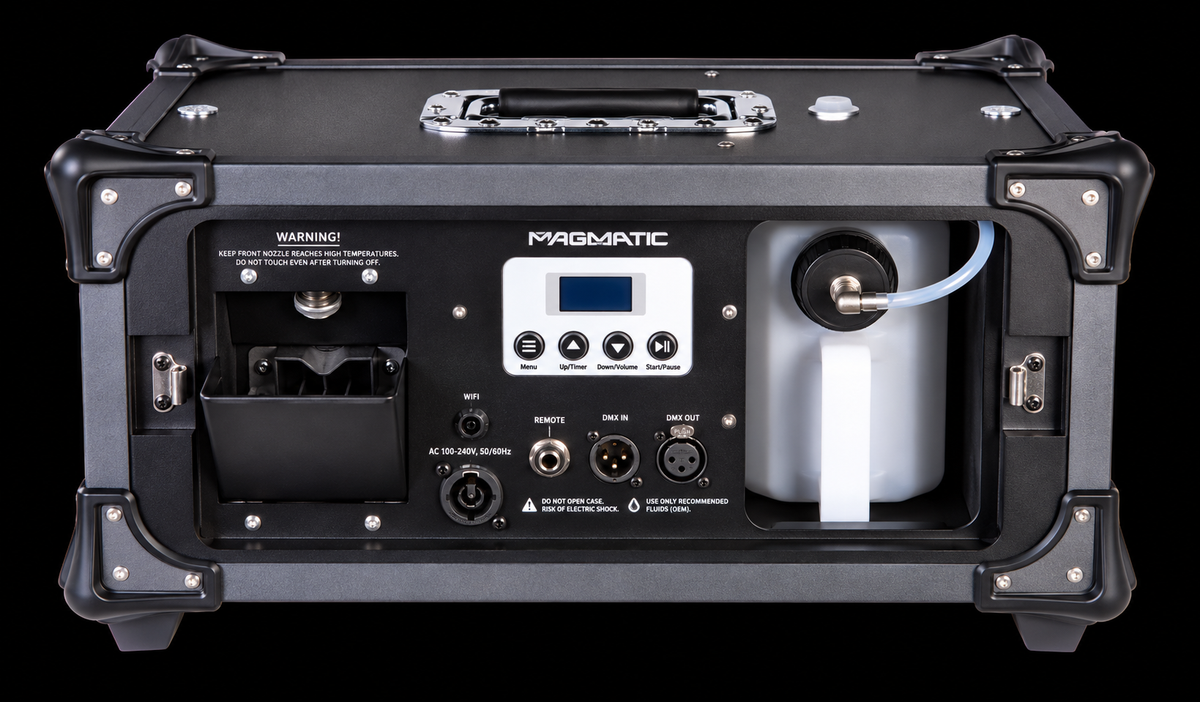

The Magma Prime Neo supports DMX control with multiple channel modes, as well as stand-alone operation with onboard LCD control for continuous or timed fogging. Manual fogging, external controller support, and a built-in self-cleaning function further enhance usability and reliability. Efficient fluid consumption and a 2-liter internal tank allow for extended operation with minimal refills.

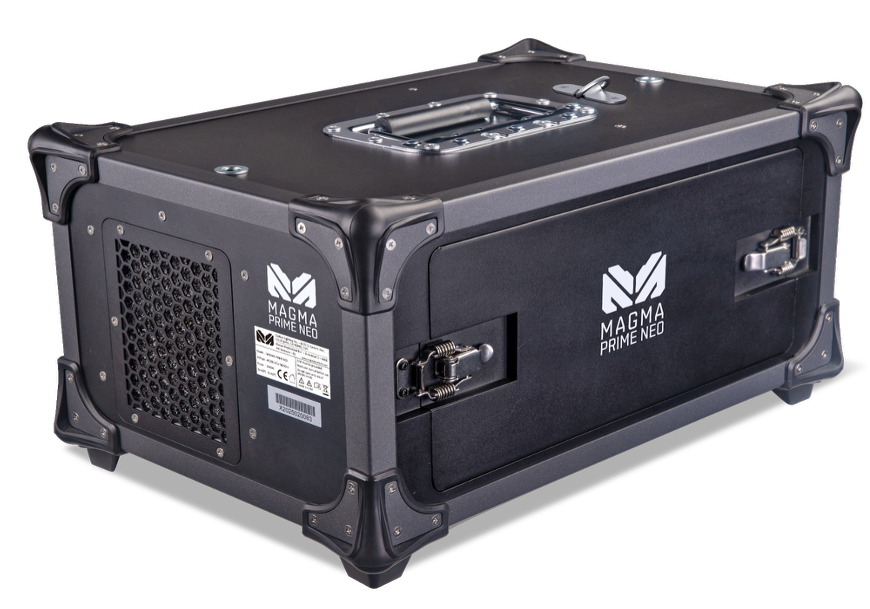

Housed in an Obsidian gray enclosure with integrated handle, the Magma Prime Neo is designed for durability and ease of transport. Air-cooled operation, integrated safety warnings, and wide-range power compatibility make it a dependable solution for touring productions, houses of worship, theaters, clubs, and permanent installations.

Specifications

Effect:

  • Fog Output: 10,000 cu.ft/min
  • Output Adjustment: 5–100%
  • Fluid Consumption Rate: 6 ml/min


Control:

  • DMX Channels: 1 / 2 / 4
  • DMX Modes: 3
  • DMX Connectors: 5-pin XLR In / Out
  • Stand-Alone Operation: Yes
  • Onboard Control: Continuous fogging, timed fogging
  • Display: LCD
  • Warm-Up Time: 60 seconds
  • Warnings: Low fluid, overheat, no heating
  • External Controller Support: Yes
  • Remote Connector: 1/4" jack
  • Manual Fogging: Yes
  • Self-Clean Function: Yes (60 seconds)


Power:

  • Input Voltage: 100–240VAC
  • Frequency: 50/60 Hz.
  • Heater Power: 1350 W
  • Power Consumption: 1500 W
  • Power Input: Indoor, IP20 locking power input


Fixture:

  • Cooling: Air cooled
  • Max Ambient Temperature: 40°C (104°F)
  • Surface Temperature: 60°C (140°F)
  • Handle: Yes
  • Fluid Tank Capacity: 2 liters (0.53 gal)
  • Deflector Angle: -14° to 42°
  • Housing Color: Obidian gray
  • Dimensions & Weight: Dimensions (L × W × H): 17.6 × 11.7 × 9.5 in (446 × 297 × 242 mm)
  • Weight: 27.6 lbs (12.5 kg)


Specifications are subject to change to without notice.
