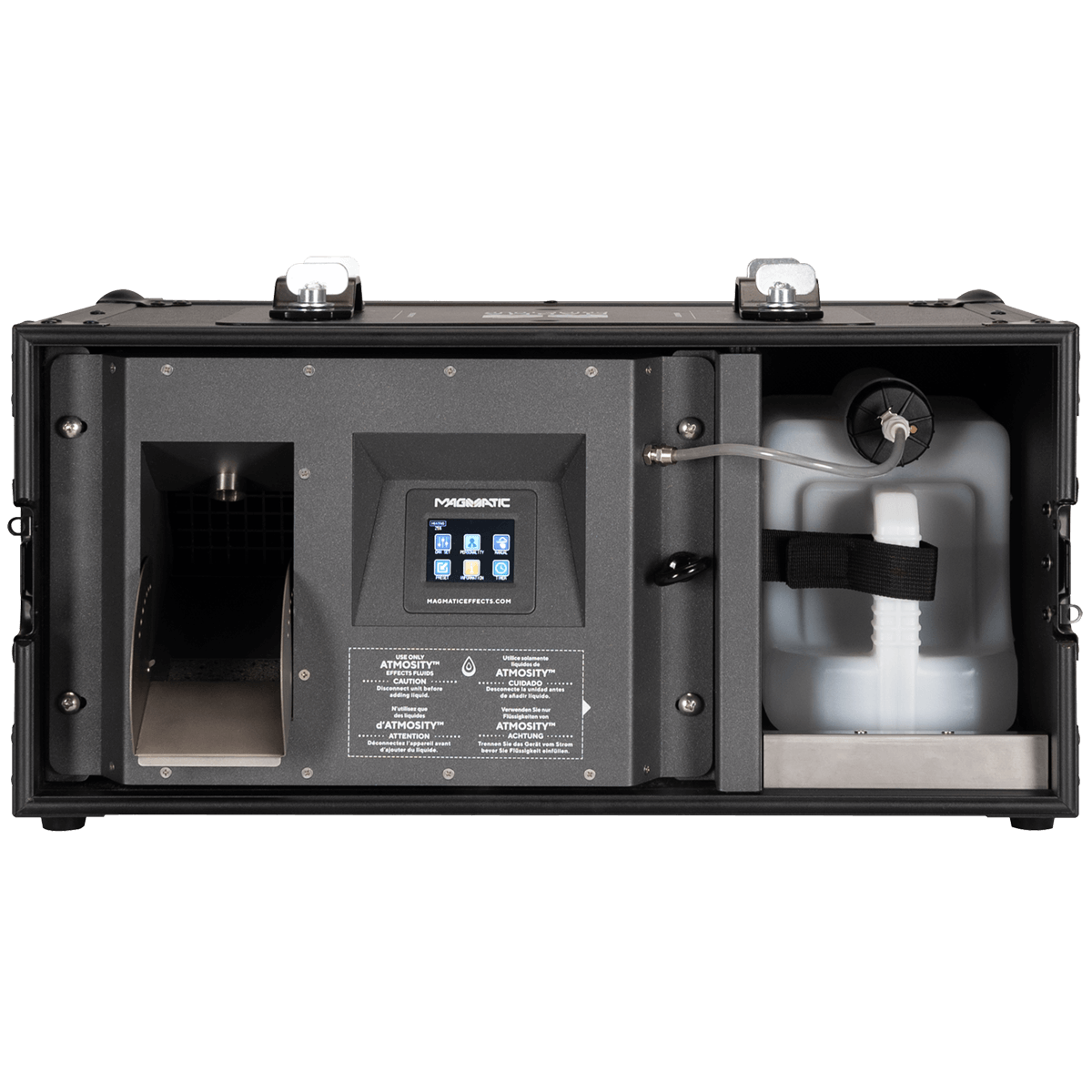

MAGMA PRIME TOUR

The Magma Prime Tour™ water-based fazer delivers a high-volume, dry haze effect with efficient fluid consumption, thanks to its advanced technology. Over-voltage protection (OVP) ensures the unit's safety if plugged into anything above 120V on start-up. A convenient sleep mode, accessible via DMX, powers down the heater, air pump, and fan, avoiding the need to unplug the unit. The 35-second heat-up time minimizes latency when coming out of sleep mode. The unit is equipped with a user-friendly Full Color LCD touchscreen, intuitive DMX-512 and RDM control, a rugged road case with all wiring neatly located on the back, and optional wired and wireless remote control options for added flexibility.

The Magma Prime Tour™ is a powerful, high-performance fazer engineered for professional touring applications, live productions, and permanent installations. Designed to deliver a continuous fine haze, this premium fazer enhances lighting effects and adds atmosphere to any stage or venue. With rugged construction, intelligent control options, and rapid output capabilities, the Magma Prime Tour is the ultimate solution for professionals seeking reliability, efficiency, and precision.

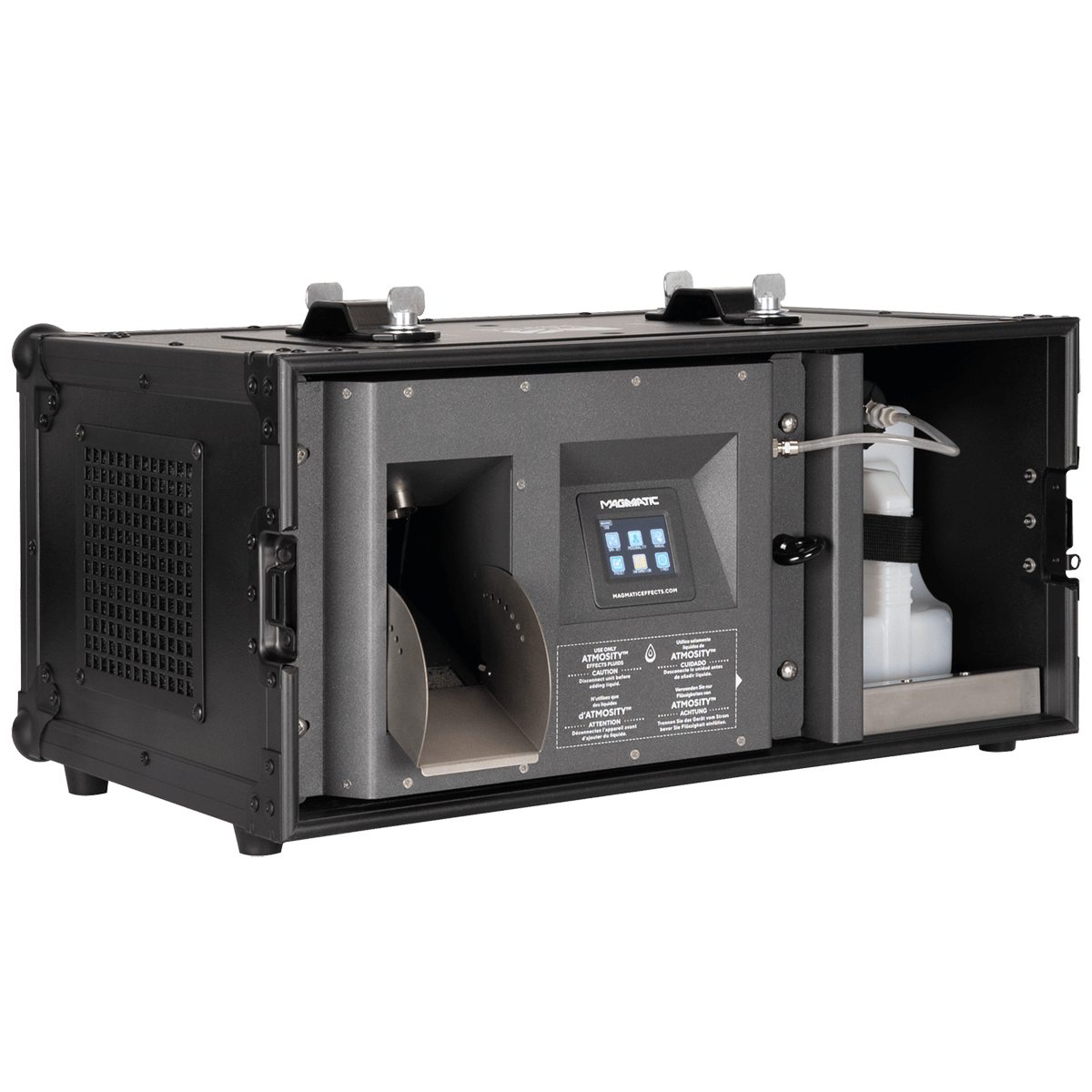

The Magma Prime Tour™ is designed to produce a consistent and ultra-fine haze with exceptional efficiency. Its powerful 1500W rating ensures ample output, while the 1350W heater allows for a rapid warm-up time, achieving full operational readiness in just 20 seconds. Capable of generating up to 20,000 cubic feet per minute (CFM), this fazer provides an immersive atmospheric effect suitable for large-scale productions, concerts, and theatrical applications. To maximize efficiency, the unit features a 1.48-gallon (5.6-liter) fluid reservoir, ensuring extended operation with minimal refilling. With a fluid consumption rate of approximately 0.338 oz/min (10 ml/min), the Magma Prime Tour™ balances output power with economy. It is optimized for use with Atmosity Extreme Filtered Fog Fluid, guaranteeing high-quality performance without residue buildup or clogging. Additionally, the unit is equipped with a DMX-Activated Sleep Mode, allowing users to reduce power consumption when the fazer is not in use. This feature helps conserve energy and prolong the life of the unit, making it an efficient choice for productions that require intermittent use of haze effects.

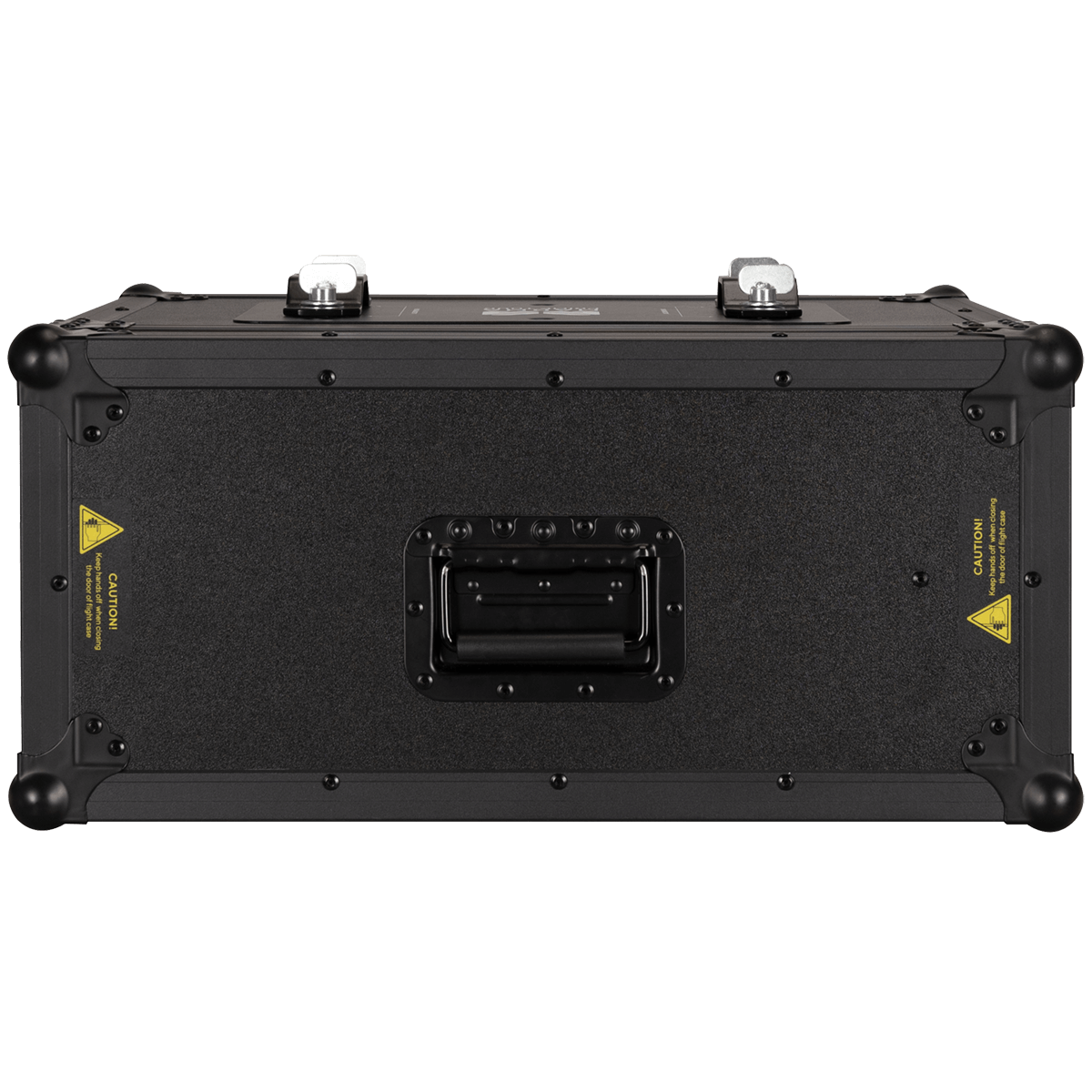

Built for the rigors of professional touring, the Magma Prime Tour™ boasts a thermally protected heat exchanger, ensuring safe and efficient operation even under demanding conditions. Its durable road case design, complete with a sturdy handle, makes it easy to transport and set up for touring productions, rental applications, and large event installations. Additionally, the unit's rear wiring configuration ensures a clean and organized setup, reducing cable clutter and improving stage aesthetics. Whether in a fixed installation or a mobile rig, the Magma Prime Tour™ is built to withstand the demands of repeated use in challenging environments.

The Magma Prime Tour™ offers precise and flexible control options, making it easy to integrate into professional lighting and effects setups. With five DMX channel modes (1 / 2 / 3 / 5 / 6), it provides adaptable settings for different production needs. The onboard LCD touch control panel offers intuitive operation, allowing users to configure settings directly from the device. For enhanced control capabilities, the unit supports DMX-512 and RDM protocols, ensuring seamless communication with lighting consoles and control networks. Additionally, users can expand their wireless control options with the optional Aria X2 Wireless DMX Module or choose from a range of remote options, including the MAGRF RF Remote and wired remotes, for added convenience.

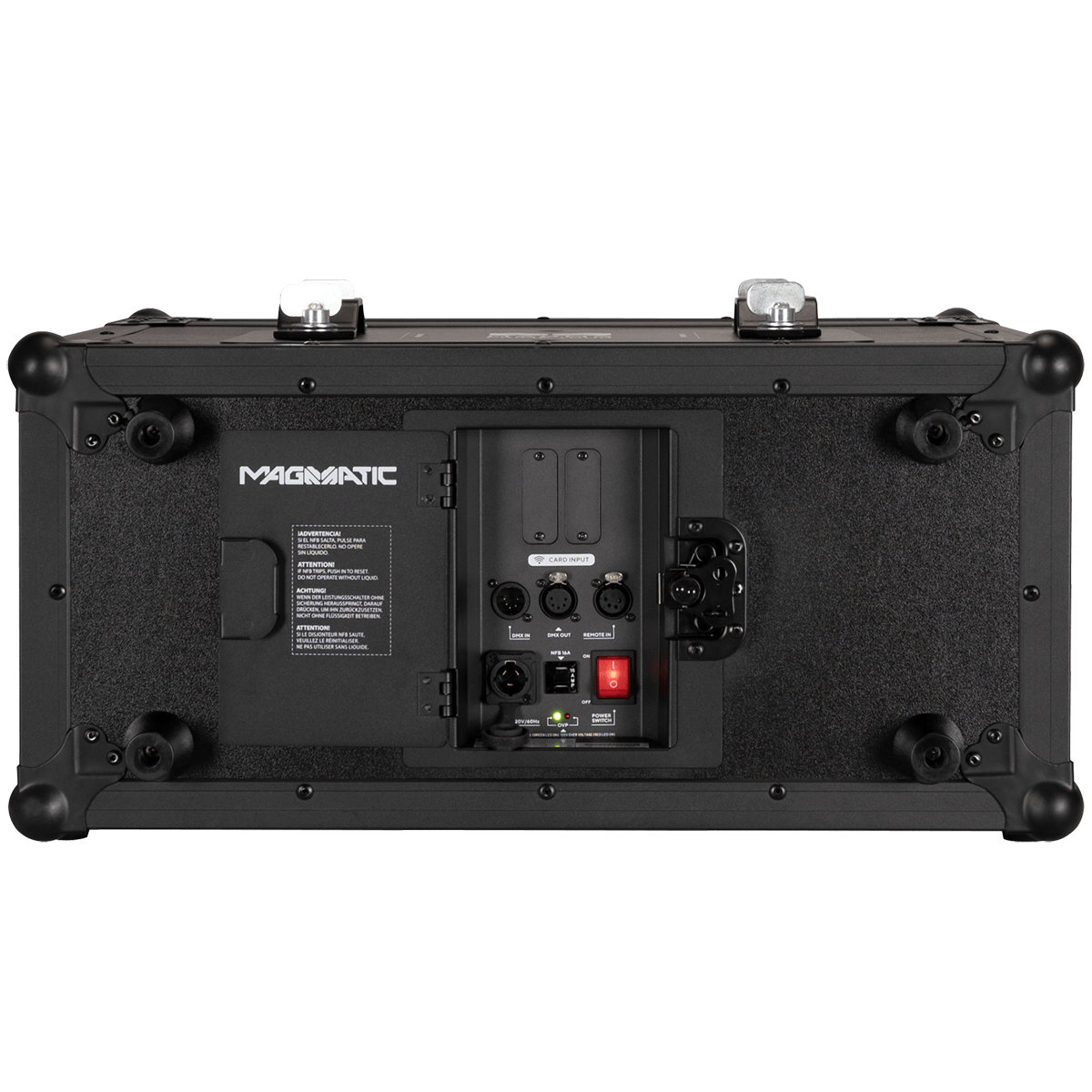

Designed for professional integration, the Magma Prime Tour™ is equipped with secure and reliable connection options. It features locking 5-pin XLR IN & OUT ports for dependable DMX connectivity, ensuring stable signal transmission even in high-impact environments. The unit is also equipped with an IP65-rated locking power input connector, providing a secure and industry-standard connection that ensures uninterrupted power delivery, minimizing the risk of accidental disconnection during operation.

Despite its powerful capabilities, the Magma Prime Tour™ is designed with portability in mind. Measuring 24.3 inches (618mm) in length, 12.2 inches (310mm) in width, and 20.4 inches (518mm) in height, it offers a compact form factor for easy transport and integration into touring rigs. With a weight of 69.5 lbs. (31.5 kg), it provides a solid and stable build, ensuring durability while maintaining manageable portability for professionals on the move.

The unit features a 16A @ 120VAC (NFB) rating and a 10A @ 230V-240V rating, with a maximum power consumption of 1500W, ensuring robust performance without excessive power demands. Thermal efficiency is a key design feature, with a maximum ambient temperature (Ta max) of 104°F (40°C)** and an exterior surface temperature of 140°F (60°C) during steady operation, ensuring safe handling and reliable performance in varying environmental conditions.

Whether used for live concerts, theatrical productions, large-scale events, or permanent venue installations, the Magma Prime Tour™ delivers industry-leading performance, durability, and flexibility. Its powerful haze output, rugged construction, and advanced control options make it the perfect choice for lighting professionals seeking a high-output, tour-ready, and reliable atmospheric solution. Elevate your stage effects with the Magma Prime Tour™ "“ built for professionals, engineered for performance.

• Magma Prime Tour™ "“ Professional-Grade Touring Fog Solution
• Unmatched Performance for Superior Atmospheric Effects
• Tour-Ready Construction for Maximum Durability
• Advanced Control & Versatile Connectivity
• Reliable Power and Secure Connections
• Compact Size with a Heavy-Duty Build
• Powerful Electrical & Thermal Efficiency
• The Magma Prime Tour™ is designed for compatibility with both US and EU electrical standards. It operates at:
• AC120V 60Hz (US Version)
• AC230V 50Hz (EU Version)
• The Ultimate Fazer for Touring Professionals
