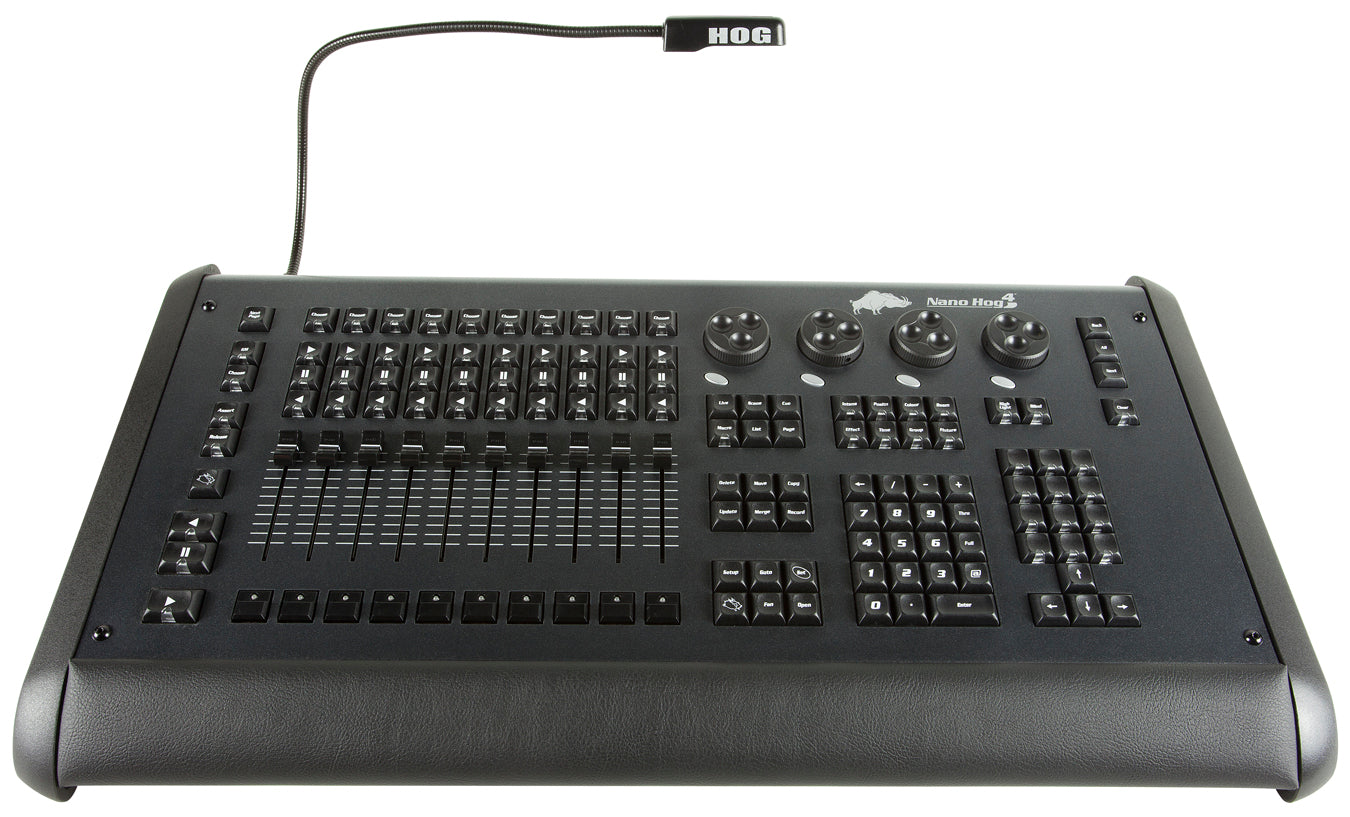

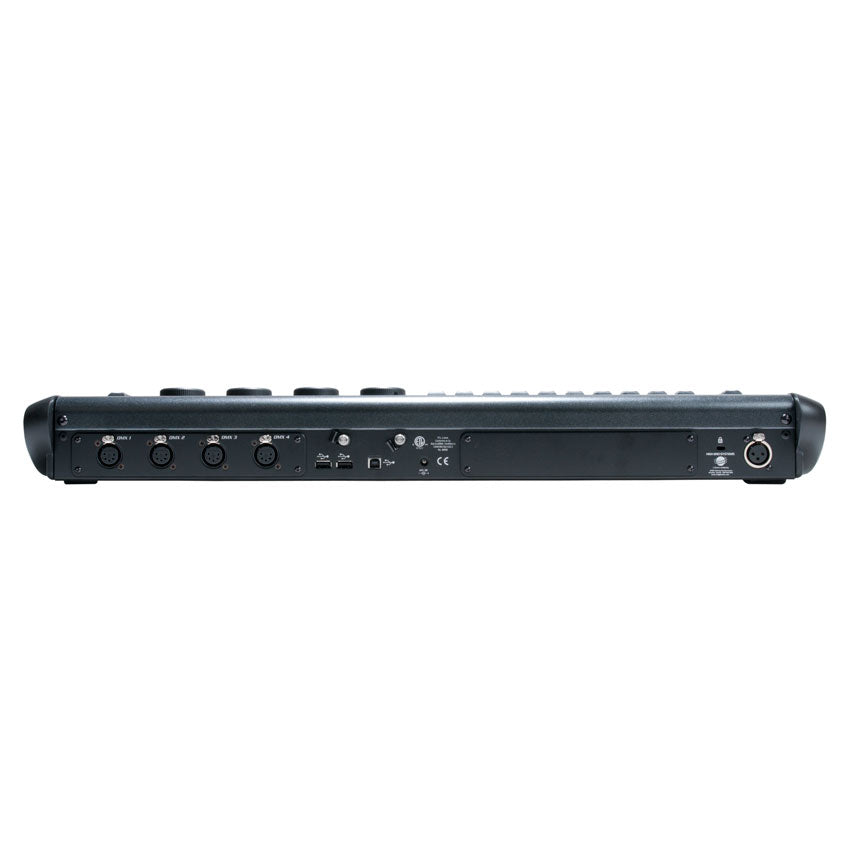

NANO HOG 4

Discontinued

Nano Hog 4 is a professional-grade lighting solution. Coupled with Hog 4 PC, the Nano Hog 4 provides the user with a single unified surface, turning a laptop or desktop into a fully fledged, powerful and intuitive lighting console. Any PC running Hog 4 PC can connect to the Nano Hog 4 over USB creating a state of the art control surface.

UPC: 837874017663SKU: HOG013

NANO HOG 4

Coupled with Hog 4 PC, the Nano Hog 4 provides the user with a single unified surface, turning a laptop or desktop into a fully fledged, powerful and intuitive lighting console. Any PC running Hog 4 PC can connect to the Nano Hog 4 over USB creating a state of the art control surface. Utilizing the same front panel as the Road Hog 4, users will immediately feel at home on the Nano Hog 4. There are also two slots for the optional addition of either Super Widgets and/or MIDI/LTC Widgets.

  • USB connection to Hog 4 PC
  • 2 x Widget Expansion slot provides up to 8 DMX outputs and/or 2 MIDI/LTC inputs from PC based products (when optional Widgets are installed)
  • Socket for a Hog LED desklight (supplied), fully dimmable
  • LED Desklight and feedback LEDs dimmable
  • Sleek Road Hog 4 styling
  • Status LEDs for power, data, and expansion
  • Two USB sockets
  • Dust cover included
  • 4 Encoders
  • Twelve User Keys
  • Ten playback faders
  • Auto-ranging external PSU mains input (90-250VAC)
  • Dust cover included
  • Optional Custom Road Case available

Specifications

SIZE / WEIGHT
Length: 26.7" (678.18mm)
Width: 13.76" (349.5mm)
Vertical Height: 3.54" (89.91mm)
Weight: 18.1 lbs. (.2kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
5W Max Power Consumption

APPROVALS
CE | cETLus

INSTALLATION
Any Flat Surface

INCLUDED ITEMS
(1) External DC Power Supply (5.5A/12V)
(1) LED Desklight (3pin XLR)
(1) Dust Cover

HOG 4 2.0 SOFTWARE FEATURES
Cross Platform and Forward Only Compatible
Use Hog 3 Show Files

CLICK HERE TO REQUEST A FIXTURE LIBRARY

https://www.highend.com/hes-support/common-forms/fixture-libs


Requests may take up to 14 days to complete


Specifications and documentation subject to change without notice.
