NX1

Name: NX1
Brand: Obsidian
SKU: NX1007
Availability: InStock

Discontinued

Please note that this product has been discontinued; however, software support remains available. Please see the successor product linked below.

https://www.obsidiancontrol.com/products/nx1-16

----------------------------------------------------------------------------

The NX1 is the essential lighting controller in the innovative and powerful ONYX platform. Fully featured and unrestricted if offers the complete ONYX experience without compromises in an ultra-compact package.

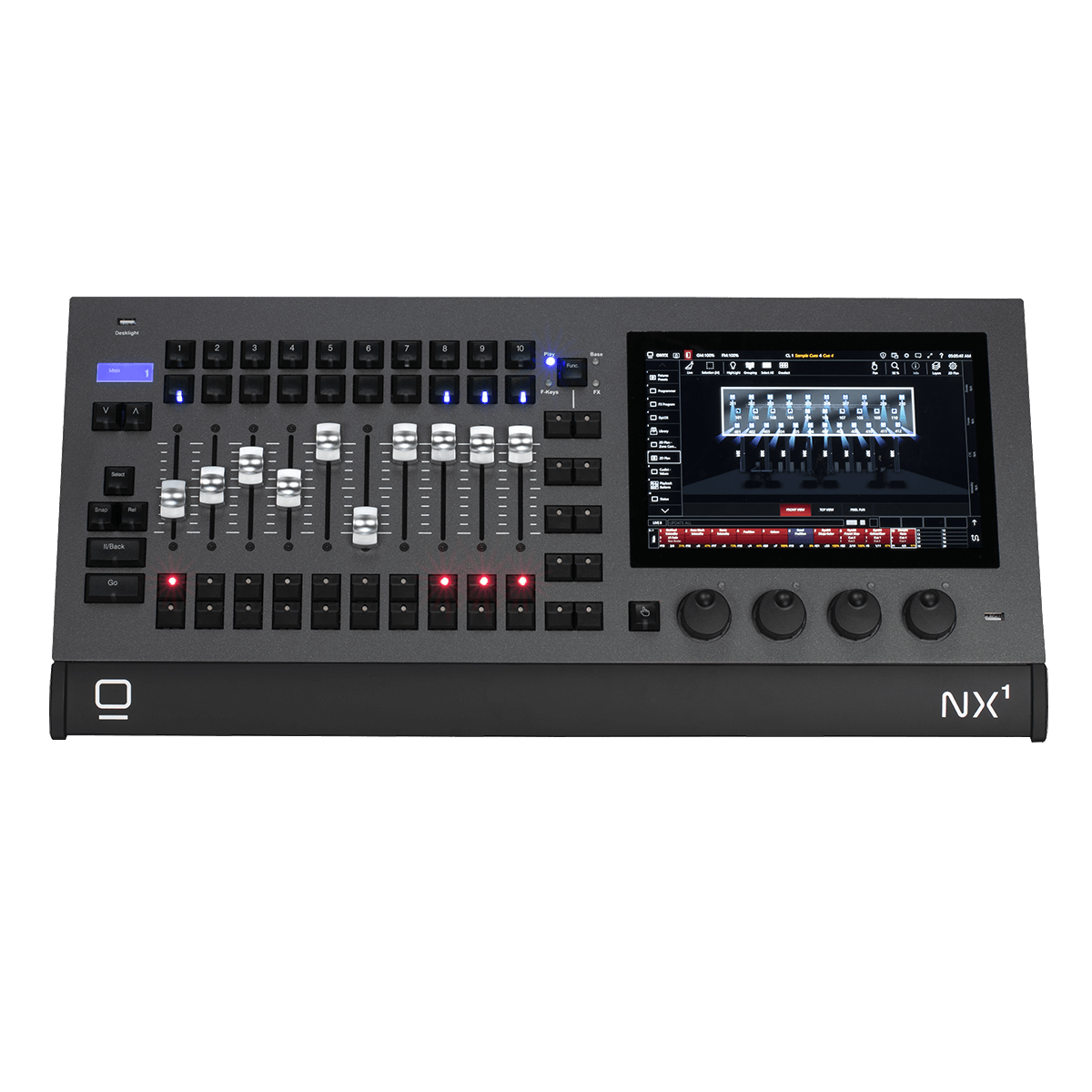

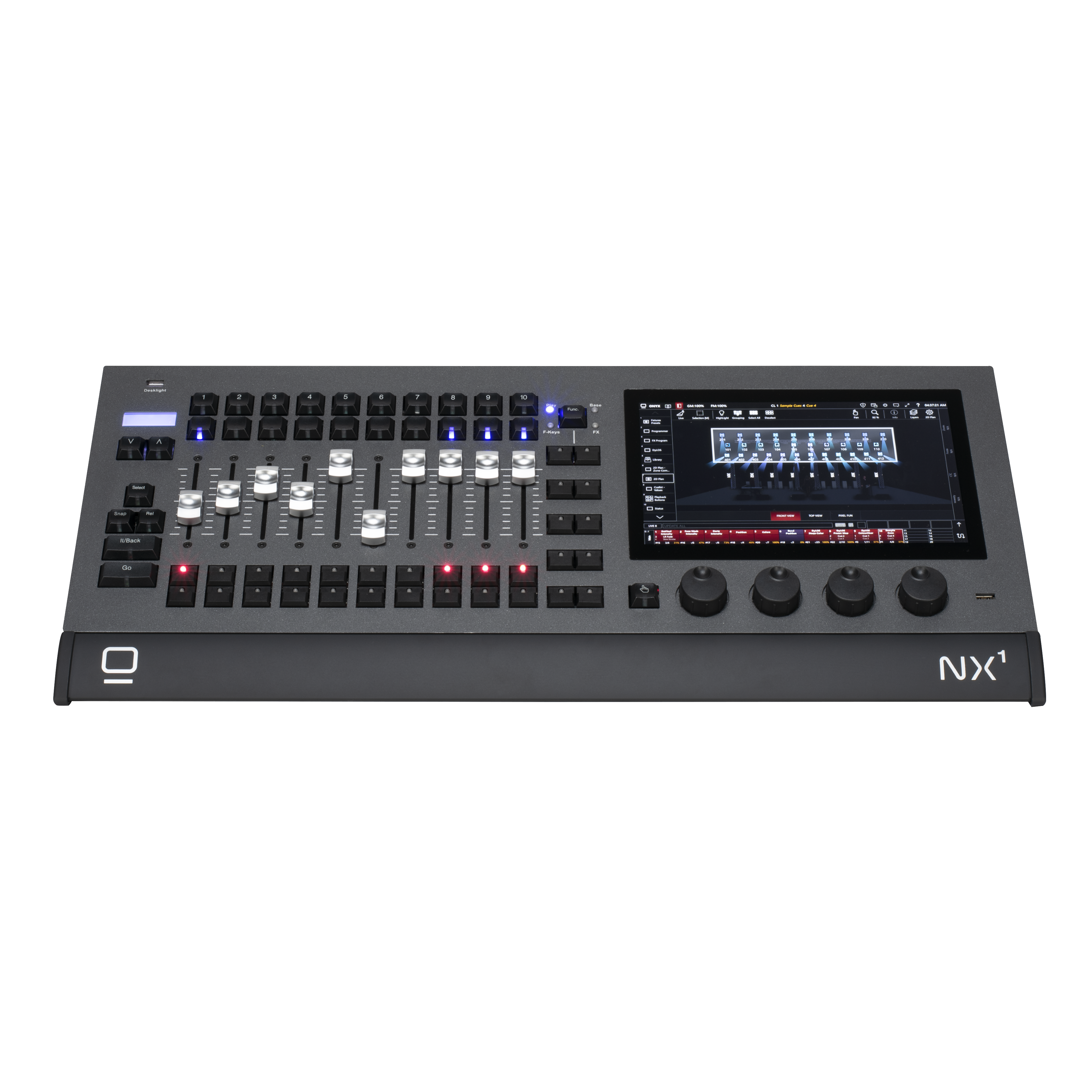

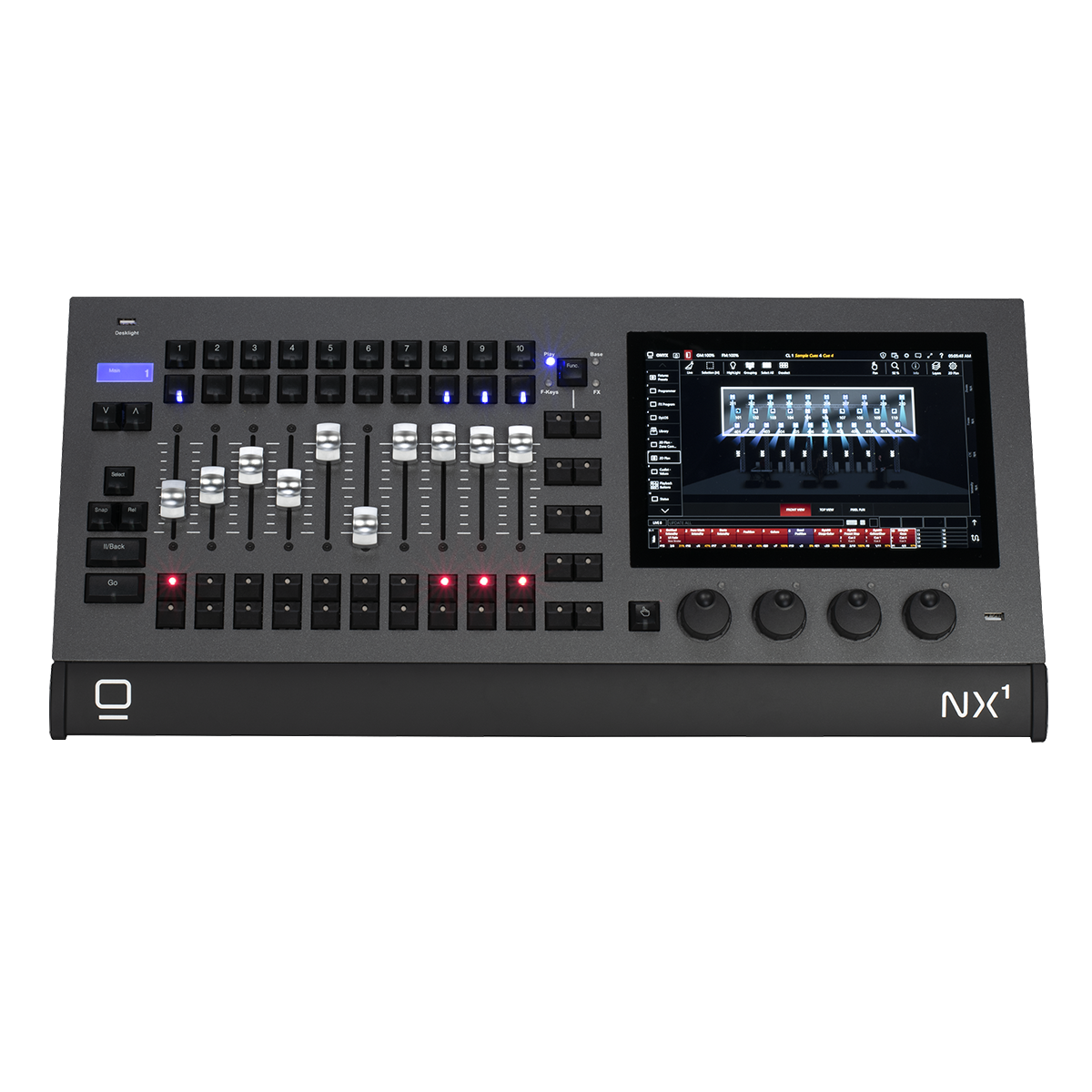

Utilizing the full ONYX Operating System the NX1 includes a high-brightness 10.1" HD multi-touch screen; 4 assignable parameter encoders; 10 full motorized playbacks with four freely assignable buttons plus and extra playback and function key hybrid array. A dedicated Master Go section rounds out the efficient front panel design.

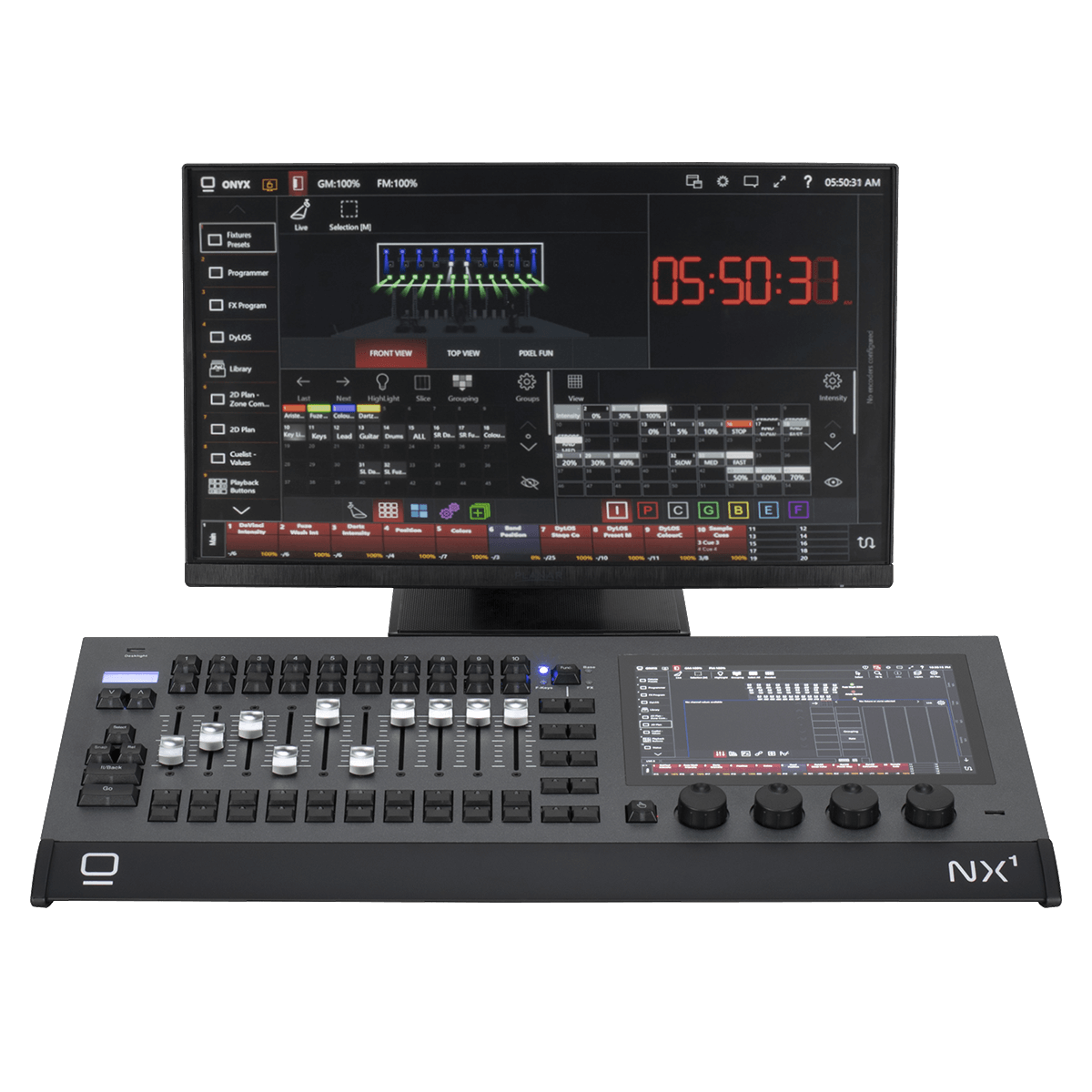

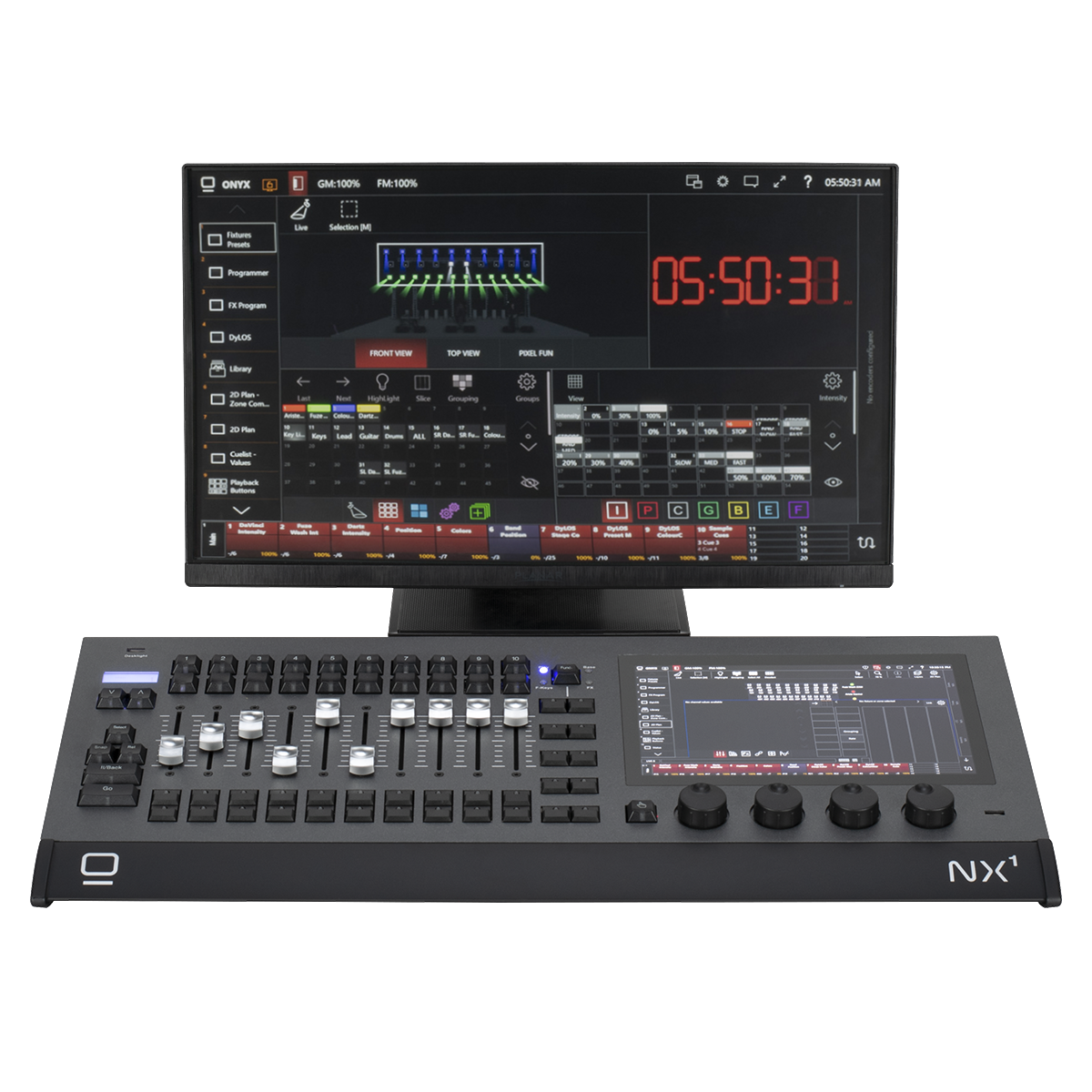

Including the latest in industrial components the NX1 contains a powerful new Intel processor, high speed NVMe SSD drive and 8GB of DDR4 RAM, allowing fast boot times, instant operation and the ability to process 8 Universes right inside the console. With four DMX ports, a Gigabit network port for up to 8 Universes of Art-Net, sACN plus the ONYX X-Net protocol the NX 1 has ample connectivity and power for a wide variety of shows and applications. One additional touch monitor is supported for even more direct access at anytime.

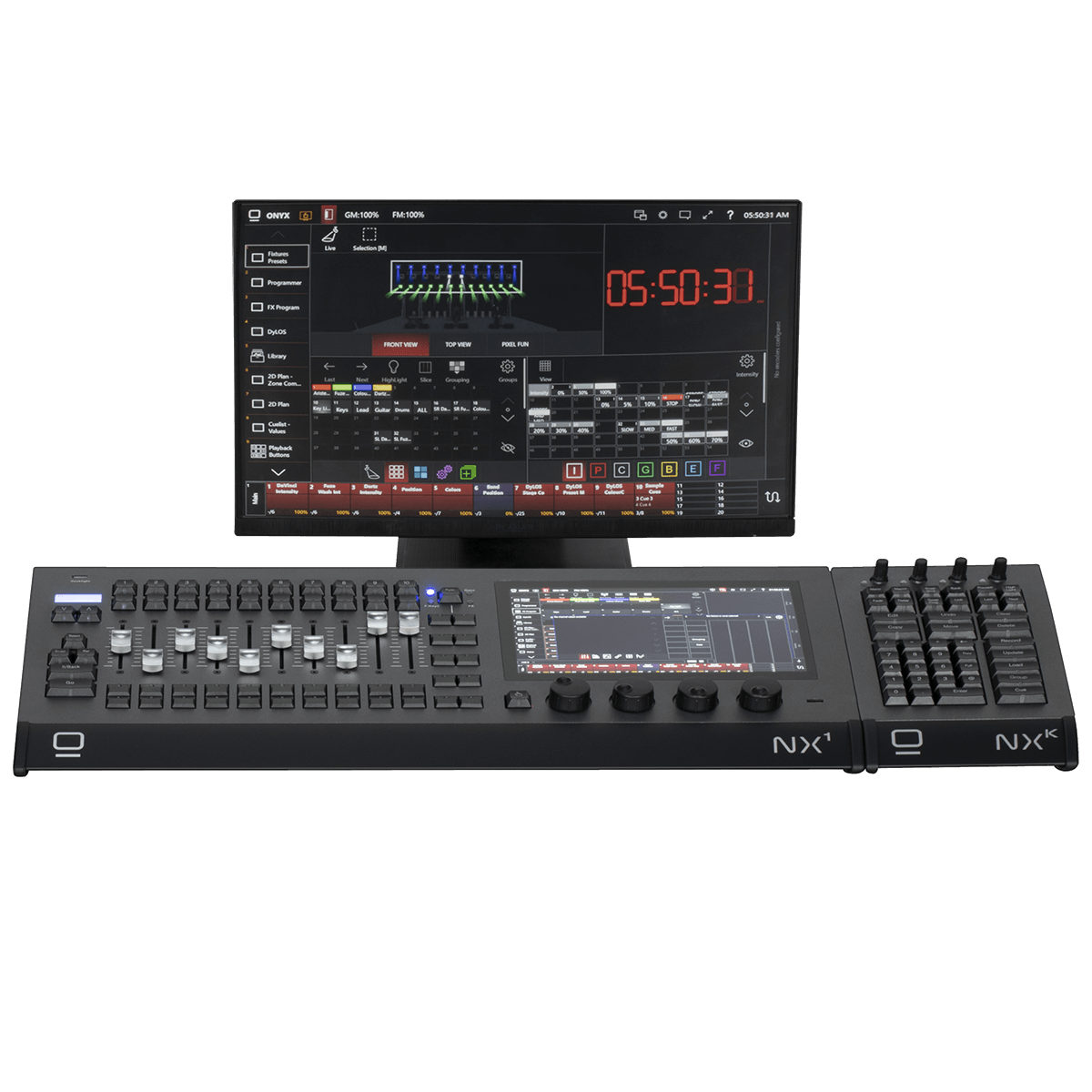

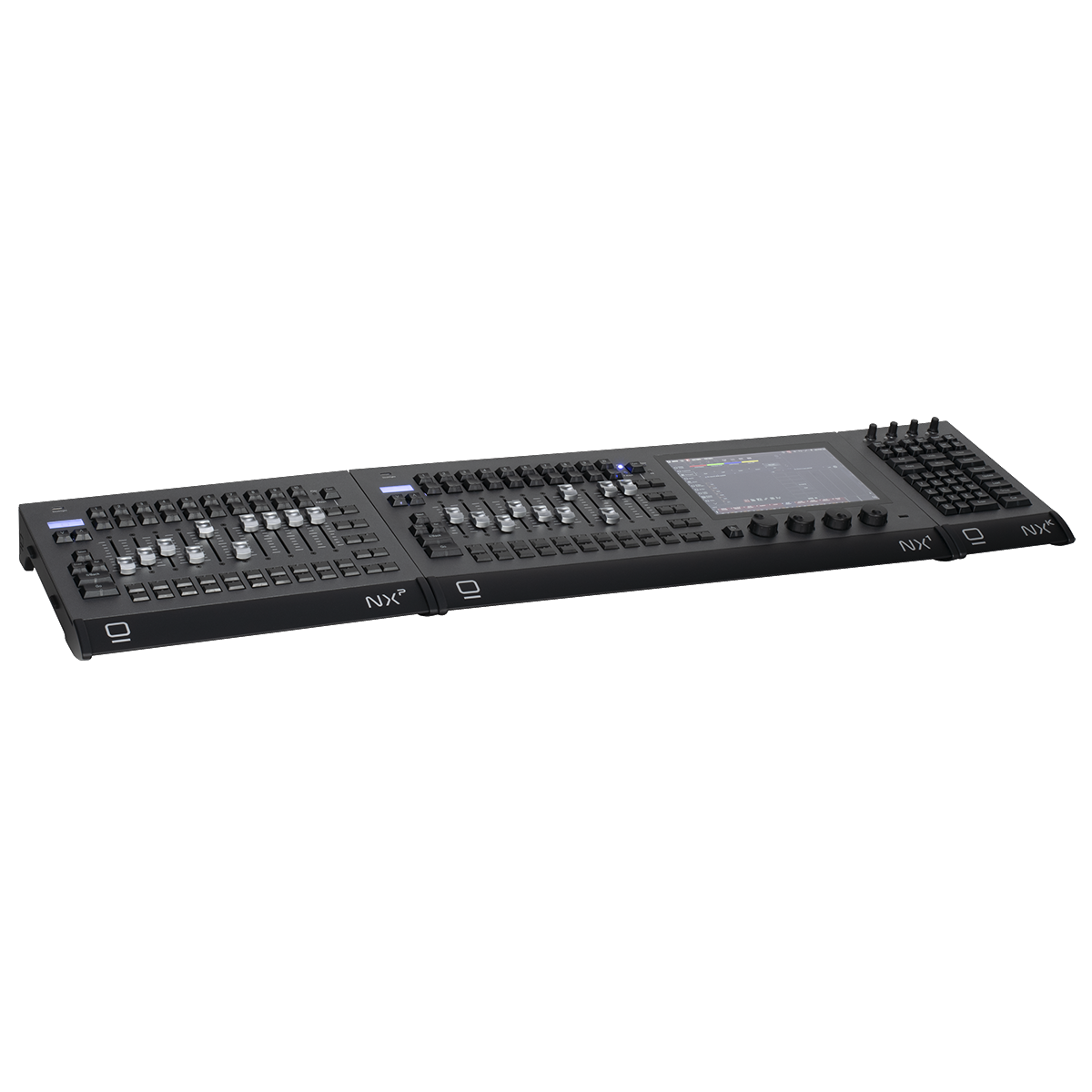

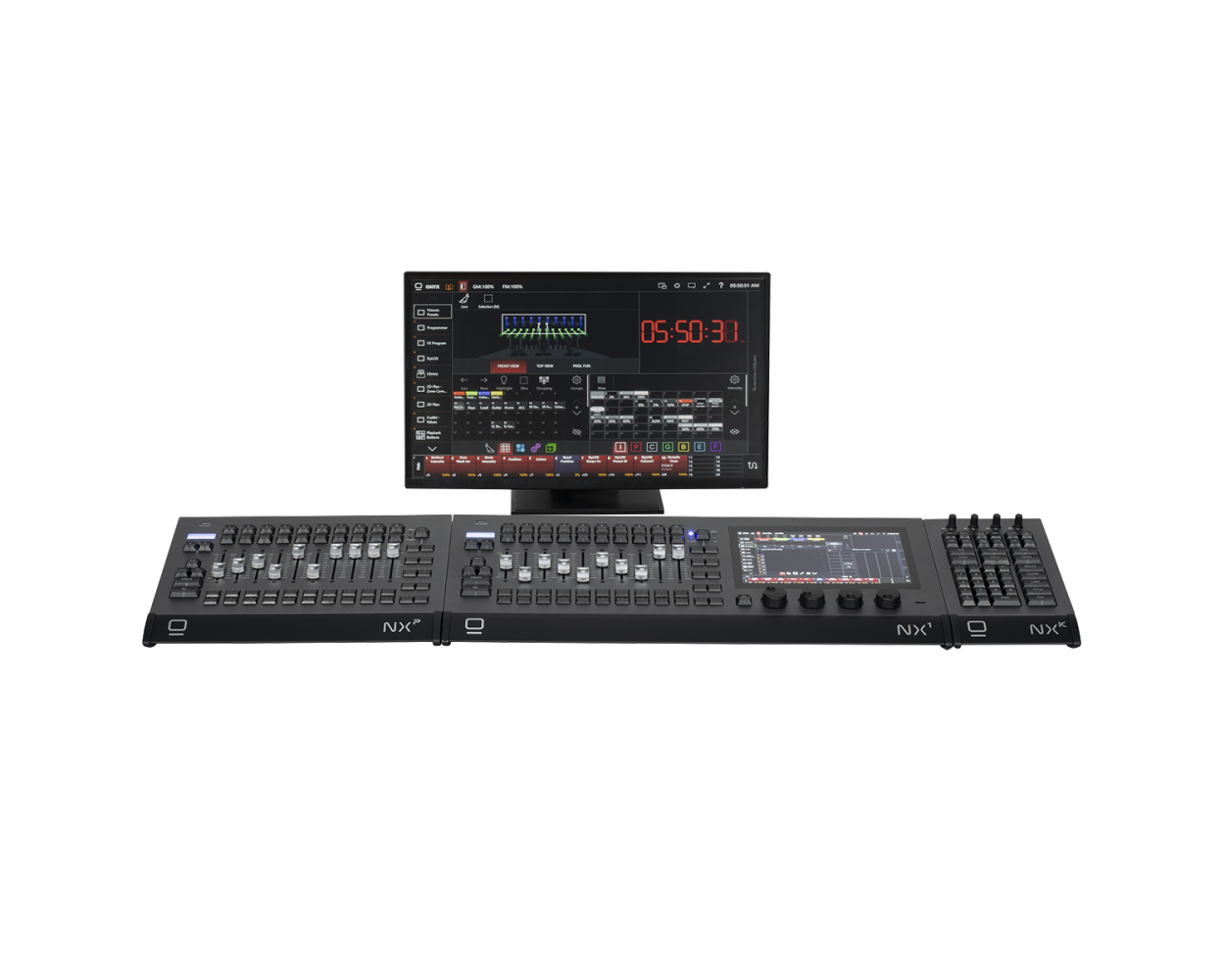

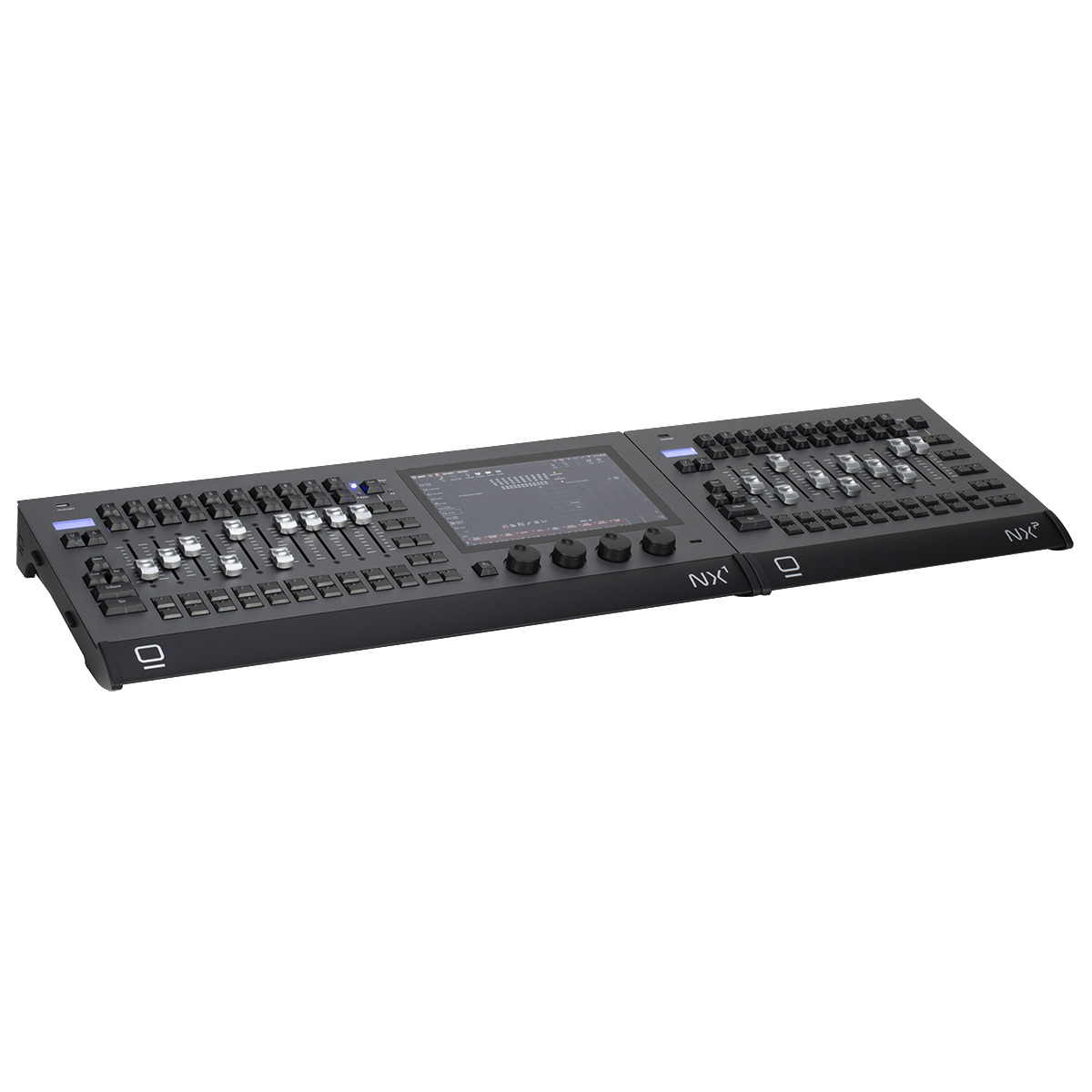

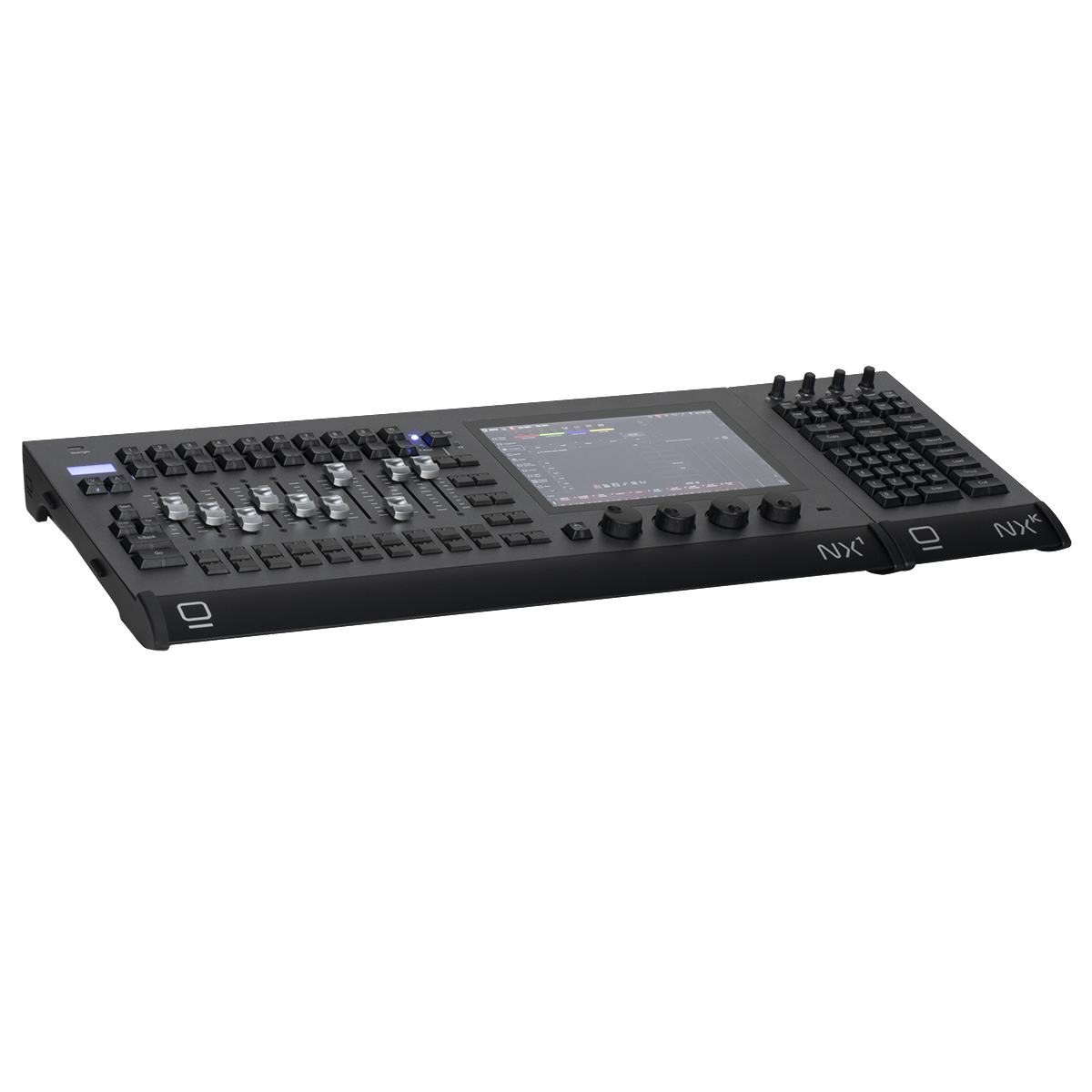

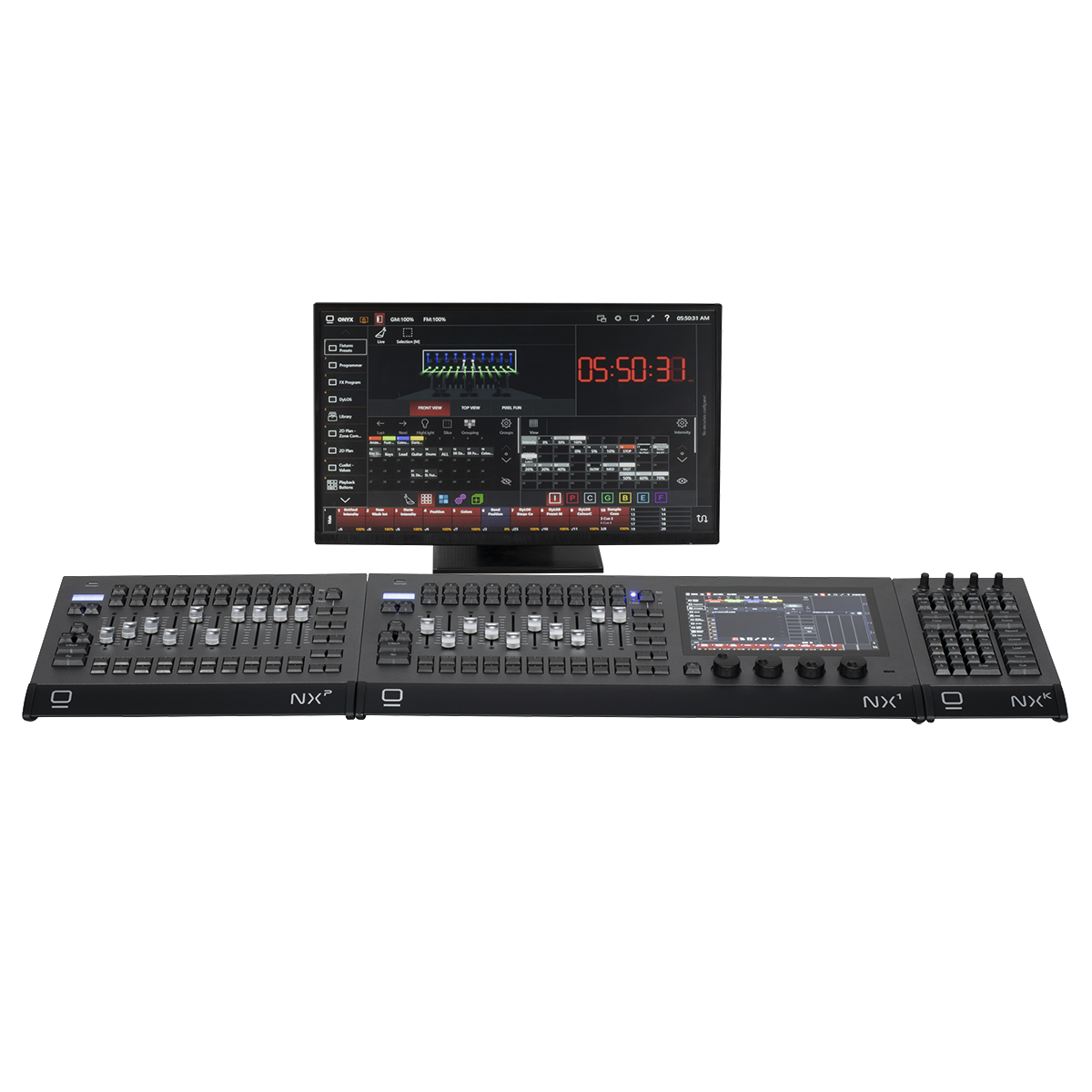

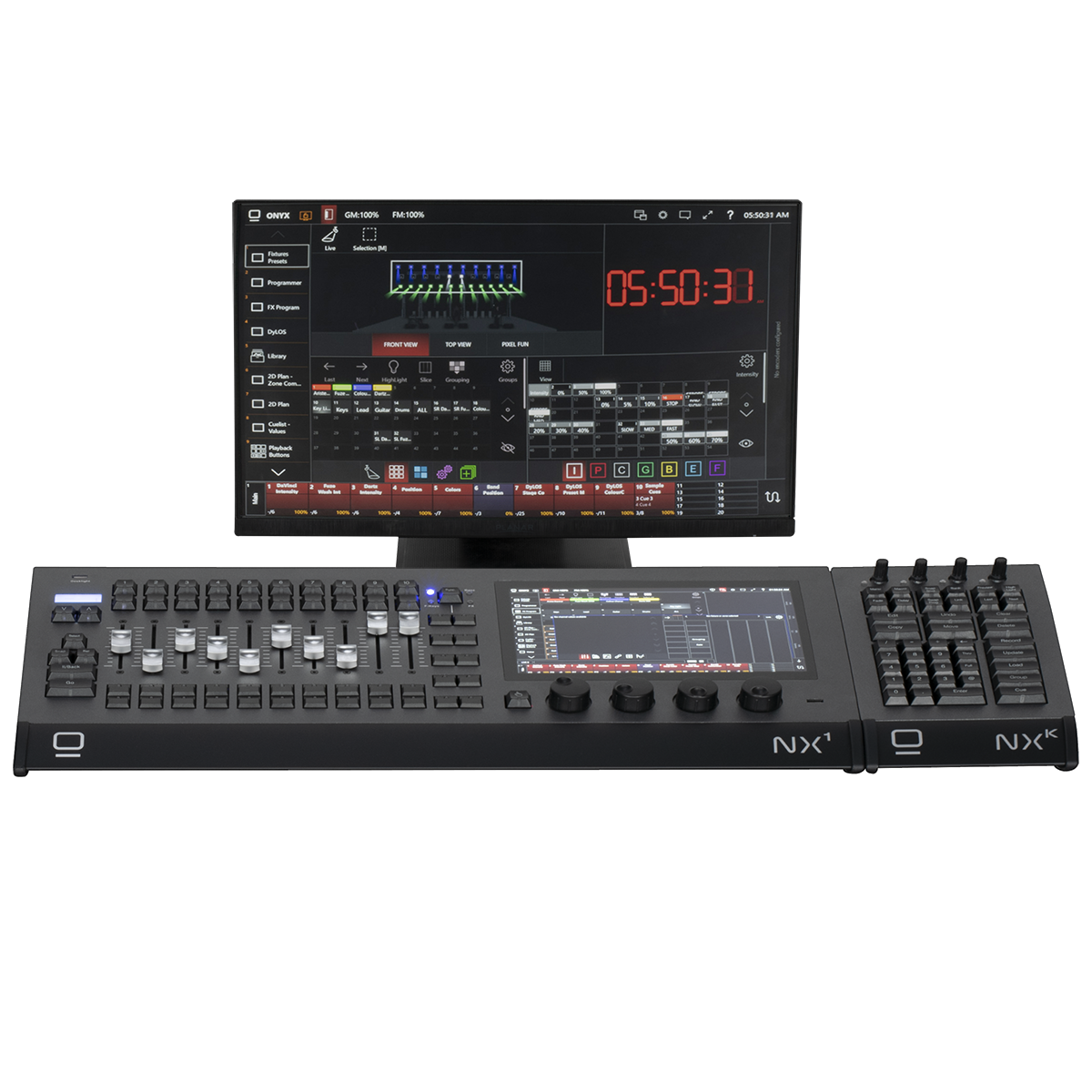

The NX1 is further expandable with the dedicated NXK keypad and the NXP motorized playback wing. A simple magnetic alignment system allows attachment on either side of the NX1. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.

UPC: 810008263228

SKU: NX1007

Replaced by

NX1-16

NX1

Portable and compact fully featured lighting console
10.1” Full HD multi touch screen, 1x external touch display
ONYX Essential License (8 Universes)
Fully integrated industrial processing
10 Motorized Playbacks, 10 Playback / Function Hybrids, 4 Encoders, Master Go section

Portable and compact fully featured lighting console
10.1” Full HD multi touch screen, 1x external touch display
ONYX Essential License (8 Universes)
Fully integrated industrial processing
10 Motorized Playbacks, 10 Playback / Function Hybrids, 4 Encoders, Master Go section

Specifications

Surface

10x 60 mm motorized playback faders, each with 4x function-assignable buttons
10x customizable playback or multi-function keys
Playback Select button
Master Go section with Go, Pause, Snap and Release
4x digital rotary encoders with push function and status LED for fixture parameter control
Virtual Keypad control

Hardware

Industrial 10.1" TFT 16:9 touchscreen (1920x1200px)
250 GB NVMe M.2 storage drive
Industrial motherboard with Intel CPU
Quiet thermal design using advanced copper heat pipe coolers
8 GB DDR4 RAM
Integrated graphics processor
Windows 10 IoT Embedded Operating System
OS installation by USB 3.0 storage device
Supports Windows USB touchscreens

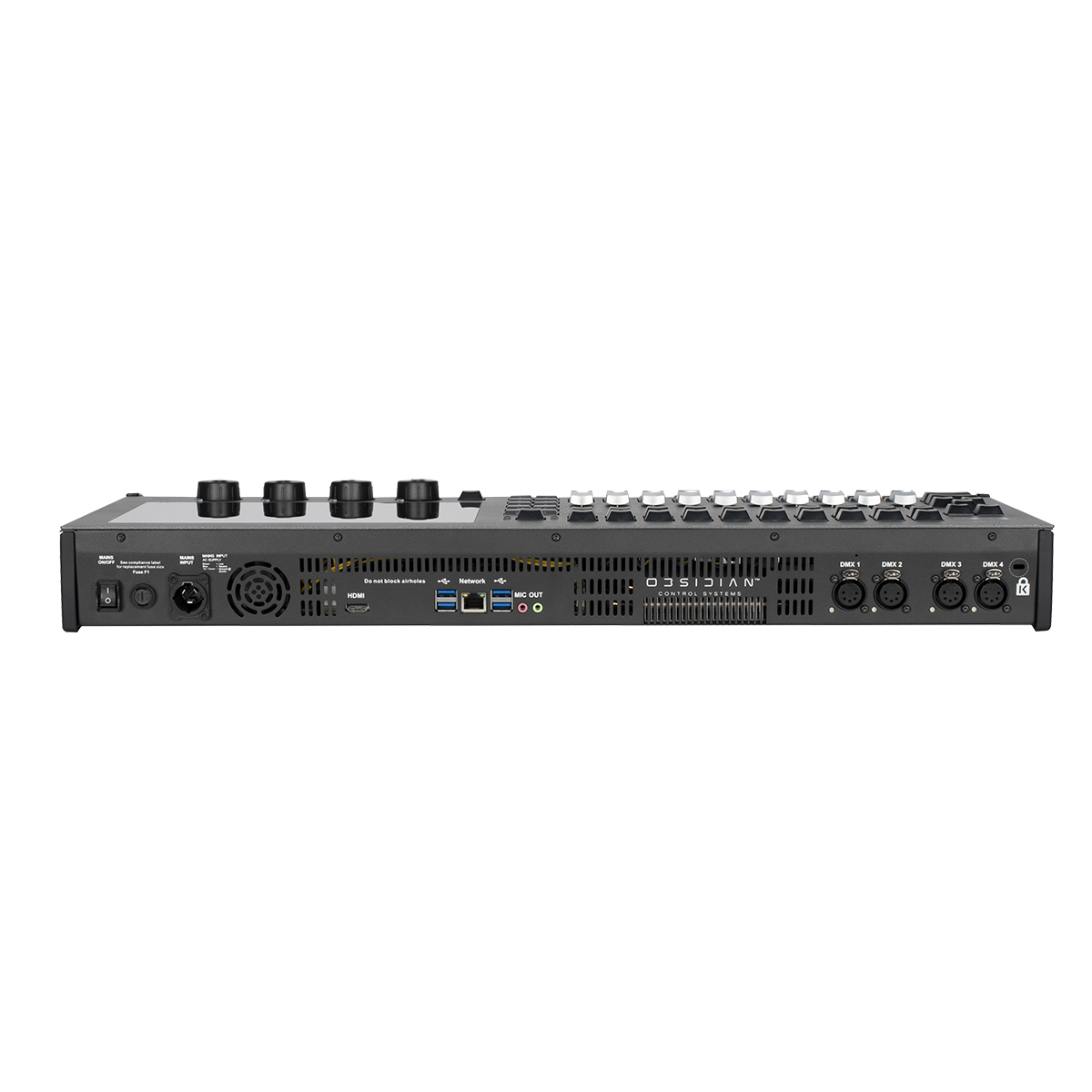

Connections

4x DMX / RDM Universe In/Out: 5pin locking XLR
External Display: 1x HDMI
Network: 1x Gigabit RJ45 Ethernet for Art-Net, sACN and ONYX X-Net
Storage and Peripherals: 4x USB 3.0, 1x USB 2.0
Audio Out, Mic In: 2x 3.5mm Jack
Desk Lamp: USB 5V
IP65 Locking Power In

Physical

Length: 298.5 mm (11.75 in.)
Width: 636 mm (25 in.)
Height: 71 mm (2.8 in.)
Weight: 8.1kg (17.8 lbs.)

Electrical

100-240V 50/60 Hz, 104W

Included Items

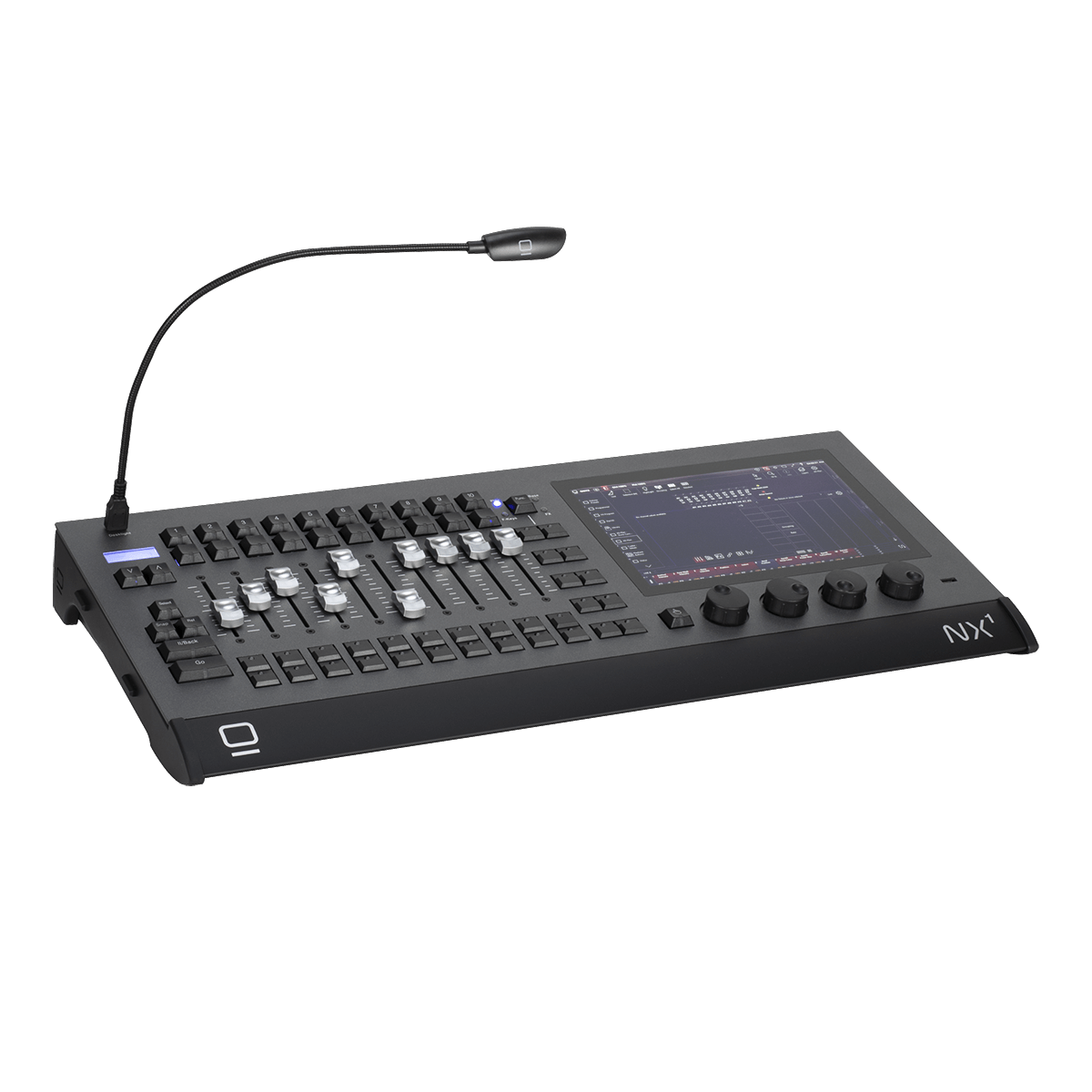

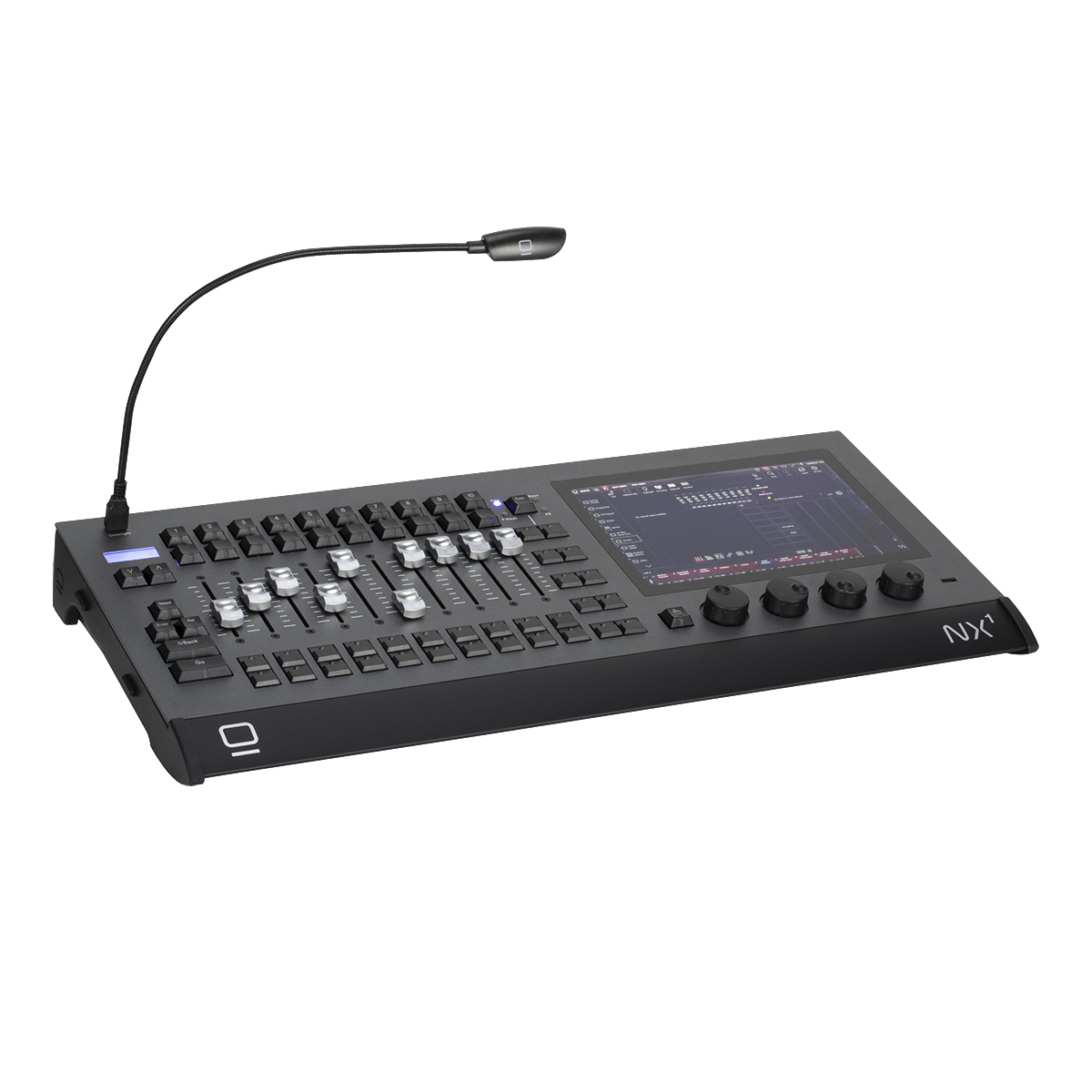

LED USB desk lamp

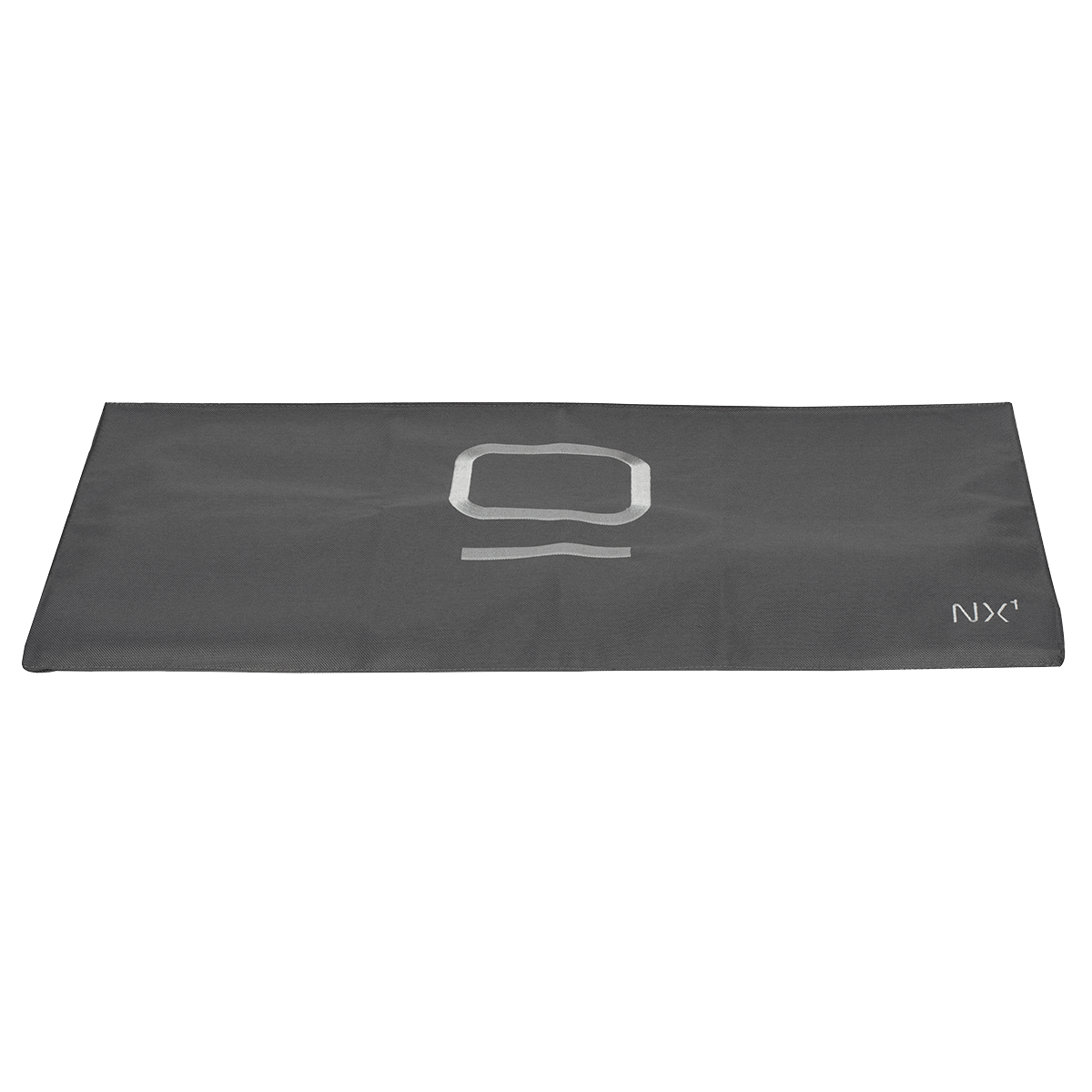

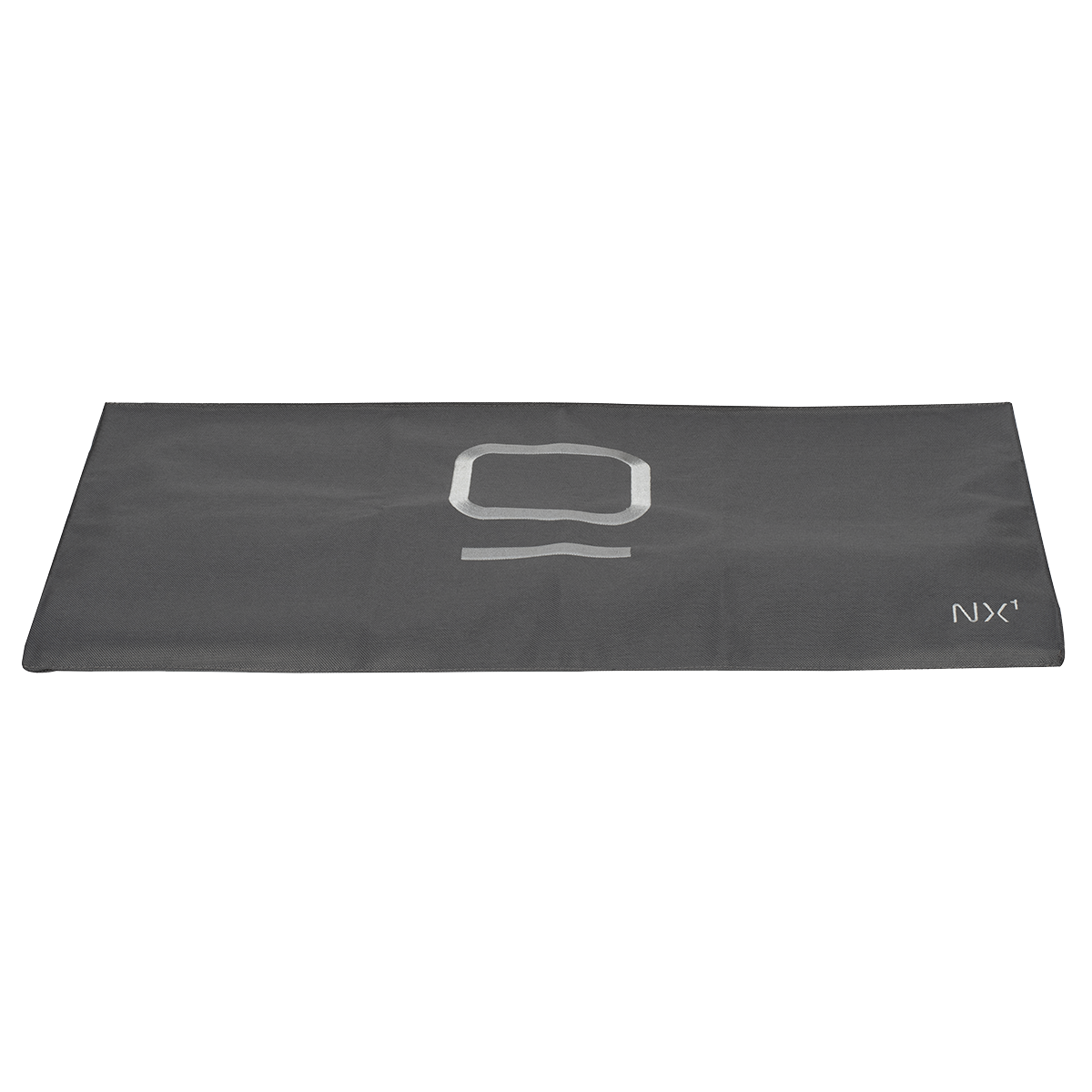

Dust Cover
USB 3.0 recovery drive
IP65 Locking power cable
