OPTO BRANCH 4

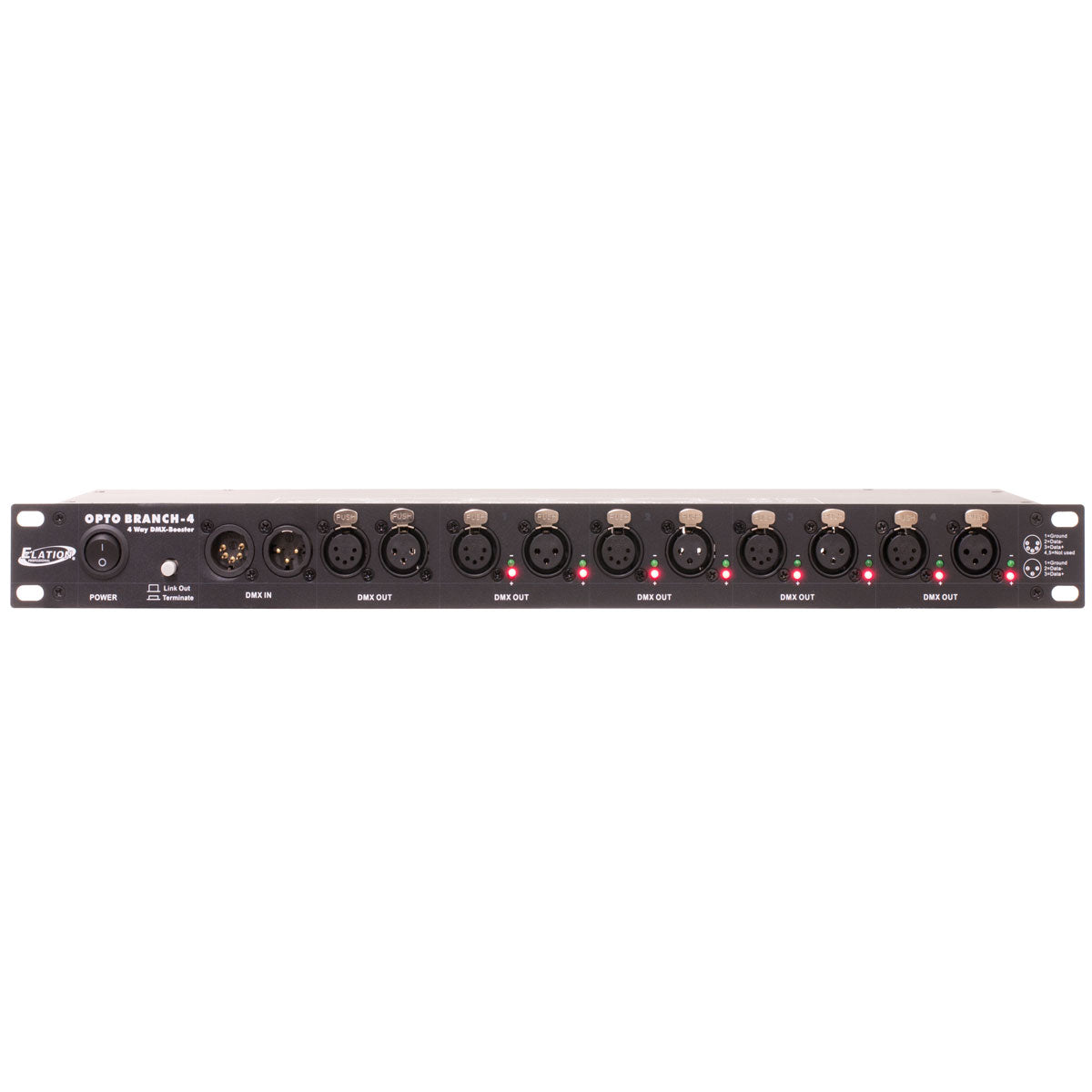

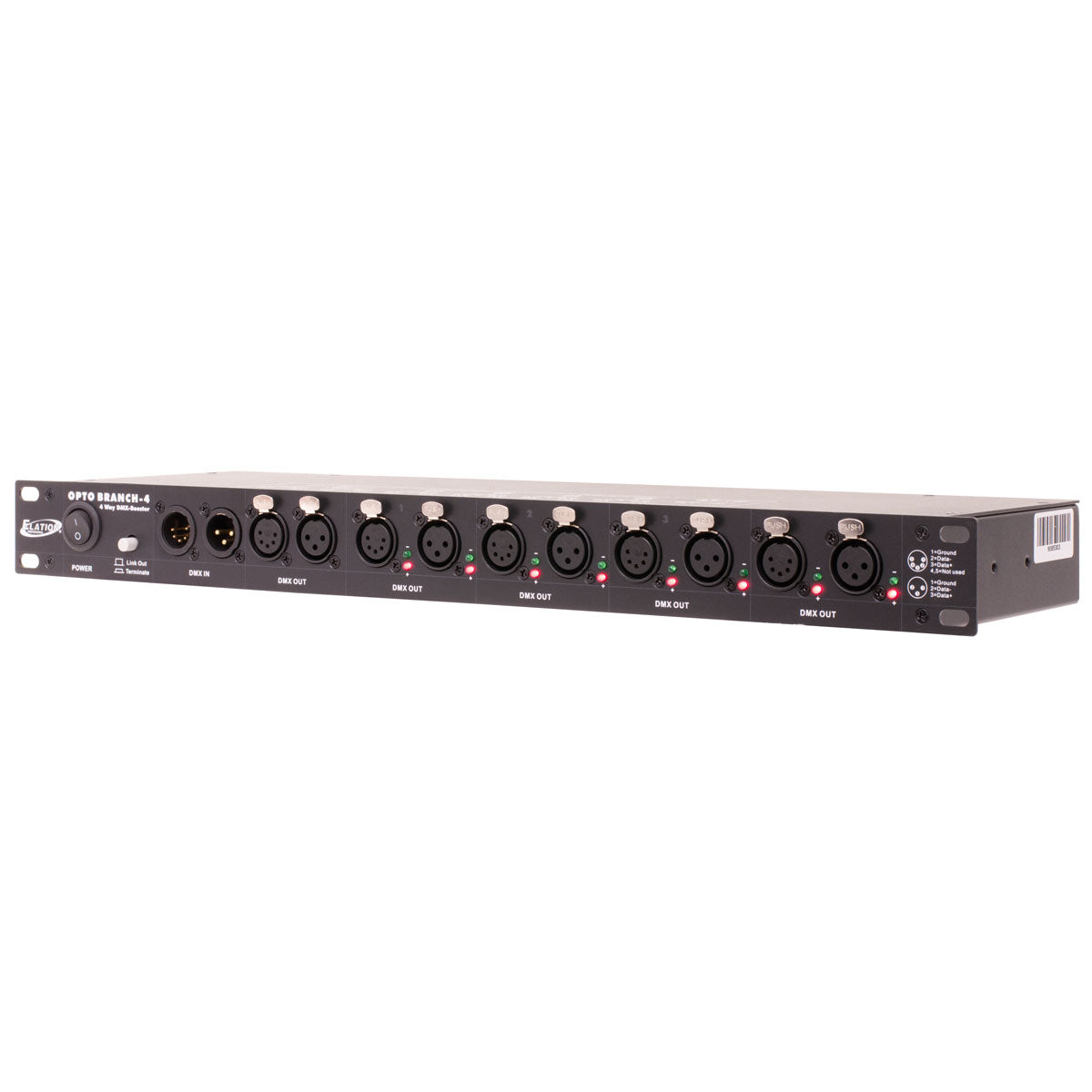

The OPTO BRANCH 4™ is a single rack space, 4-way distributor/booster with 3pin and 5pin XLR input and output jacks. This unit takes the incoming DMX signal and splits it to four (4) separate outputs that are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal, and the unit includes a link / terminate button for easy troubleshooting.
- 4-Way DMX Data Splitter / Fully DMX512 (1990) Compliant
- Link / Terminate Button for Easy Troubleshooting
- DMX Status LED Indicator
- (1) 3pin + (1) 5pin Neutrik XLR Isolated Inputs
- (1) 3pin + (1) 5pin Neutrik XLR Passive Loop Output
- (4) 3pin + (4) 5pin Neutrik XLR Isolated Outputs
Specifications
19” (482mm) x 5.7” (145mm) x 1.7” (44mm)
5.3 lbs. (2.4kg)
ELECTRICAL
AC 120V - 60Hz
APPROVALS
CE |
Specifications and documentation subject to change without notice.
Downloads
Dimensional drawings
Specification sheet
User manual
