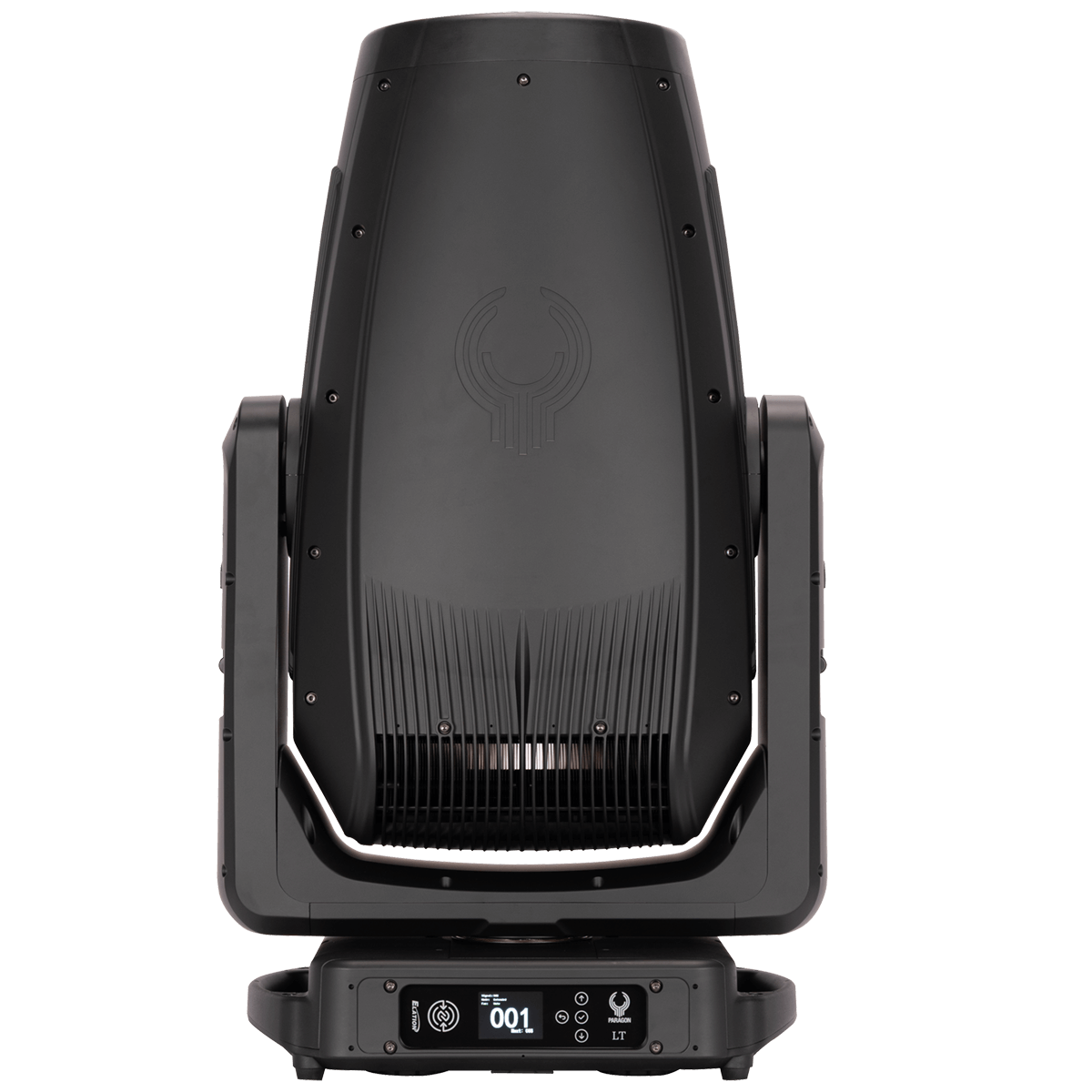

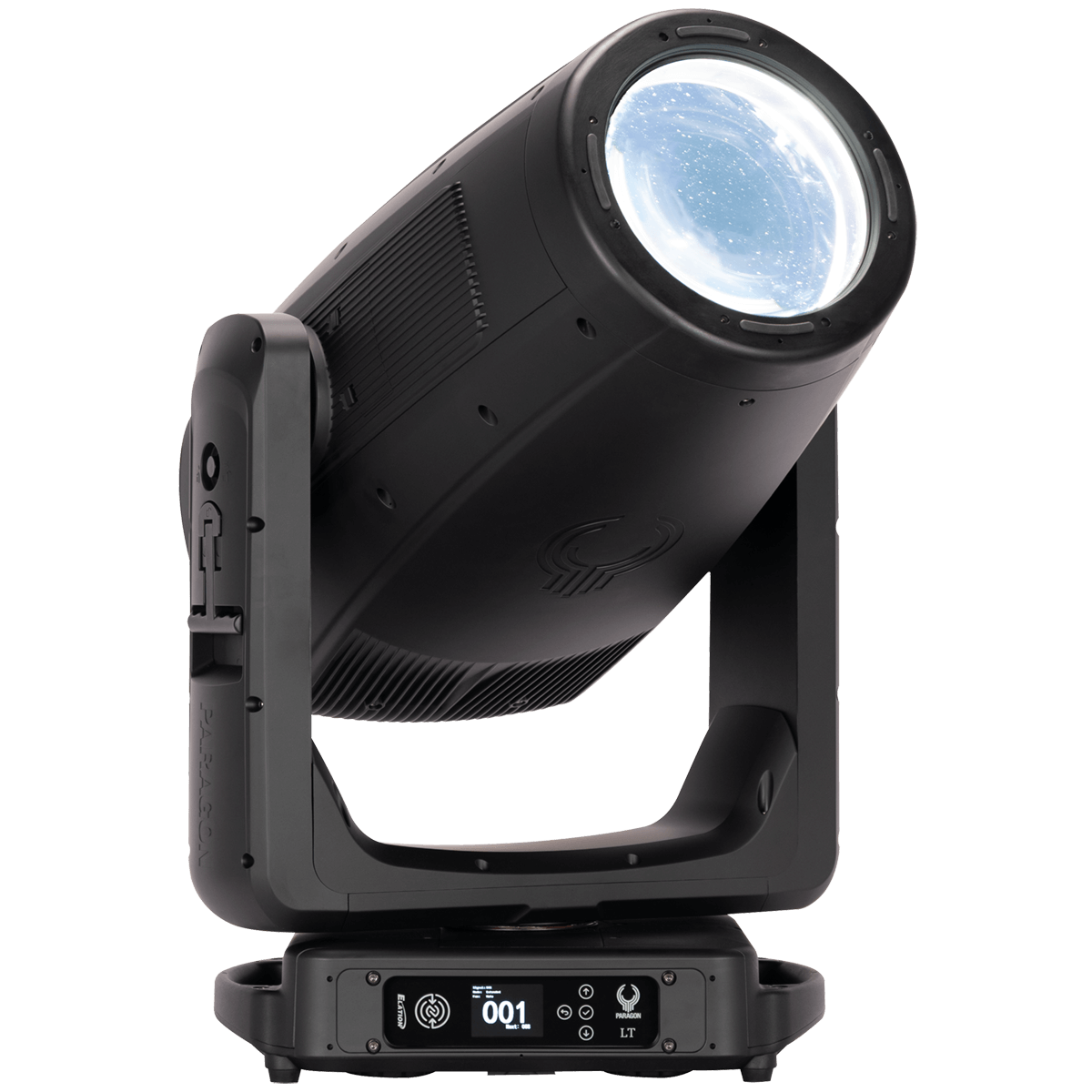

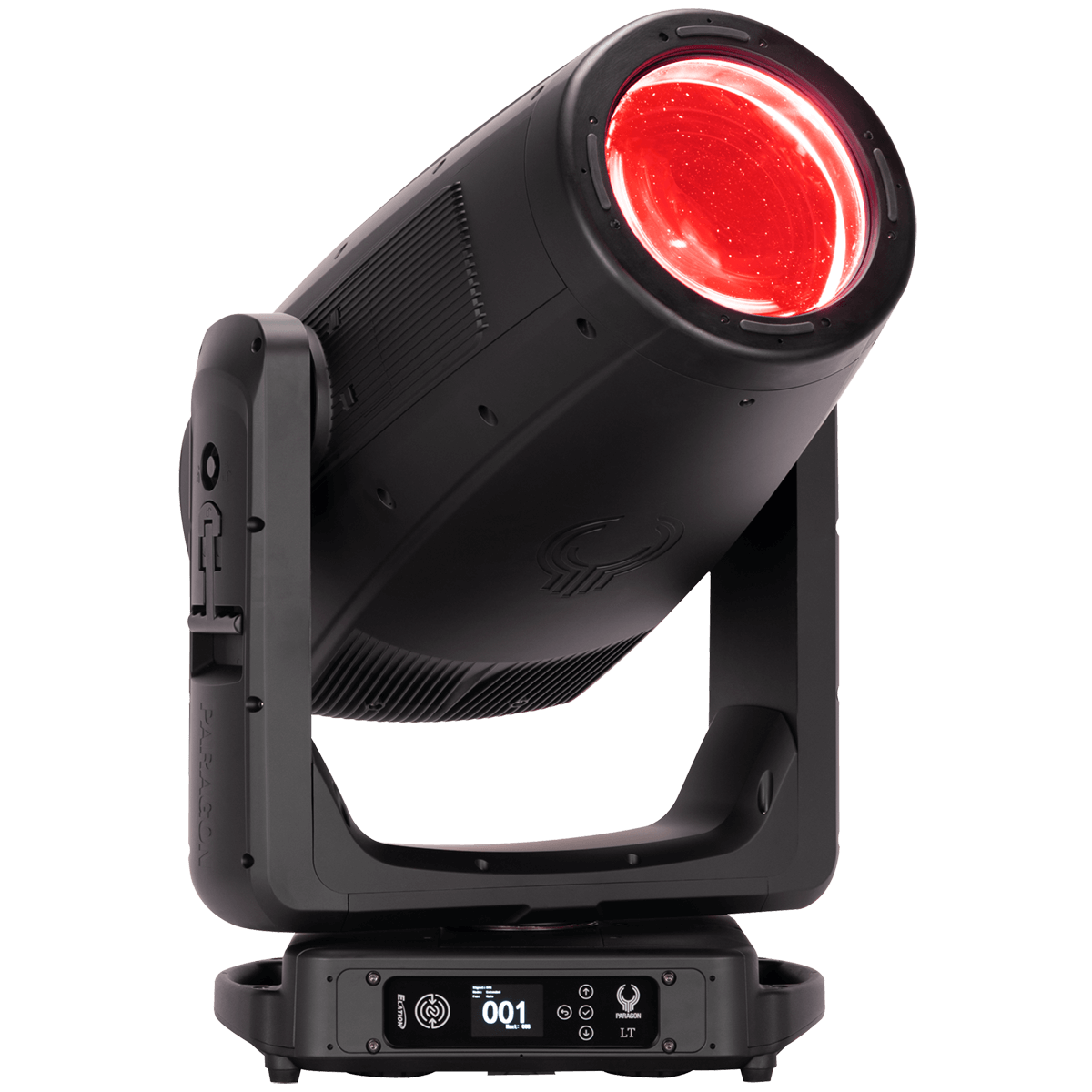

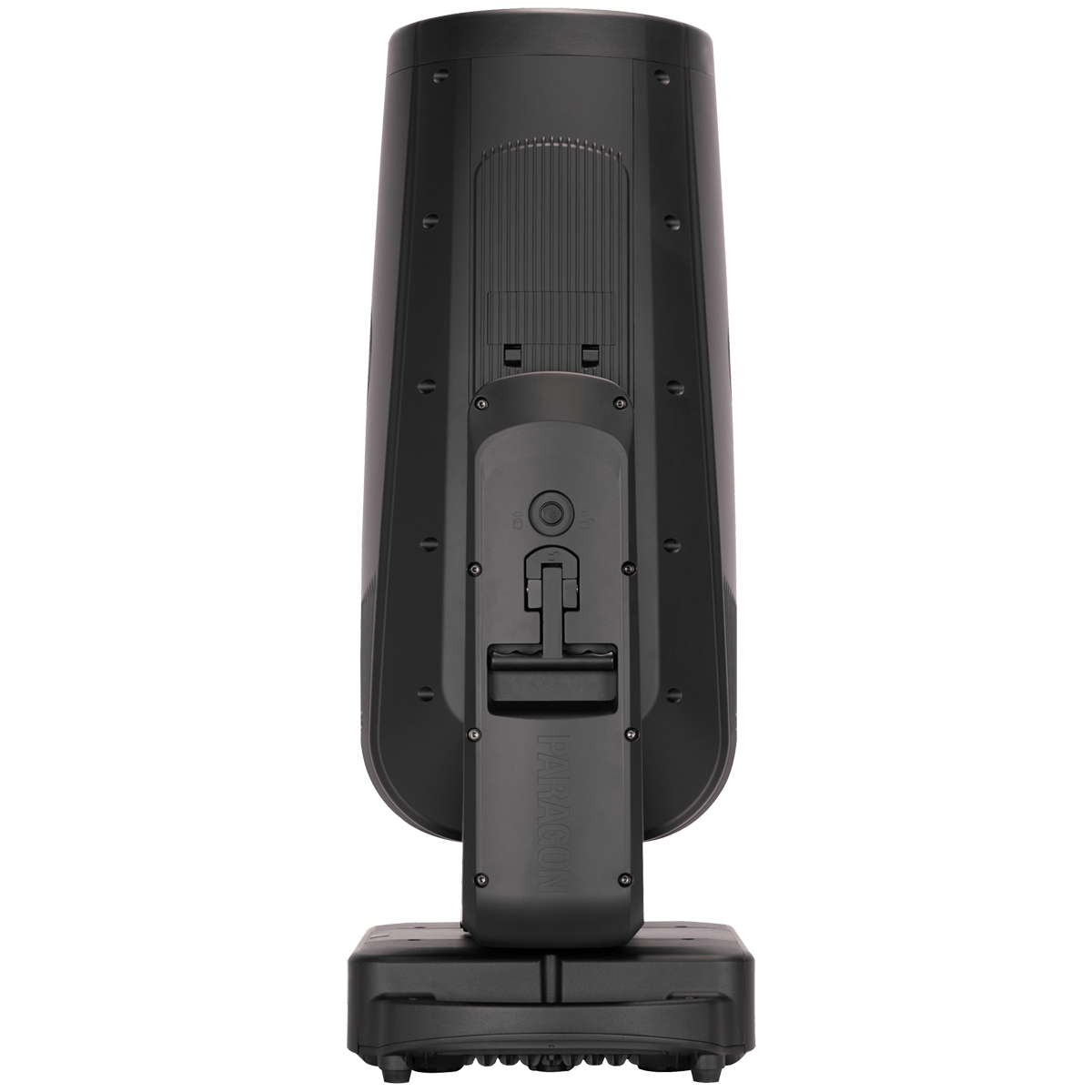

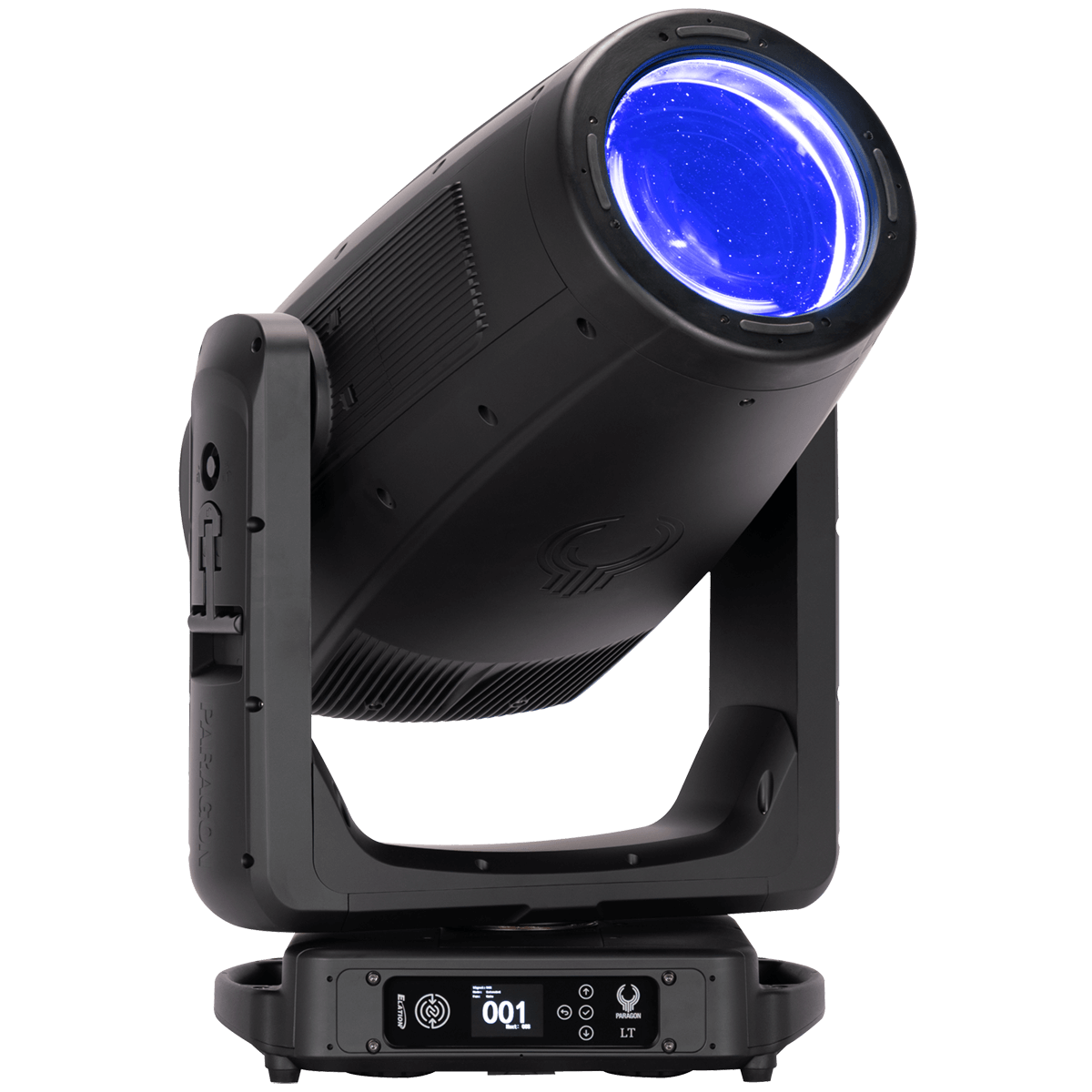

PARAGON LT


The brightest in the award-winning PARAGON Series, the PARAGON LT delivers Profile, Beam, and Wash versatility in a single fixture. Its 1300W engine outputs up to 50,000 lumens, with a 3.7°–49.2° zoom and TruTone variable CRI (73–93) for vibrant, precise color. Rugged, compact, and IP54-rated, with easy lens changes and a full FX suite, the PARAGON LT replaces multiple fixtures for efficient designs and extraordinary visuals.

UPC: 810008265611SKU: PAR135

PARAGON LT

The brightest in the award-winning PARAGON Series, the PARAGON LT delivers Profile, Beam, and Wash versatility in a single fixture. Its 1300W engine outputs up to 50,000 lumens, with a 3.7°–49.2° zoom and TruTone variable CRI (73–93) for vibrant, precise color. Rugged, compact, and IP54-rated, with easy lens changes and a full FX suite, the PARAGON LT replaces multiple fixtures for efficient designs and extraordinary visuals.

Providing up to 50,000 lumens output from its custom-designed Variable CRI LED engine, the PARAGON LT is the ideal fixture for a variety of applications requiring superior output, bright and powerful beams, and quiet operation, as well as stunningly precise gobos and colors.


The TruTone variable CRI allows selecting the best blend of light output and color accuracy, depending on the requirements of the show or scene. It is seamlessly adjustable from CRI 73 to CRI 93. Paragon's extremely precise low-level Ultra Dimming operates at 25,000Hz, with perfect dimming performance at the highest refresh rates, eliminating all flicker or camera interferences.

PARAGON LT provides the designer a comprehensive FX package with 14 rotating glass gobos, a high-speed fixed gobo wheel, variable orientation animation wheel, overlapping dual prisms, dual frost, and a high-speed iris. Its indexable framing system allows full-blackout shutter cuts for precise beam shape control.

With a fast zoom range from 3.7° to 48 ° and a large 200mm front lens, the PARAGON LT has the power to cut through and make a statement on any stage.

The PARAGON LT ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert. The foam insert easily fits into a custom flight case (not included) and provides enhanced impact protection during transport.

IP54 rated for indoor and temporary outdoor use

All weather protection through innovative chassis, sealing and cooling construction

Impact resistant lightweight polycarbonate chassis

High Efficiency 6,500K Variable CRI White LED Engine

TruTone remote color fidelity adjustment up to CRI 93

Exceeding 50000 Total Lumens Fixture Output in Turbo Mode

Flat Field Engine for precise projection

Ultra-fast CMY Array and Variable Linear CTO

Optional SpectraColor RGB Array

5-Position Color Wheel with Quad Color

Complete FX System featuring Dual Rotating Gobo Wheel, Fixed Gobo, Animation, Iris, Dual Prism, Dual Frost

Indexable Full Blackout Framing System

Wide Zoom Range from 3.7° to 49.2°

Interchangeable Fresnel Wash and PC Beam Lens (optional)

FIL (Foam In Lay) Polyurethane Foam Packaging Included

Specifications

SOURCE

High Efficiency 1300W 7700K (+350K) Variable CRI

White LED Engine

20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA

44000 Total Lumen Fixture Output @ CRI 80

50000 Total Lumen Output in Turbo Mode (CRI78)

TruTone variable CRI up to CRI 93

Front Lens 8" (200mm)


Profile Lens (standard)

Zoom Range 3.7° - 49.2°
Beam Angle 3.4° - 43.9°
Field Angle 3.7° - 46.9°
Cutoff Angle 3.8° - 47.8°

PC Lens (optional)
Zoom Range 3.5° -47.2°
Beam Angle 3.5° - 43.4°
Field Angle 5.6° - 47.2°
Cutoff Angle 6.5° - 48.6°

Fresnel Lens (optional)
Zoom Range 5° - 52.9°
Beam Angle 5° - 46.7°
Field Angle 10° - 52.9°
Cutoff Angle 15.1° - 59.9°


EFFECTS

Motorized Zoom

4 Full Blackout Framing Blades, +/-45° Index

+/-120° Framing Index

Full 360° Bi-Directional Animation Wheel with variable Angle and Index orientation

4-Facet and Linear Rotating Prisms

2 Variable Frost Filters (Light and Wash)

Motorized Iris with Variable Pulse Effects

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe

DMX Controllable LED Refresh Rate

Ultra Dimming 25000Hz

Pan Angle: 540°

Tilt Angle: 260°

Motionless Reset


COLOR

CMY Color Mixing Array

Optional SpectraColor RGB Array

Linear CTO Color Correction

5 Dichroic Colors including Quad Color


GOBOS

3 Gobo Wheels

2x 7 Rotating / Indexing Interchangeable Glass Gobos

5 Fixed Metal Gobos


CONTROL / CONNECTIONS

4 DMX Channel Modes (44/67/47/73)

16-bit Pan, Tilt and Dimming Control

Motorized Focus and Auto-Focus Presets

DMX, RDM, Art-NET, sACN Protocol Support

(4) Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

NFC

Hibernation Mode (Power Save)

IP65 Locking 5pin XLR In/Out

IP65 Locking RJ45 Ethernet In/Out

IP65 Locking Power In


SIZE / WEIGHT

Length: 19.4 in (492mm)

Width: 12.4 in (315mm)

Height: 32.7 in (830mm)

Weight: 96.1 lbs. (43.6 kg)

Weight (w. RGB Module): 97.9 lbs. (44.4 kg)


ELECTRICAL

AC 200-240V 50/60Hz

Max Power Consumption 1900W

-4°F to 113°F (-20°C to 45°C)


INCLUDED ITEMS

Omega Brackets (x2)

IP65 Rated Locking Power Cable

Stainless Steel Safety Wire

Foam Inlay

OPTIONAL ITEMS

PARAGON LT RGB Module

PARAGON LT PC Lens

PARAGON LT Fresnel Lens

PARAGON LT Snoot


APPROVALS / RATINGS

CE | cETLus | FCC | UKCA | IP54

How do they compare?

Find the option that is right for you and your production.

Total Lumens

50000

20500

37000

Light Source Wattage

1300W

550W

900W

Color System
  • Cyan
  • Magenta
  • Yellow
  • Cyan
  • Magenta
  • Yellow
  • Cyan
  • Magenta
  • Yellow
Framing
  • Yes
  • Yes
  • Yes
Zoom Range

3.7° - 49.2° (standard)

5° - 50°

4.5° - 52°

Beam Angle

3.4° - 43.9°

4.9° - 44.7°

4° - 48.6°

IP Rating

54

54

54

Weight

96.1 lbs

49.6 lbs

70.5 lbs

MAX Power Consumption

1900W

900W

1400W

Size (In Inches)

19.4 x 12.4 x 32.7

15.3 x 10.2 x 23.4

17.5 x 12.4 x 26.6
