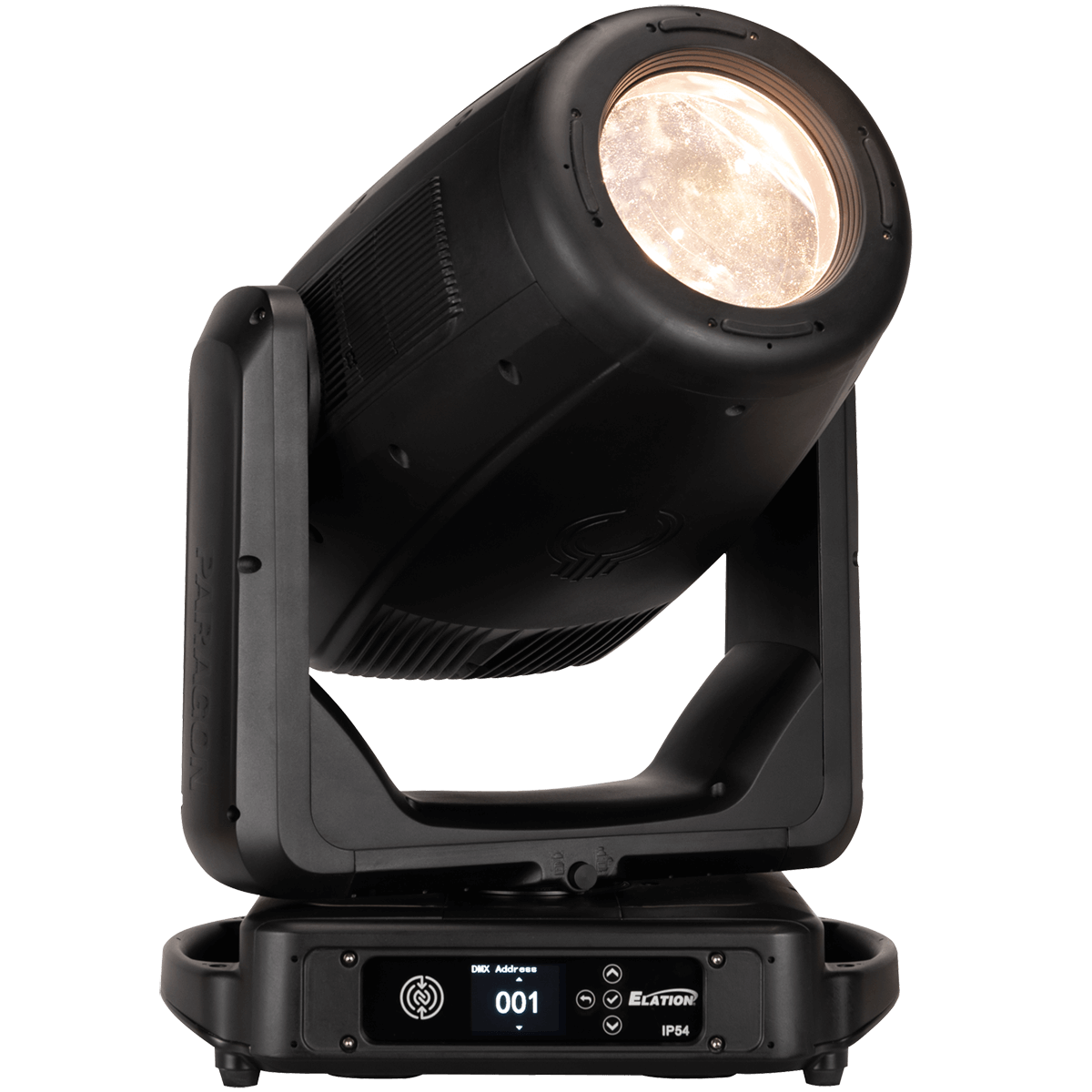

PARAGON S


550W Variable CRI LED IP Framing Profile Fixture with CMY

PARAGON S is a professional-grade lighting solution. Utilizing IP54-rated construction, the Paragon S is ideal for any show or temporary outdoor events, even in the most adverse environments. The PARAGON S™ is the ideal fixture for various applications requiring superior output, bright and powerful beams, quiet operation, precise gobos, colors, and framing cuts. The custom-designed variable CRI LED engine delivers up to 20500 lumens output (at CRI 80), providing exceptional output and true-to-life color accuracy control.

UPC: 810008265161SKU: PAR101

PARAGON S

Highly compact, lightweight, and powerful, the PARAGON S™ heralds the future of what's possible in lighting with outstanding projection and beam qualities. Utilizing IP54-rated construction, the Paragon S is ideal for any show or temporary outdoor events, even in the most adverse environments.

The PARAGON S™ is the ideal fixture for various applications requiring superior output, bright and powerful beams, quiet operation, precise gobos, colors, and framing cuts. The custom-designed variable CRI LED engine delivers up to 20500 lumens output (at CRI 80), providing exceptional output and true-to-life color accuracy control.

Utilizing variable CRI technology, the PARAGON S™ utilizes Elation's TruTone, empowering designers to effortlessly balance light output and color accuracy to meet the specific demands of each scene or show. Its seamless adjustability from CRI 70 to CRI 93 ensures accurate and vivid color fidelity, with infinite control over the underlying white spectrum for enhanced mixed tones.

The PARAGON S™ offers a powerful FX package, including seven rotating glass gobos, nine fixed metal gobos, a fully interchangeable animation wheel, dual prisms, dual frost effects, and a high-speed iris. The animation wheel can be swapped for custom designs or an optional seven-gobo position disc for customization. Its 240-degree indexable framing system ensures precision with full-blackout shutter cuts, while its dynamic zoom range of 5° to 50° makes it a standout performer on any stage.

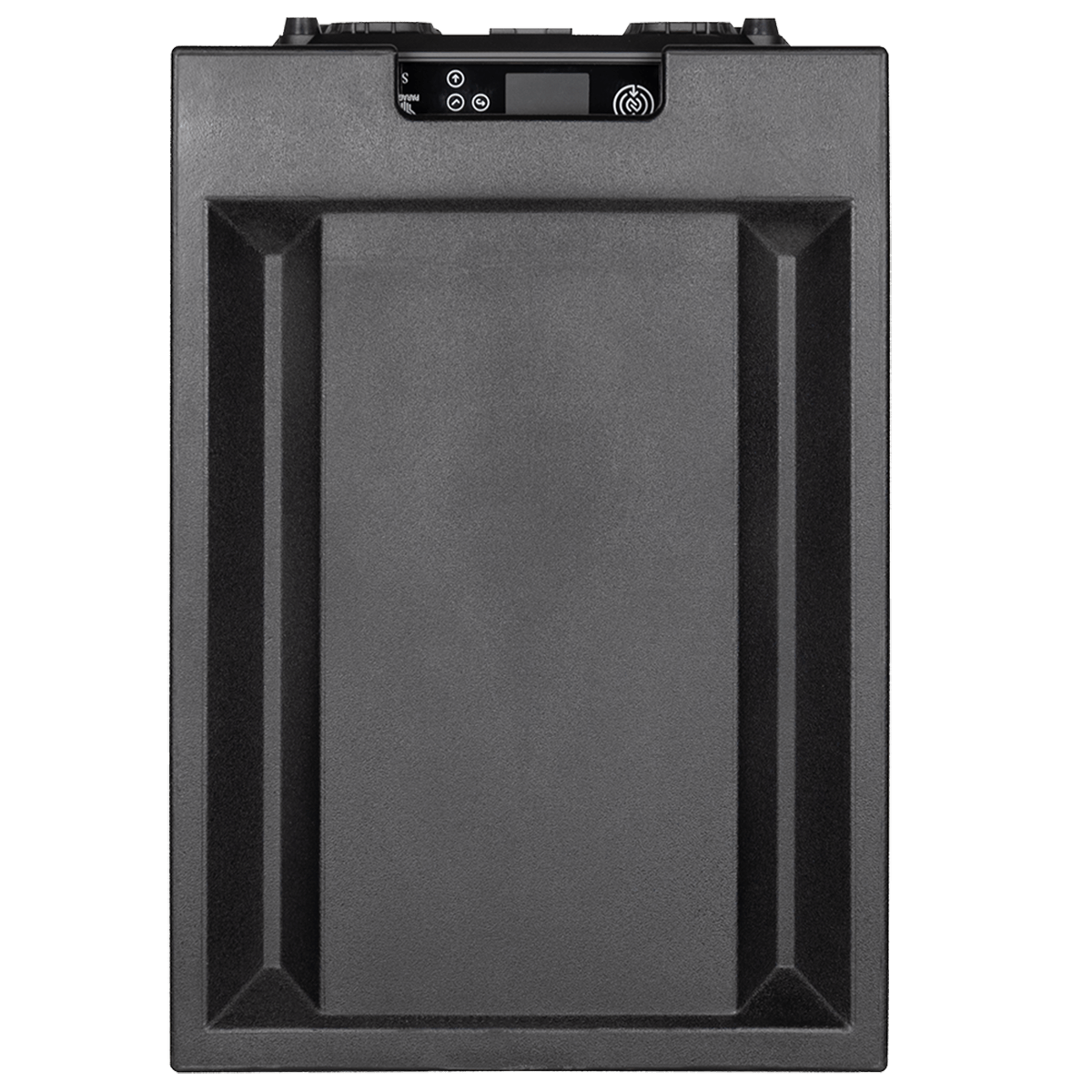

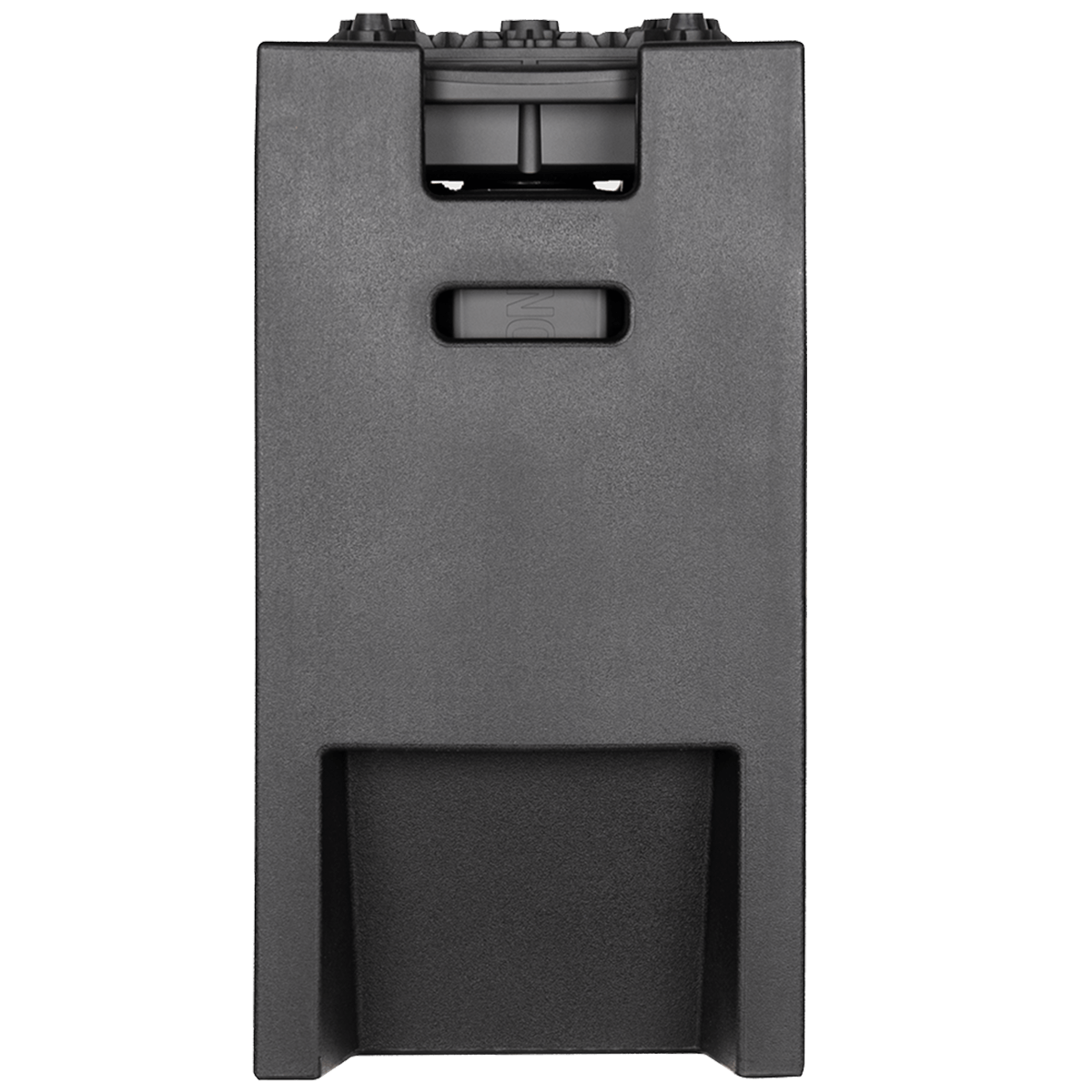

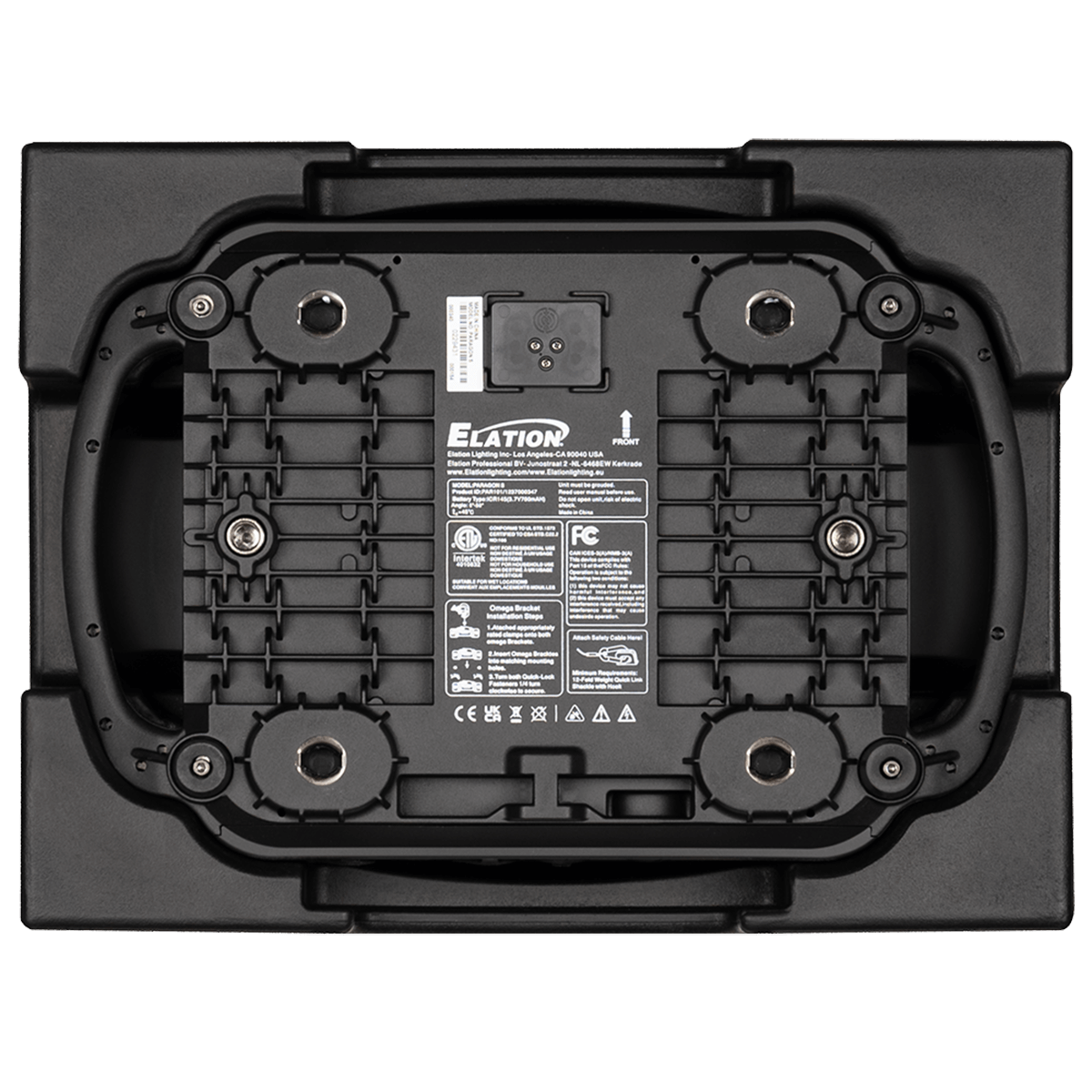

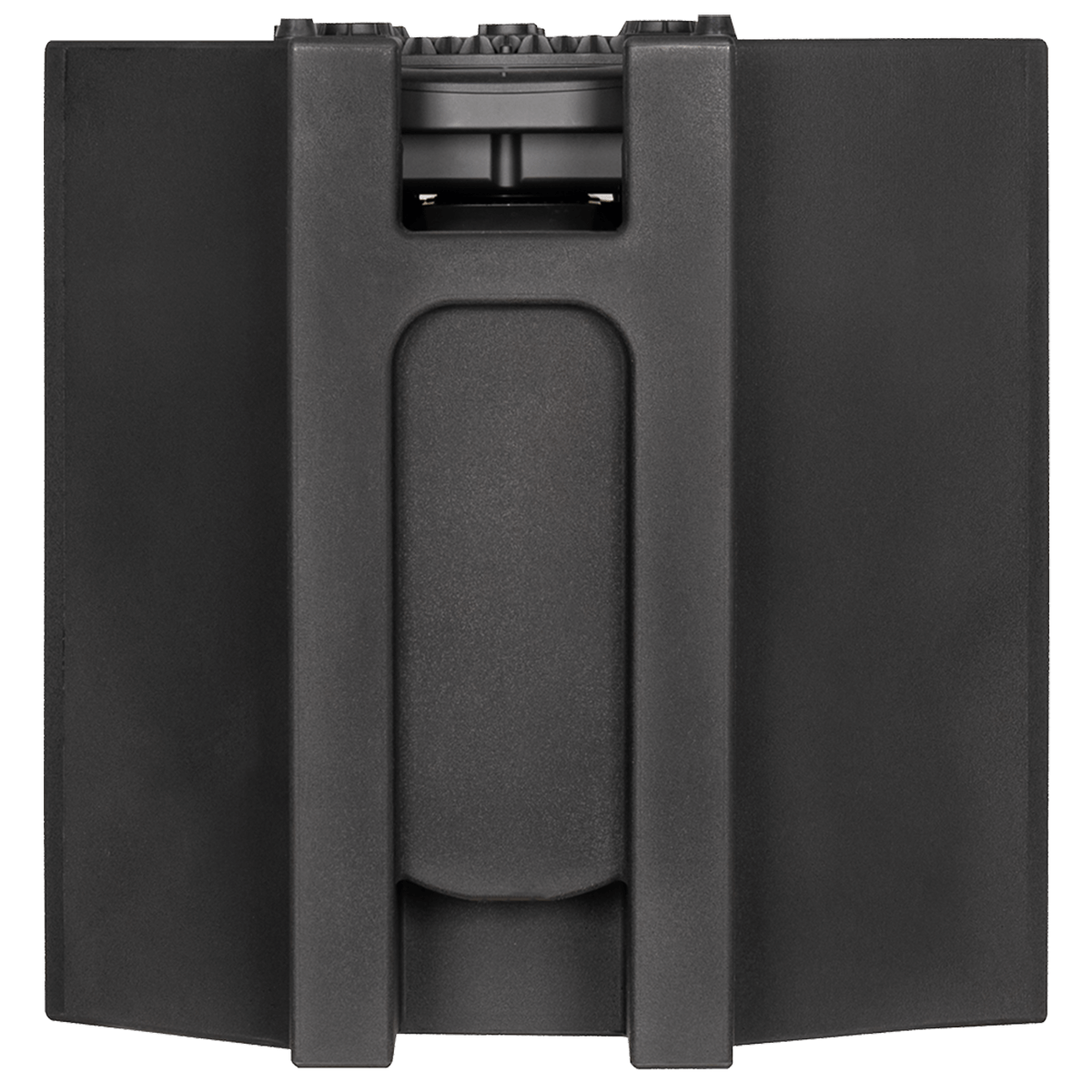

The PARAGON S™ ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert that easily fits into a custom flight case (not included), providing enhanced impact protection during transport.

  • IP54 rated for indoor and temporary outdoor use
  • All weather protection through innovative chassis, sealing and cooling construction
  • Impact resistant lightweight polycarbonate chassis
  • High Efficiency 6,500K Variable CRI White LED Engine
  • TruTone remote color fidelity adjustment up to CRI 93
  • Up to 20500 Total Lumen Fixture Output at CRI 80
  • Flat Field Engine for precise projection
  • Ultra-fast CMY Array and Variable Linear CTO
  • 7-Position Color Wheel with UV-Filter, Quad Color
  • Complete FX System featuring Rotating and Fixed Gobo Wheels, Animation, Iris, Dual Prism, Dual Frost
  • Interchangeable Animation Disc (optional)
  • Indexable 240° Full Blackout Framing System
  • Wide Zoom Range from 5° to 50°
  • Interchangeable Fresnel Wash and PC Beam Lens (optional)
  • FIL (Foam In Lay) Polyurethane Foam Packaging Included

Specifications

SOURCE

High Efficiency 550W 6,500K Variable CRI White LED Engine

30,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA

20500 Total Lumen Fixture Output @ CRI 80

TruTone variable CRI up to CRI 93

Front Lens 4.7" (120mm)


Profile Lens (standard)

Zoom Range 5° - 50°
Beam Angle 4.9° - 44.7°
Field Angle 5.2° - 47.8°
Cutoff Angle 5.3° - 48.6°

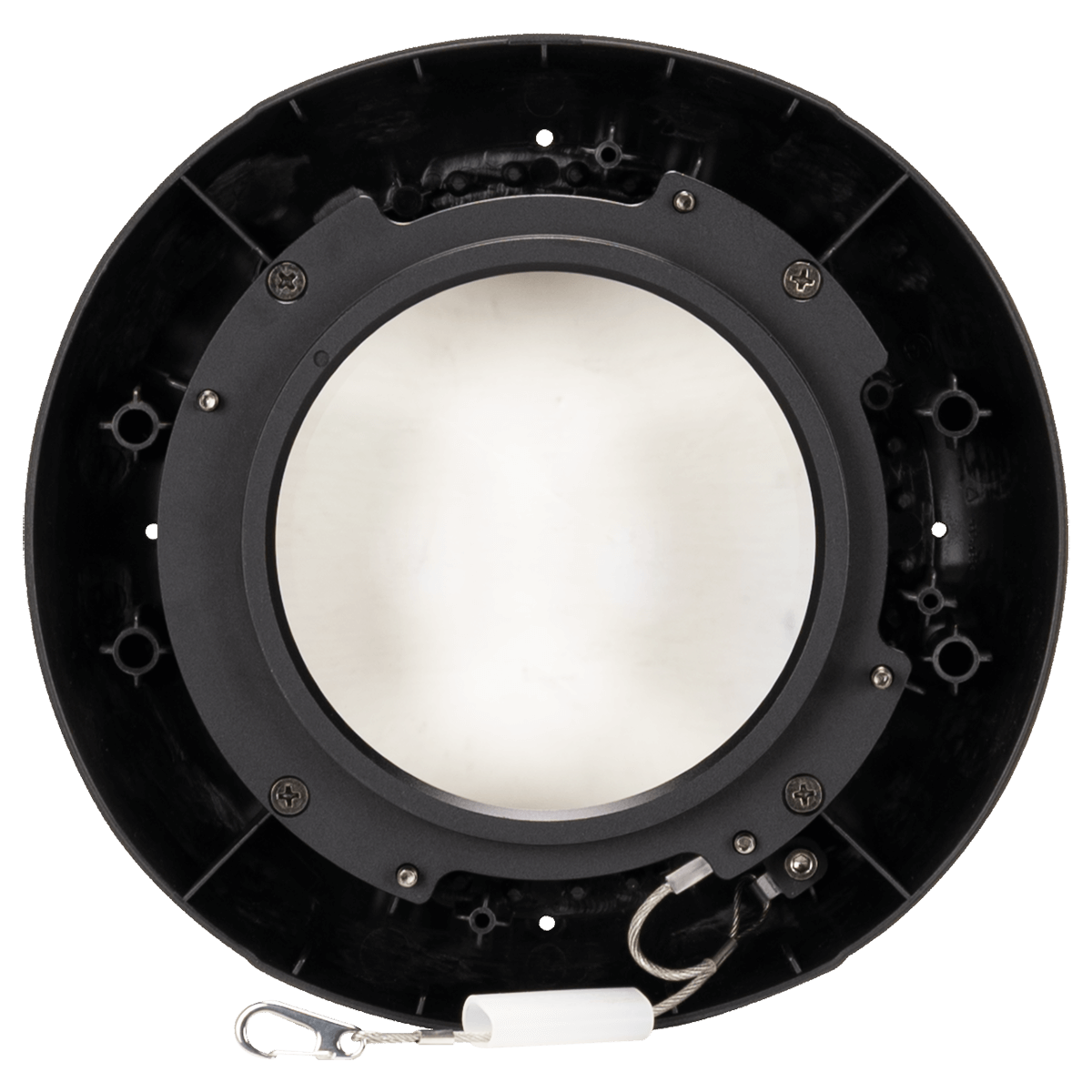

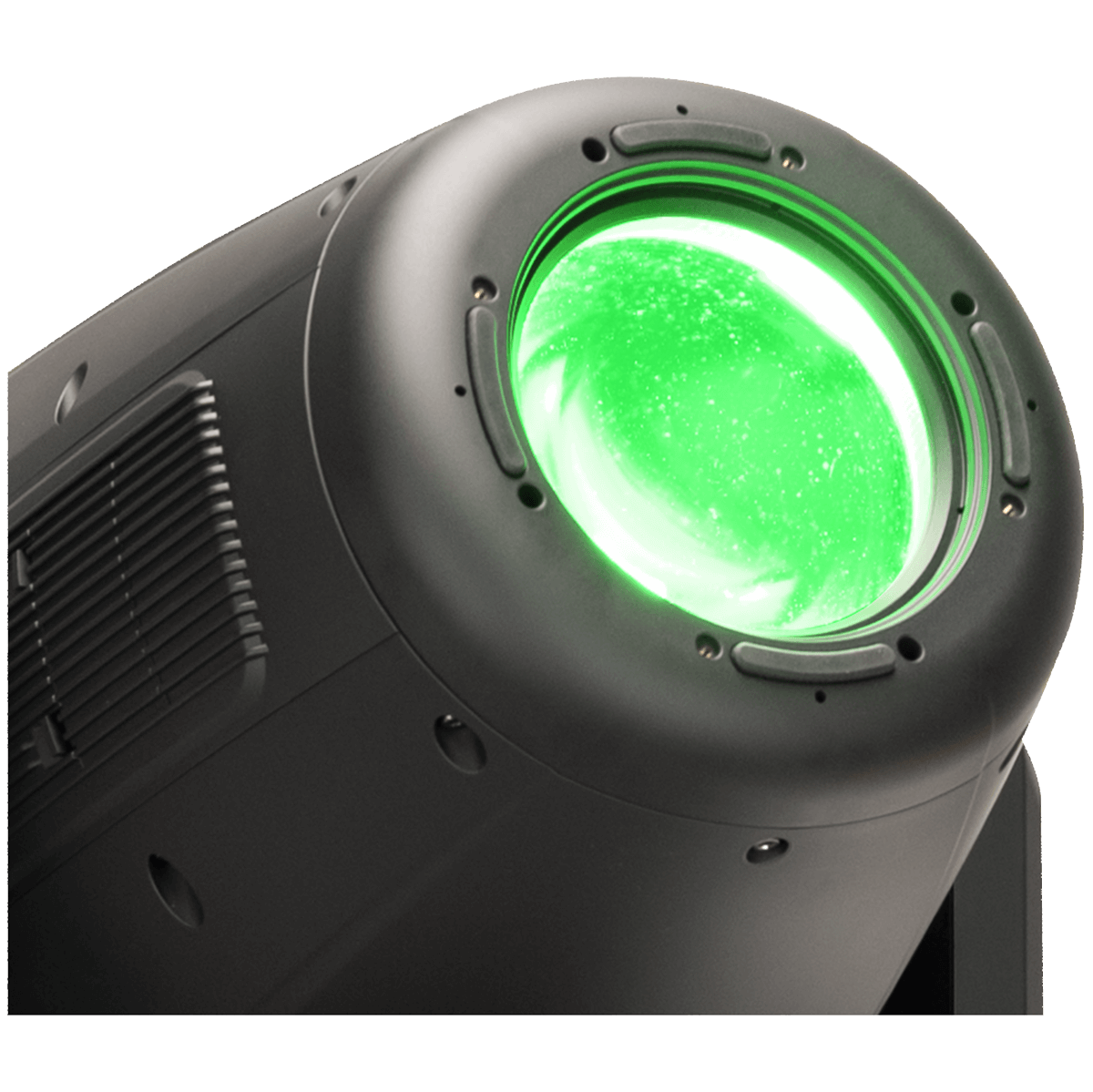

PC Lens (optional)

Zoom Range 6° - 45°
Beam Angle 4.2° - 40.6°
Field Angle 6.1° - 44.7°
Cutoff Angle 6.9° - 47.2°

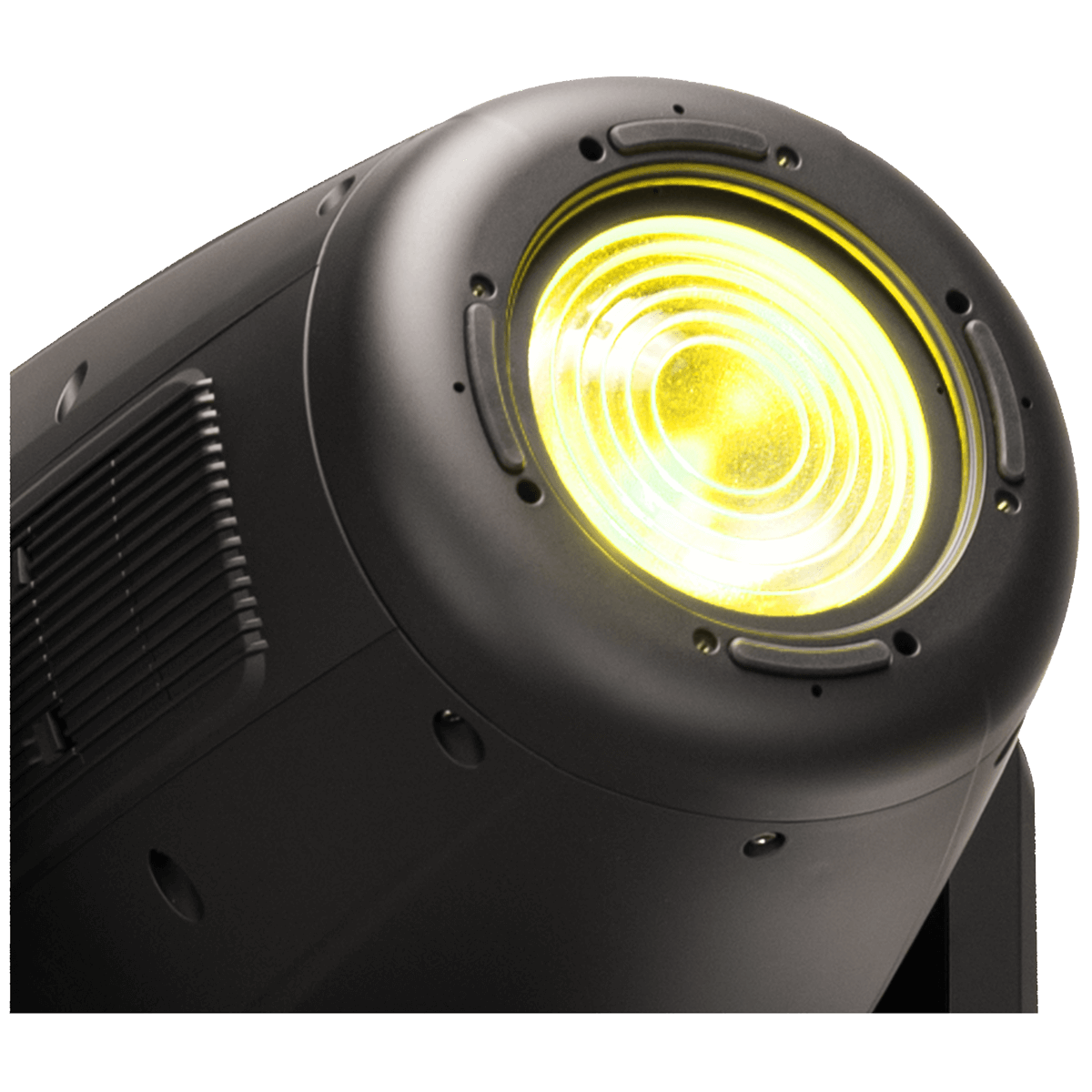

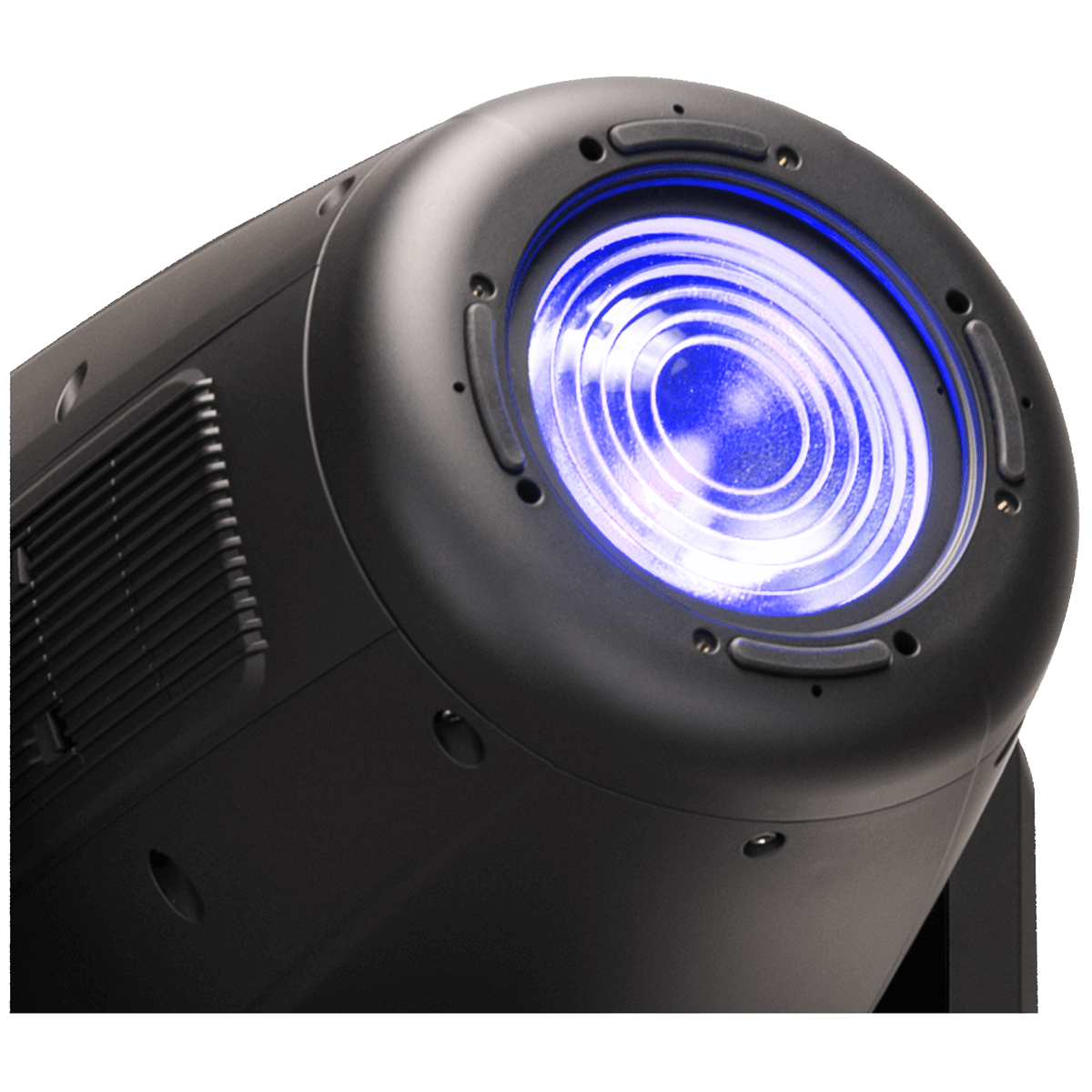

Fresnel Lens (optional)

Zoom Range 8° - 50°
Beam Angle 4.8° - 39°
Field Angle 8.2° - 50.2°
Cutoff Angle 11.4° - 59.4°



EFFECTS

Motorized Zoom

4 Full Blackout Framing Blades, +/-40° Index

+/-120° Framing Module Index

Full 360° Bi-Directional Animation Wheel

4-Facet Round and Linear Rotating Prisms

2 Variable Frost Filters (Light and Wash)

Motorized Iris with Variable Pulse Effects

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe

DMX Controllable LED Refresh Rate

Pan Angle: 540°

Tilt Angle: 260°


COLOR

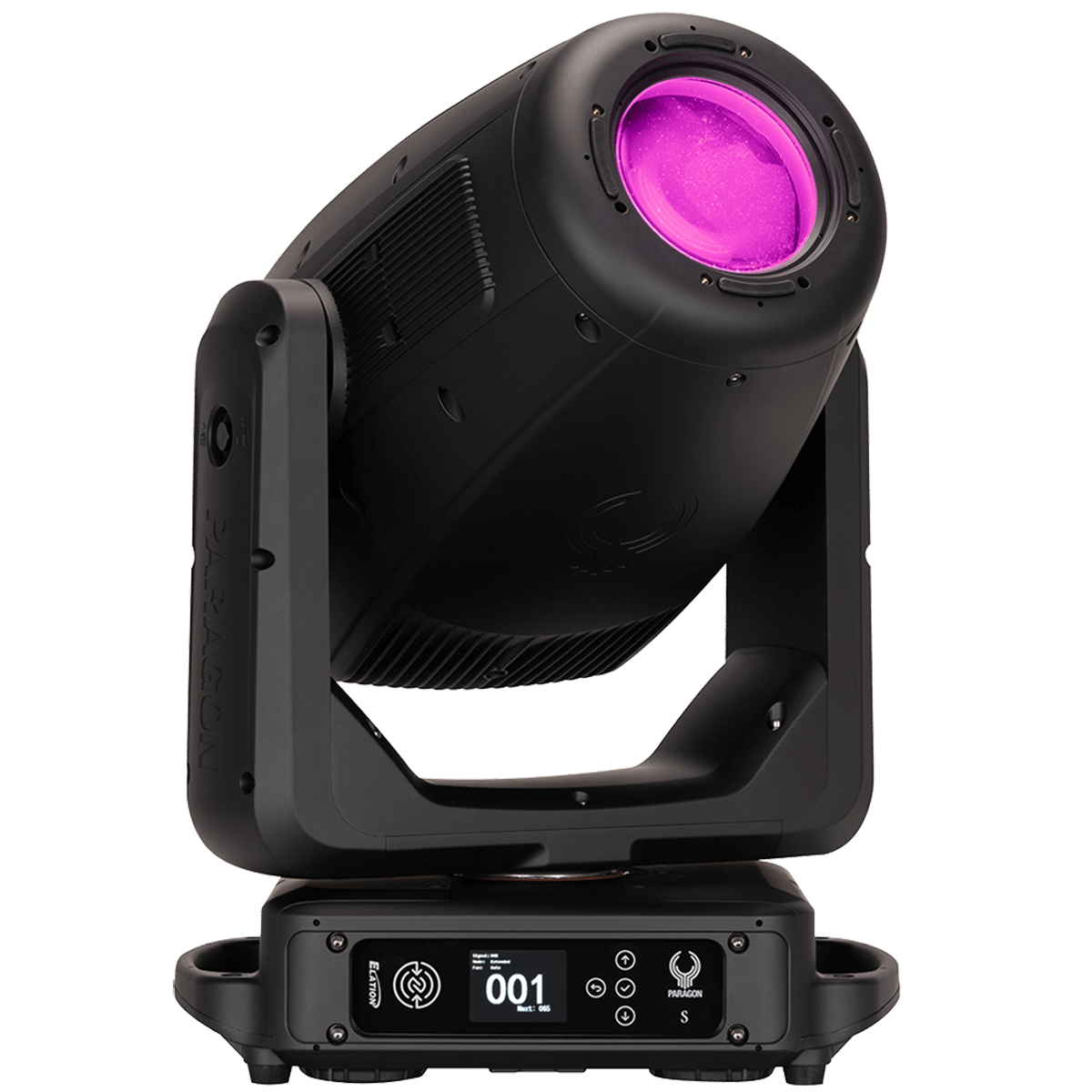

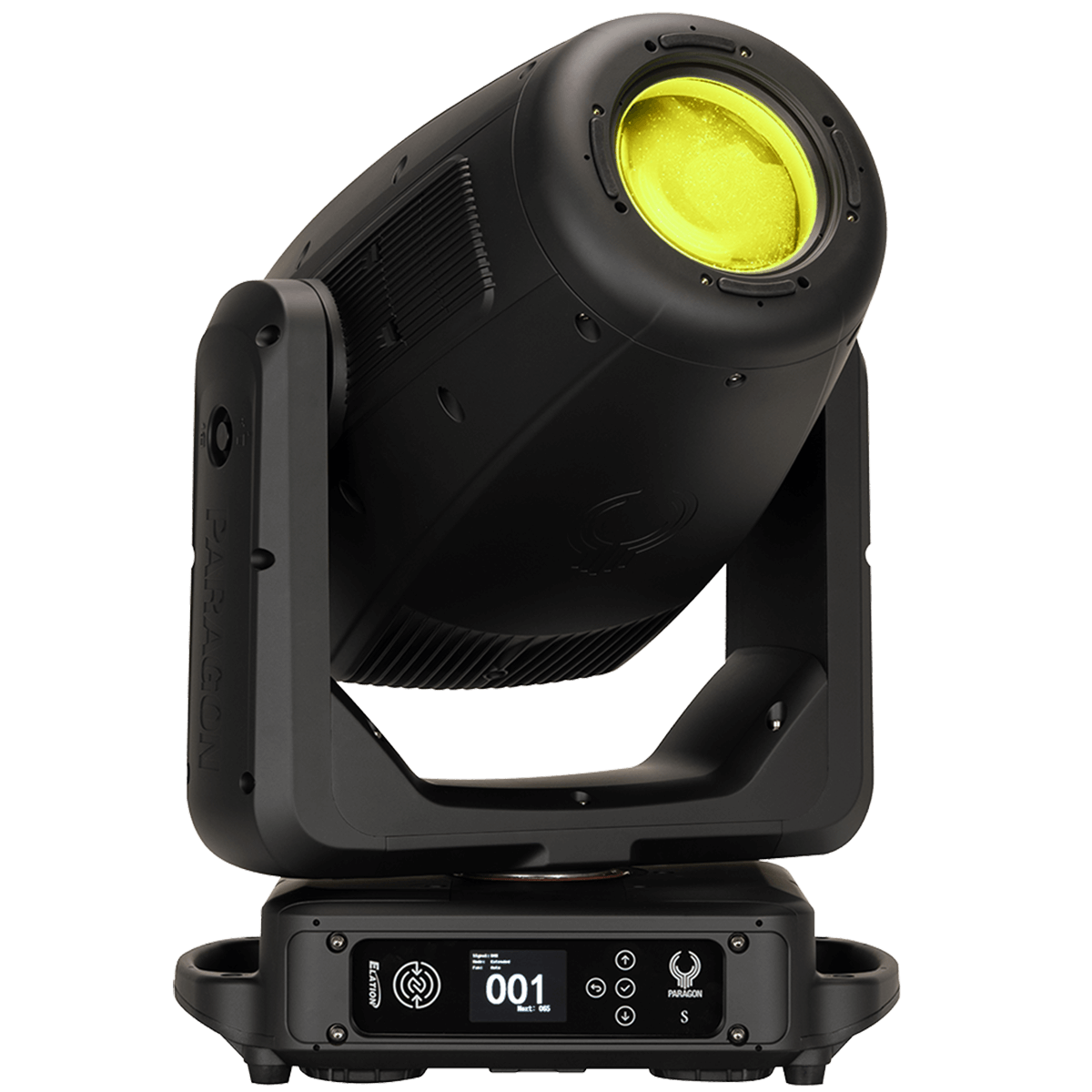

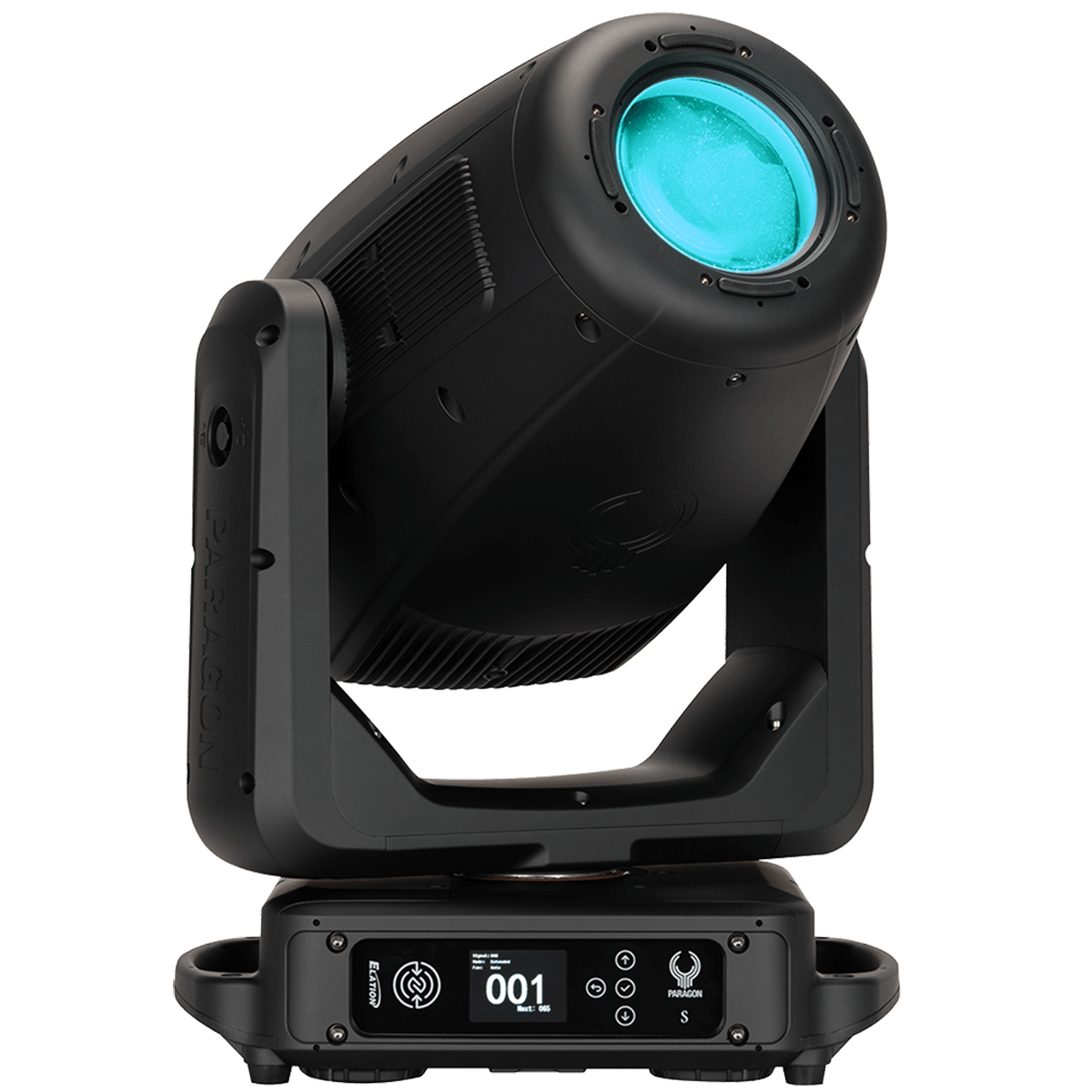

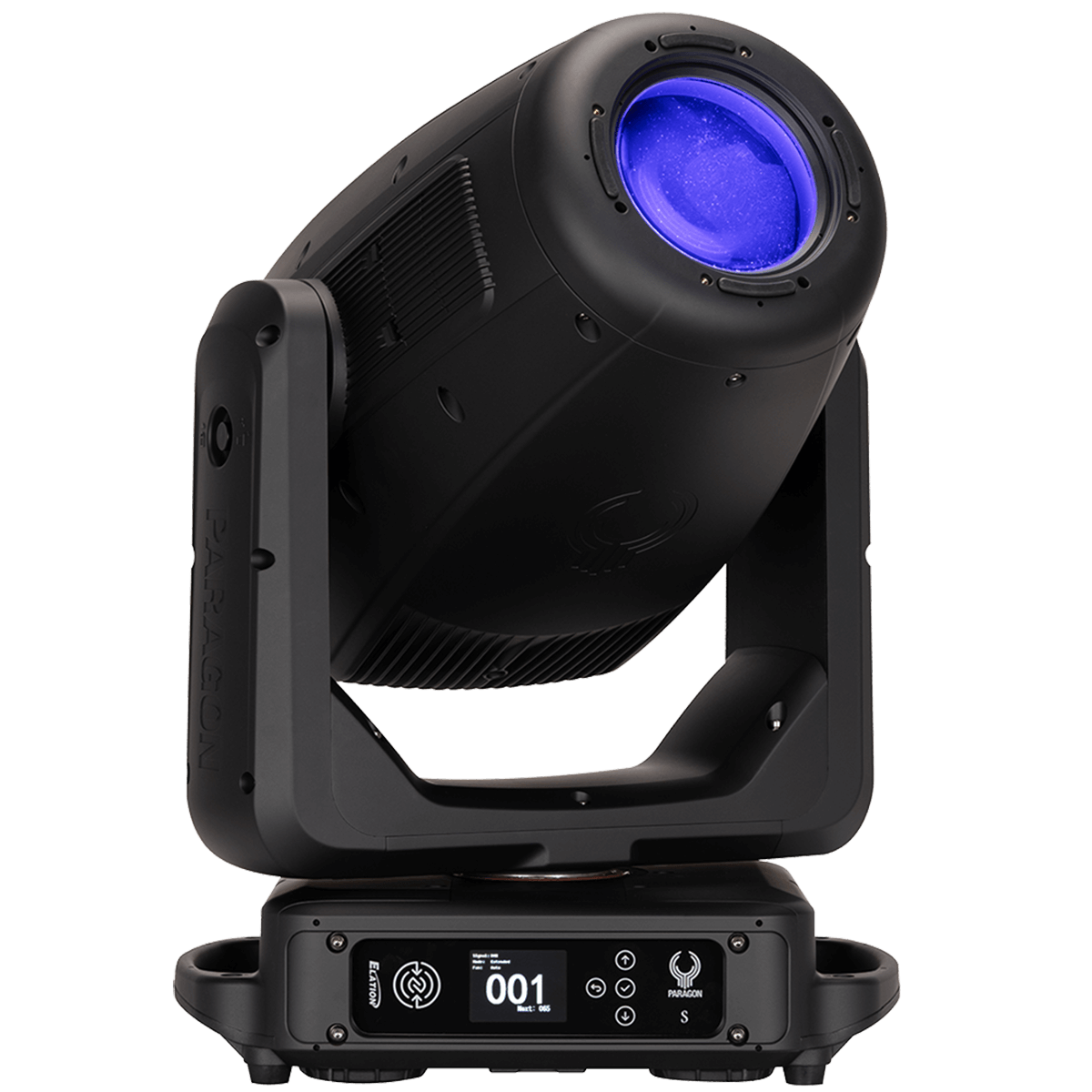

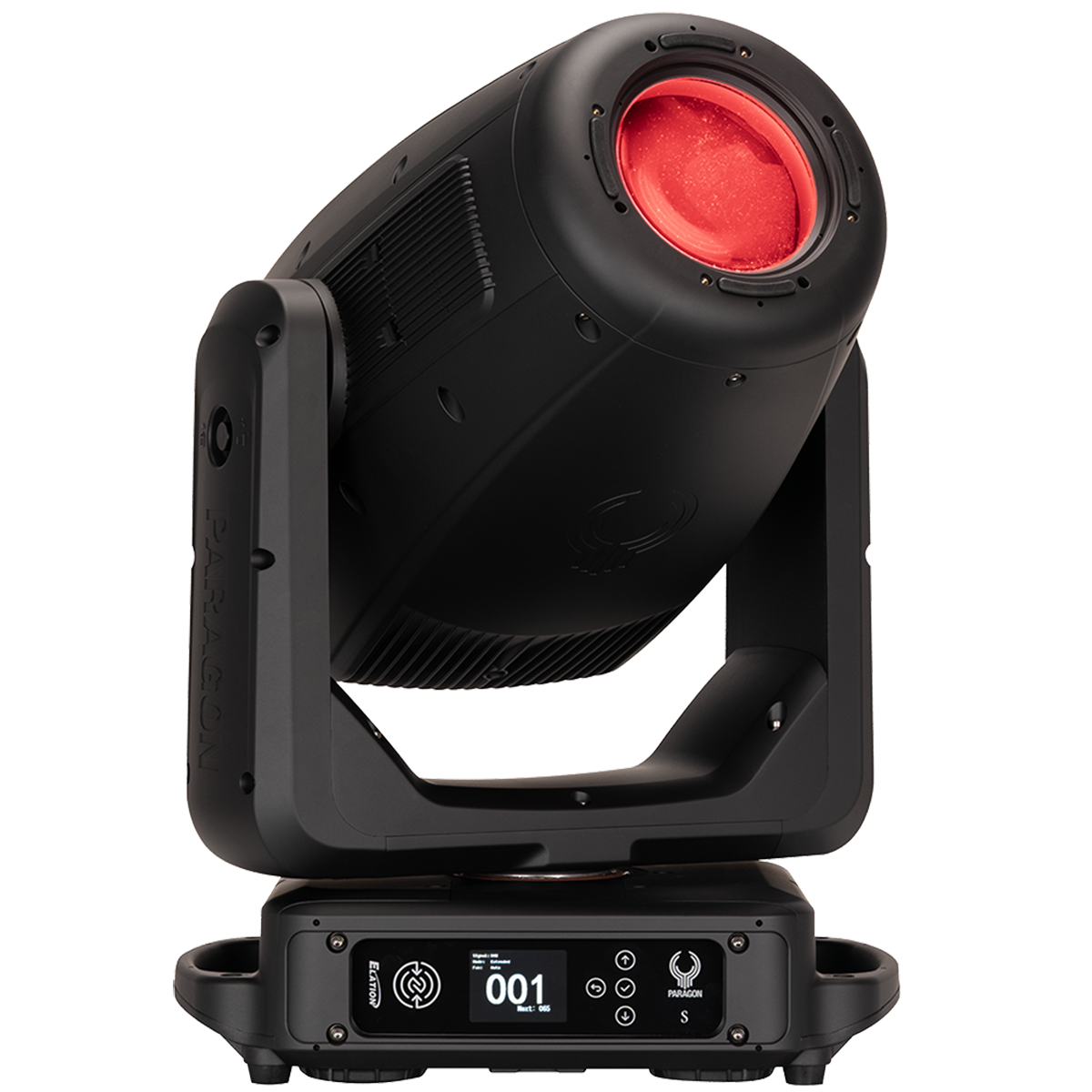

CMY Color Mixing

Linear CTO Color Correction 6500K - 2600K

7 Dichroic Colors including UV Filter, Quad Color

TruTone variable CRI 73-93


GOBOS

7 Rotating / Indexing Interchangeable Glass Gobos

9 Fixed Metal Gobos


CONTROL / CONNECTIONS

4 DMX Channel Modes (41/64/41/64)

16-bit Pan, Tilt and Dimming Control

5 Fan modes for ultra quiet operation

DMX, RDM, Art-NET, sACN Protocol Support

(4) Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

NFC on bottom and front of fixture base

Hibernation Mode (Power Save)

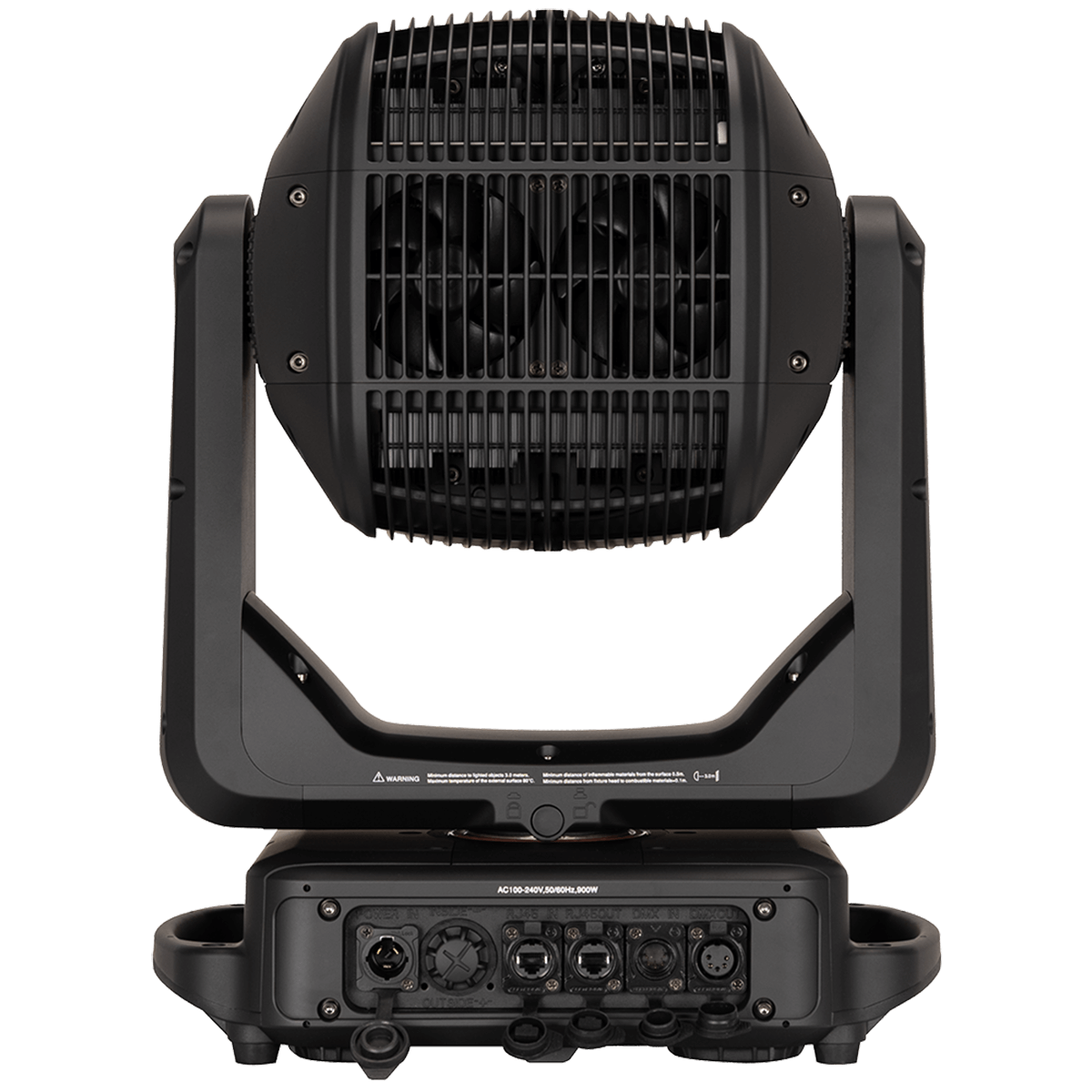

IP65 Locking 5pin XLR In/Out

IP65 Locking RJ45 Ethernet In/Out

IP65 Locking Power In


SIZE / WEIGHT

Length: 10.2 in (260mm)

Width: 15.3 in (390mm)

Height: 23.4 in (595 mm)

Center-to-Center Distance: 20.7 in (526mm)

Weight: 50.7 lbs. (23.0 kg)

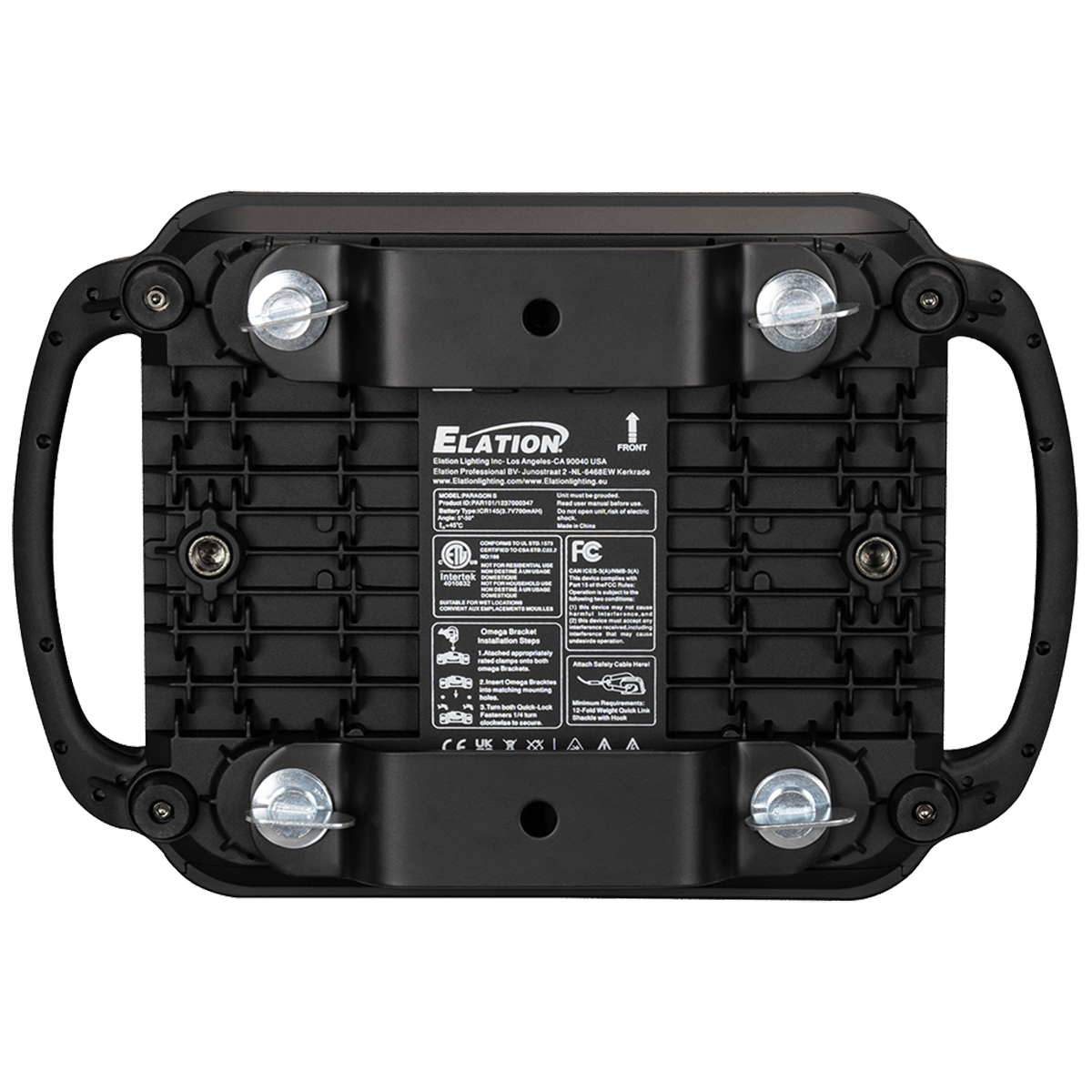

MOUNTING

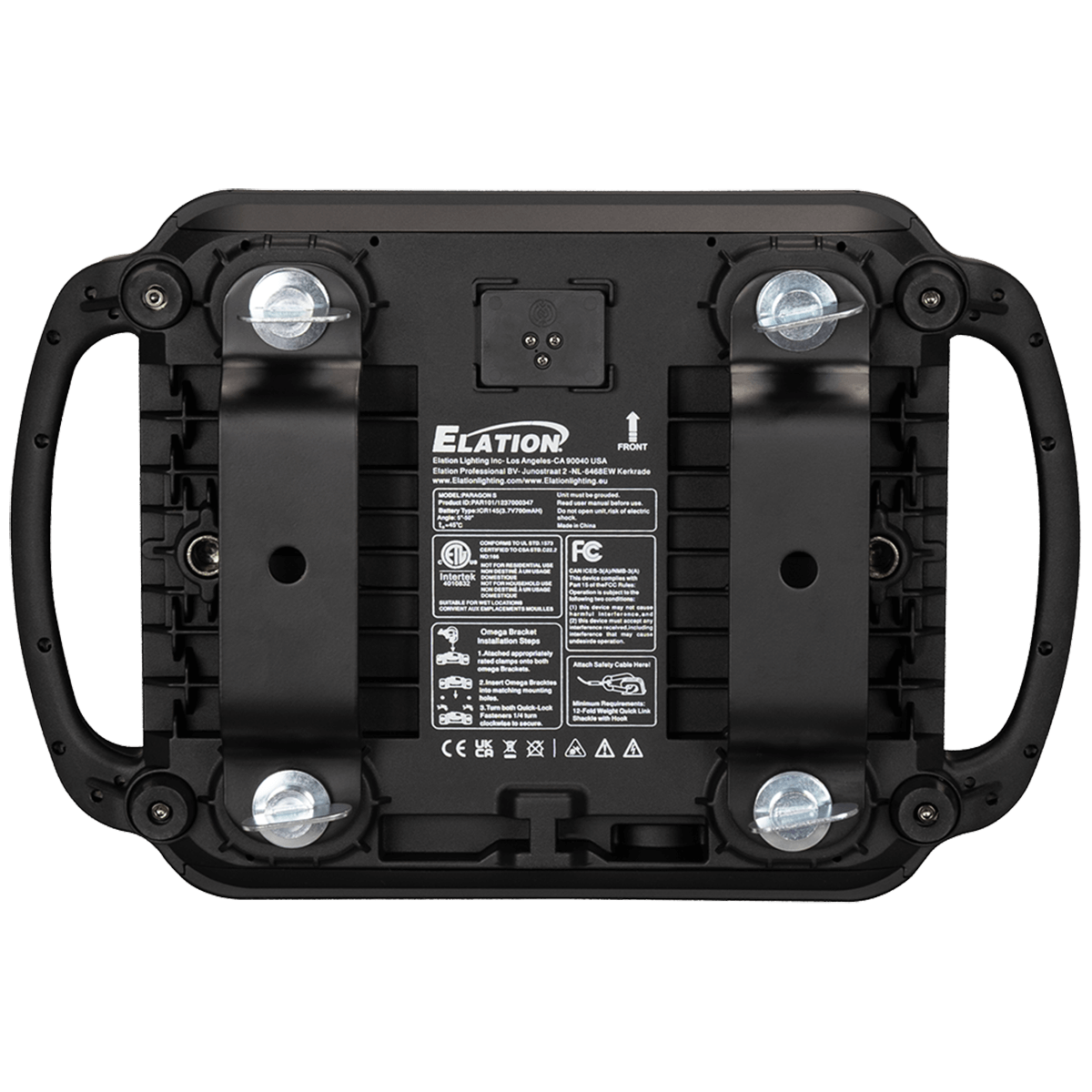

2x 180mm Omega Bracket

2x M12 Screw Hole

Fixture can be mounted in any orientation


ELECTRICAL

AC 100-240V 50/60Hz

Max Power Consumption 900W

-4°F to 113°F (-20°C to 45°C)

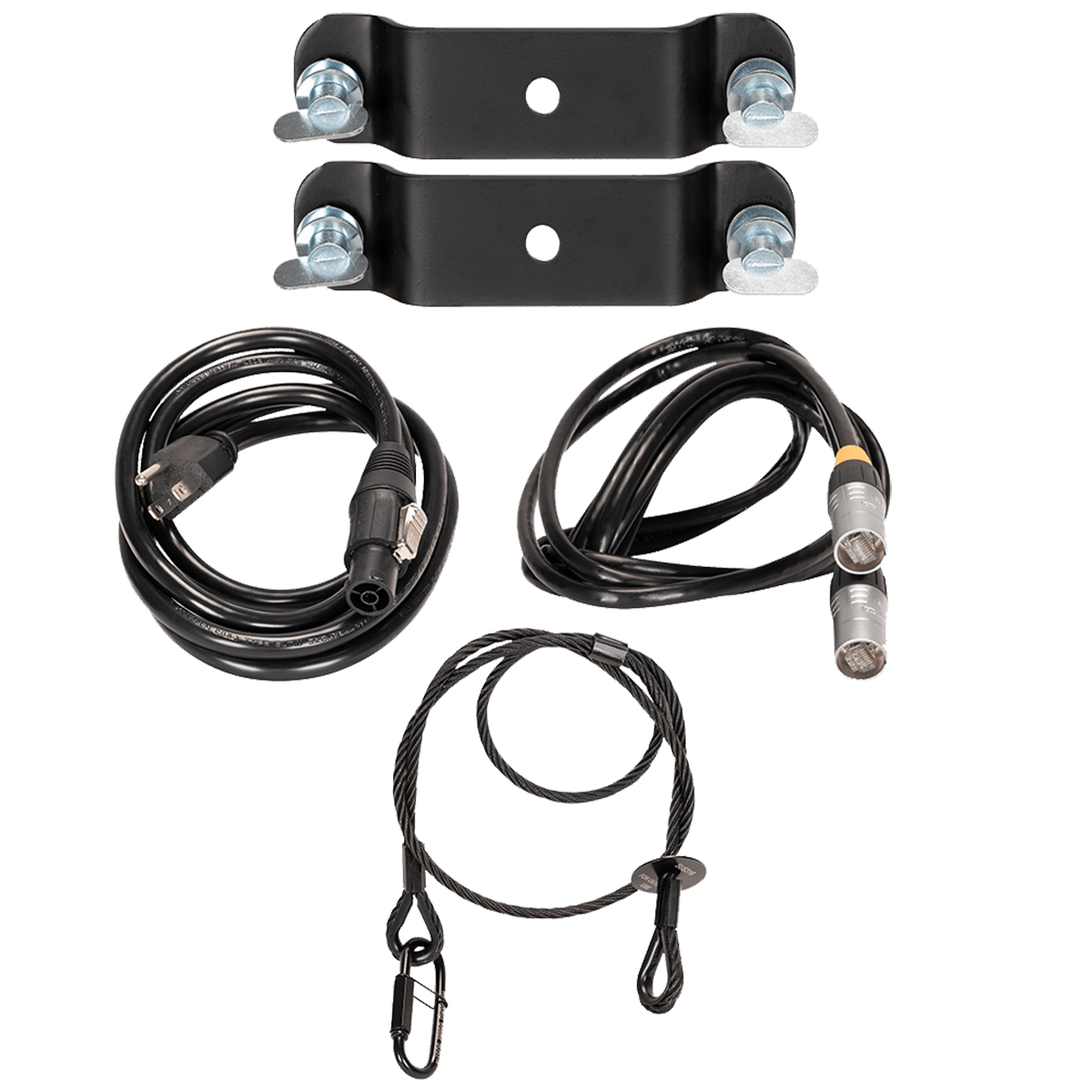

INCLUDED ITEMS

Omega Brackets (x2)

IP65 Rated Locking Power Cable

Stainless Steel Safety Wire

Foam Inlay


FIRMWARE UPDATES

Current Version: V1.5.1

Click HERE for software updates


APPROVALS / RATINGS

CE | cETLus | FCC | UKCA | IP54

How do they compare?

Find the option that is right for you and your production.

Total Lumens

20500

37000

Light Source Wattage

550W

900W

Color System
  • Cyan
  • Magenta
  • Yellow
  • Cyan
  • Magenta
  • Yellow
Framing
  • Yes
  • Yes
Zoom Range

5° - 50°

4.5° - 52°

Beam Angle

4.9° - 44.7°

4° - 48.6°

IP Rating

54

54

Weight

49.6 lbs

70.5 lbs

MAX Power Consumption

900W

1400W

Size (In Inches)

15.3 x 10.2 x 23.4

17.5 x 12.4 x 26.6
