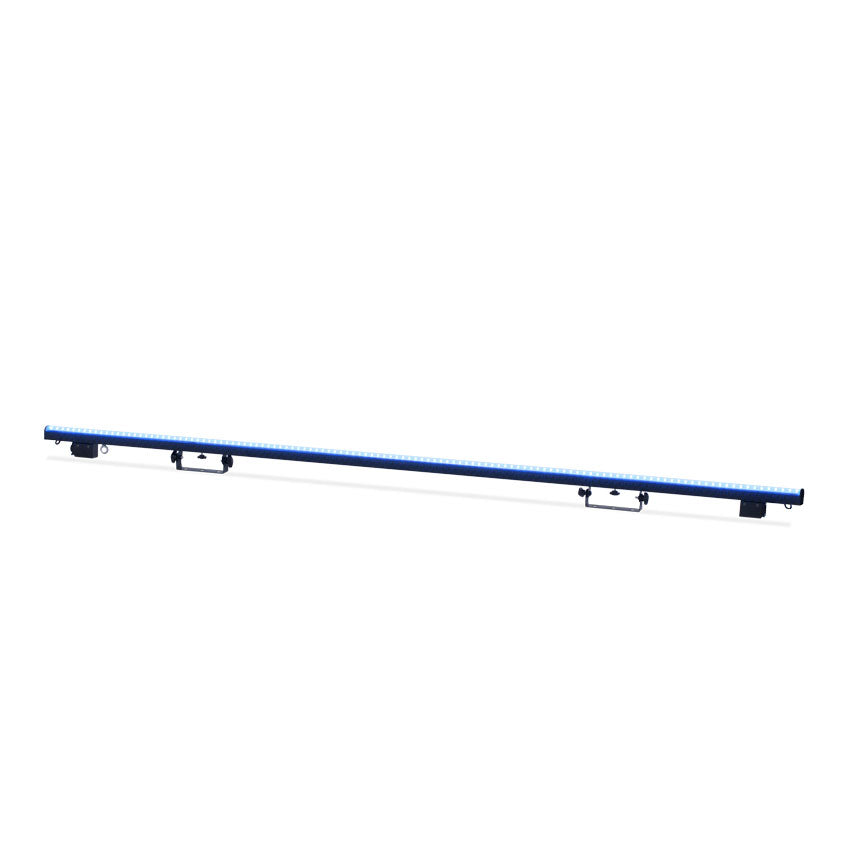

PIXEL BAR 120IP

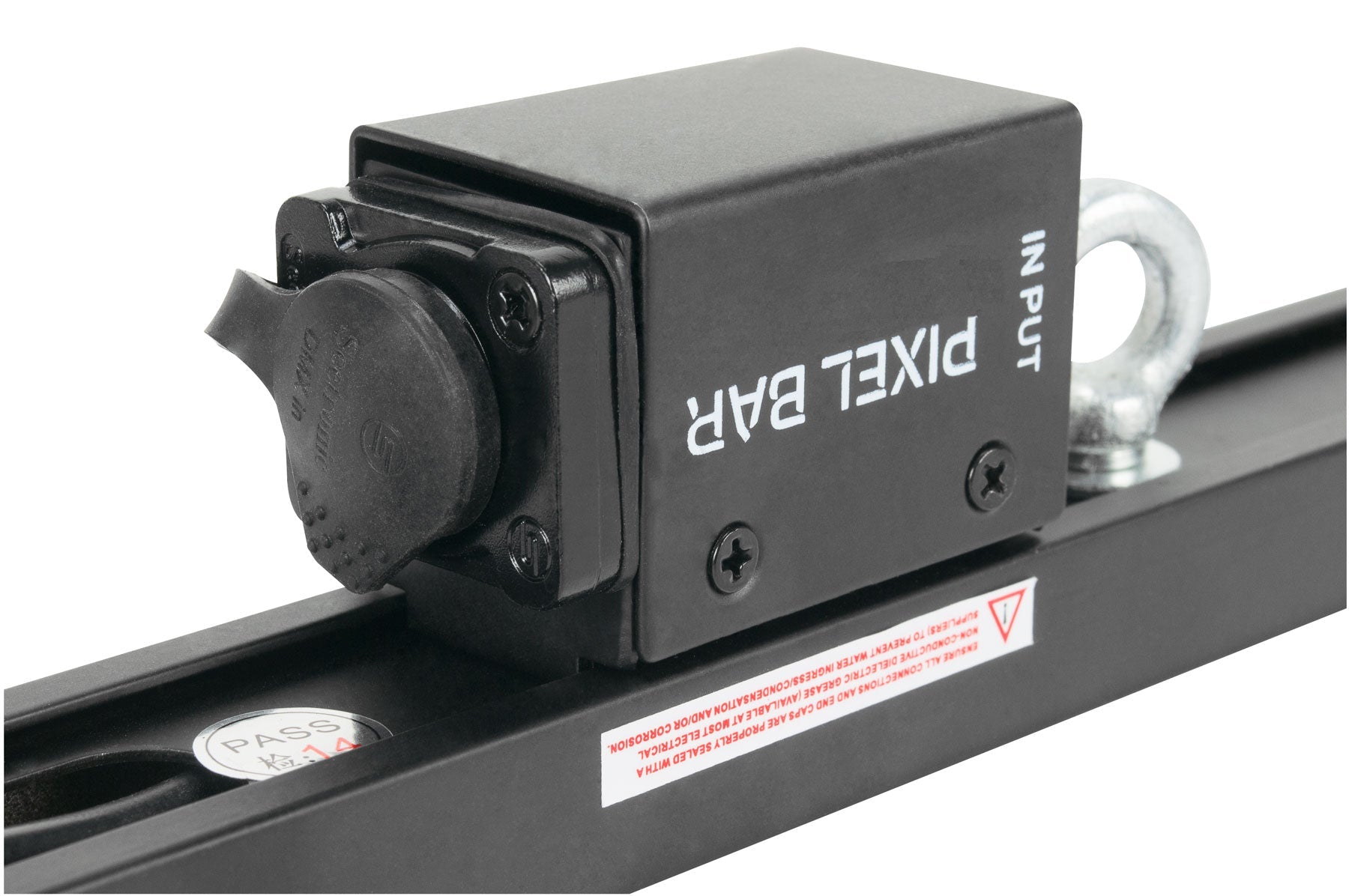

The PIXEL BAR 120IP™ is an outdoor IP65 rated LED pixel bar featuring (120) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 2 meter (6.6 feet) in length. Each pixel bar is housed in a lightweight IP65 rated aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.

Easy and versatile control options are handled by the PIXEL DRIVER 4000 V2™ and PIXEL DRIVER 1000IP™ (sold separately) which provides simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net and 680 max pixels via Art-Net and sACN (streaming ACN) protocols. Power and data are supplied via proprietary IP rated 4pin combo cables (sold separately) which are available in lengths from 2 to 50 feet.

• Outdoor IP65 Rated
• (120) RGB SMD LEDs | 2 meter / 6.6 feet
• 16mm Pixel Pitch | 44,000Hz PWM
• Flicker Free Operation for Broadcast TV and FILM

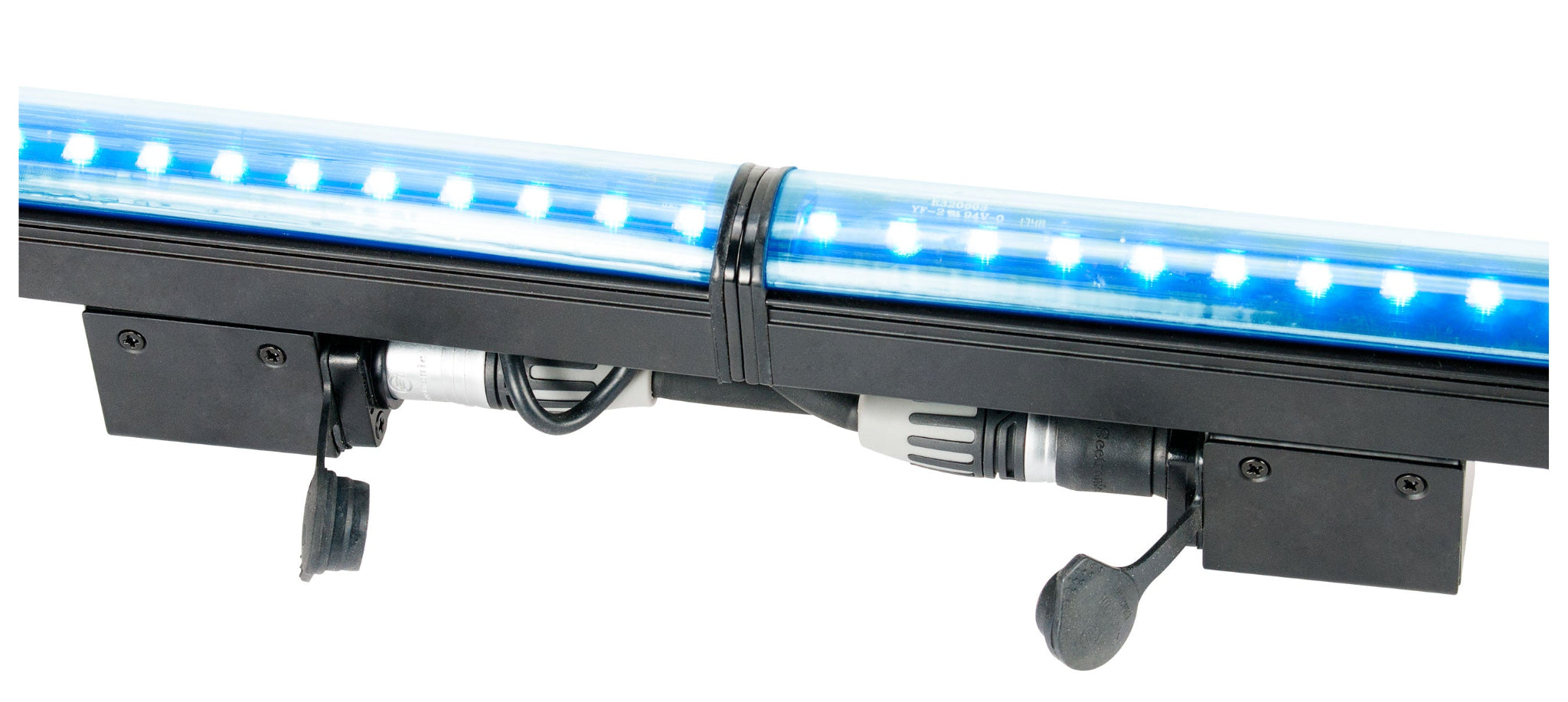

• Magnetic End Caps - Seamless End-to-End Spacing

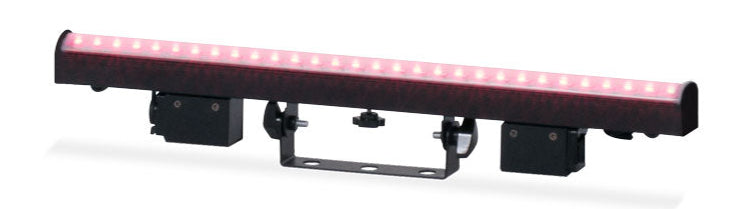

• Integrated Adjustable Mounting Brackets (x2)

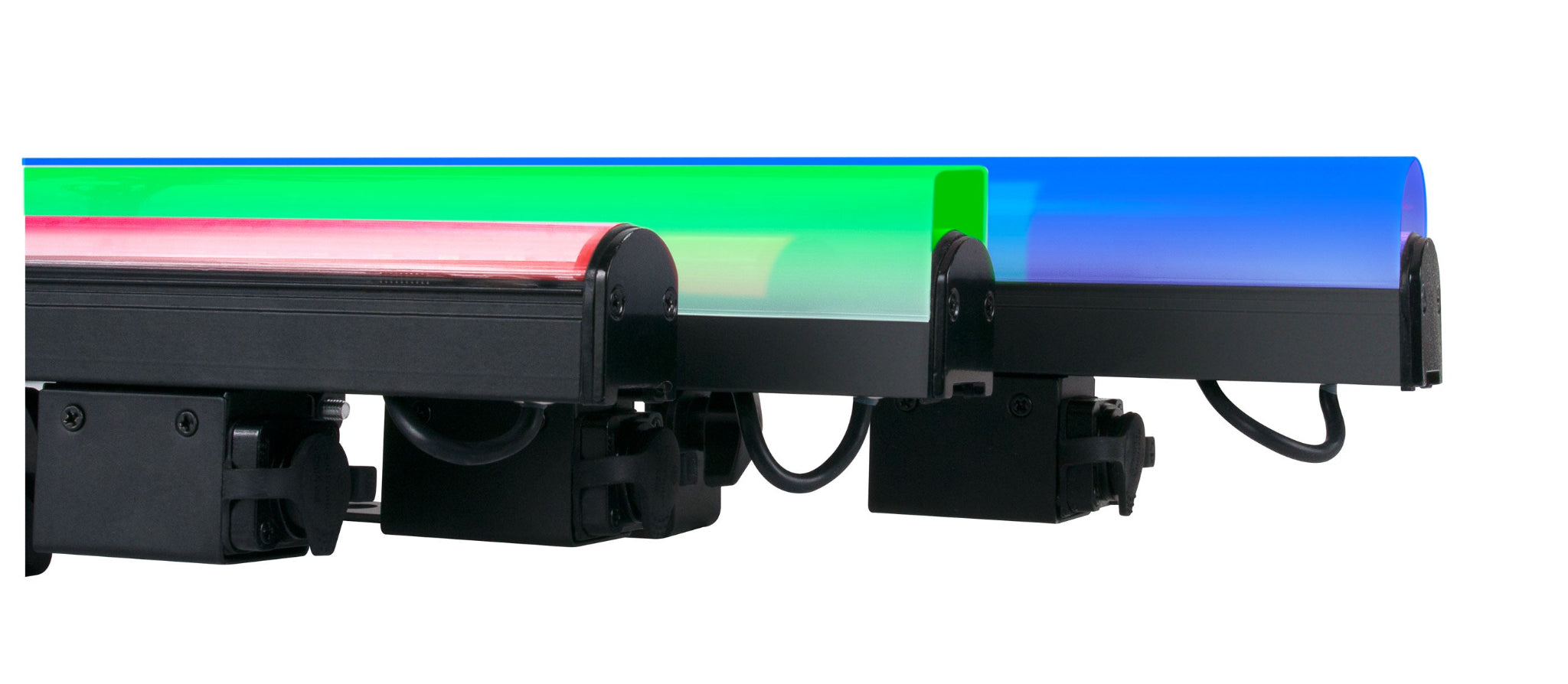

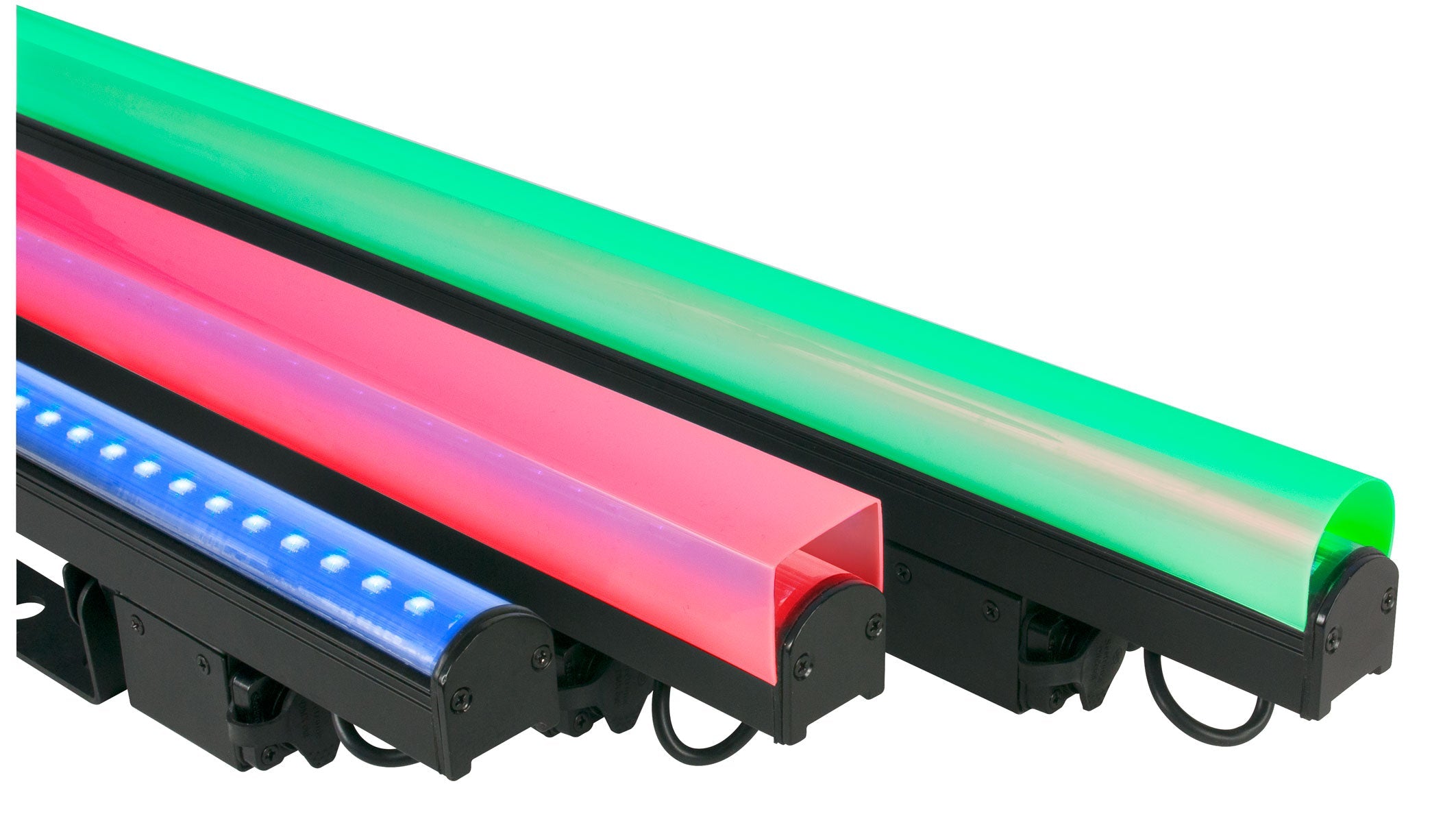

• Square and Rounded Frosted Lens Included

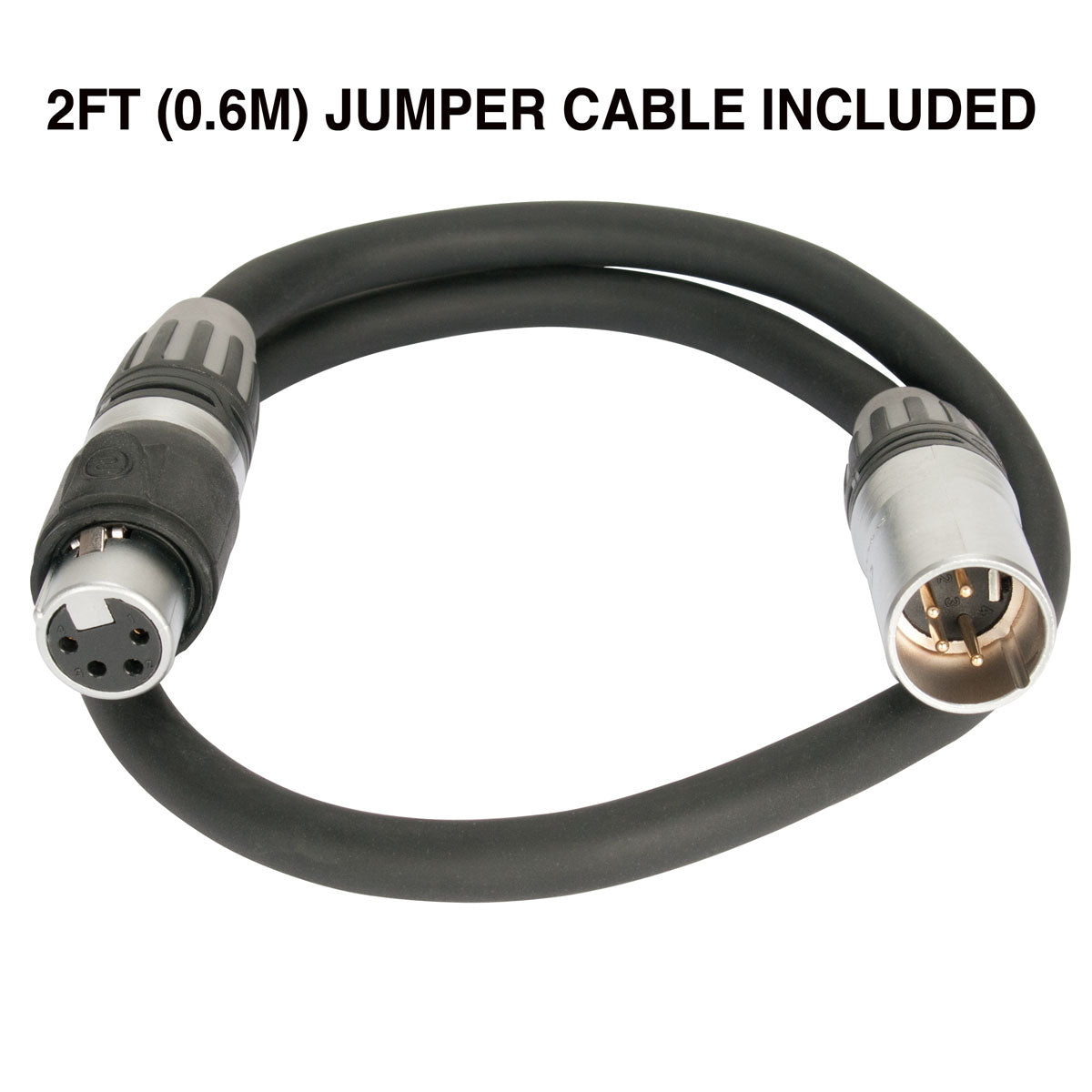

• 2ft (0.6m) Power/Data Jumper Cable included

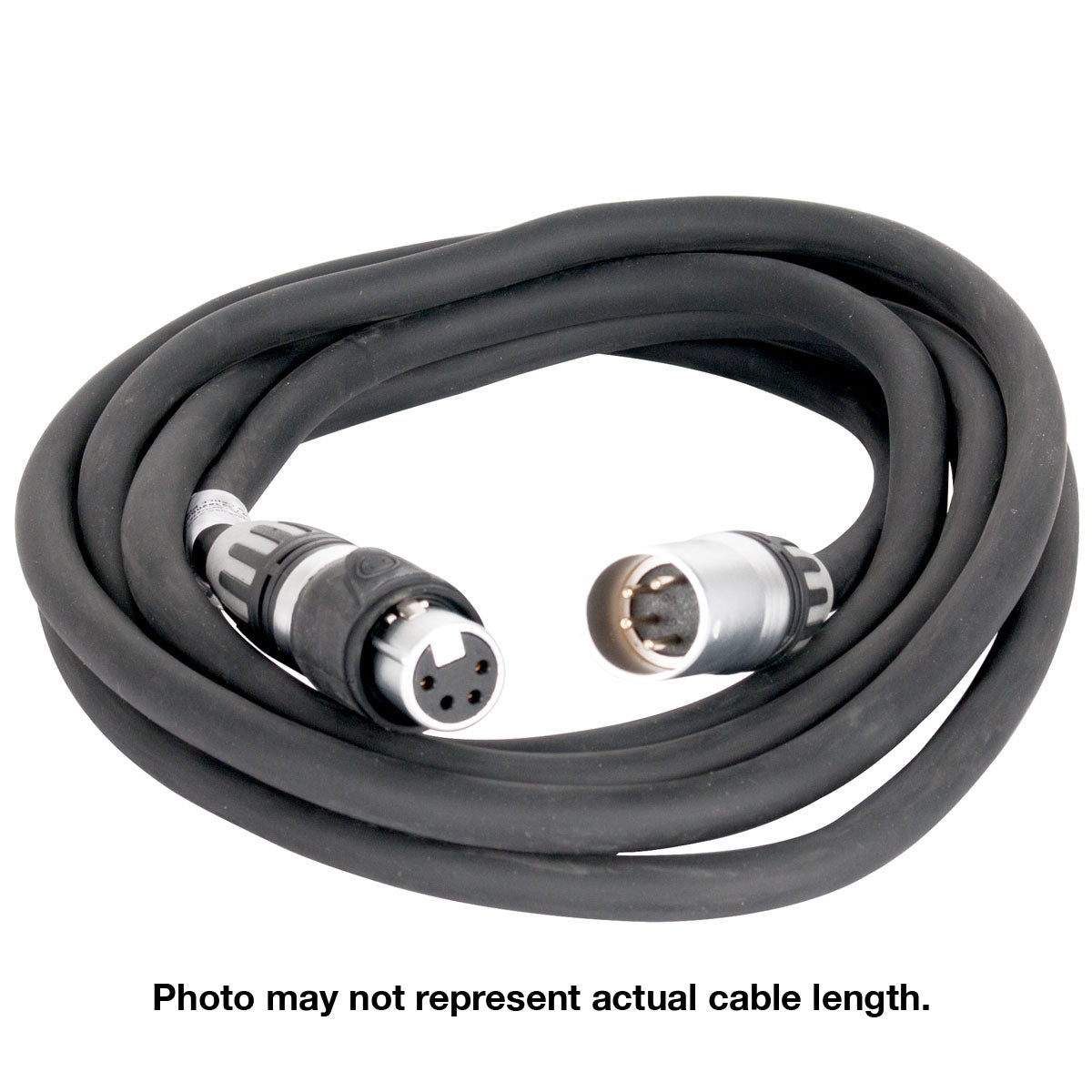

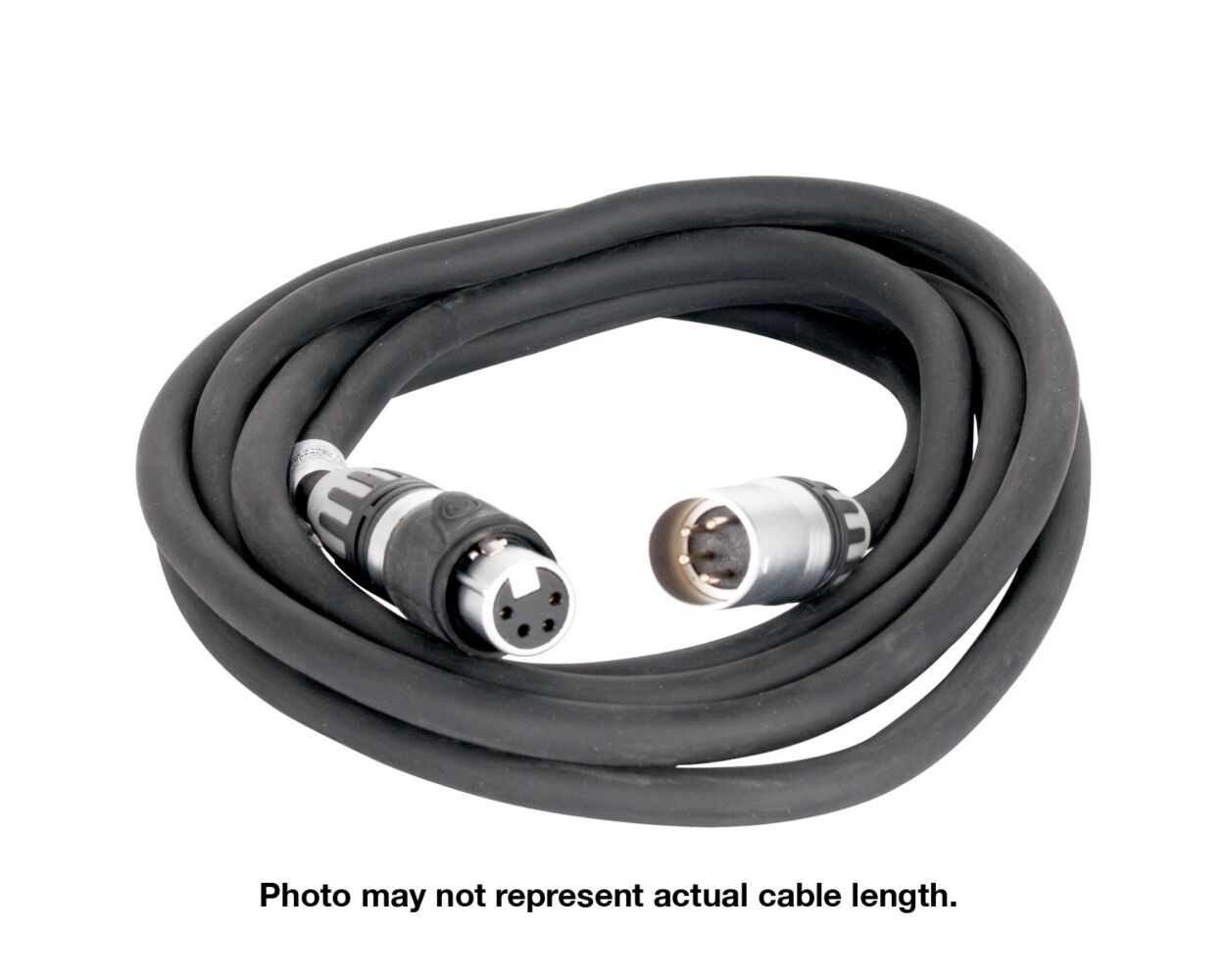

• Proprietary IP Rated Power/Data Combo Cables*
• *Available in 2/3/5/10/12/15/20/25/30/50 Foot Lengths
• PIXEL DRIVER 4000 V2™ Controller (sold separately)

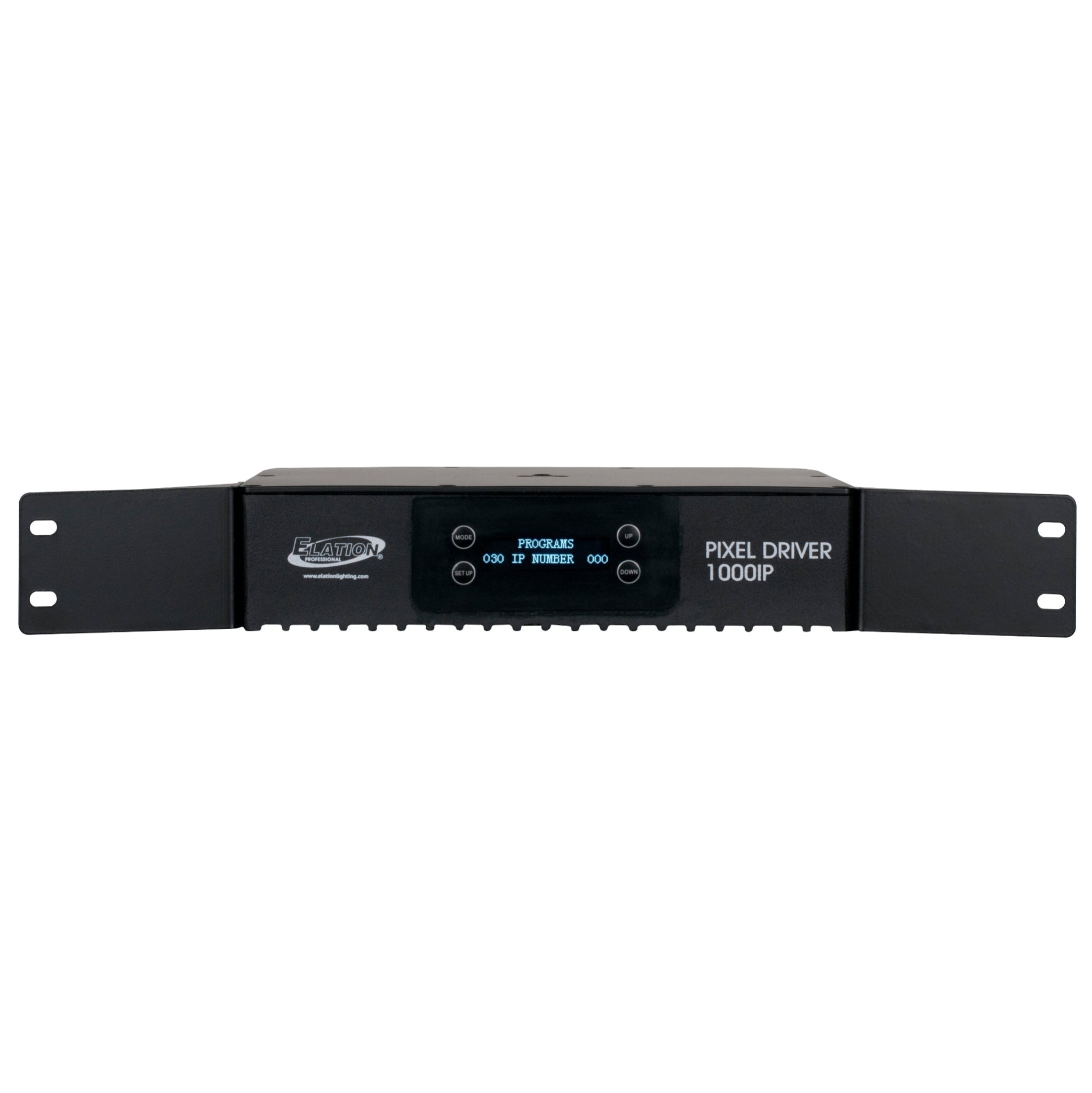

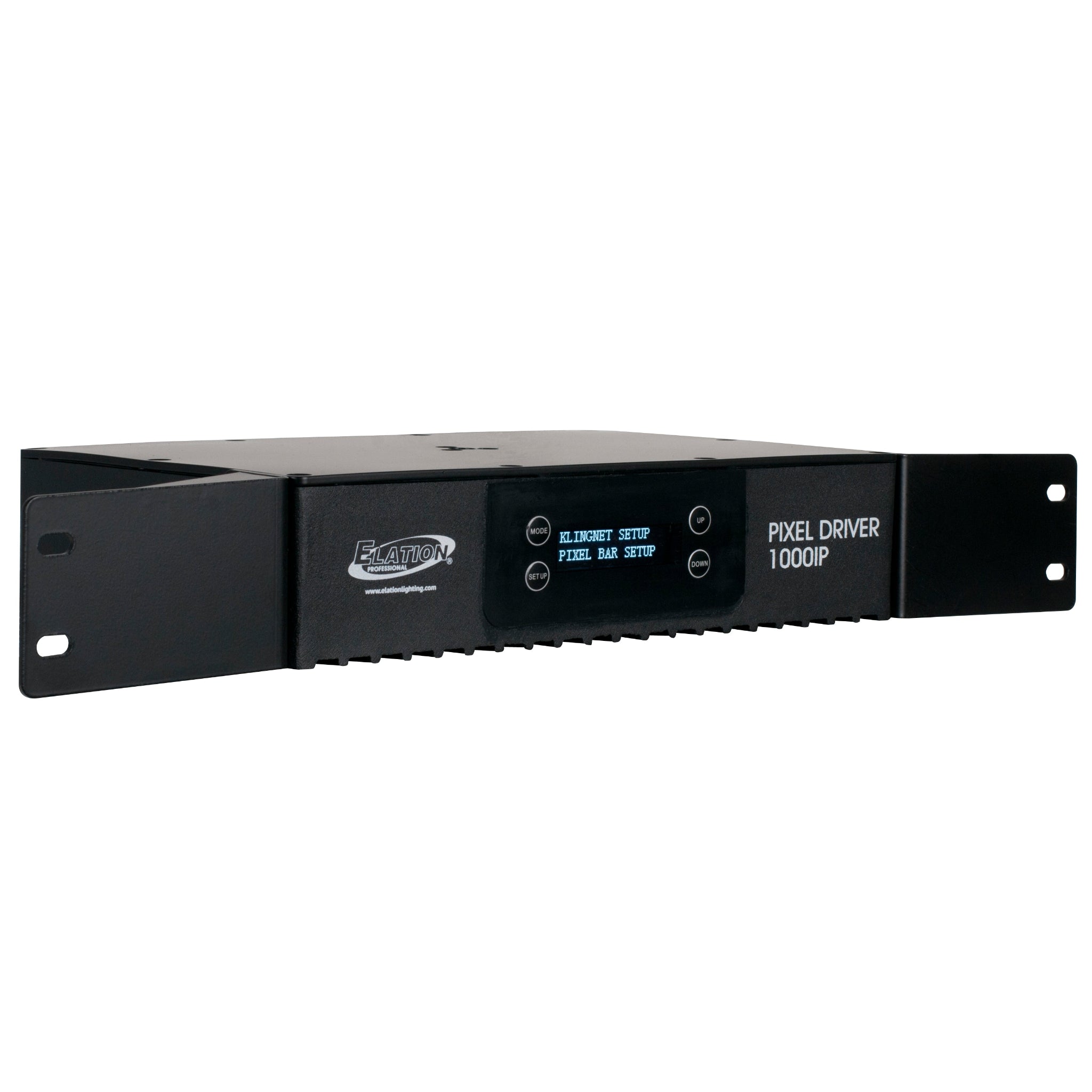

• PIXEL DRIVER 1000IP™ Controller (Sold Separately)
• Manual Dimming and Strobe Control
• Full Pixel Mapping Control
• 4,080 Pixels via Kling-Net
• 680 Pixels via Art-Net and sACN (streaming ACN)
