IP65, DMX512 LED Driver for Pixel Tape 16IP, Pixel Tape 40IP and Pixel Wash 40IP

PIXEL DRIVER 170IP is a professional-grade lighting solution. PIXEL DRIVER 170IP™ is a professional, IP65, driver specifically designed for the Elation PIXEL TAPE 16IP, PIXEL TAPE 40IP and PIXEL WASH 40IP. This driver provides simple and easy control options including a 4-button OLED Display, EL IR Remote (included), and one full universe of DMX control (170 pixels).

UPC: 810008263686SKU: PIX633

Replaced By

Related Products

PIXEL DRIVER 170IP

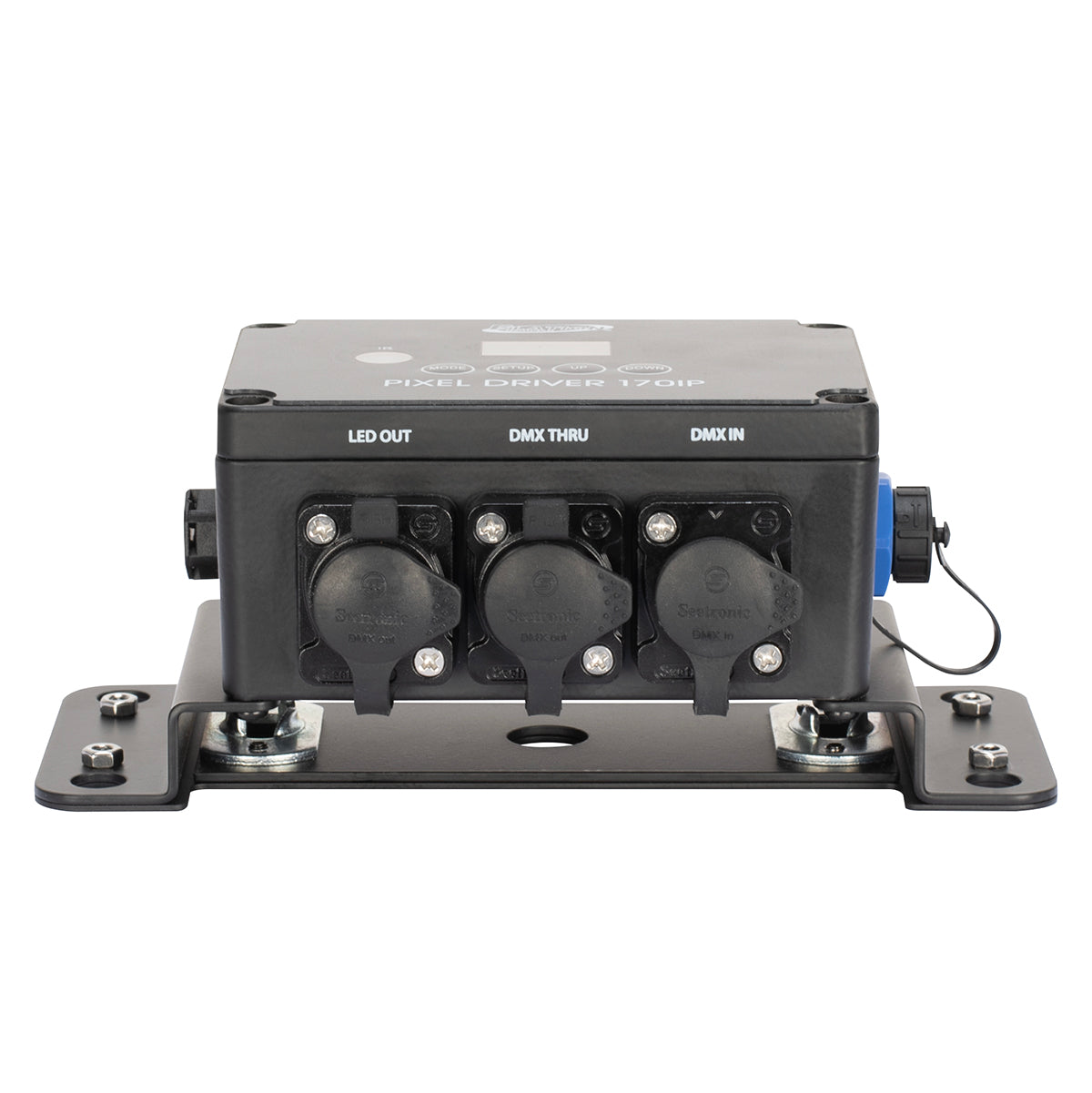

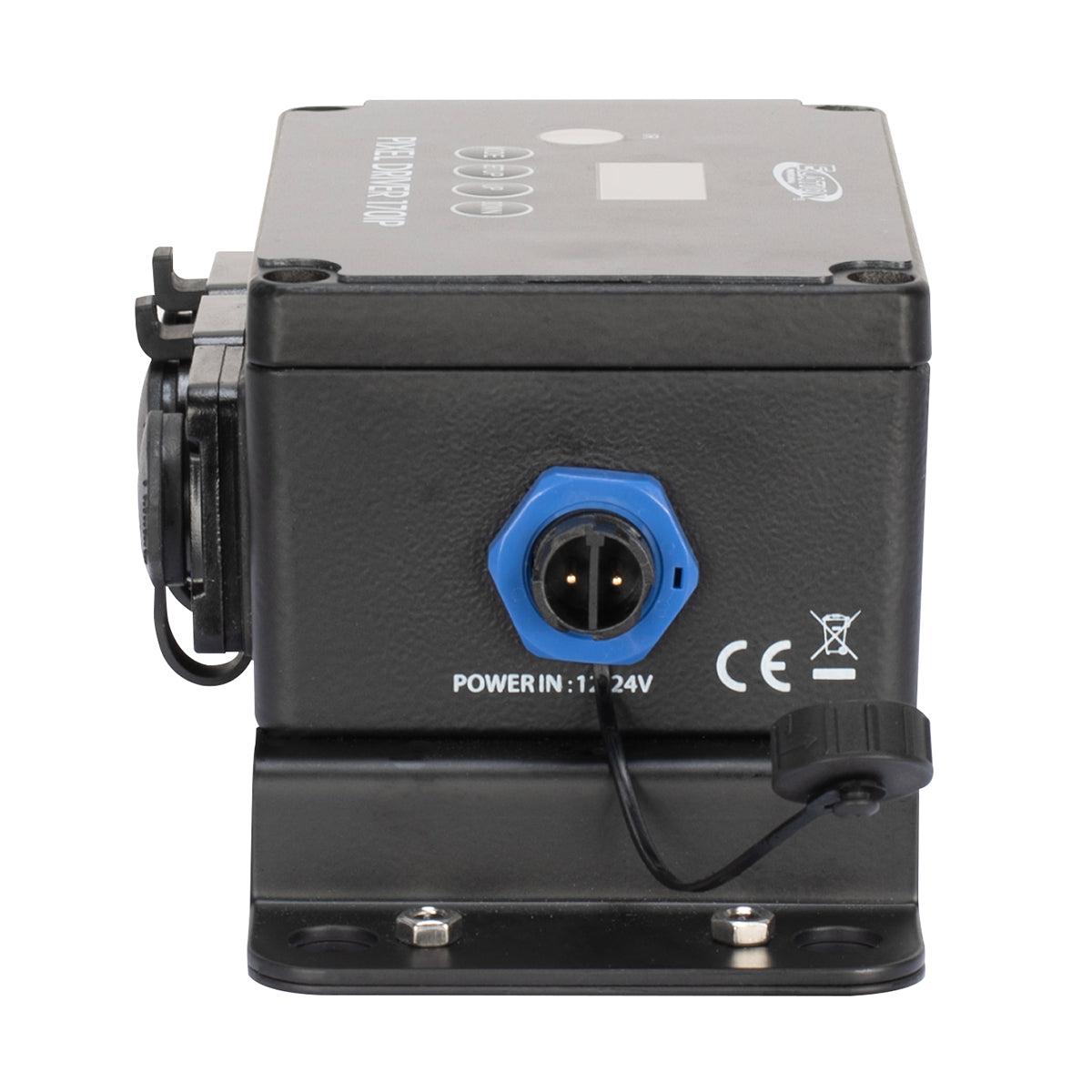

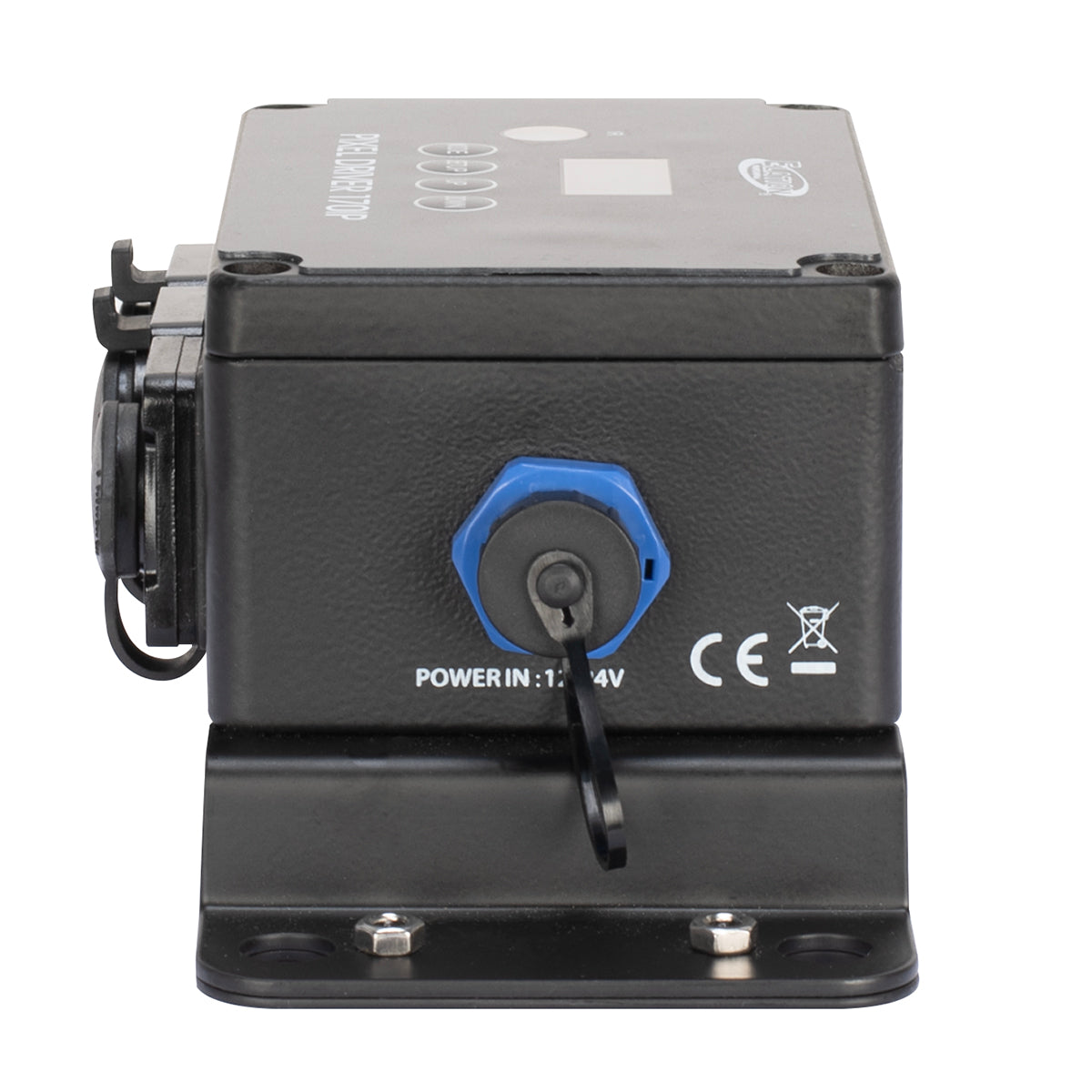

PIXEL DRIVER 170IP™ is a professional, IP65, driver specifically designed for the Elation PIXEL TAPE 16IP, PIXEL TAPE 40IP and PIXEL WASH 40IP. This driver provides simple and easy control options including a 4-button OLED Display, EL IR Remote (included), and one full universe of DMX control (170 pixels). The PIXEL DRIVER 170IP features an easy-to-use OLED display, Pixel grouping, DMX IN and OUT, a 4pin XLR connector for LED output, and a 2pin connector for 12-24VDC power IN.

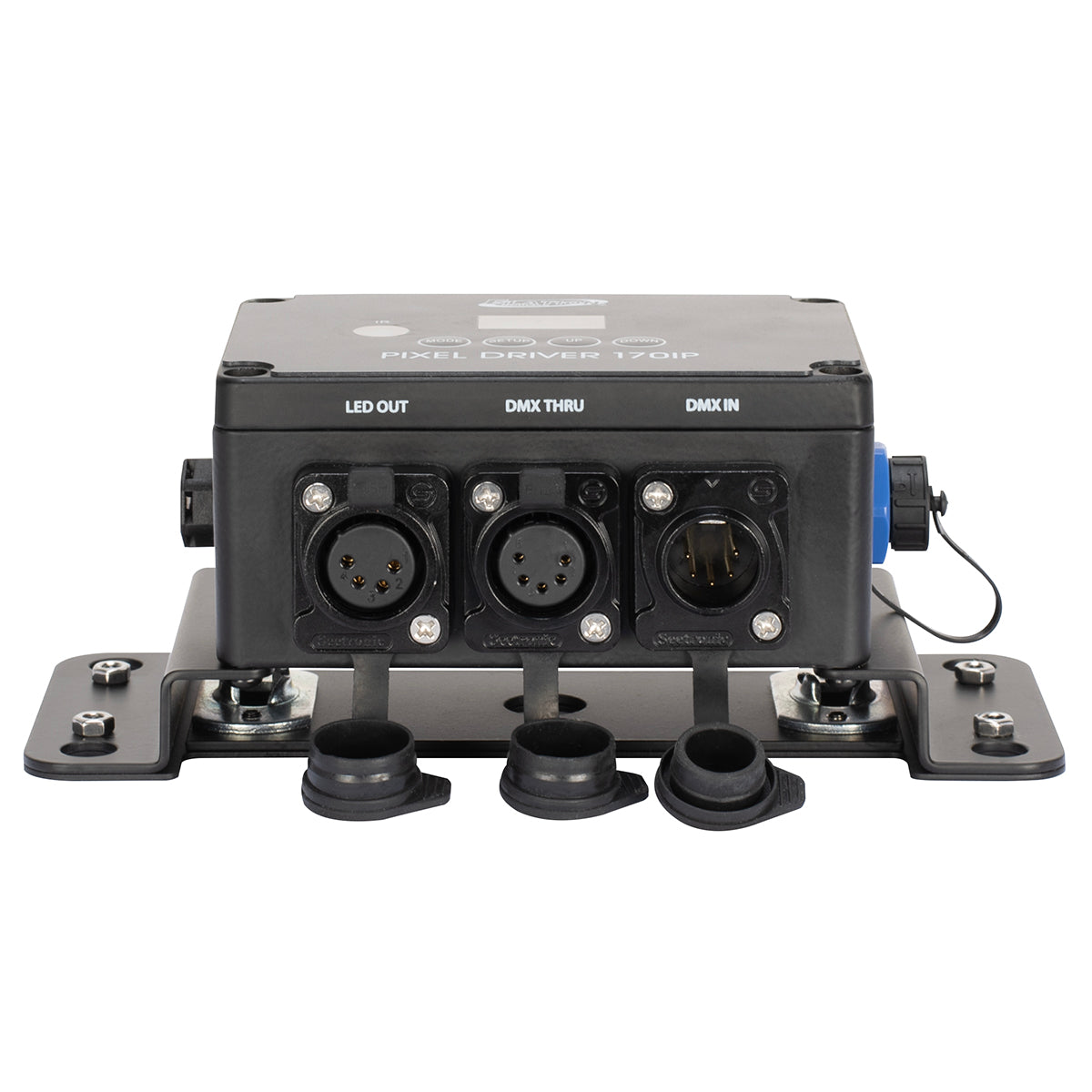

The PIXEL DRIVER 170IP™ is a professional DMX512, 12-24VDC LED driver that supports up to one full universe of DMX (170 pixels). Its small compact design allows for easy mounting and integration into any system. It features a 4-button LED control display, DMX IN and OUT 5-pin XLR connections, a 4pin XLR connector for LED output, and a 2pin connector for 12-24VDC power IN.

Specifications

CONTROL / CONNECTIONS
4-Button OLED Display
1 DMX Universe (170 Pixels)
LED Control: LED Tape or Pixel Wash 40IP
UC-IR24EL Remote (Included)
DMX Input via 5pin XLR Connector
DMX Output via 5pin XLR Connector
LED Out via 4pin XLR Connector
Hi Power Mode Off:
• control up to 8pcs Pixel Wash 40IP with the driver alone
• control up to 40pcs Pixel Wash 40IP with the use of 4pcs Pixel Amp 200
Hi Power Mode On:
• control up to 5pcs Pixel Wash 40IP with the driver alone
• control up to 25pcs Pixel Wash 40IP with the use of 4pcs Pixel Amp 200

SIZE / WEIGHT
Length: 3.68" (93.5mm)
Width: 7.38" (187.5mm)
Height (No Omega Bracket: 3" (75.7mm)

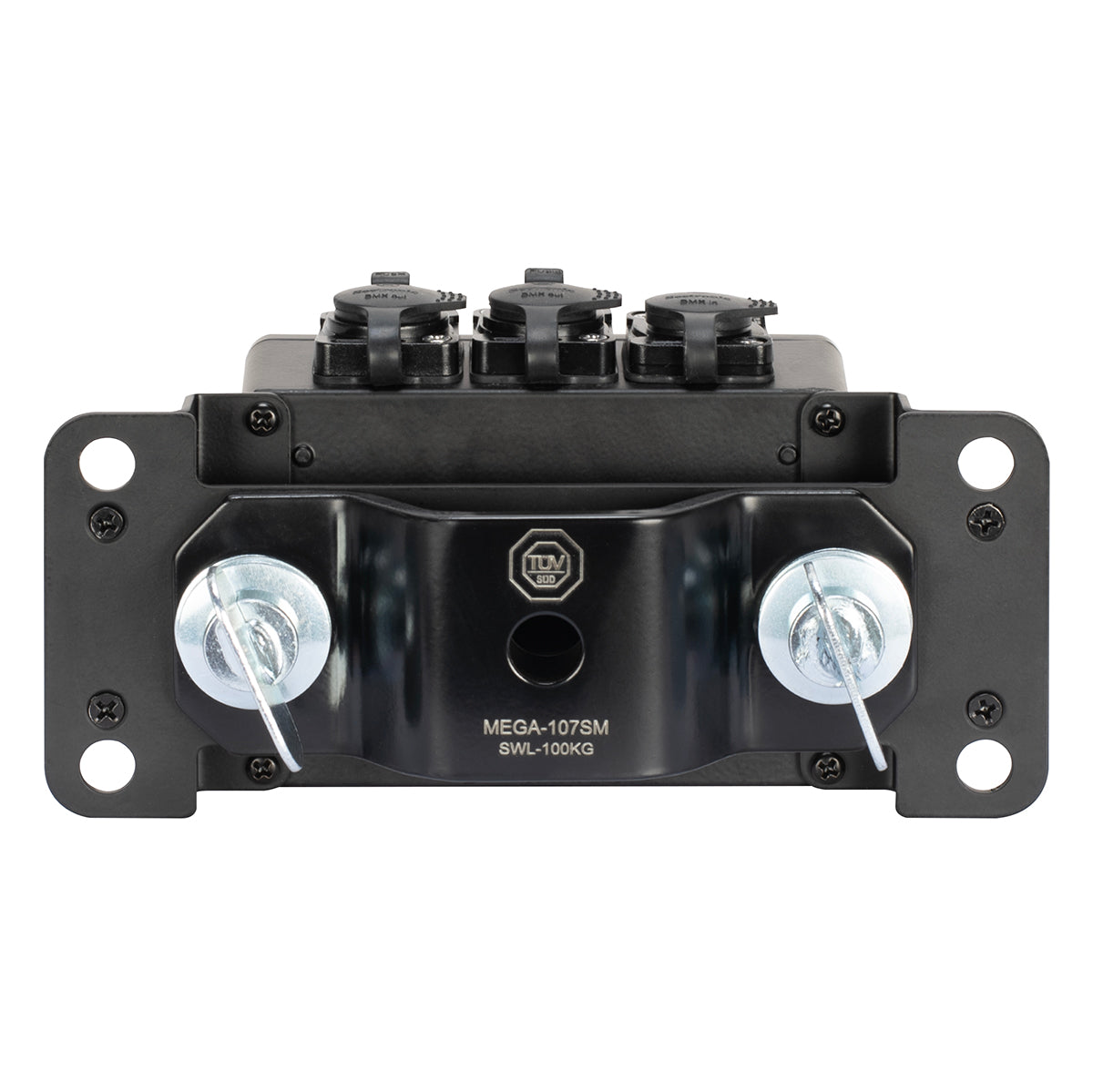

Height (With Omega Bracket: 4.4" (111.0mm)
Weight: 2.64 lbs. (1.2kgs.)

ELECTRICAL
DC Input 12-24VDC, 8.4A (Requires separate power supply)
200W Max Power Consumption

INCLUDED ACCESSORIES:
EL-IR Remote
IR Receiver Cable
2-pin Power Cable to adapt to PSU

APPROVALS / RATING
CE | RoHs |cETL (Control # 4002034 |IP65 | FCC

*Specifications are subject to change without notice.
