PIXEL TAPE 40IP
170x RGB LED Pixel Tape, IP65

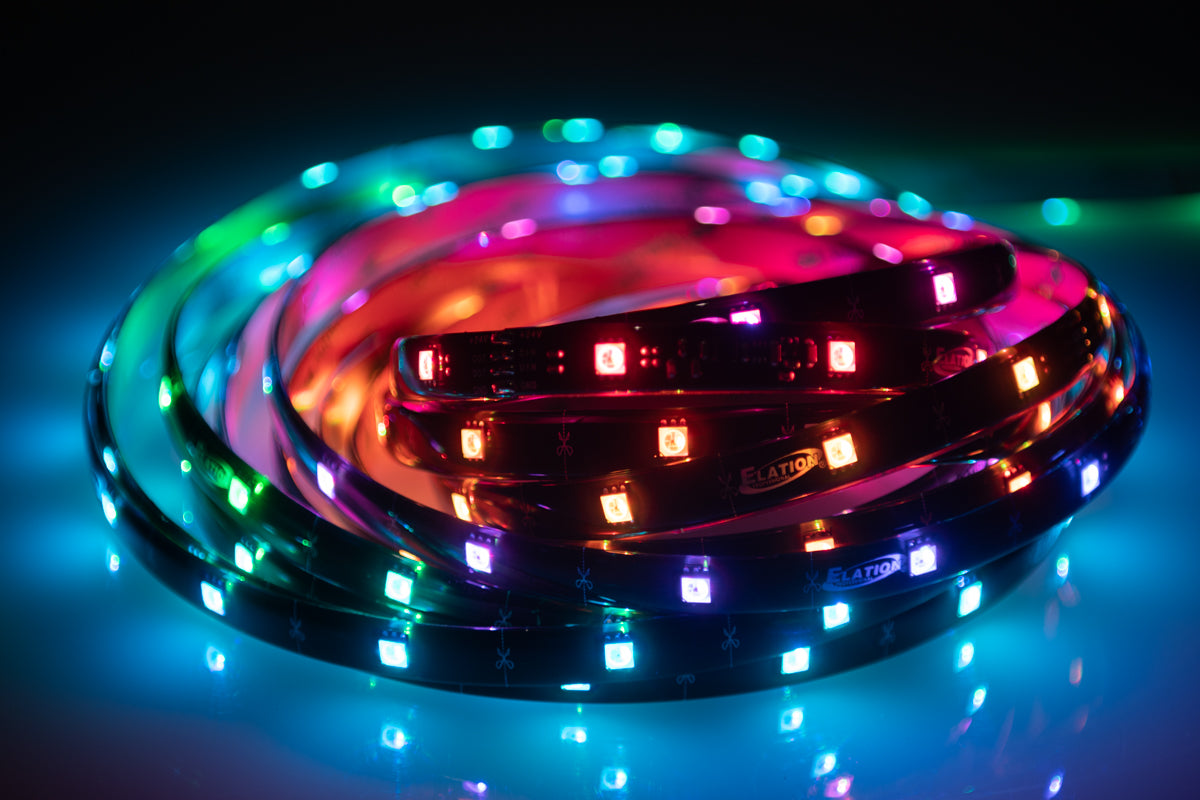

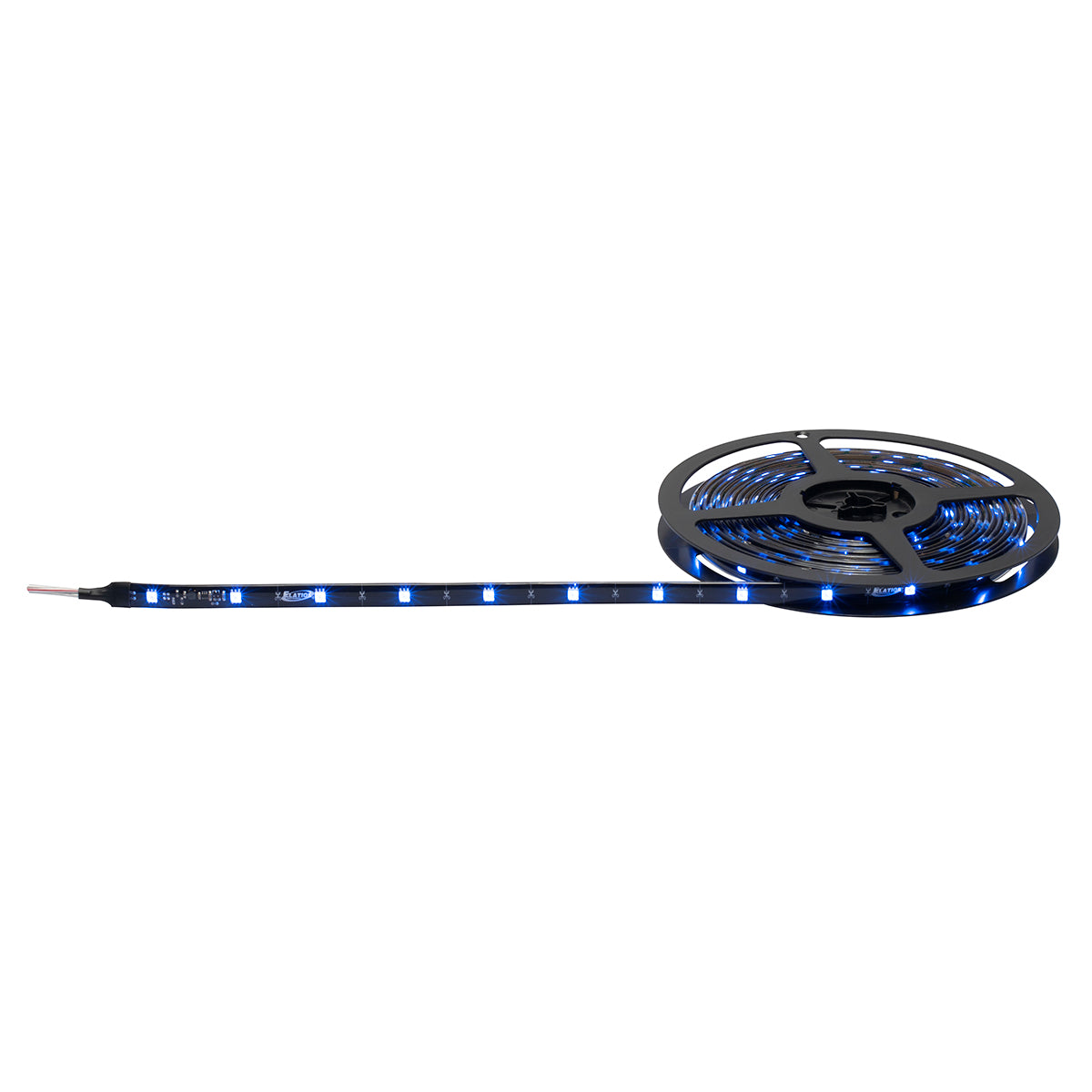

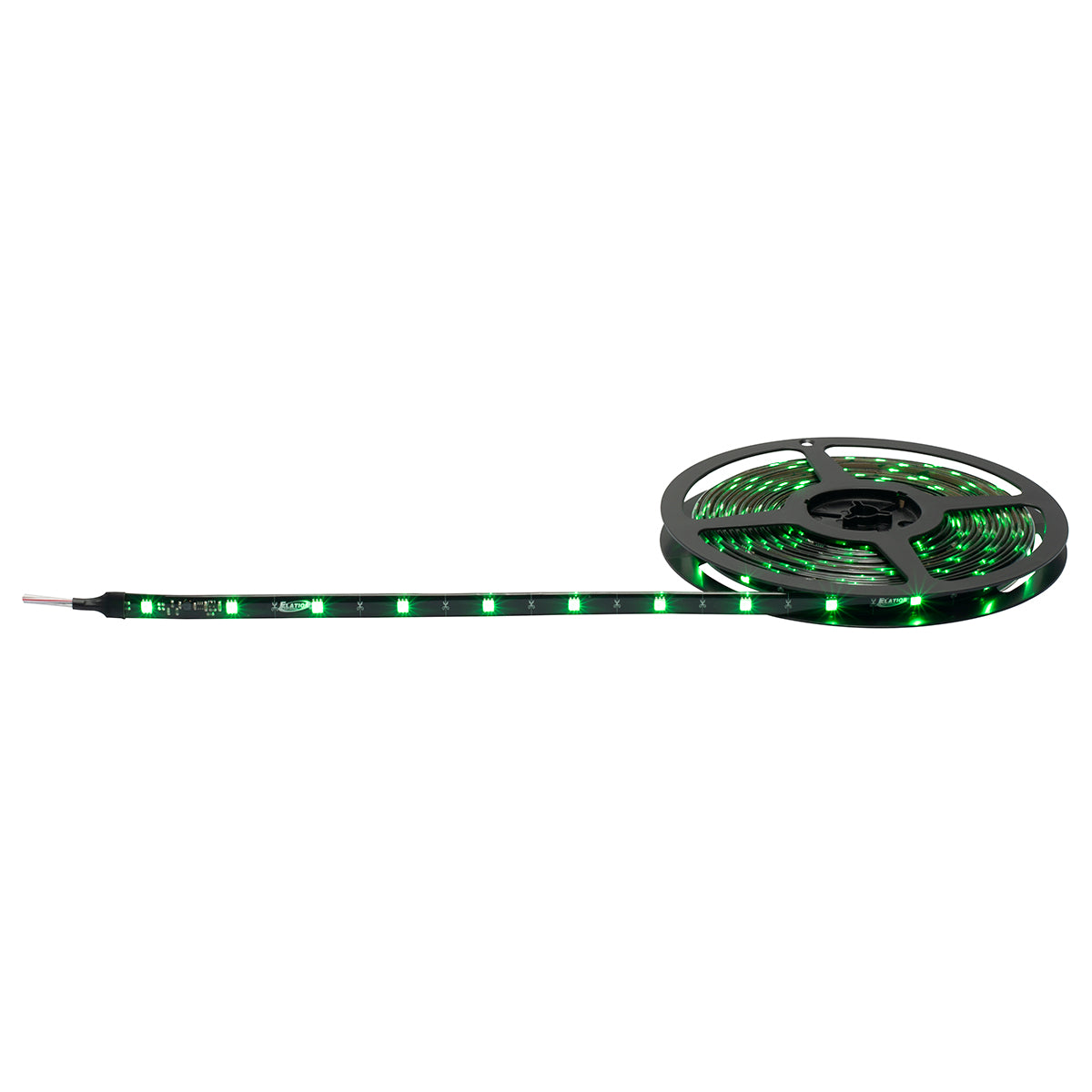

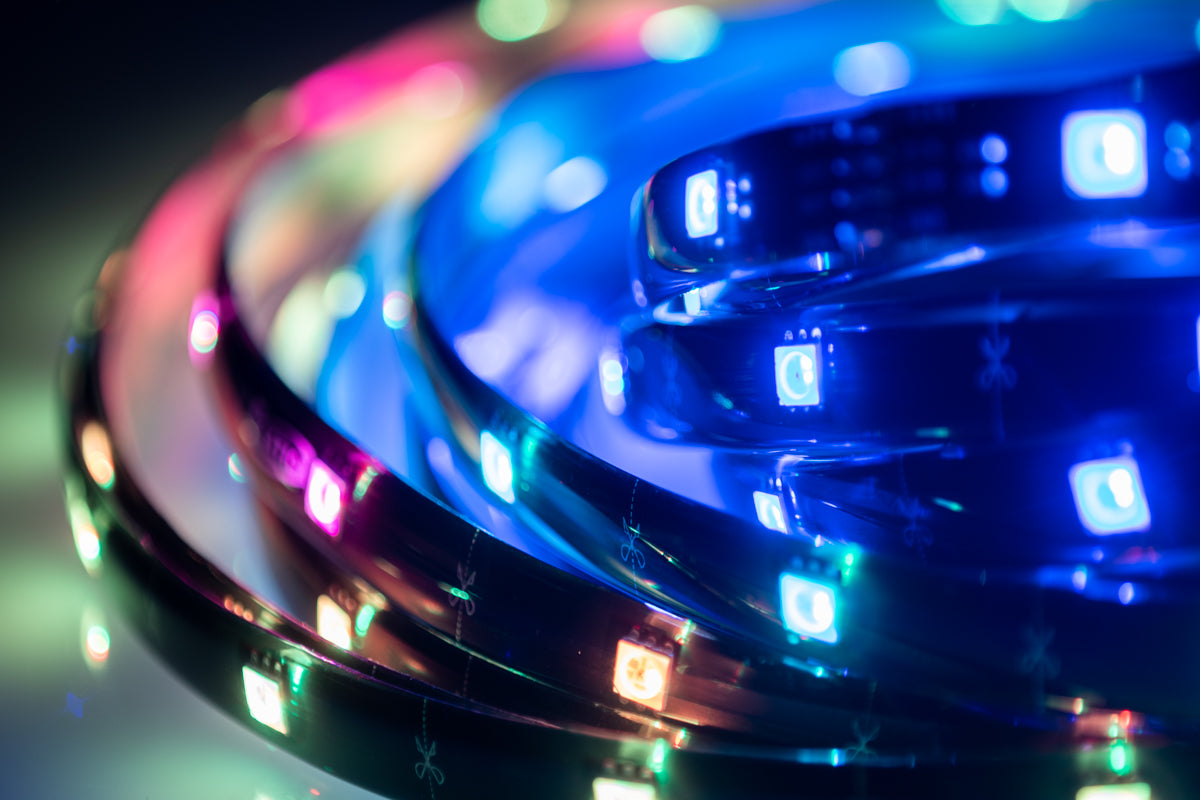

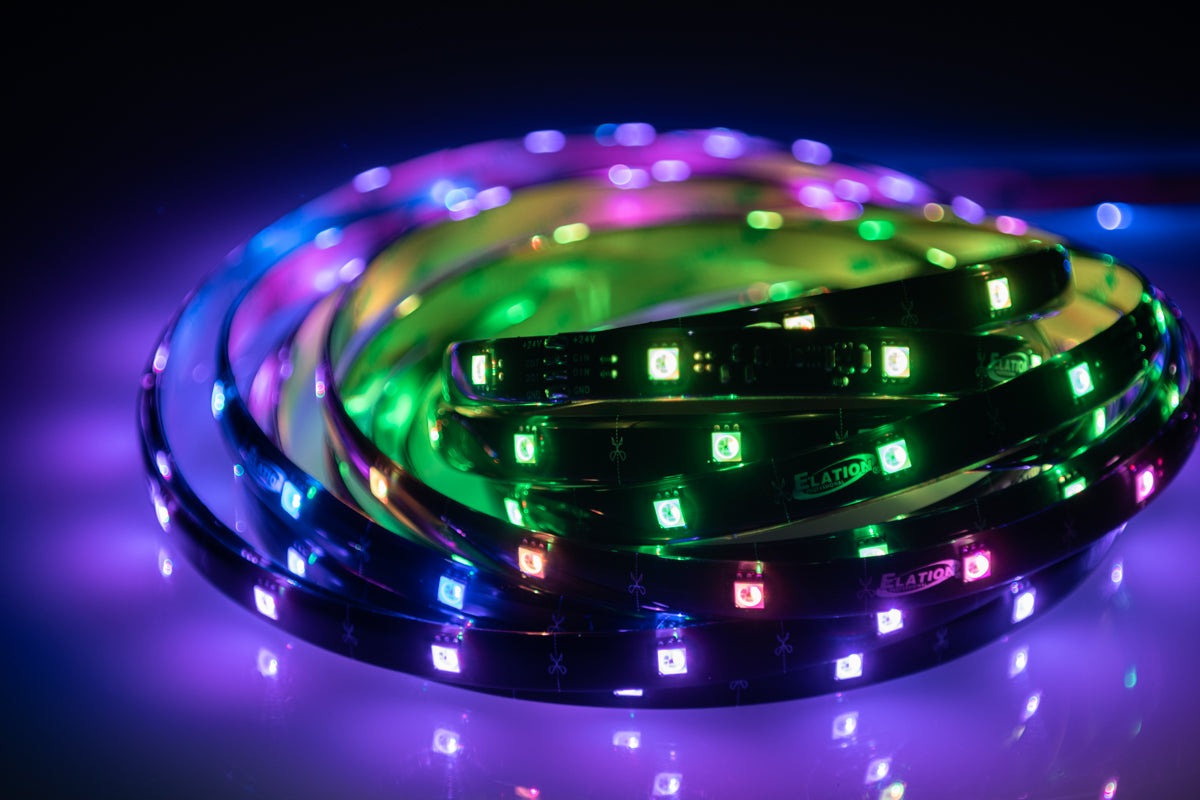

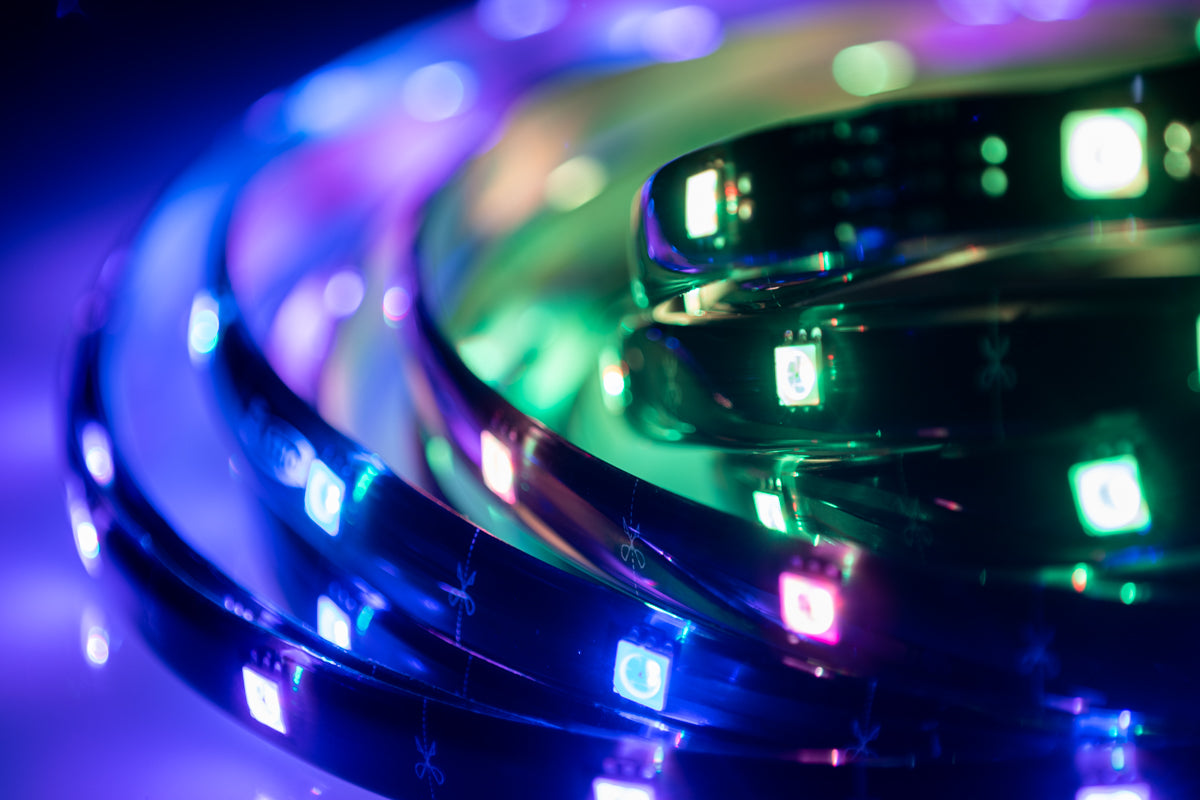

PIXEL TAPE 40IP is a professional-grade lighting solution. The PIXEL TAPE 40IP™ is an outdoor rated 22.3 foot (6.8m) flexible LED pixel tape featuring (170) RGB SMD tri-color LED pixels (510 total DMX channels) spaced on 1.6” (40mm) centers, producing over 1 billion color possibilities with a 120° viewing angle and is surface coated with an IP65 conformal coating. PIXEL TAPE 40IP can be powered and controlled using our PIXEL DRIVER 170, PIXEL DRIVER 1000IP or PIXEL DRIVER 4000 V2 control drivers.
PIXEL TAPE 40IP
The PIXEL TAPE 40IP™ is an outdoor rated 22.3 foot (6.8m) flexible LED pixel tape featuring (170) RGB SMD tri-color LED pixels (510 total DMX channels) spaced on 1.6"(40mm) centers, producing over 1 billion color possibilities with a 120° viewing angle and is surface coated with an IP65 conformal coating. PIXEL TAPE 40IP can be powered and controlled using our PIXEL DRIVER 170, PIXEL DRIVER 1000IP or PIXEL DRIVER 4000 V2 control drivers.
- IP65 Outdoor Rated Flexible LED Pixel Tape
- 22.3 foot (6.8m) Roll
- (170) RGB Tri-Color SMD LED Pixels
- (510) Total DMX Channels
- Pixels Spaced on 1.57"(40mm) Centers
- Cut Every 2.44"(62mm)
- 120° Viewing Angle
- 475 Lumens
- Over 1 Billion Color Possibilities
Specifications
- SMD RGB 3-in-1, APA-102C LEDs
- Color Resolution: 8 bits per color (24 bit per pixel)
- Viewing Angle: 120 x 120 degrees
- Pixels Per Fixture: 60 pixels
- Pixel Pitch (pixel center-to-center) 16.5mm
- PWM (Pulse Width Modulation): 44,000Hz
- 50,000 Hours Life
- 4-pin Power/Data Input amp; Output
- Length: 36.4” (924mm)
- Width: 1.3” (32mm)
- Height: 3.1” (79mm)
- Weight: 2.0 lbs. (1.2kg)
- DC24V
- Max Power Consumption: 12W
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-30°C to 45°C)
- CE
- cETLus (Pending)
- FCC
- IP65
- Round clear cover (x1)
- 10.6" (0.27m) 4-pin Power/Data Cable (x1)
- Adapter Bracket (x1)
