PLATINUM 1200 WASH
Platinum 1200 Wash is a professional-grade lighting solution.
PLATINUM 1200 WASH

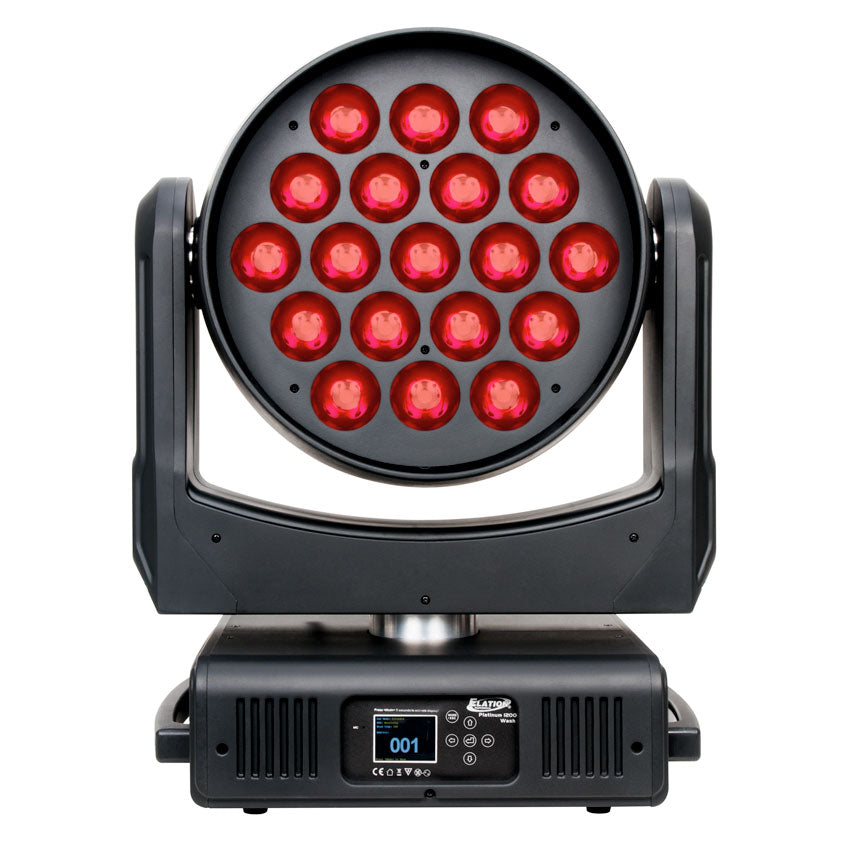

The Platinum 1200 Wash™ is an extremely bright LED color wash moving head luminaire with (19) 60W Osram™ multi-chip RGBW LEDs, which produces color washes on par with 1500W discharge fixtures. Features include 8° to 77° motorized zoom, advanced cooling and movement control, 8/16-bit color mixing, full pixel and pixel ring control, adjustable linear color temperature (2,700K - 8,000K), electronic strobe, pulse, and selectable dimming curve effects, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, powerCON 32A power in, 5pin XLR and RJ45 etherCON in/out connections, (6) button control full color 180° reversible menu display, and a multi-voltage universal auto switching power supply (100-240v).
- High Power RGBW Color Wash Moving Head Luminaire
- Color Output on Par with 1500W Discharge Fixtures

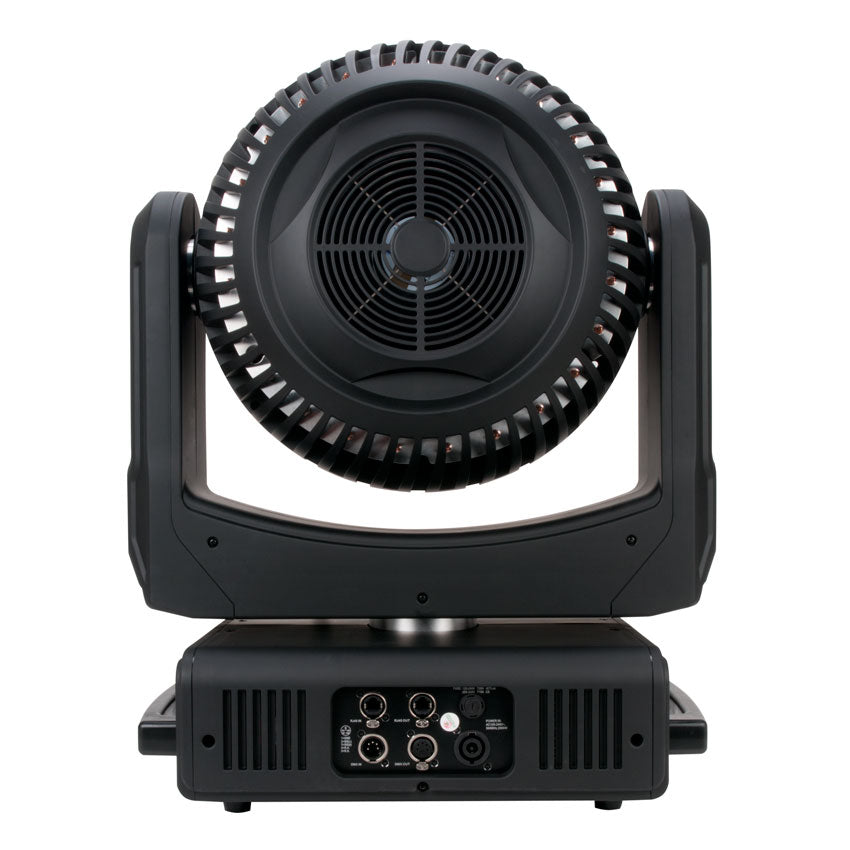

- Advanced Cooling and Movement Control Systems
- (19) 60W Osram™ Multi-Chip LEDs (RGBW)
- 8° - 77° Beam Angle Zoom
- RGBW Color Mixing, Full Pixel and Pixel Ring Control
- Linear Color Temperature Presets (2,700 - 8,000K)
- Color-Pixel Ring, Color Preset, and Chase Macro Effects
- Electronic Strobe and Selectable Dimming Curve Modes
- Adjustable LED Refresh Rate Frequency and GAMMA
- Flicker Free Operation for TV and FILM
- DMX, RDM, Art-NET, and sACN Protocol Support
Specifications
(19) 60W Osram™ Multi-Chip LEDs
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
41,730 LUX 3,877 FC @16.4 ft (5m) (8° Min Zoom) Full ON
3,637 LUX 338 FC @16.4 ft (5m) (77° Min Zoom) Full ON
EFFECTS
8° - 77° Beam Angle Zoom
Linear Color Temperature Presets (2,700 - 8,000K)
RGBW Color Mixing, Full Pixel and Pixel Ring Control
Color-Pixel Ring, Color Preset, and Chase Macros
Electronic Strobe and Selectable Dimming Curve Modes
COLOR
RGBW
CONTROL / CONNECTIONS
(3) DMX Channel Modes (93 total channels)
Adjustable Refresh Rate (900-25,000 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
(6) Button Touch Control Panel
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Full Color 180° Reversible LCD Menu Display
5pin XLR DMX In/Out
RJ45 etherCON In/Out
powerCON 32A Power In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 21.0” (533mm)
Width: 16.1” (410mm)
Vertical Height: 25.9” (658mm)
Weight: 86.0 lbs. (39 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
2000W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | IP20
Specifications and documentation subject to change without notice.
