PLATINUM BX
Discontinued
Platinum BX is a professional-grade lighting solution.
PLATINUM BX
Sale price$0.00
PLATINUM BX
The Platinum BX™ is a powerful beam luminaire featuring the new Phillips™ MSD Platinum 17 RA 350W, 6,900K, 85CRI lamp, 15,000 total lumens, delivering extreme output and speed, 3° beam, 10 dichroic colors including UV, CTO, CTB, plus white, 8 rotating interchangeable indexing and 13 static-stamped indexing gobos, rotating 8-facet prism, frost filter, 5pin DMX, powerCON, and RJ45 ethernet (Art-NET) in/out connections, (6) button control full color 180° reversible menu display, 575W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
- Powerful 3° Beam
- Extreme Output and Speed
- CTO & CTB Color Correction
- 8-Facet Rotating Prism
- Art-NET (DMX Over Ethernet) Support
Specifications
SOURCE
Phillips™ MSD Platinum 17 RA 350W Lamp
1,500 Hour Average Lamp Life
PHOTOMETRIC DATA
15,000 Total Lumens, 6,900K, 85CRI
219,400 LUX 20,382 FC @49.2’ (15m) (3° Full ON)
129,400 LUX 12,021 FC @65.6’ (20m) (3° Full ON)
84,680 LUX 7,867 FC @82’ (25m) (3° Full ON)
EFFECTS
8-Facet Rotating Prism and 16 Prism Macros
Frost Filter
Strobe: 1-18fps
Dimming: 0% - 100%
COLOR
10 Dichroic Colors Including UV, CTB, CTO, + White
GOBOS
(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Gobos
(13) Static-Stamped / Indexing Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (14 / 16 / 22)
RDM (Remote Device Management)

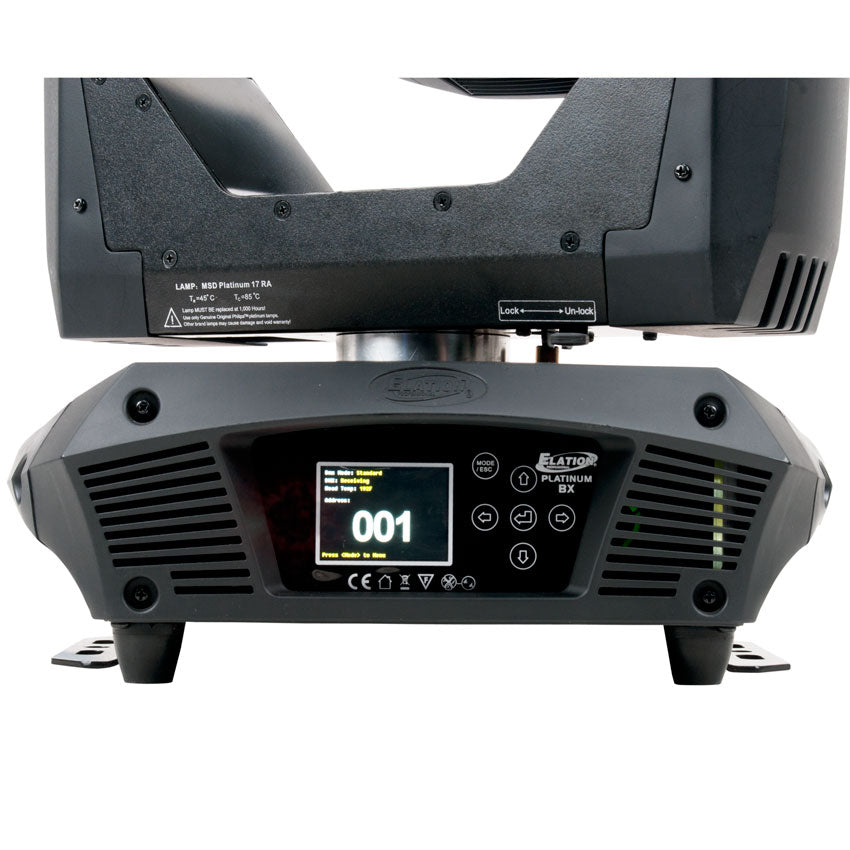

6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

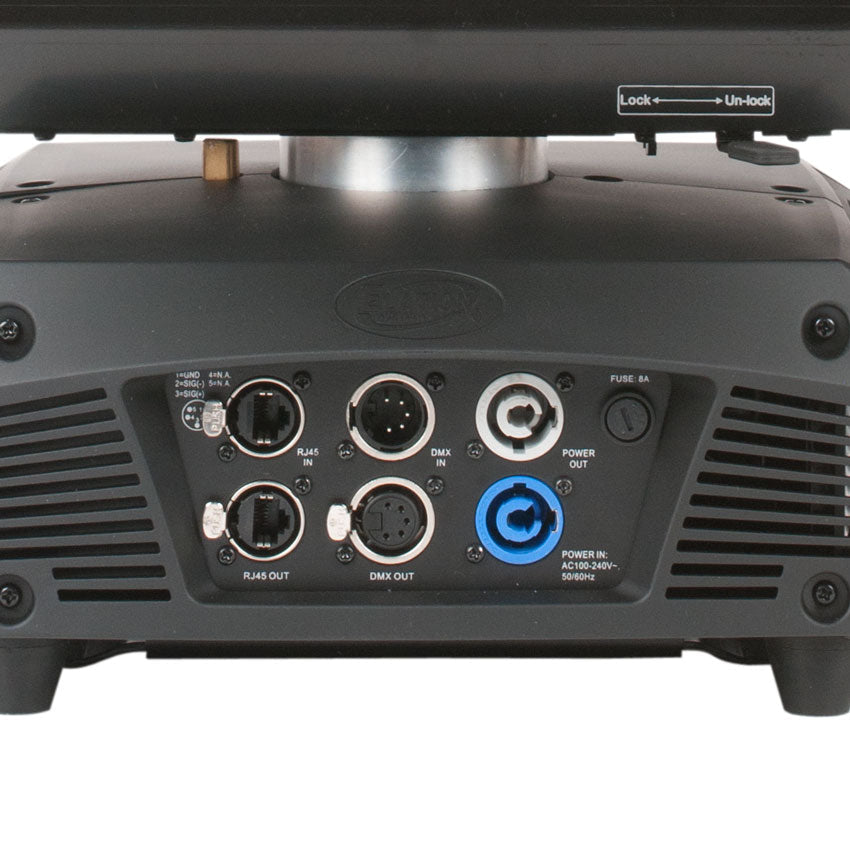

5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
powerCON Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.97” (380.2mm)
Width: 14.58” (370.3mm)
Vertical Height: 23.13” (587.5mm)
Weight: 60.0 lbs. (27 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
575W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
Phillips™ MSD Platinum 17 RA 350W Lamp
1,500 Hour Average Lamp Life
PHOTOMETRIC DATA
15,000 Total Lumens, 6,900K, 85CRI
219,400 LUX 20,382 FC @49.2’ (15m) (3° Full ON)
129,400 LUX 12,021 FC @65.6’ (20m) (3° Full ON)
84,680 LUX 7,867 FC @82’ (25m) (3° Full ON)
EFFECTS
8-Facet Rotating Prism and 16 Prism Macros
Frost Filter
Strobe: 1-18fps
Dimming: 0% - 100%
COLOR
10 Dichroic Colors Including UV, CTB, CTO, + White
GOBOS
(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Gobos
(13) Static-Stamped / Indexing Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (14 / 16 / 22)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
powerCON Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.97” (380.2mm)
Width: 14.58” (370.3mm)
Vertical Height: 23.13” (587.5mm)
Weight: 60.0 lbs. (27 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
575W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
